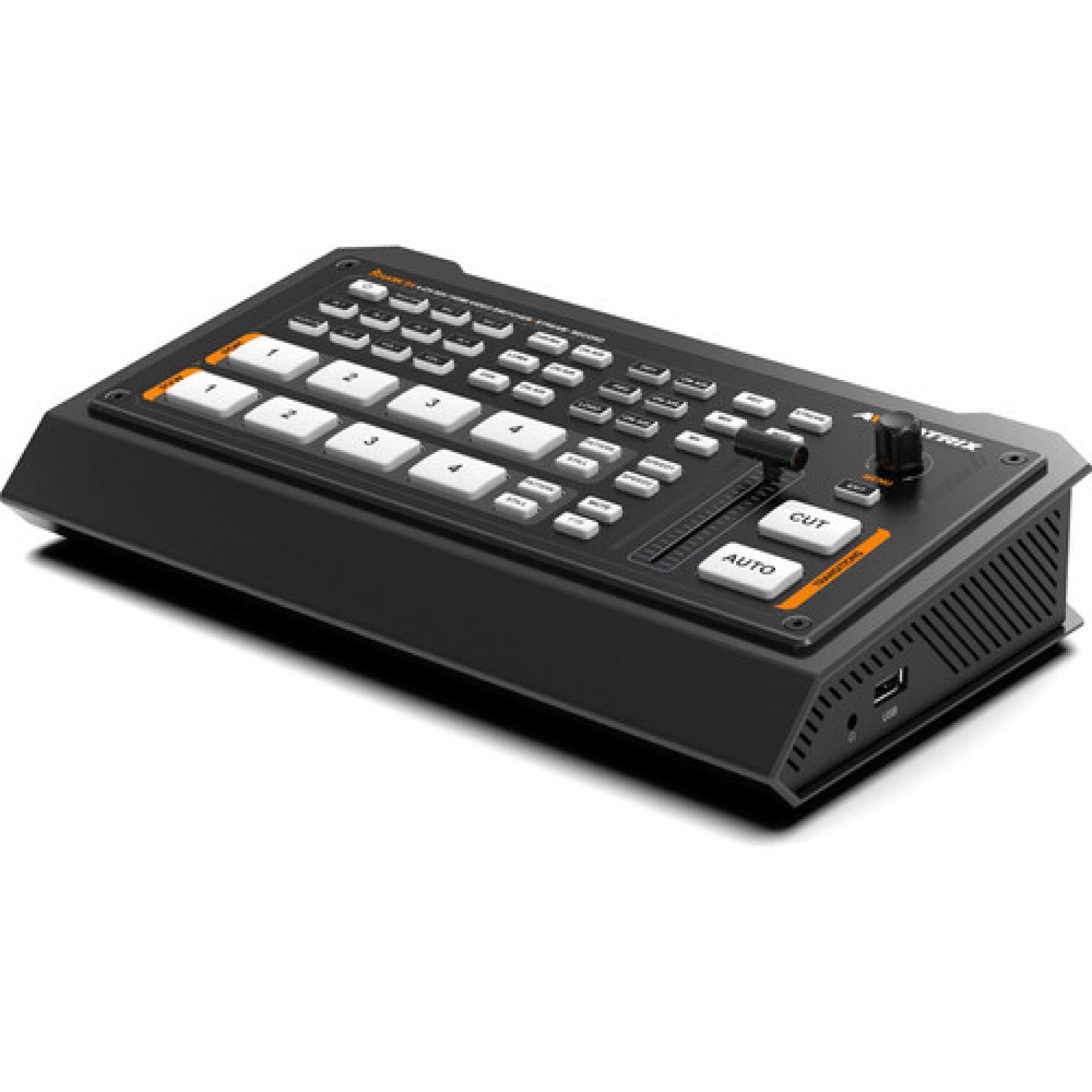

AVMATRIX Shark S4 Portable Video Switcher
The AVMATRIX Shark S4 Portable Video Switcher is a professional compact live production switcher designed for broadcasters, churches, content creators, educational institutions, and live event production teams. Featuring a combination of SDI and HDMI inputs, built-in streaming and recording capabilities, professional transition effects, and advanced audio mixing, the Shark S4 offers a versatile solution for multi-camera live productions and streaming workflows.
AVMATRIX Shark S4 Portable Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX Shark S4 Portable Video Switcher | KSh 51,900 |
AVMATRIX Shark S4 Portable Video Switcher Key Features
- Four-channel video switcher with 2 HDMI and 2 SDI inputs
- Supports video resolutions up to Full HD 1080p60
- USB-C output for direct computer capture and streaming
- Built-in Ethernet streaming via RTMP, RTMPS, and SRT protocols
- Supports recording to SD card and USB storage devices
- Professional transition effects including Cut, Mix, Fade, and Wipe
- Chroma key, luma key, DSK, PiP, and PoP support
- Integrated audio mixer with embedded and analog audio support
- Dedicated HDMI multiview output for source monitoring
- Compact desktop design with T-Bar and hardware controls
AVMATRIX Shark S4 Portable Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Video Switcher |
| Brand | AVMATRIX |
| Model | Shark S4 |
| Video Inputs | 2 × HDMI, 2 × 3G-SDI |
| Video Outputs | 2 × HDMI Program Outputs, 1 × HDMI Multiview Output |
| USB Output | 1 × USB Type-C |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Streaming Protocols | RTMP, RTMPS, SRT |
| Recording Media | SD Card, USB Storage |
| Video Effects | Cut, Fade, Wipe, Mix, PiP, PoP |
| Keying Functions | Chroma Key, Luma Key, DSK, Logo Overlay |
| Audio Inputs | 2 × 3.5mm MIC/Line Inputs |
| Audio Outputs | 1 × 3.5mm Stereo Output |
| Network Connectivity | RJ45 Ethernet |
| Tally Interface | DB-15 Tally Port |
| Control Methods | Front Panel, Software, IP Control |
| Power Supply | DC 12V |
| Chassis Material | Metal |
| Weight | Approximately 1 kg |
AVMATRIX Shark S4 Portable Video Switcher Performance and Usage Overview
- Delivers reliable multi-camera switching for professional live productions
- SDI and HDMI connectivity support both consumer and broadcast cameras
- Built-in streaming engine allows direct streaming without external encoders
- Simultaneous recording capabilities simplify content archiving and post-production
- Professional keying and PiP functions enhance production quality
- Ideal for live events, worship services, conferences, webinars, and online broadcasts
AVMATRIX Shark S4 Portable Video Switcher Connectivity
- 2 × HDMI inputs for cameras, laptops, and media players
- 2 × 3G-SDI inputs for professional broadcast cameras
- 2 × HDMI program outputs for external displays and projectors
- 1 × HDMI multiview output for production monitoring
- 1 × USB-C output for computer capture and streaming
- RJ45 Ethernet port for network streaming and IP control
- 2 × 3.5mm MIC/Line inputs for external audio sources
- 1 × 3.5mm audio output for monitoring
- SD card slot and USB recording support
AVMATRIX Shark S4 Portable Video Switcher Build Quality and Design
- Durable metal chassis built for professional production environments
- Compact desktop form factor ideal for portable setups
- Dedicated T-Bar ensures smooth manual transitions
- Intuitive control layout allows efficient live production operation
- Lightweight design simplifies transport and field deployment
- Rugged construction suitable for fixed installations and mobile productions
AVMATRIX Shark S4 Portable Video Switcher Ideal Use Cases
- Live streaming productions
- Church broadcasting
- Corporate presentations
- Educational streaming
- Webinars and virtual conferences
- Sports broadcasting
- Live event production
- Multi-camera video production
AVMATRIX Shark S4 Portable Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Supports both HDMI and SDI cameras | Limited to Full HD production |
| Built-in streaming and recording functions | No built-in display screen |
| Professional keying and transition effects | No wireless connectivity |
| Compact and portable design | Requires external monitor for multiview |
| USB-C capture output simplifies streaming workflows | Internal storage not included |
AVMATRIX Shark S4 Portable Video Switcher FAQs
Q: How many video sources can the AVMATRIX Shark S4 support?
A: The switcher supports four video sources simultaneously through two HDMI and two SDI inputs.
Q: Can the Shark S4 stream directly to online platforms?
A: Yes, it supports RTMP, RTMPS, and SRT streaming protocols via its Ethernet connection.
Q: Does the AVMATRIX Shark S4 support recording?
A: Yes, it can record directly to SD cards and USB storage devices.
Q: Does the switcher support SDI cameras?
A: Yes, it includes two professional 3G-SDI inputs alongside two HDMI inputs.
Q: Can the Shark S4 be controlled remotely?
A: Yes, the switcher supports software and IP-based remote control.
AVMATRIX Shark S4 Portable Video Switcher Conclusion
The AVMATRIX Shark S4 Portable Video Switcher is a feature-rich live production solution that combines professional SDI and HDMI connectivity, integrated streaming and recording, advanced keying capabilities, and compact portability. It is an excellent choice for broadcasters, churches, educators, and content creators seeking a versatile and affordable live production platform.
