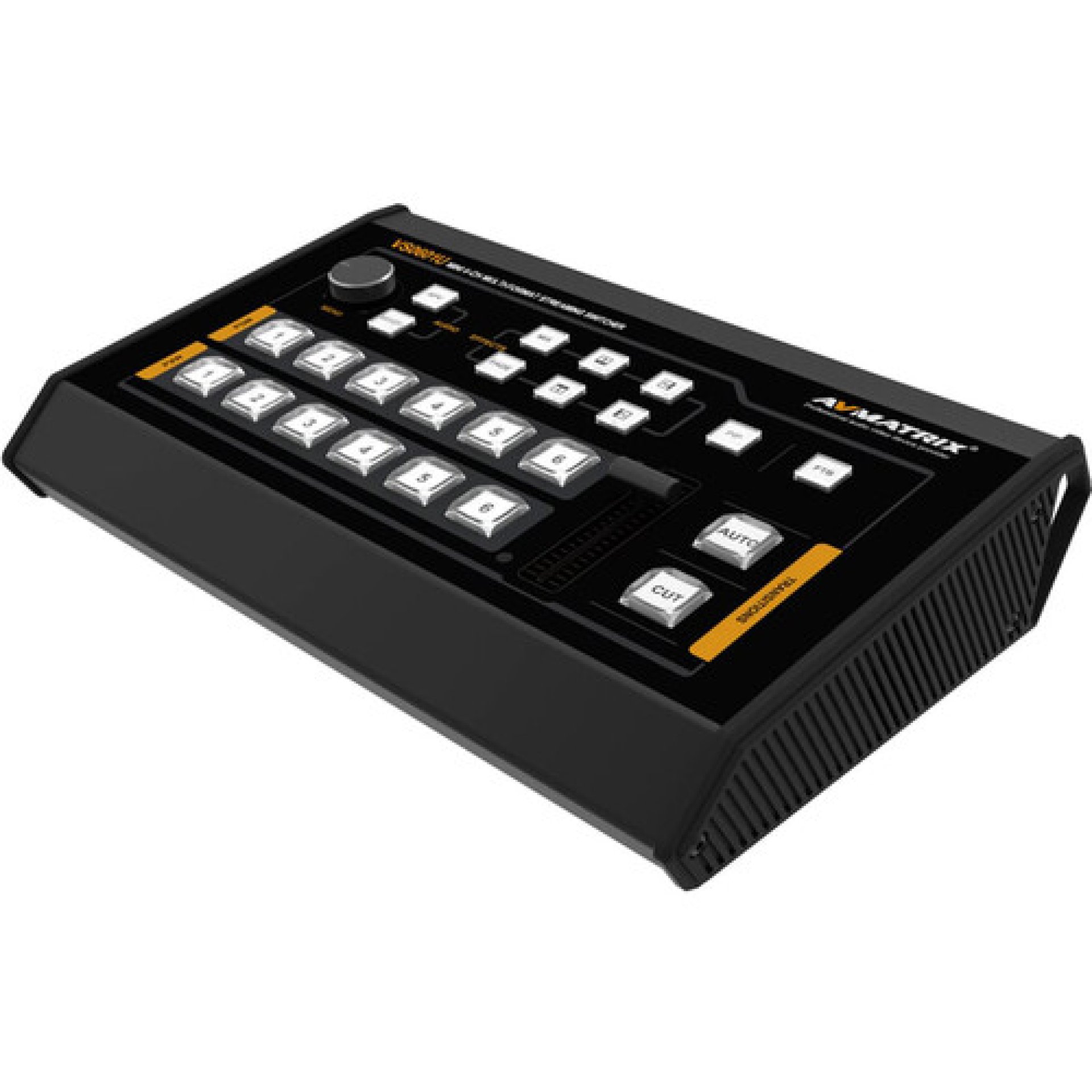

AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher
The AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher is a professional compact live production switcher designed for broadcasters, content creators, churches, educational institutions, and event production teams. Featuring six multiformat video inputs, USB streaming capabilities, professional transition effects, integrated audio mixing, and multiview monitoring, the VS0601U Mini provides a powerful and portable solution for multi-camera live productions and streaming workflows.
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher | KSh 81,700 |
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Key Features
- Six-channel multiformat live production switcher
- Supports HDMI and SDI video inputs for flexible production workflows
- USB 3.0 output for direct computer capture and live streaming
- Professional transition effects including Cut, Fade, Mix, and Wipe
- Built-in Picture-in-Picture (PiP) functionality
- HDMI multiview output for real-time monitoring of all sources
- Integrated audio mixer with embedded and external audio support
- Supports video resolutions up to Full HD 1080p60
- Compact and portable desktop design
- Compatible with major streaming and conferencing platforms
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Multiformat Video Switcher |
| Brand | AVMATRIX |
| Model | VS0601U Mini |
| Video Inputs | 6 × Multiformat Inputs (HDMI/SDI) |
| Video Outputs | 2 × HDMI Outputs, 1 × HDMI Multiview Output |
| USB Output | 1 × USB 3.0 Type-C |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Video Effects | Cut, Fade, Mix, Wipe, PiP |
| Audio Inputs | 2 × 3.5mm Stereo Audio Inputs |
| Audio Outputs | 1 × 3.5mm Stereo Audio Output |
| Audio Mixing | Yes |
| Multiview Monitoring | Yes |
| Streaming Support | UVC/UAC Compatible |
| Control Interface | Front Panel Controls |
| Power Supply | DC 12V |
| Chassis Material | Metal |
| Form Factor | Compact Desktop |
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Performance and Usage Overview
- Delivers reliable six-channel video switching for professional live productions
- USB output allows direct integration with streaming software and conferencing platforms
- Professional transition effects enhance production quality during live broadcasts
- Integrated audio mixing simplifies audio management during productions
- Multiview monitoring enables operators to monitor all connected sources simultaneously
- Ideal for churches, conferences, webinars, online education, and live event productions

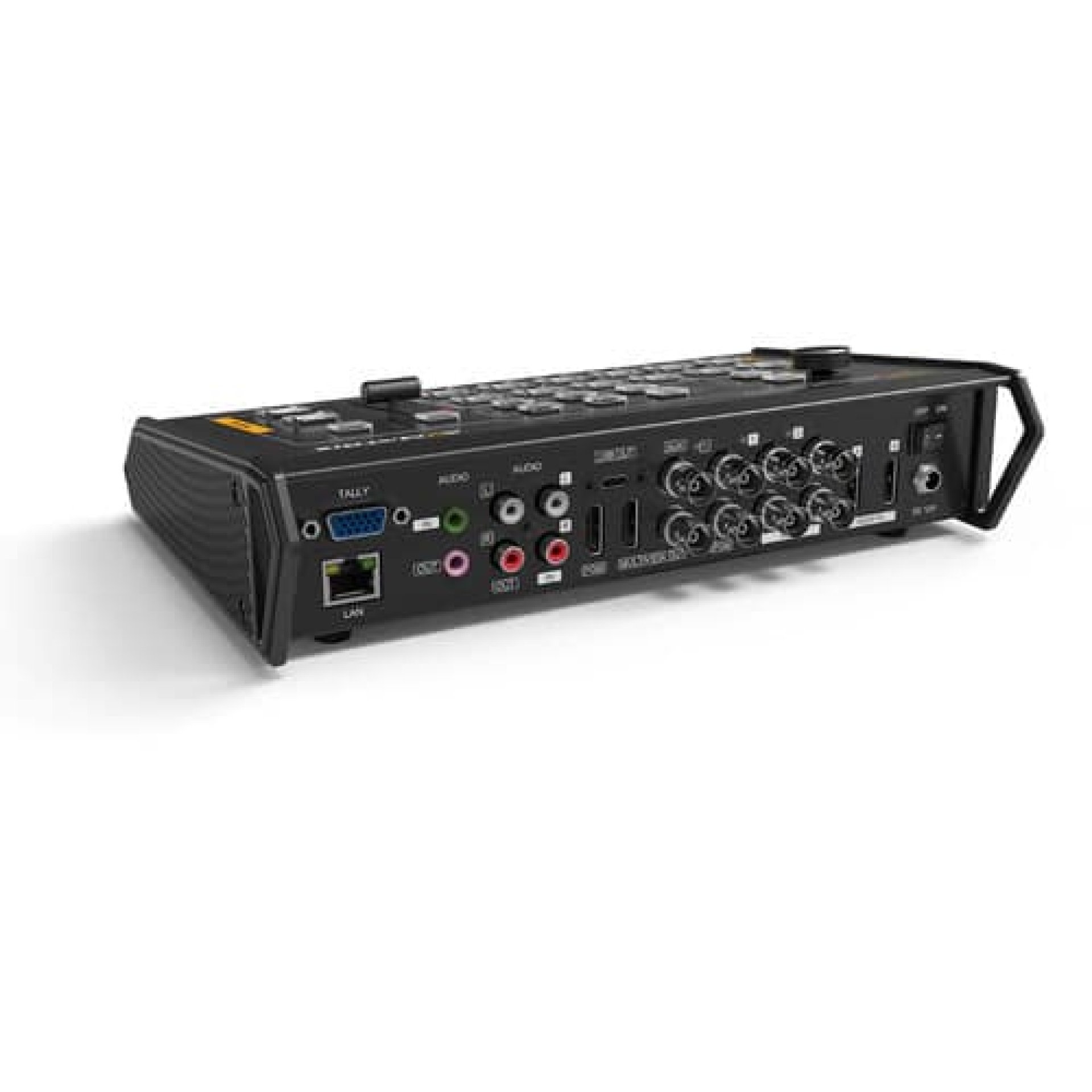

AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Connectivity
- Multiple HDMI and SDI inputs for cameras, computers, and media players
- HDMI program outputs for external displays and projectors
- HDMI multiview output for source and program monitoring
- USB 3.0 Type-C output for direct streaming and video capture
- 3.5mm audio inputs for microphones and external audio equipment
- 3.5mm audio output for monitoring and audio distribution
- DC power input for continuous operation
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Build Quality and Design
- Durable metal chassis designed for professional production environments
- Compact desktop form factor ideal for studio and portable applications

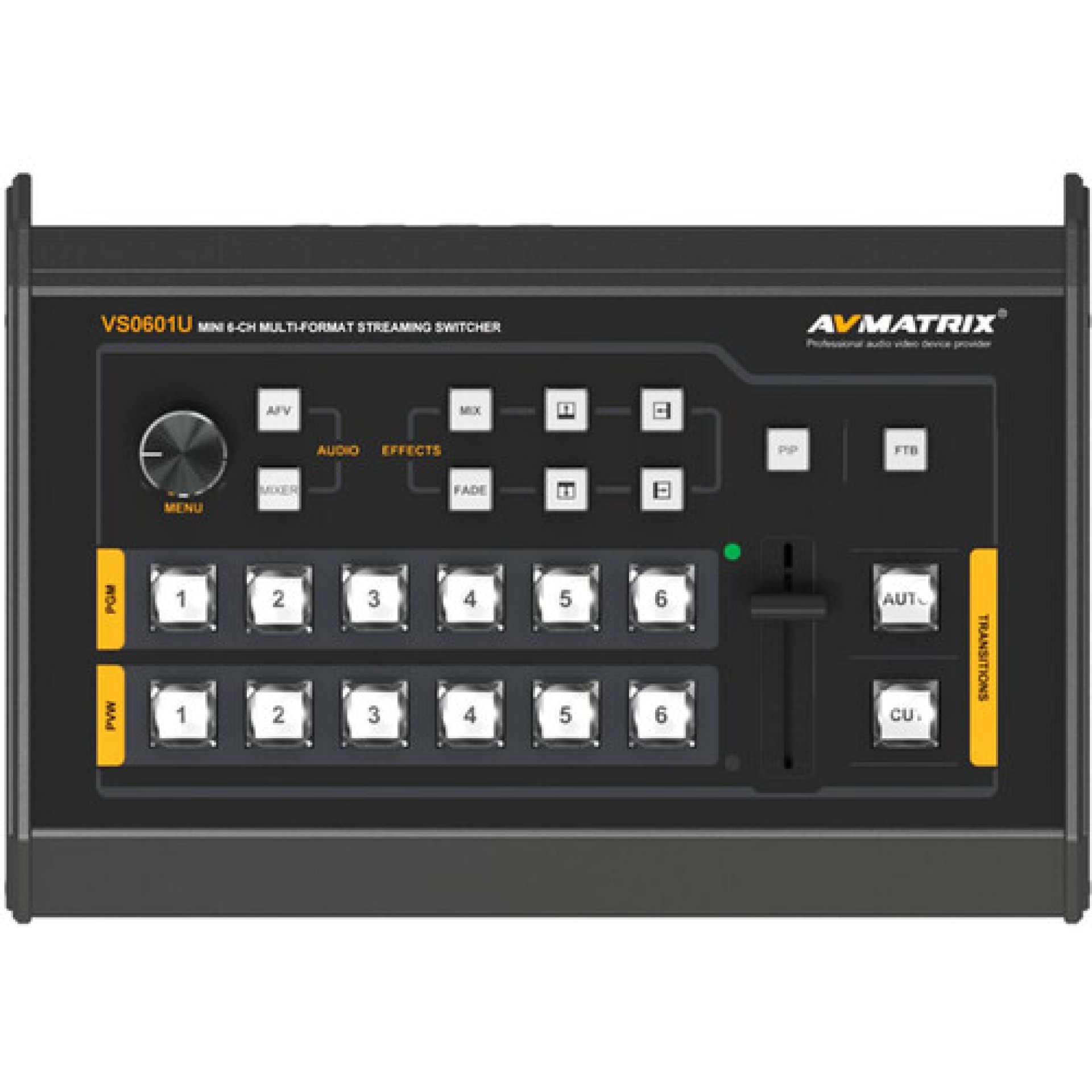

- Intuitive front-panel layout ensures efficient live production control
- Lightweight design simplifies transportation and setup
- Rugged construction suitable for both fixed installations and mobile productions
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Ideal Use Cases
- Live streaming productions
- Church broadcasting
- Corporate presentations
- Educational streaming and online classes
- Webinars and virtual conferences
- Sports broadcasting
- Multi-camera event production
- Studio video production
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to six video sources | Limited to Full HD production |
| USB streaming output for direct computer connectivity | No built-in display screen |
| Professional transition effects and PiP support | Requires external monitor for multiview |
| Compact and portable design | No internal recording storage |
| Integrated audio mixing capabilities | Limited advanced automation features |
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher FAQs
Q: How many video sources can the AVMATRIX VS0601U Mini support?
A: The switcher supports up to six video input sources simultaneously.
Q: Can the VS0601U Mini connect directly to a computer for streaming?
A: Yes, it features a USB 3.0 Type-C output for direct computer connectivity and streaming.
Q: Does the switcher support Picture-in-Picture effects?
A: Yes, the switcher includes built-in Picture-in-Picture functionality.
Q: What is the maximum supported video resolution?
A: The switcher supports video resolutions up to Full HD 1080p60.
Q: Does the AVMATRIX VS0601U Mini include audio mixing capabilities?
A: Yes, it features integrated audio mixing for embedded and external audio sources.
AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher Conclusion
The AVMATRIX VS0601U Mini 6-Channel Multiformat Video Switcher is a versatile and portable live production solution that combines professional switching, USB streaming, multiview monitoring, and audio mixing capabilities in a compact package. It is an excellent choice for broadcasters, content creators, churches, and production teams seeking a reliable and affordable multi-camera live production platform.
