Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Overview
The Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T is a powerful surveillance recorder designed for medium to large security installations. Equipped with an industrial-grade processor and Dahua WizSense AI technology, it supports HDCVI, AHD, TVI, CVBS, and IP cameras within a single platform. The recorder features 16 analog video inputs, supports up to 18 IP camera channels (up to 6MP each), 16-channel SMD Plus, 16-channel AI Coding, 16-channel coaxial Two-Way Talk, Smart H.265+ compression, and a single SATA hard drive bay supporting up to 16TB, making it ideal for offices, schools, warehouses, retail stores, hotels, and commercial premises.
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Key Features
- 16-channel Penta-brid DVR
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Supports up to 18 IP camera channels (up to 6MP each)
- WizSense AI technology
- 16-channel SMD Plus
- 16-channel AI Coding
- Smart H.265+ and H.265 video compression
- 16-channel coaxial Two-Way Talk
- HDMI and VGA video outputs
- One SATA HDD bay supporting up to 16TB
- Embedded Linux operating system
- Remote viewing through DMSS for Android and iOS
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T | KSh 10,000 – KSh 14,500 |
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR1B16-I/T |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Analog Video Input | 16 BNC Ports |
| Camera Support | HDCVI, AHD, TVI, CVBS, IP |
| IP Camera Support | Up to 18 Channels (Max. 6MP Each) |
| Incoming Bandwidth | 64 Mbps |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI Functions | 16-Channel SMD Plus, 16-Channel AI Coding |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 RCA + 16 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 16-Channel Coaxial Two-Way Talk |
| Storage | 1 SATA HDD, Up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100 Mbps) |
| Mobile Access | Android and iOS (DMSS) |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 10W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Performance
- Supports simultaneous recording from analog and IP cameras.
- Records analog cameras at up to 1080N/720P resolution.
- Supports up to 18 IP cameras with resolutions up to 6MP.
- SMD Plus accurately distinguishes humans and vehicles to reduce false alarms.
- AI Coding optimizes bandwidth and storage without sacrificing image quality.
- Smart H.265+ compression significantly reduces storage and bandwidth usage.
- HDMI and VGA outputs provide flexible display options.
- Coaxial Two-Way Talk enables communication through compatible Dahua cameras.
- Remote monitoring, playback, and management are available through the DMSS mobile application.
- Delivers reliable 24/7 recording for medium and large surveillance systems.
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Ideal Applications
- Office buildings
- Retail stores
- Schools
- Warehouses
- Hotels
- Hospitals
- Apartment complexes
- Industrial facilities
- Commercial buildings
- Business premises

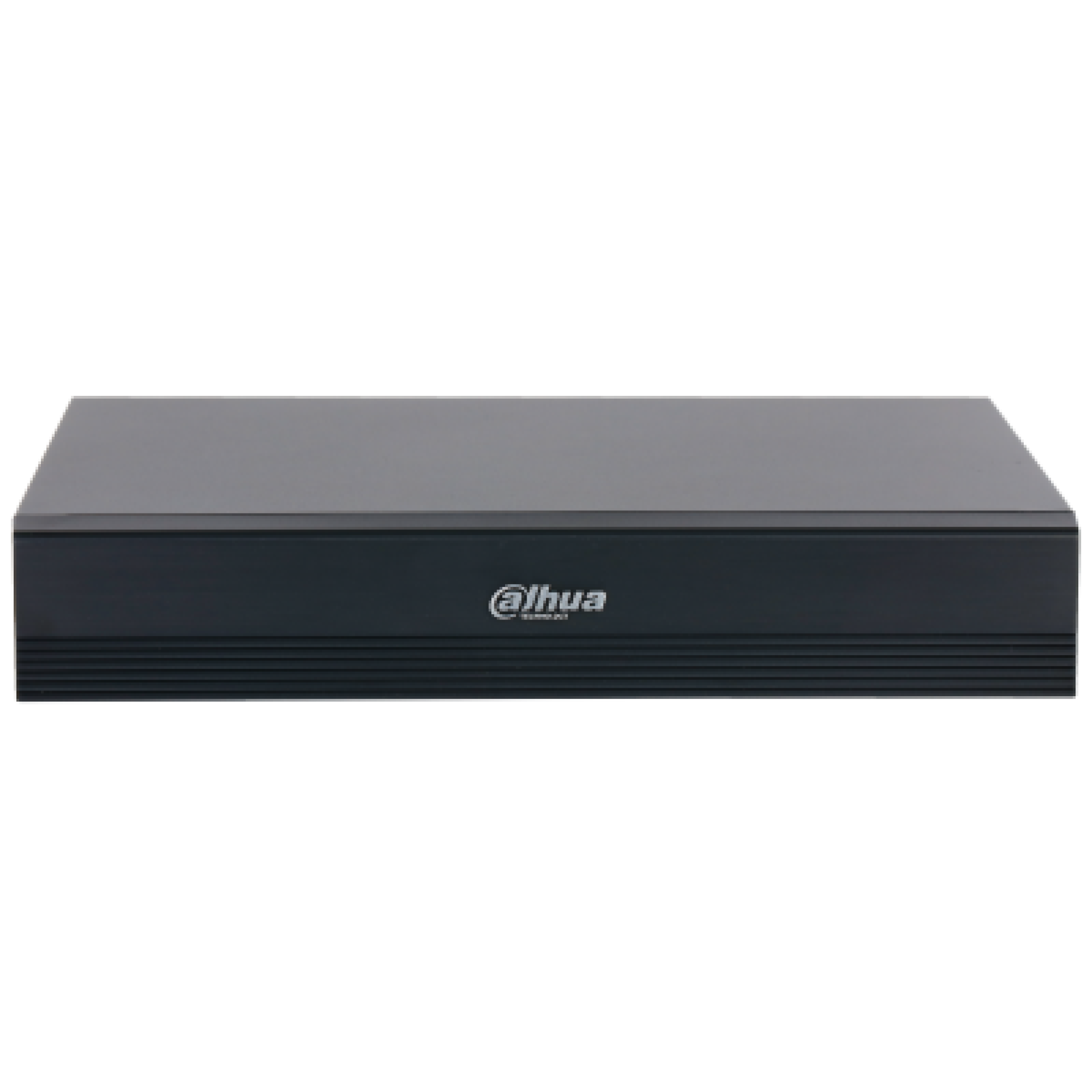

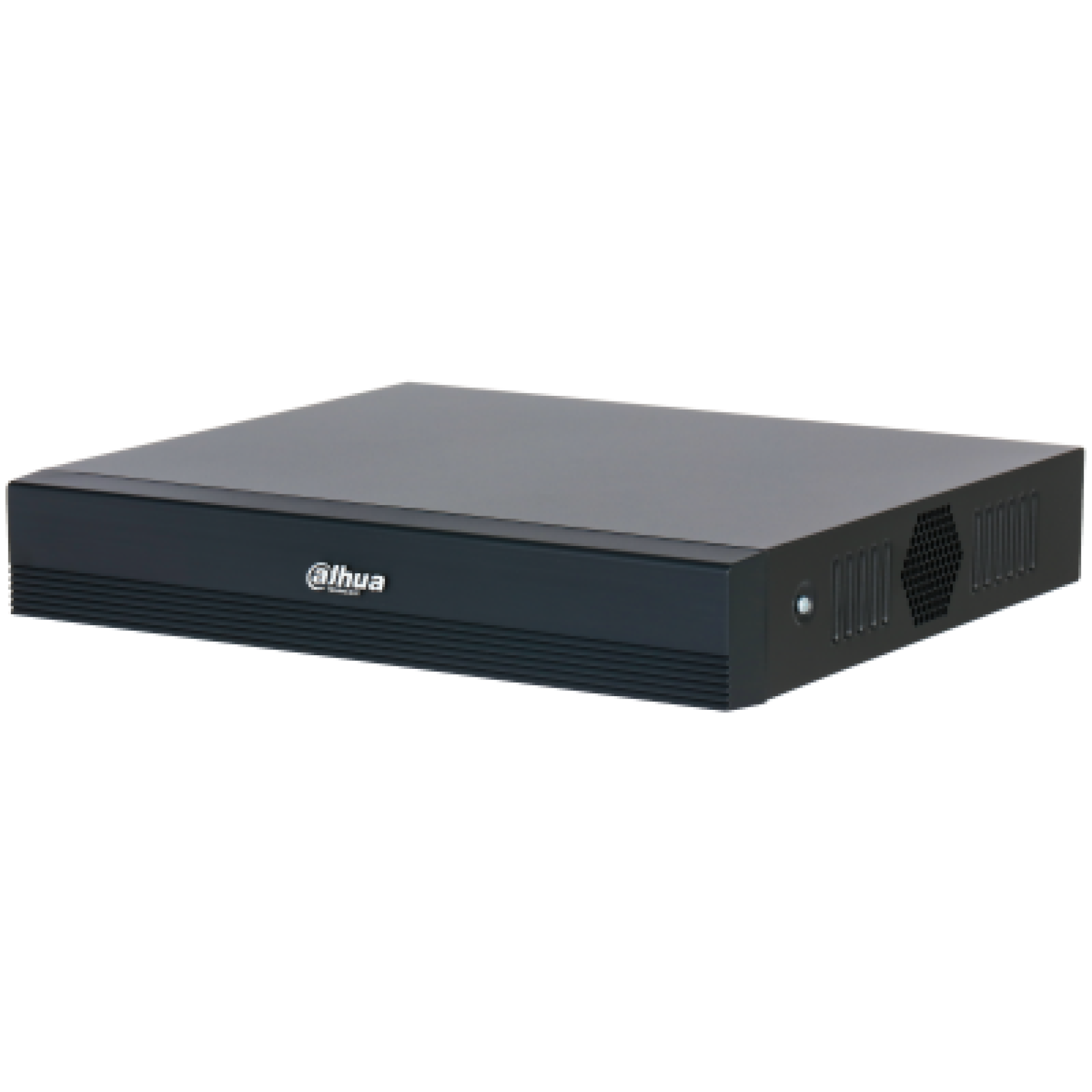

Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Design and Build
- Compact 1U desktop chassis
- Durable metal enclosure
- Front LED status indicators

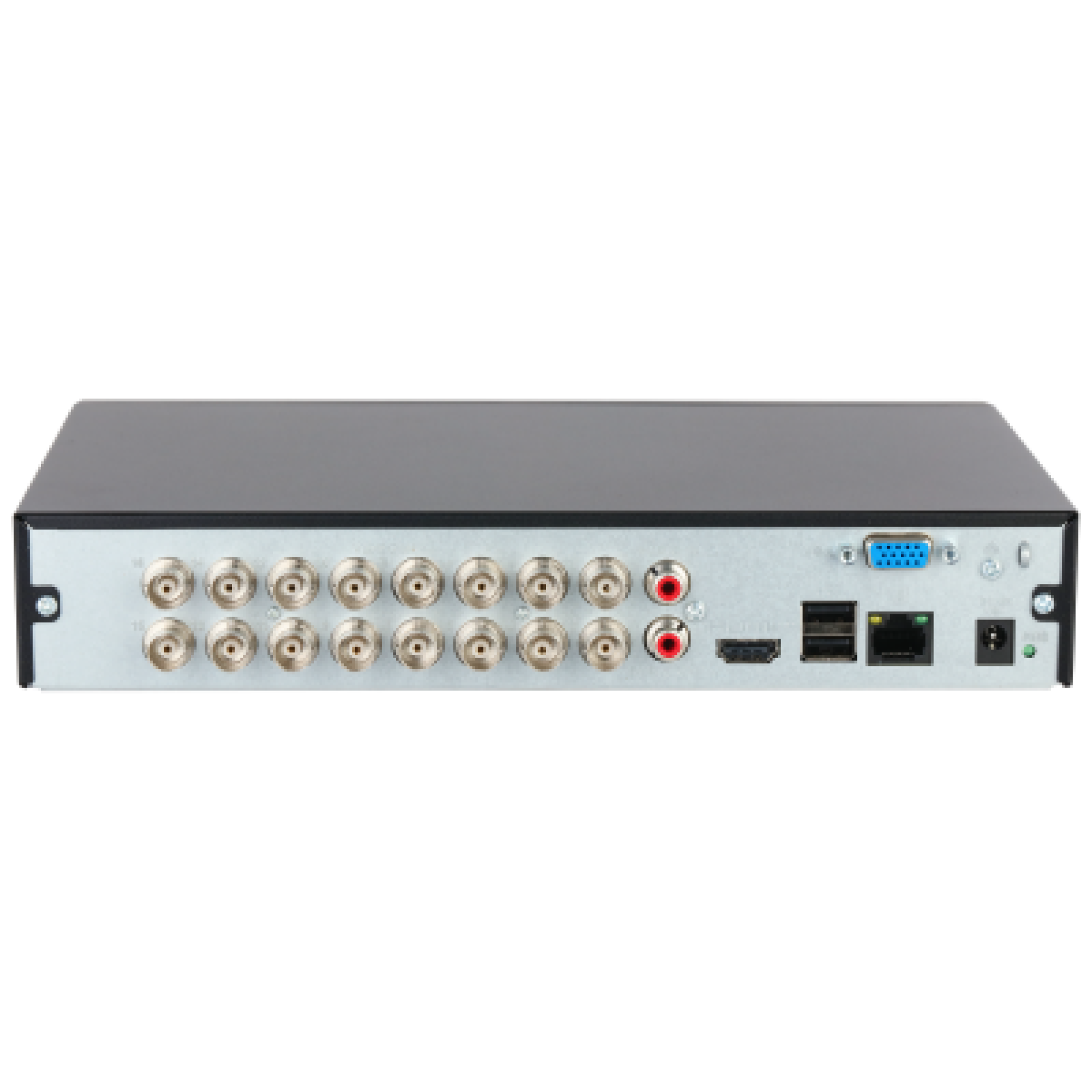

- Rear BNC camera connections
- HDMI and VGA display outputs
- Two rear USB ports
- RJ-45 Ethernet connectivity
- Quiet low-power operation
- Space-saving design
- Built for continuous 24/7 operation
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Compatibility
- Dahua HDCVI cameras
- AHD cameras
- TVI cameras
- CVBS analog cameras
- IP cameras up to 6MP
- ONVIF-compatible IP cameras
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Safari, and Firefox web browsers
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – FAQs
1. How many cameras does the recorder support?
It supports 16 analog camera channels and can be expanded to 18 IP camera channels, with each IP camera supporting resolutions up to 6MP.
2. Which camera technologies are supported?
The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it suitable for hybrid surveillance installations.
3. What AI features are included?
It supports 16-channel SMD Plus for human and vehicle classification and 16-channel AI Coding for improved storage efficiency.
4. What is the maximum hard drive capacity?
The recorder features one SATA hard drive bay supporting up to 16TB of storage.
5. Can I monitor the recorder remotely?
Yes. You can remotely view live video, playback recordings, and manage the system using the DMSS mobile application for Android and iOS devices.
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Pros and Cons
| Pros | Cons |
|---|---|
| Supports five camera technologies in one recorder | Limited to one SATA hard drive |
| Supports up to 18 IP cameras with resolutions up to 6MP | No built-in PoE ports |
| WizSense AI with 16-channel SMD Plus | Single network interface |
| Smart H.265+ compression reduces storage requirements | Designed for desktop installation |
| Supports up to 16TB HDD | One HDD bay only |
| 16-channel coaxial Two-Way Talk | Limited to 64 Mbps incoming bandwidth |
Dahua 16 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B16-I/T – Conclusion
The Dahua XVR1B16-I/T 16 Channel Penta-brid WizSense Digital Video Recorder is an intelligent and scalable recording solution for medium and large surveillance systems. With support for multiple camera technologies, up to 18 IP cameras, WizSense AI features, Smart H.265+ compression, 16-channel SMD Plus, coaxial Two-Way Talk, and up to 16TB of storage, it delivers dependable performance for commercial, industrial, educational, and residential security applications.
