Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Overview
The Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H is a compact and cost-effective network video recorder designed for small IP surveillance systems. Featuring an industrial-grade processor and embedded Linux operating system, it supports 4 IP camera channels with 4 integrated PoE ports for simplified installation. The recorder offers Smart H.265+ and Smart H.264+ compression, HDMI and VGA simultaneous video output, P2P remote monitoring, ONVIF and RTSP compatibility, and one SATA hard drive bay supporting up to 8TB, making it an excellent choice for homes, offices, retail stores, and small businesses.
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Key Features
- 4-channel IP Network Video Recorder
- 4 integrated PoE ports
- Smart H.265+ and Smart H.264+ video compression
- Supports ONVIF and RTSP network cameras
- HDMI and VGA simultaneous video output
- Up to 1080p HDMI output
- New UI 4.0 interface
- P2P remote monitoring
- Remote IPC configuration and batch upgrades
- 1 SATA HDD bay supporting up to 8TB
- Embedded Linux operating system
- Mobile monitoring via DMSS
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H | KSh 9,500 – KSh 13,000 |
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua DHI-NVR1104HS-P-S3/H |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 4 |
| PoE Ports | 4 × RJ-45 (10/100 Mbps) |
| Incoming Bandwidth | 80 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Camera Compatibility | ONVIF, RTSP |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | Up to 1080p |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Storage | 1 SATA HDD, Up to 8TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100 Mbps) |
| Mobile Access | DMSS (Android & iOS) |
| Power Supply | 48V DC |
| Operating Temperature | -10°C to +45°C |
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Performance
- Supports up to four IP cameras with reliable 1080p playback.
- Integrated PoE ports simplify installation by supplying power and data through a single Ethernet cable.
- Smart H.265+ compression significantly reduces storage and bandwidth usage.
- Supports ONVIF and RTSP protocols for broad camera compatibility.
- HDMI and VGA outputs enable simultaneous monitor connections.
- Remote IPC configuration simplifies camera management.
- P2P technology allows convenient remote viewing through the DMSS app.
- Supports simultaneous live view, recording, playback, backup, and remote management.
- Accommodates hard drives up to 8TB for extended video storage.
- Designed for stable 24/7 surveillance operation.
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Ideal Applications
- Home surveillance
- Small offices
- Retail shops
- Restaurants
- Schools
- Warehouses
- Clinics
- Small business security

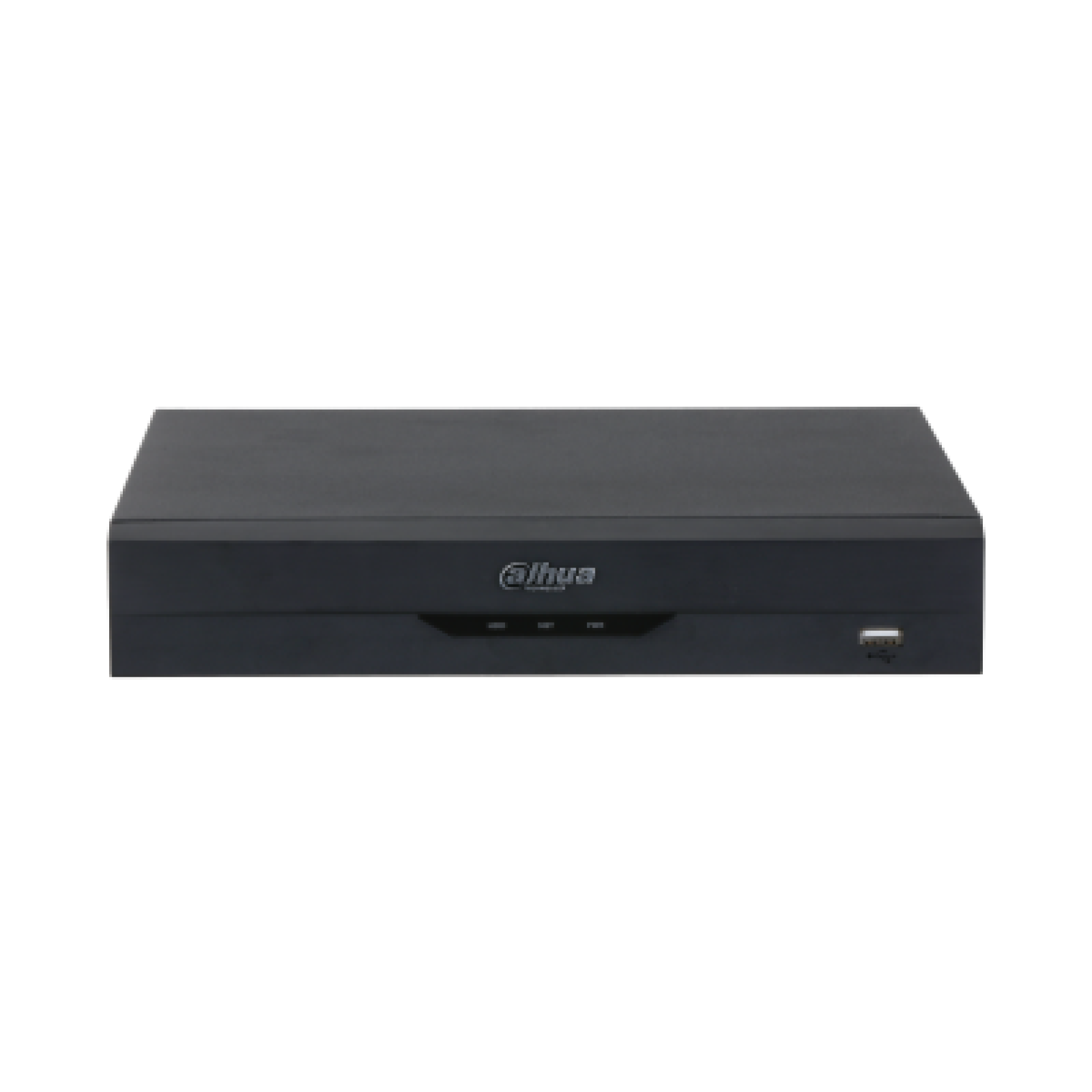

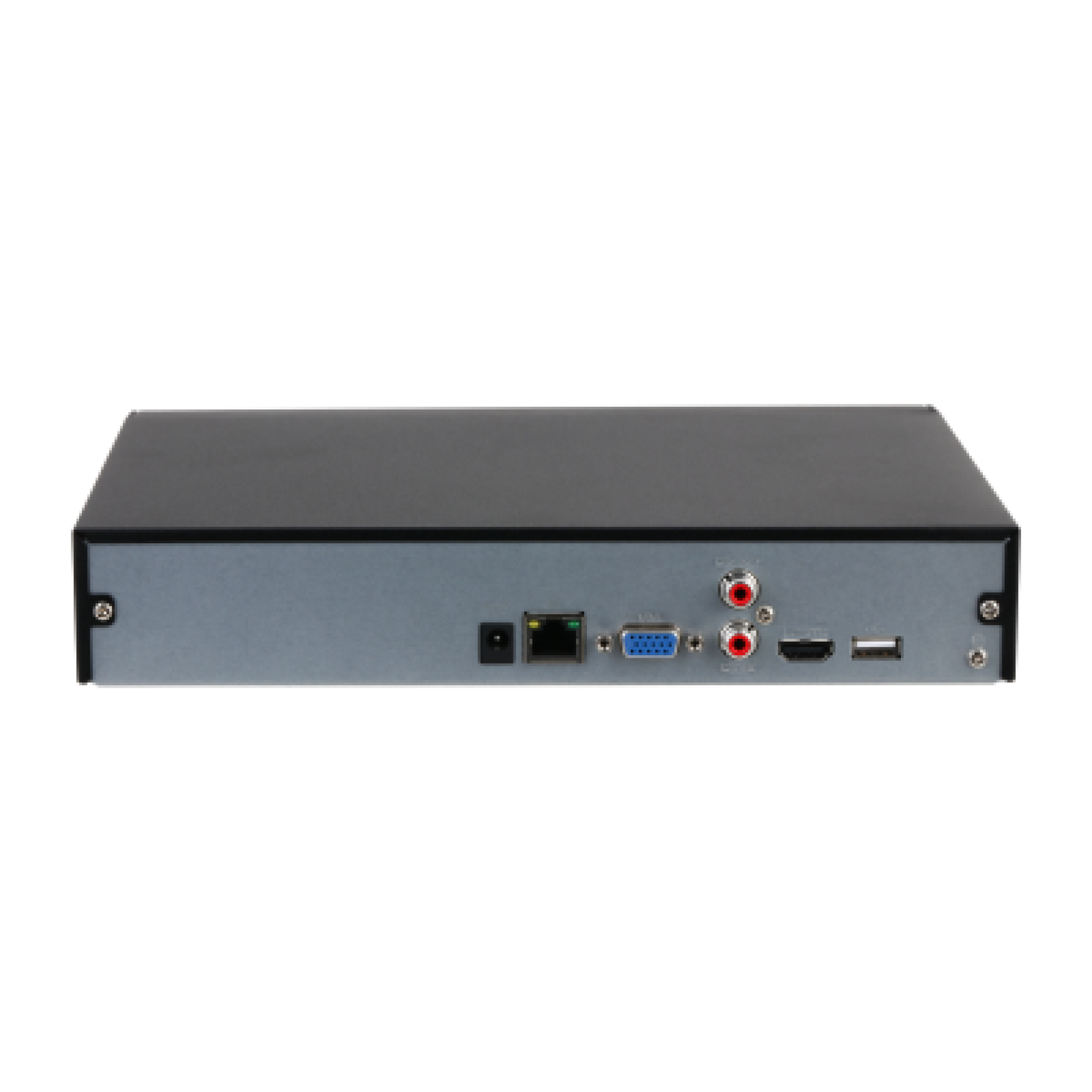

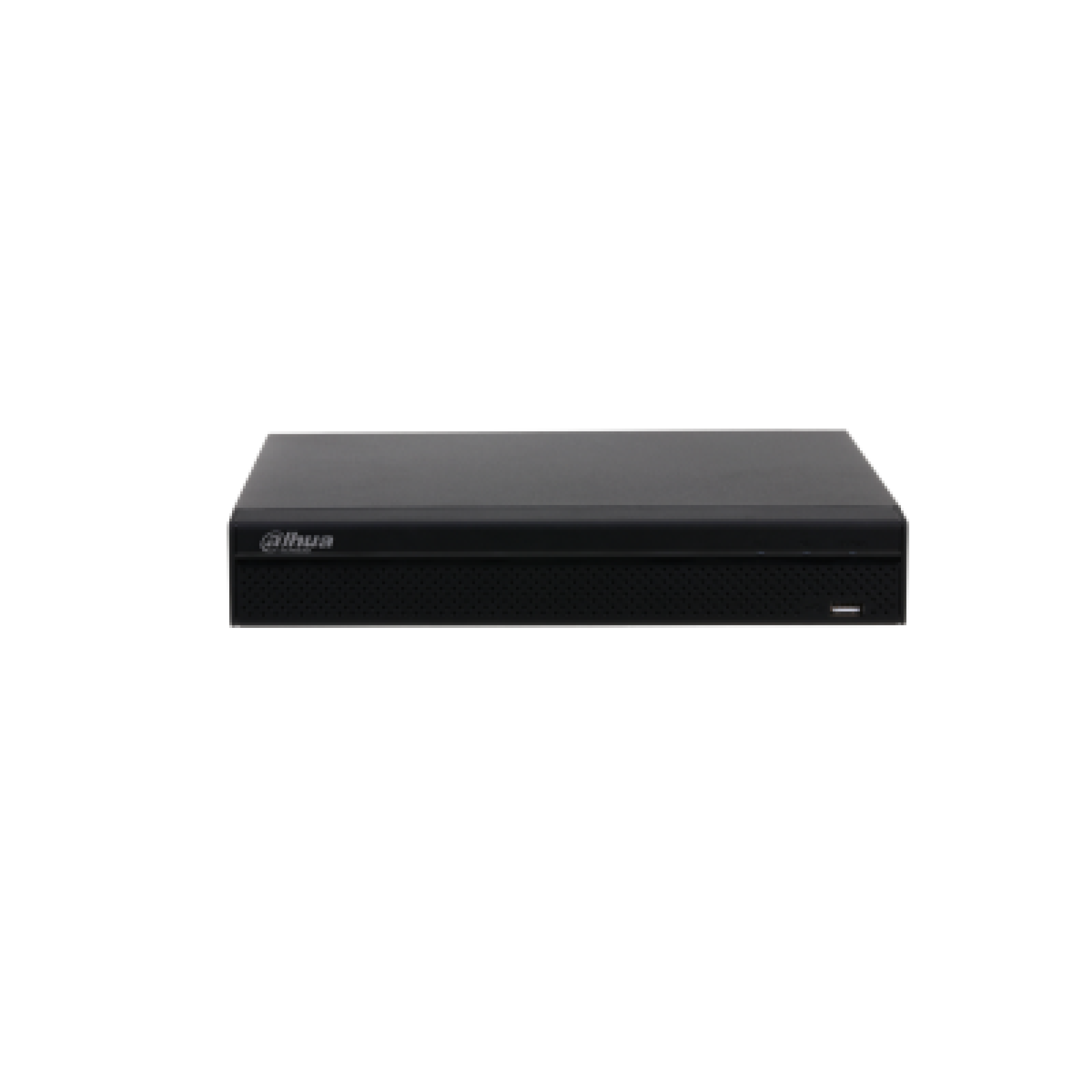

Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Design and Build
- Compact 1U desktop chassis
- Durable metal enclosure
- Four integrated PoE ports
- Front LED status indicators
- HDMI and VGA display outputs
- Dual USB ports
- RJ-45 Ethernet connectivity
- Efficient low-power design
- Quiet operation
- Built for continuous 24/7 use
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Compatibility
- Dahua IP cameras
- ONVIF-compatible IP cameras
- RTSP network cameras
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Firefox, and Safari browsers
- SATA hard drives up to 8TB
- Standard PoE IP cameras
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – FAQs
1. How many cameras does the recorder support?
It supports 4 IP cameras with 4 integrated PoE ports for direct camera connectivity.
2. Does the recorder provide Power over Ethernet (PoE)?
Yes. It features 4 built-in PoE ports, allowing compatible IP cameras to receive both power and network connectivity through a single Ethernet cable.
3. What is the maximum hard drive capacity?
The recorder supports one SATA hard drive with a maximum capacity of 8TB.
4. Which video compression technologies are supported?
It supports Smart H.265+, H.265, Smart H.264+, and H.264, helping reduce bandwidth and storage requirements.
5. Can I monitor the recorder remotely?
Yes. The recorder supports remote viewing and playback through the DMSS mobile application for Android and iOS devices.
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Pros and Cons
| Pros | Cons |
|---|---|
| Built-in 4-port PoE switch | Limited to 4 camera channels |
| Smart H.265+ compression | Supports only one hard drive |
| Supports ONVIF and RTSP cameras | Maximum HDMI output is 1080p |
| Supports up to 8TB HDD | No RAID support |
| HDMI and VGA simultaneous output | Designed for small surveillance systems |
| Remote monitoring through DMSS | No advanced AI analytics |
Dahua 4 Channel Compact 1U 1HDD Lite H.265 Network Video Recorder DHI-NVR1104HS-P-S3/H – Conclusion
The Dahua DHI-NVR1104HS-P-S3/H 4 Channel Lite Network Video Recorder is a reliable and affordable solution for small IP surveillance installations. Its built-in 4-port PoE switch, Smart H.265+ compression, ONVIF compatibility, 8TB storage support, HDMI/VGA outputs, and DMSS remote monitoring make it an excellent choice for homes, offices, retail stores, and other small business security applications.
