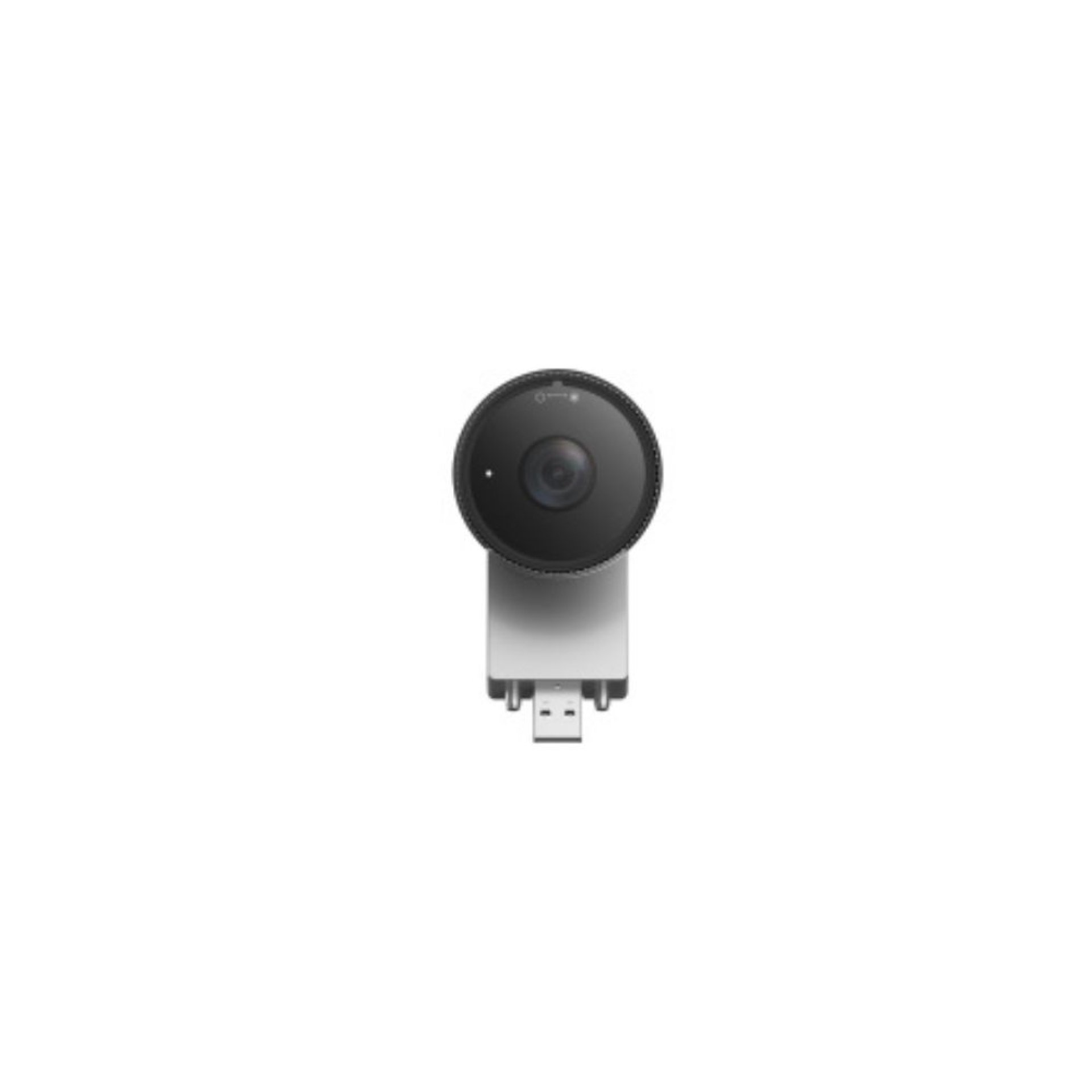

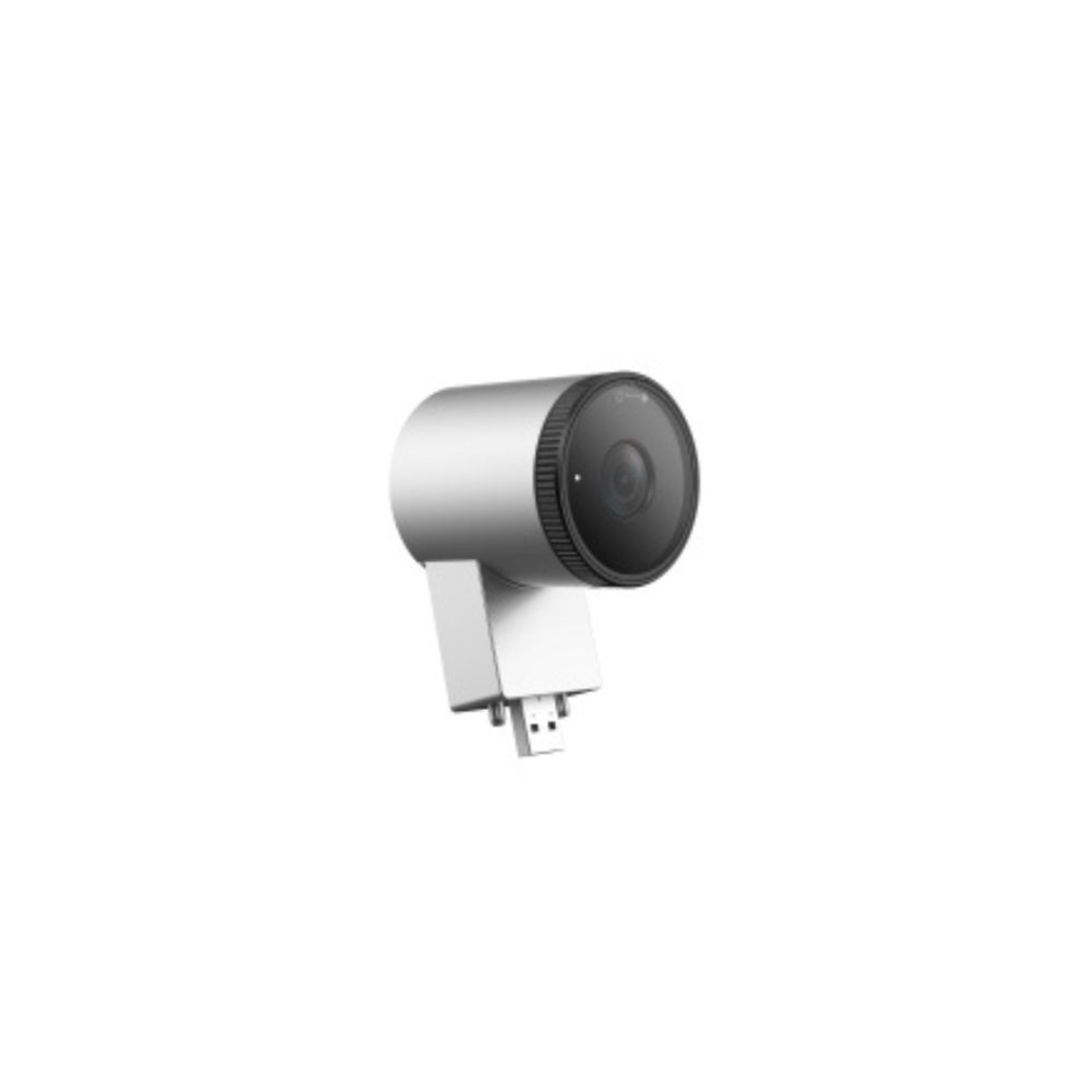

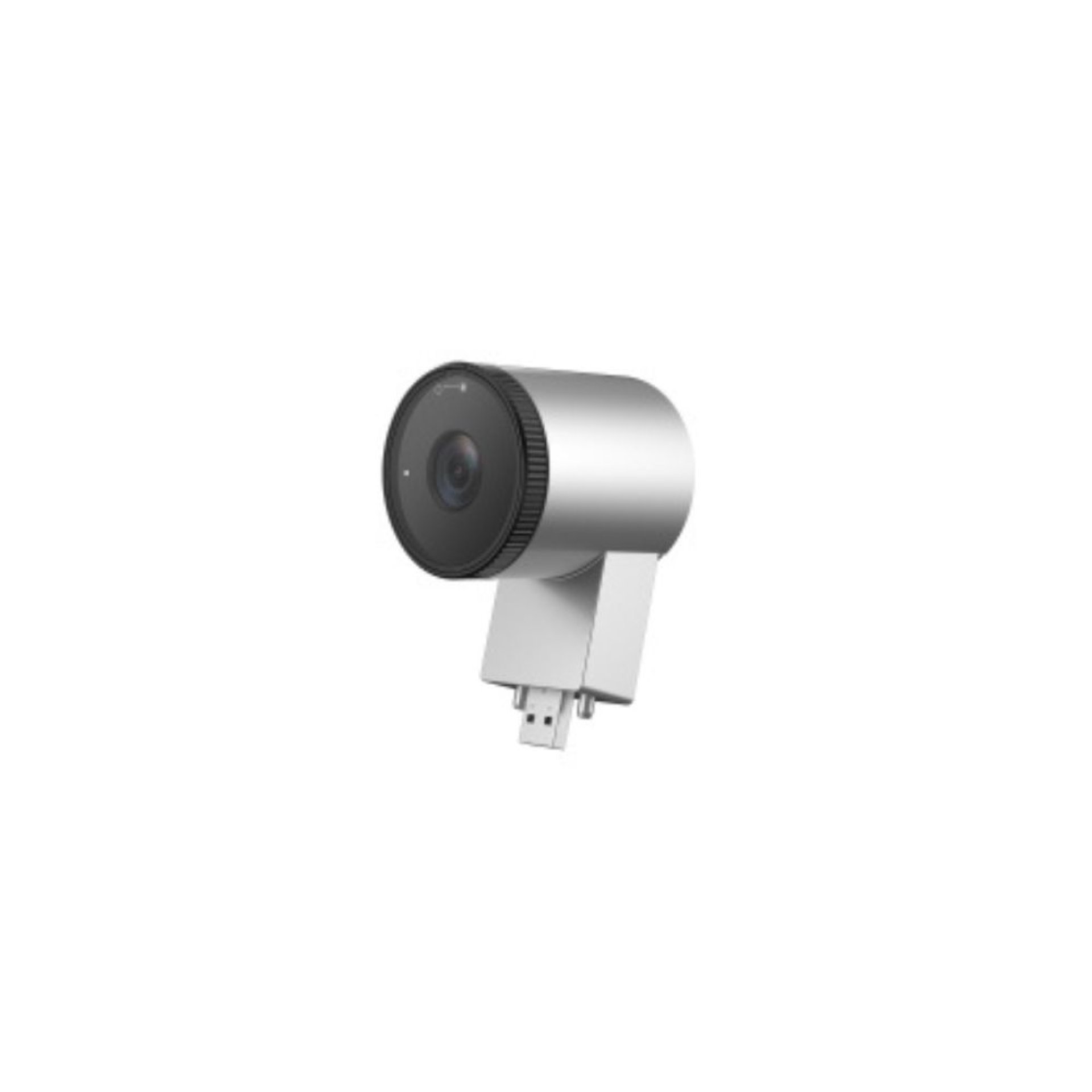

DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Key Features
48MP CMOS image sensor
4K UHD video output up to 3840 × 2160 at 30fps
Fixed 4mm focal length lens
USB 2.0 Type-A plug-and-play connectivity
Automatic white balance and WDR support
Wide 99° diagonal field of view
Supports MJPG, H.264, H.265, YUY2, and NV12 formats
Low-light performance with 0.1 lux minimum illumination
Hot-swappable design
Designed for Dahua ST470-P interactive whiteboards and conferencing solutions
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Overview
The DAHUA BDC-UZ48 Intercom Board Camera is a professional USB camera designed for Dahua interactive whiteboards and conference room collaboration systems. Equipped with a high-resolution 48MP CMOS sensor and capable of capturing 4K UHD video at 30fps, it delivers sharp video quality for video conferencing, online learning, and presentations.
Its plug-and-play USB connectivity allows quick installation without additional drivers, while features such as automatic white balance, Wide Dynamic Range (WDR), and a wide 99° field of view ensure excellent image quality in various lighting conditions. The camera is specifically designed for Dahua ST470-P interactive whiteboard systems and supports multiple professional video formats.
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Price Table
Product
Price (KES)
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens
28,000 – 40,000 (approx.)
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Key Specs
Specification
Details
Sensor
1/1.8-inch CMOS
Resolution
48MP
Maximum Video Resolution
3840 × 2160 @ 30fps
Lens
Fixed 4mm
Aperture
F1.6
Field of View
87° (H), 49° (V), 99° (D)
Interface
USB 2.0 Type-A
Video Formats
MJPG, H.264, H.265, YUY2, NV12
Minimum Illumination
0.1 Lux
Power Consumption
Max. 5W
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Smart Features
USB plug-and-play operation
Automatic white balance
Wide Dynamic Range (WDR)
Hot-swappable installation
Supports Android horizontal image mode
Compatible with multiple video compression formats
Optimized for Dahua conferencing and interactive whiteboards
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens FAQs
Q1: What is the maximum video resolution? The camera supports up to 3840 × 2160 (4K UHD) at 30fps.
Q2: Does the camera require external power? No. It is powered directly through its USB 2.0 connection.
Q3: Does it support plug-and-play installation? Yes. The BDC-UZ48 is plug-and-play and requires no additional drivers on supported Dahua systems.
Q4: Is the lens adjustable? No. It uses a fixed 4mm focal length lens with a 99° diagonal field of view.
DAHUA BDC-UZ48 Intercom Board Camera 48MP Fixed-Focal Lens Verdict
The DAHUA BDC-UZ48 Intercom Board Camera is an excellent accessory for Dahua interactive whiteboards and conferencing systems. Its 48MP sensor, 4K UHD video output, wide-angle lens, plug-and-play USB connectivity, and professional imaging features make it an ideal choice for hybrid meetings, classrooms, and collaborative workspaces that require high-quality video capture.
