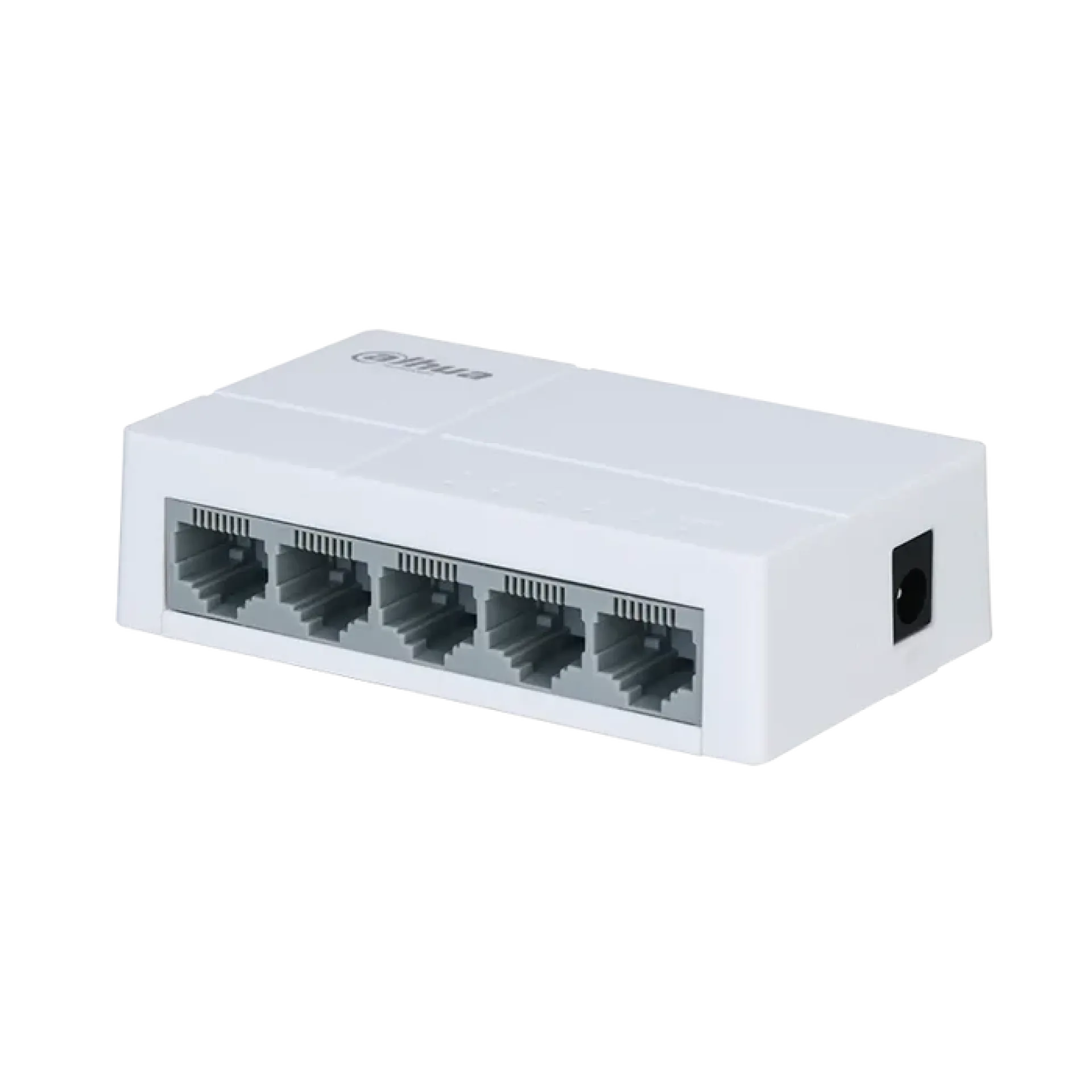

DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Overview
The DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch is a compact Layer 2 network switch designed for small office, home, and CCTV networking applications. It features five 10/100 Mbps adaptive RJ-45 Ethernet ports with plug-and-play operation, eliminating the need for configuration. Its fanless, lightweight design, store-and-forward switching, and auto MDI/MDIX support ensure reliable data transmission for IP cameras, computers, printers, and other network devices. The switch is an ideal networking solution for expanding wired connectivity in residential and small business environments.
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Key Features
- 5 × 10/100 Mbps adaptive RJ-45 Ethernet ports
- Layer 2 unmanaged Ethernet switch
- Plug-and-play operation
- Auto MDI/MDIX support
- Store-and-forward switching architecture
- 1 Gbps switching capacity
- 2K MAC address table
- Fanless silent operation
- Compact desktop design
- Low power consumption
- Lightning protection
- CE certified
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch | KSh 900 – KSh 1,800 |
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua DHI-SF1005L5 |
| Switch Type | Layer 2 Unmanaged Switch |
| Ethernet Ports | 5 × 10/100 Mbps RJ-45 |
| Port Speed | 10/100 Mbps Adaptive |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| Packet Buffer | 768 Kbit |
| MAC Address Table | 2K |
| Transmission Mode | Store-and-Forward |
| Auto MDI/MDIX | Yes |
| Power Supply | 5V DC, 1A |
| Power Consumption | 0.1W (Idle), 0.5W (Full Load) |
| Installation | Desktop |
| Casing | Plastic |
| Operating Temperature | 0°C to +45°C |
| Dimensions | 86.4 × 52 × 23 mm |
| Weight | 0.12 kg |
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Performance
- Provides stable wired connectivity for up to five network devices.
- Plug-and-play functionality allows quick deployment without configuration.
- Auto MDI/MDIX automatically detects cable type, eliminating the need for crossover cables.
- Store-and-forward switching improves transmission reliability by checking packet integrity.
- Fanless design ensures completely silent operation.
- Supports smooth transmission for IP cameras and office networking.
- Compact design fits easily on desktops and network cabinets.
- Low power consumption reduces operating costs.
- Lightning protection enhances reliability in demanding environments.
- Suitable for continuous 24/7 operation.
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Ideal Applications
- Home networks
- Small offices
- CCTV surveillance systems
- Retail stores
- Internet cafés
- Schools
- Small business LANs
- Printer and workstation connectivity
- Network expansion
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Design and Build
- Compact lightweight housing
- Durable plastic enclosure
- Fanless silent operation
- Desktop installation
- Five front-facing Ethernet ports
- LED indicators for power and link status
- External DC power adapter
- Efficient heat dissipation
- Space-saving design
- Built for continuous operation
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Compatibility
- IP cameras
- Network Video Recorders (NVRs)
- Desktop computers
- Laptops
- Network printers
- Routers
- Wireless access points
- Smart TVs
- NAS devices
- Standard Cat5e and Cat6 Ethernet cables
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – FAQs
1. How many Ethernet ports does the switch provide?
It features five 10/100 Mbps adaptive RJ-45 Ethernet ports for connecting multiple network devices.
2. Does the switch require configuration?
No. It is an unmanaged plug-and-play switch, allowing immediate operation after connecting power and network cables.
3. Does the switch support Gigabit Ethernet?
No. It supports Fast Ethernet (10/100 Mbps) connectivity only.
4. Is the switch suitable for CCTV installations?
Yes. It is designed for IP cameras, NVRs, and small surveillance networks, providing reliable wired connectivity.
5. Does it support PoE?
No. The DHI-SF1005L5 is a standard unmanaged Ethernet switch and does not provide Power over Ethernet (PoE).
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Pros and Cons
| Pros | Cons |
|---|---|
| Plug-and-play installation | No PoE support |
| Compact and lightweight design | Limited to 10/100 Mbps speeds |
| Silent fanless operation | No Gigabit Ethernet |
| Low power consumption | No managed networking features |
| Reliable Layer 2 switching | Desktop installation only |
| Affordable networking solution | Plastic enclosure |
DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch – Conclusion
The DAHUA DHI-SF1005L5 5-Port Unmanaged Ethernet Switch is a simple and cost-effective networking solution for homes, small offices, and CCTV systems. With five Fast Ethernet ports, plug-and-play functionality, fanless operation, low power consumption, and reliable Layer 2 switching, it provides dependable wired connectivity for everyday networking needs while requiring virtually no setup or maintenance.
