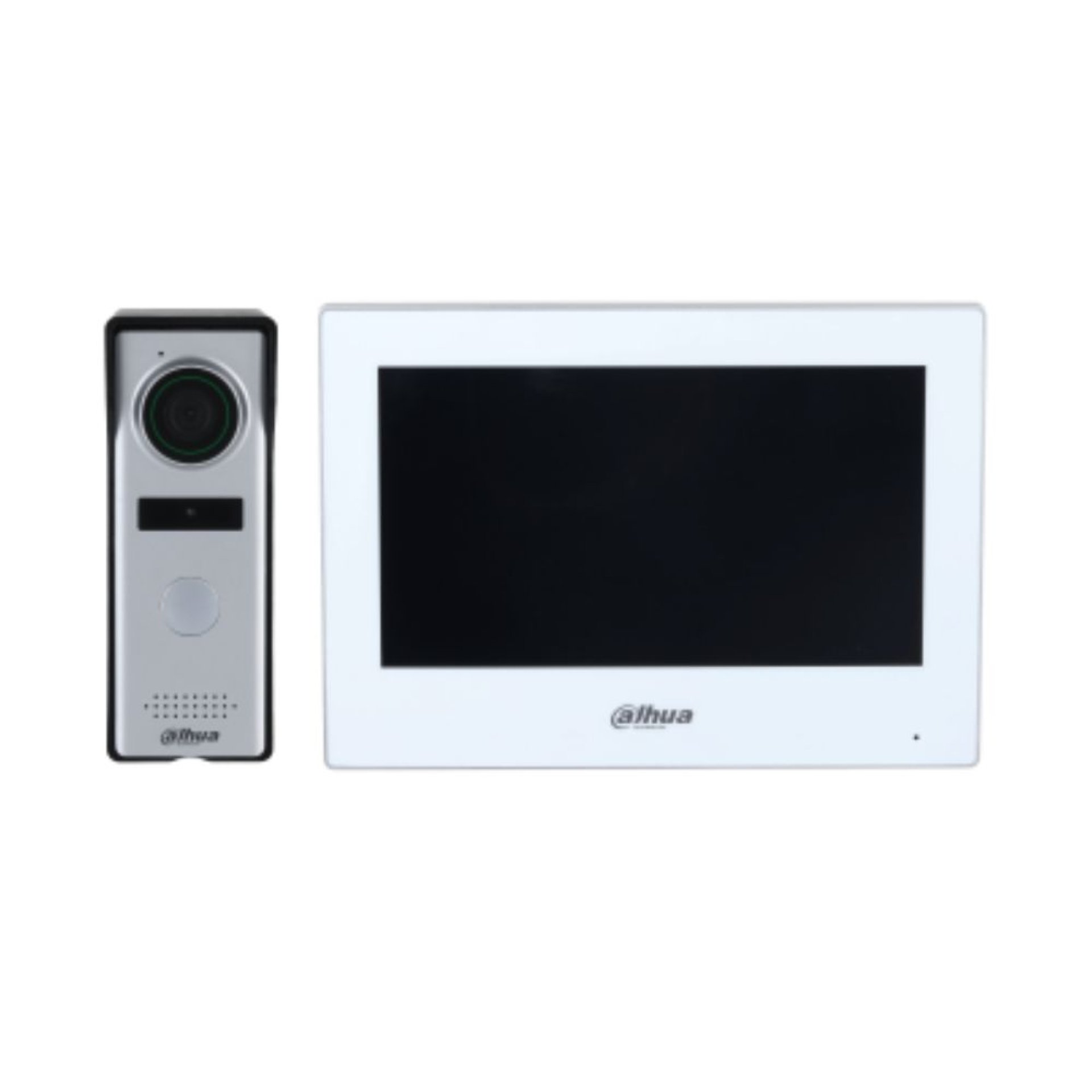

DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Overview
The DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch is a smart hybrid video intercom solution designed for residential homes, villas, apartments, and small offices. It features a 7-inch TFT capacitive touchscreen with 1024 × 600 resolution, Wi-Fi connectivity, PoE support, and compatibility with both analog and digital Dahua door stations (VTOs). The indoor monitor supports two-way audio, live IPC monitoring, video recording and snapshots (via microSD card), group calling, app management, and remote door unlocking, making it an ideal solution for modern access control and visitor management.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Key Features
- 7-inch TFT capacitive touchscreen
- 1024 × 600 display resolution
- Wi-Fi connectivity
- Standard PoE support
- Supports analog and digital VTO door stations
- Supports analog and digital VTH indoor monitors
- Two-way audio
- IPC live monitoring
- Group calling
- Remote door unlocking
- App management
- Video recording and snapshot support
- microSD card support up to 64GB
- 6 alarm inputs and 1 alarm output
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch | KSh 13,000 – KSh 25,000 |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua KTH01 |
| Display | 7-inch TFT Capacitive Touchscreen |
| Resolution | 1024 × 600 |
| Operating System | Embedded OS |
| Communication | Full Digital and Analog |
| Network Port | 1 × 10/100 Mbps RJ-45 |
| Wi-Fi | IEEE 802.11 b/g/n (2.4GHz) |
| Audio | Built-in Microphone and Speaker |
| Audio Mode | Two-Way Audio |
| Audio Enhancement | Echo Suppression, Digital Noise Reduction |
| Video Codec | H.264 |
| Storage | microSD Card up to 64GB |
| Alarm Input | 6 Channels |
| Alarm Output | 1 Channel |
| Power | Standard PoE or 12V DC |
| Installation | Surface Mount |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Performance
- Delivers clear visitor communication through a responsive 7-inch touchscreen.
- Supports two-way audio for real-time conversations with visitors.
- Connects to both analog and digital Dahua door stations for flexible deployment.
- Displays live video from compatible Dahua IP cameras.
- Records videos and captures snapshots when a microSD card is installed.
- Supports remote door unlocking directly from the monitor or mobile app.
- Wi-Fi connectivity simplifies installation without requiring wired networking.
- PoE support enables power and data over a single Ethernet cable.
- Group calling improves communication between multiple indoor monitors.
- Designed for reliable 24/7 residential and commercial access control.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Ideal Applications
- Residential homes
- Villas
- Apartments
- Office entrances
- Small businesses
- Clinics
- Gated communities
- Multi-room residences
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Design and Build
- Slim modern design
- 7-inch capacitive touchscreen
- White finish
- Built-in microphone
- Built-in speaker
- Surface-mount installation
- Responsive touch controls
- Compact lightweight construction
- Wi-Fi antenna integrated
- Designed for continuous operation
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Compatibility
- Dahua analog VTO door stations
- Dahua digital VTO door stations
- Dahua analog VTH monitors
- Dahua digital VTH monitors
- Dahua IP cameras
- DMSS mobile application
- PoE switches
- microSD cards up to 64GB
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – FAQs
1. What display does the monitor use?
It features a 7-inch TFT capacitive touchscreen with a 1024 × 600 resolution.
2. Does it support Wi-Fi?
Yes. The monitor supports 2.4GHz Wi-Fi (IEEE 802.11 b/g/n) for flexible network connectivity.
3. Can it connect to IP cameras?
Yes. It supports live monitoring of compatible Dahua IP cameras (IPCs) directly from the touchscreen.
4. Does it support video recording?
Yes. The monitor supports video recording and snapshot capture when a microSD card (up to 64GB) is installed.
5. Can the monitor unlock doors remotely?
Yes. It supports remote door unlocking, app management, visitor calls, and monitoring when paired with compatible Dahua door stations.
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Pros and Cons
| Pros | Cons |
|---|---|
| 7-inch capacitive touchscreen | microSD card sold separately |
| Supports Wi-Fi and PoE | Supports only 2.4GHz Wi-Fi |
| Compatible with analog and digital Dahua systems | Surface-mount installation only |
| Supports IPC live monitoring | No built-in battery backup |
| Two-way audio and remote unlocking | Best functionality within Dahua ecosystem |
| Supports app management and recording | Requires compatible VTO door station |
DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch – Conclusion
The DAHUA KTH01 IP Video Intercom Touchscreen Monitor 7 Inch is a feature-rich indoor intercom monitor that combines Wi-Fi connectivity, PoE support, two-way audio, remote door control, IP camera monitoring, and app management into a single solution. Its compatibility with both analog and digital Dahua intercom systems, along with expandable functionality and user-friendly touchscreen interface, makes it an excellent choice for modern residential and commercial access control installations.
