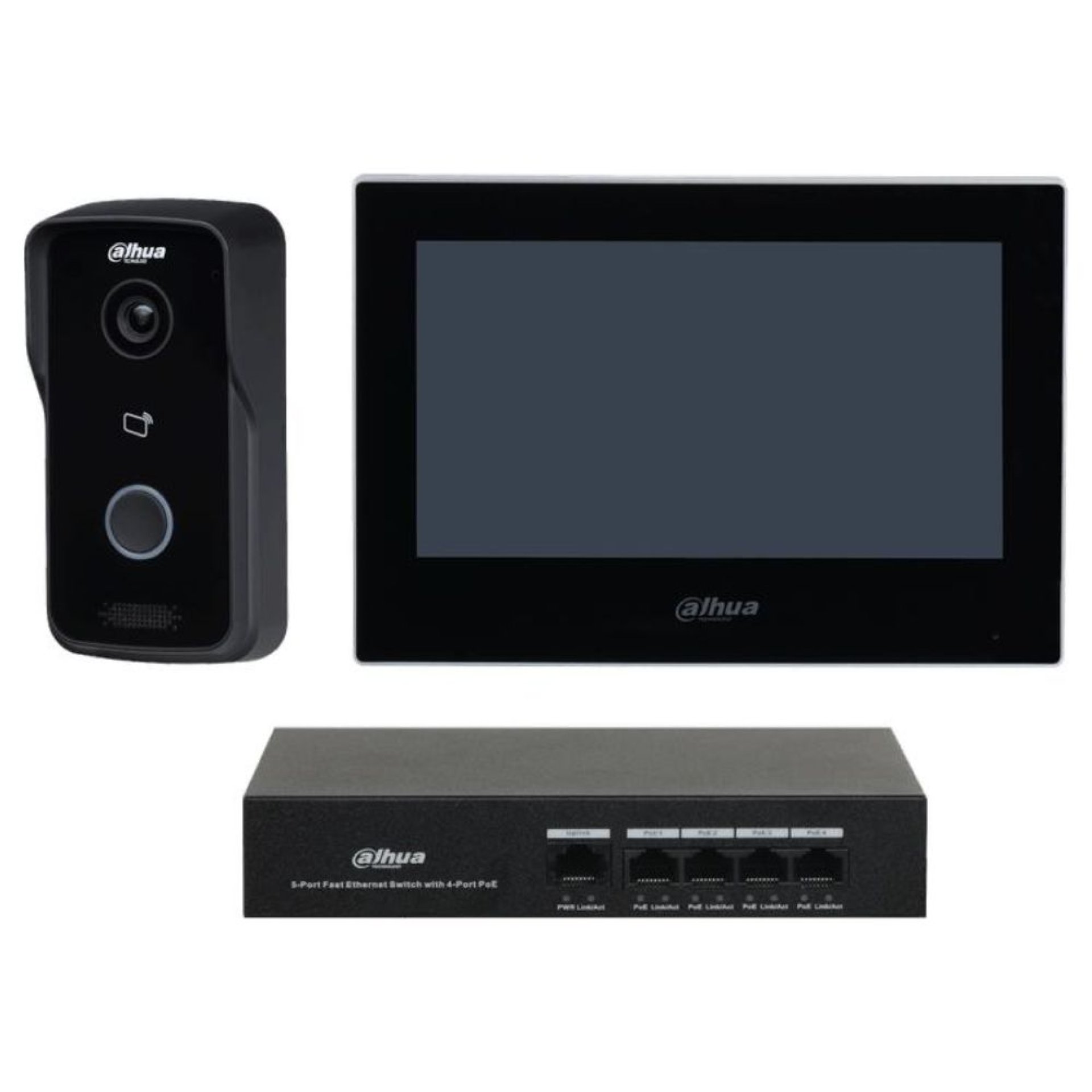

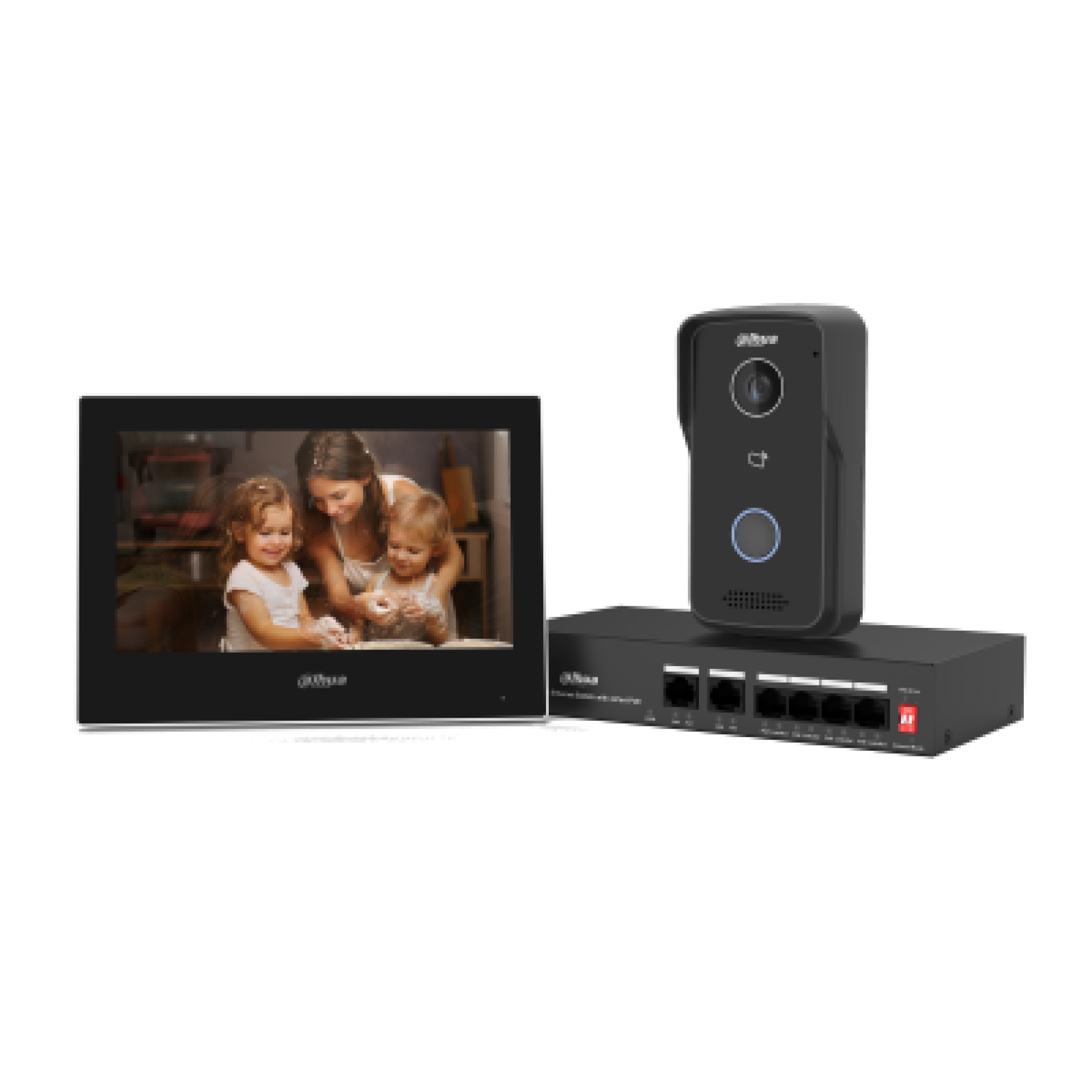

DAHUA KTP03 IP Video Intercom Kit – Overview
The DAHUA KTP03 IP Video Intercom Kit is a complete IP-based video intercom solution designed for villas, residential homes, offices, and small commercial premises. The kit includes the DHI-VTO2111D-P-S3 IP Villa Door Station, DHI-VTH2621G-P 7-inch Indoor Monitor, and the DH-PFS3006-4ET-36 PoE Switch for simplified installation. It features a 2MP HD camera, 7-inch capacitive touchscreen, two-way audio, IC card unlocking, remote unlocking through the DMSS app, PoE support, IP65-rated outdoor station, H.265/H.264 video compression, and IPC monitoring, making it an excellent all-in-one smart access control solution.
DAHUA KTP03 IP Video Intercom Kit – Key Features
- Complete IP video intercom kit
- Includes IP villa door station, indoor monitor, and PoE switch
- 2MP HD CMOS camera
- 7-inch TFT capacitive touchscreen
- 1024 × 600 display resolution
- Two-way audio communication
- IC card unlocking
- Remote door unlocking via DMSS app
- H.265 and H.264 video decoding
- Live IPC monitoring
- Standard PoE support
- Supports up to 10,000 IC cards
- IP65 weatherproof outdoor station
- Surface-mount installation
DAHUA KTP03 IP Video Intercom Kit – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA KTP03 IP Video Intercom Kit | KSh 24,000 – KSh 38,000 |
DAHUA KTP03 IP Video Intercom Kit – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua KTP03 |
| Kit Components | DHI-VTO2111D-P-S3, DHI-VTH2621G-P, DH-PFS3006-4ET-36 |
| Outdoor Camera | 2MP 1/2.8-inch CMOS |
| Display | 7-inch TFT Capacitive Touchscreen |
| Display Resolution | 1024 × 600 |
| Viewing Angle | H: 107°, V: 60°, D: 122° |
| Video Compression | H.265, H.264 |
| Audio | Built-in Microphone and Speaker |
| Audio Mode | Two-Way Audio |
| Unlock Methods | IC Card, Indoor Monitor, DMSS App |
| Card Capacity | 10,000 Cards |
| Network | 10/100 Mbps Ethernet |
| PoE | Standard PoE Supported |
| Alarm Inputs | 6 |
| Alarm Output | 1 |
| Outdoor Protection | IP65, IK04 |
| Installation | Surface Mount |
DAHUA KTP03 IP Video Intercom Kit – Performance
- Delivers clear HD video with its 2MP camera for accurate visitor identification.
- Supports two-way audio communication between visitors and occupants.
- Allows remote door unlocking using the DMSS mobile application.
- IC card authentication provides convenient and secure access.
- Live monitoring of compatible Dahua IP cameras enhances security coverage.
- H.265 and H.264 compression optimize network bandwidth and storage.
- Standard PoE simplifies installation by combining power and data over one cable.
- IP65-rated outdoor station ensures reliable operation in outdoor environments.
- Includes a dedicated PoE switch for quick deployment.
- Built for dependable 24/7 residential and commercial access control.
DAHUA KTP03 IP Video Intercom Kit – Ideal Applications
- Residential homes
- Villas
- Apartments
- Office entrances
- Small businesses
- Clinics
- Gated communities
- Commercial buildings
DAHUA KTP03 IP Video Intercom Kit – Design and Build
- Modern black finish
- Slim 7-inch touchscreen monitor
- Compact outdoor villa station
- Durable PC and acrylic construction
- IP65 weather-resistant outdoor unit
- IK04 vandal-resistant protection
- Built-in microphone and speaker
- Mechanical call button
- Surface-mount installation
- Built for continuous operation
DAHUA KTP03 IP Video Intercom Kit – Compatibility
- Dahua DMSS mobile application
- Dahua IP cameras
- Dahua VTO IP door stations
- Dahua VTH indoor monitors
- Standard PoE switches
- ONVIF-compatible devices
- SIP communication systems
- Electric door locks
DAHUA KTP03 IP Video Intercom Kit – FAQs
1. What components are included in the KTP03 kit?
The kit includes the DHI-VTO2111D-P-S3 IP Villa Door Station, DHI-VTH2621G-P 7-inch Indoor Monitor, and the DH-PFS3006-4ET-36 PoE Switch.
2. Can I unlock the door remotely?
Yes. The system supports remote unlocking through the DMSS mobile app, in addition to unlocking via IC cards and the indoor monitor.
3. Is the outdoor station suitable for outdoor installation?
Yes. The outdoor unit is IP65-rated for weather resistance and IK04-rated for impact protection.
4. Does the indoor monitor support IP camera viewing?
Yes. The 7-inch indoor monitor supports live monitoring of compatible Dahua IP cameras (IPCs).
5. How many access cards can the system support?
The villa door station supports up to 10,000 IC cards for user access management.
DAHUA KTP03 IP Video Intercom Kit – Pros and Cons
| Pros | Cons |
|---|---|
| Complete intercom kit with PoE switch included | Requires wired Ethernet installation |
| 2MP HD camera with wide viewing angle | microSD card not included |
| Remote unlocking through DMSS app | Designed primarily for Dahua ecosystem |
| Supports up to 10,000 IC cards | Surface-mount installation only |
| IP65 and IK04 outdoor protection | Single villa kit, not intended for large apartment complexes |
| Live IP camera monitoring | Requires network configuration for advanced features |
DAHUA KTP03 IP Video Intercom Kit – Conclusion
The DAHUA KTP03 IP Video Intercom Kit is an ideal smart access control solution for homes and small commercial properties. Combining a 2MP IP villa door station, 7-inch touchscreen indoor monitor, PoE switch, remote app management, IC card access, two-way audio, IP camera monitoring, and IP65 weather protection, it provides a secure, reliable, and easy-to-deploy visitor management system for modern properties
