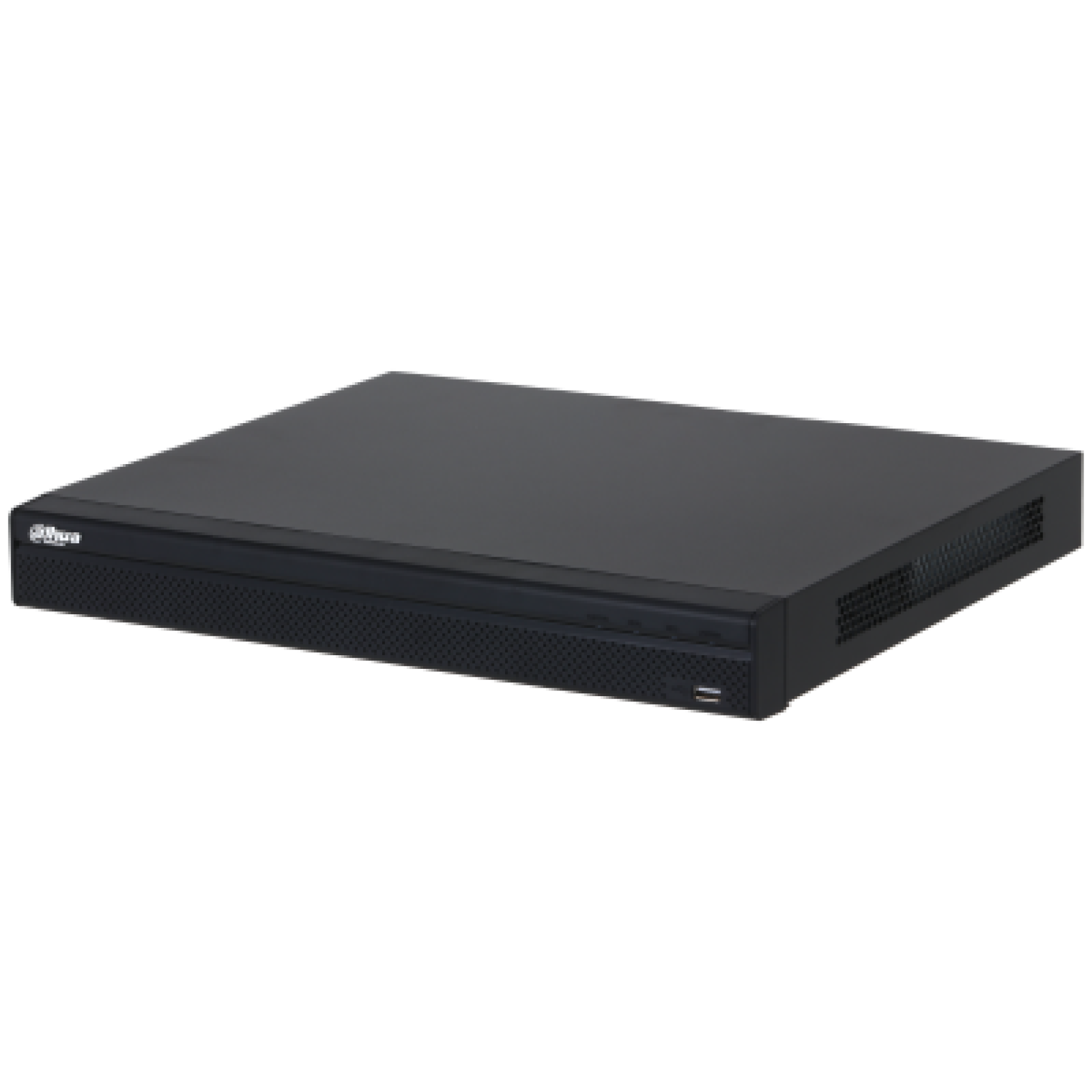

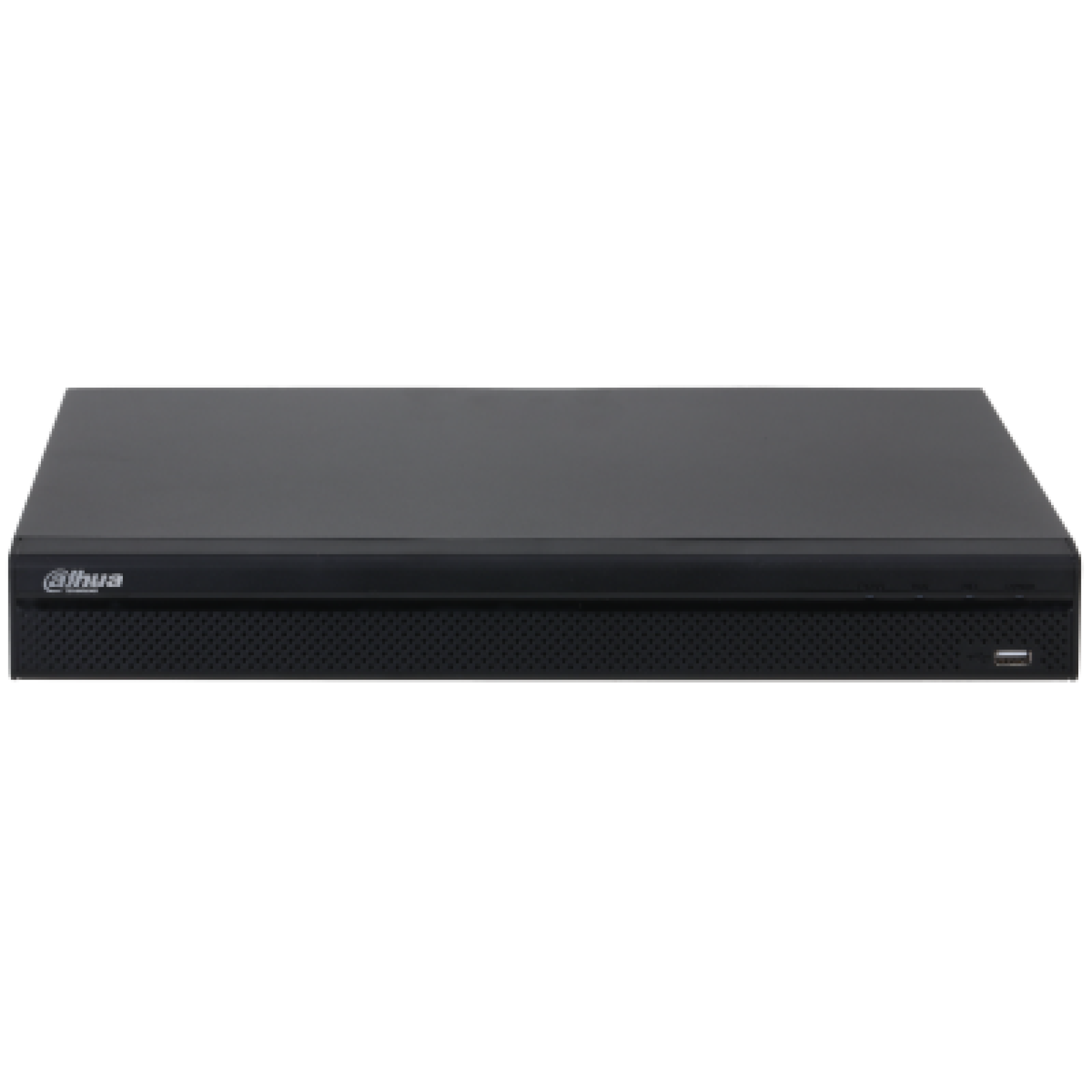

DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Overview
The DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder is a high-performance network video recorder designed for medium and large-scale IP surveillance deployments. Powered by an industrial-grade processor and Embedded Linux operating system, it supports 32 IP camera channels with resolutions up to 12MP. The recorder features 16 integrated PoE ports, Smart H.265+ and Smart H.264+ compression, 2-channel SMD Plus, AI by Camera support including Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map, 4K HDMI output, 160Mbps incoming bandwidth, and dual SATA hard drive bays supporting up to 20TB each, making it an ideal solution for offices, schools, shopping malls, warehouses, hotels, and enterprise security systems.
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Key Features
- 32-channel IP Network Video Recorder
- 16 integrated IEEE 802.3af/at PoE ports
- Supports IP cameras up to 12MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- 2-channel SMD Plus by recorder
- AI by Camera support
- Face Detection and Face Recognition
- Perimeter Protection
- People Counting, Stereo Analysis, and Heat Map support
- HDMI output up to 4K Ultra HD
- 2 SATA HDD bays supporting up to 20TB each
- ONVIF Profile S, Profile G, and Profile T compatibility
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder | KSh 24,000 – KSh 56,000 |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua NVR4232-16P-4KS3 |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 32 |
| PoE Ports | 16 × RJ-45 (10/100 Mbps, IEEE 802.3af/at) |
| Maximum Camera Resolution | Up to 12MP |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| AI by Recorder | 2-Channel SMD Plus |
| AI by Camera | Face Detection, Face Recognition, Perimeter Protection, SMD Plus, People Counting, Stereo Analysis, Heat Map |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Alarm Input | 4 Channels |
| Alarm Output | 2 Channels |
| Storage | 2 SATA HDDs, Up to 20TB Each |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × Gigabit RJ-45 |
| PoE Power Budget | 130W Total (25.5W Max. Per Port) |
| Power Supply | 100–240V AC |
| Operating Temperature | -10°C to +55°C |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Performance
- Supports recording from up to 32 IP cameras with resolutions up to 12MP.
- Integrated 16-port PoE switch simplifies installation by providing power and network connectivity over a single Ethernet cable.
- Smart H.265+ compression minimizes storage requirements while maintaining image quality.
- 2-channel SMD Plus accurately distinguishes humans and vehicles from other moving objects.
- AI by Camera enables Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map analytics.
- Supports 4K Ultra HD HDMI output for crystal-clear live viewing and playback.
- Supports simultaneous live view, recording, playback, backup, and remote management.
- Dual SATA bays provide up to 40TB total storage capacity.
- Compatible with ONVIF Profile S, G, and T IP cameras.
- Built for reliable 24/7 surveillance operation.
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Ideal Applications
- Office buildings
- Shopping malls
- Warehouses
- Schools
- Hospitals
- Hotels
- Apartment complexes
- Industrial facilities
- Commercial buildings
- Enterprise security systems

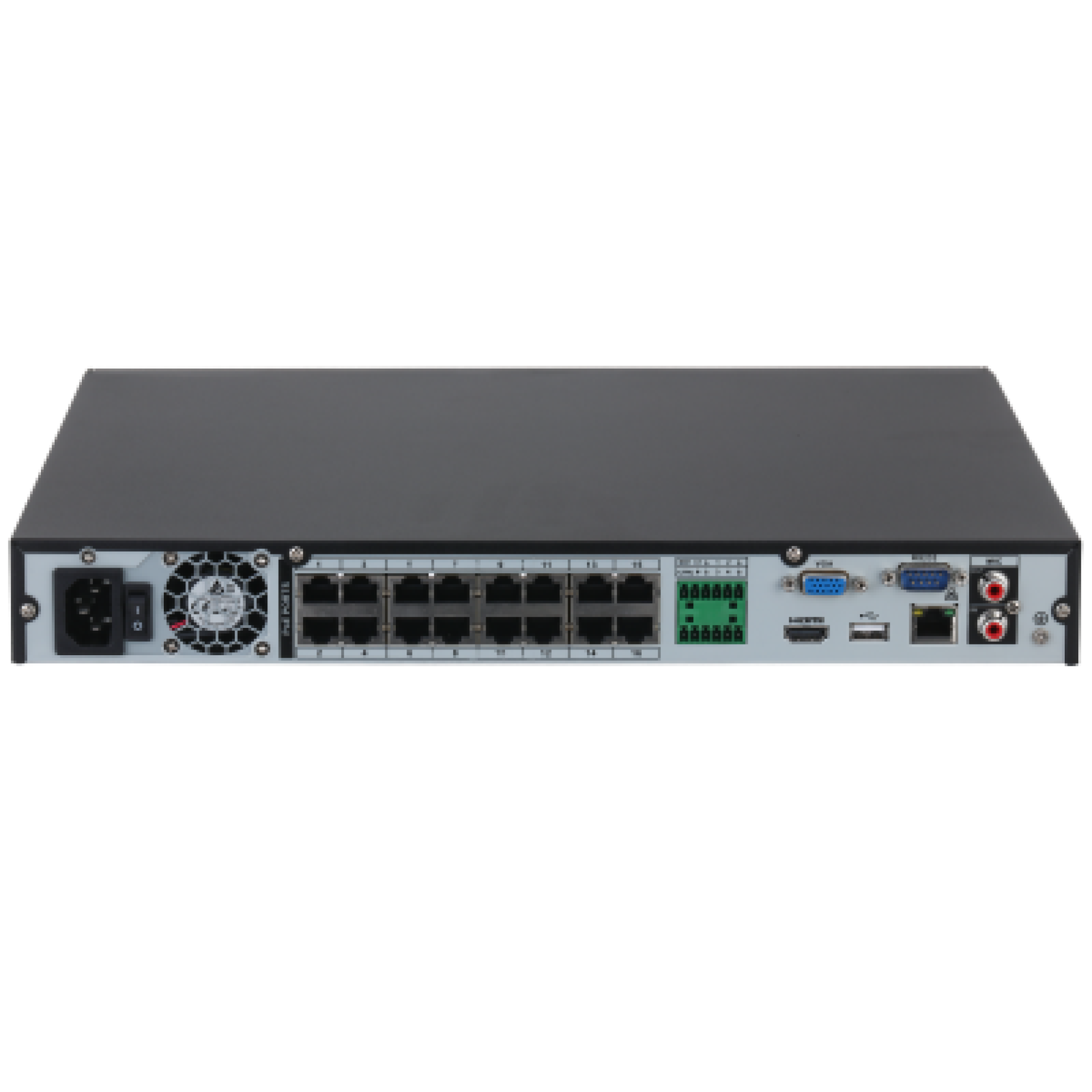

DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Design and Build
- Compact 1U rackmount chassis
- Durable metal enclosure
- Integrated 16-port PoE switch
- Front LED status indicators
- HDMI and VGA display outputs
- Front and rear USB ports
- Gigabit Ethernet connectivity
- Dual SATA hard drive bays
- Efficient cooling system
- Rack or desktop installation
- Built for continuous 24/7 operation
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Compatibility
- Dahua IP cameras
- ONVIF Profile S, Profile G, and Profile T cameras
- Panasonic IP cameras
- Sony IP cameras
- Axis IP cameras
- Pelco IP cameras
- Canon IP cameras
- Hanwha IP cameras
- Dahua DMSS mobile application
- Smart PSS software
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – FAQs
1. How many cameras does the recorder support?
It supports 32 IP cameras with resolutions up to 12MP and includes 16 integrated PoE ports for direct camera connectivity.
2. Does the recorder support Power over Ethernet (PoE)?
Yes. It features 16 IEEE 802.3af/at PoE ports with a 130W total PoE budget and a maximum output of 25.5W per port.
3. What is the maximum storage capacity?
The recorder supports 2 SATA hard drives, each supporting up to 20TB, for a maximum total storage capacity of 40TB.
4. What AI features are available?
It supports 2-channel SMD Plus by the recorder and Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map through compatible AI cameras.
5. Can I monitor the recorder remotely?
Yes. The recorder supports remote viewing, playback, and management through the DMSS mobile application for Android and iOS devices.
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Built-in 16-port PoE switch | Supports only two internal hard drives |
| Supports up to 32 IP cameras with 12MP resolution | No RAID support |
| Dual SATA bays support up to 40TB total storage | AI by recorder limited to 2-channel SMD Plus |
| Smart H.265+ compression reduces storage requirements | Advanced AI analytics require compatible AI cameras |
| 4K HDMI output | Single HDMI output |
| ONVIF compatibility with third-party IP cameras | Suitable primarily for medium and large deployments |
DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder – Conclusion
The DAHUA NVR4232-16P-4KS3 32CH 1U 16PoE 2HDDs Lite Network Video Recorder is an excellent choice for professional IP surveillance installations. With 32-channel support, 16 integrated PoE ports, 12MP camera compatibility, 4K HDMI output, Smart H.265+ compression, 2-channel SMD Plus, AI camera integration, and up to 40TB of storage, it delivers reliable, scalable, and efficient performance for commercial, industrial, educational, and enterprise security environments.
