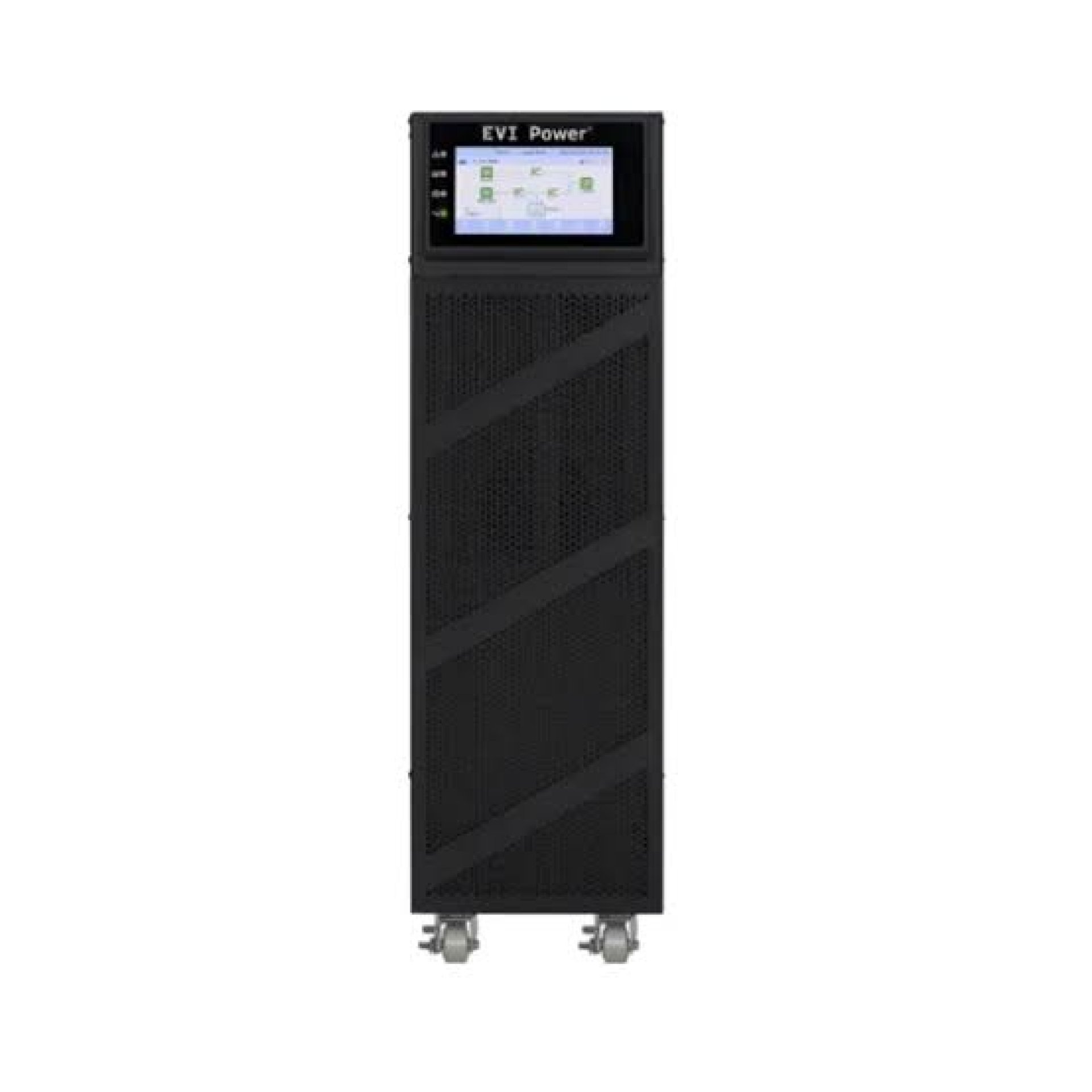

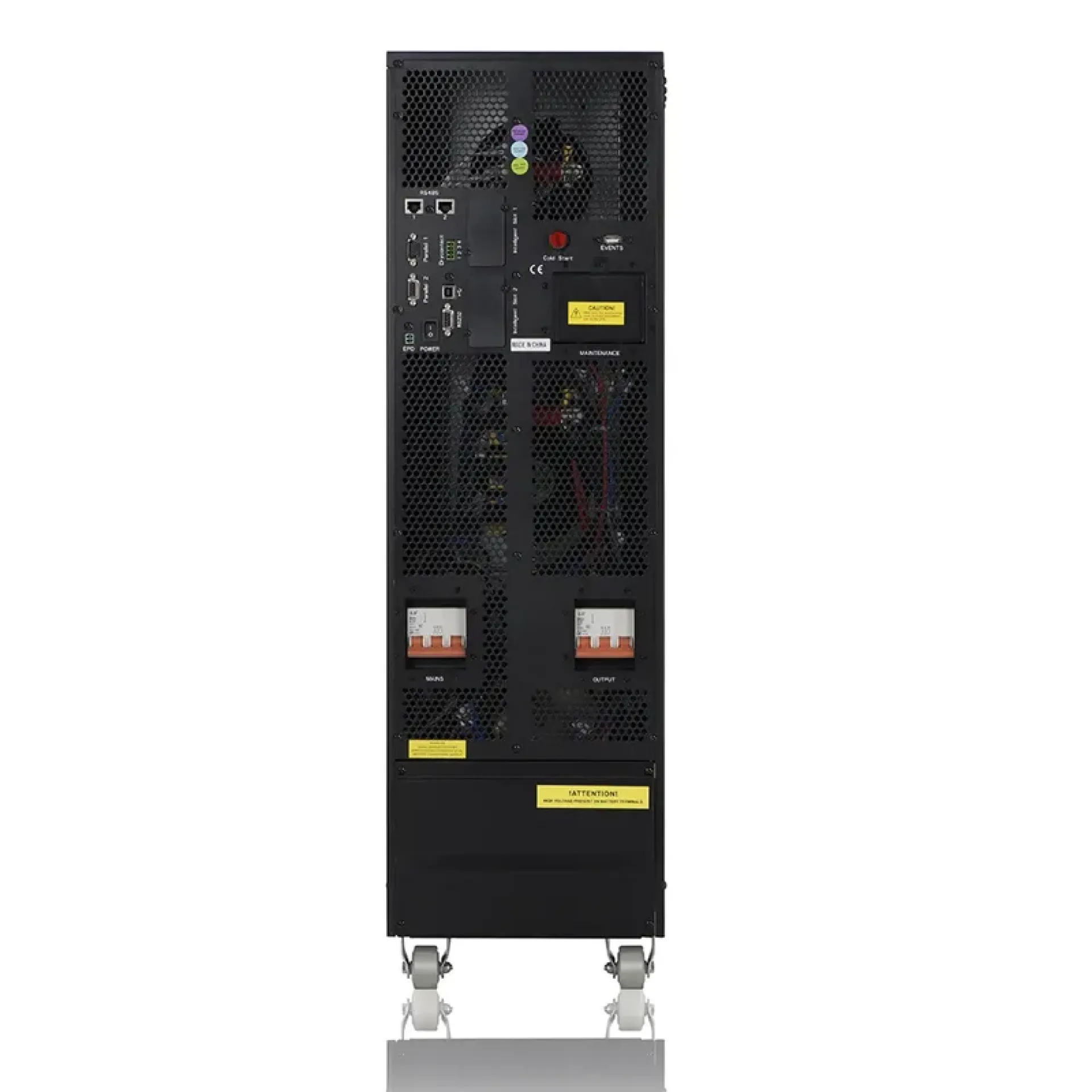

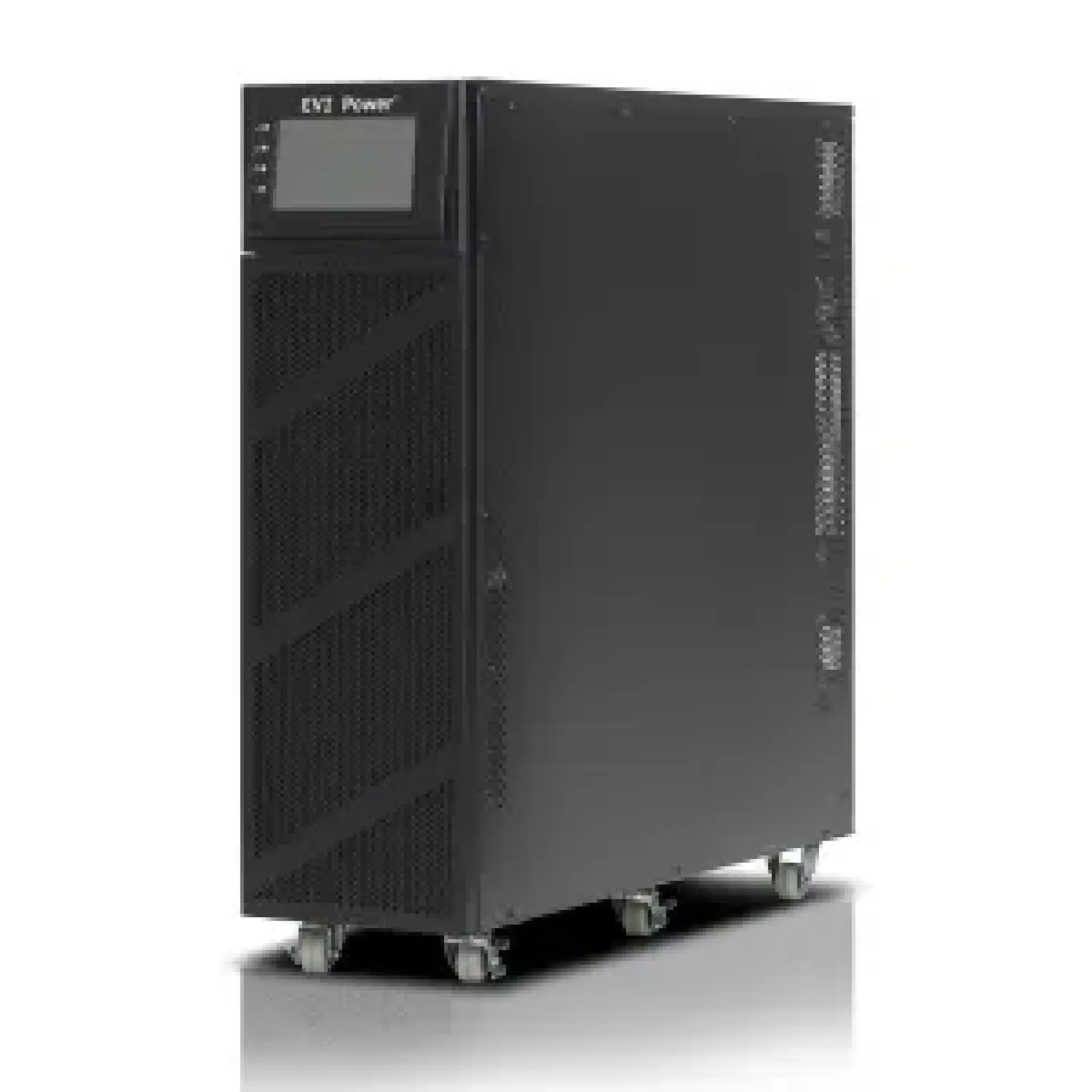

EVI 40000VA/36000W Tower Online 3 Phase UPS-EP-UPS40Y33OT
Key Specifications
- Product Name: EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT
- Brand: EVI
- Model: EP-UPS40Y33OT
- Capacity: 40000VA / 36000W
- UPS Topology: Online Double Conversion with DSP Control
- Phase Configuration: 3-Phase Input / 3-Phase Output
- Form Factor: Tower
- Input Voltage Range: 208V – 478V AC
- Input Frequency Range: 40Hz – 70Hz
- Input Power Factor: ≥0.99
- Input Current Harmonic Distortion: ≤3%
- Output Power Factor: 0.9
- Output Voltage: 380V / 400V / 415V AC
- Waveform Type: Pure Sine Wave
- Transfer Time: 0ms
- Display: 7-inch Touch LCD display
- Communication Interfaces: USB, RS-232, RS-485, Parallel Port, Dry Contact
- Optional Communication Cards: SNMP, Relay Card
- Battery Type: Built-in sealed lead-acid batteries
- External Battery Support: Yes
- Parallel Redundancy: N+X, up to 4 units
- Efficiency: Up to 94%
- Special Features: ECO mode, DC start, maintenance bypass, generator compatibility, intelligent battery management, Emergency Power Off (EPO)
- Protection Features: Overload, surge, short circuit, over-temperature, overcharge, deep discharge, and lightning protection
- Warranty: 2 years (1 year on battery)
- Color: Black
- Ideal For: Data centers, industrial automation, hospitals, telecom infrastructure, enterprise servers, and mission-critical applications
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Overview
The EVI 40000VA / 36000W Tower Online 3 Phase UPS is a high-capacity industrial power protection solution engineered for environments that demand uninterrupted operation and exceptional power quality.
Built with true online double-conversion technology and advanced DSP control, the UPS continuously converts incoming AC power to DC and back to AC, ensuring connected equipment receives stable pure sine wave output with zero transfer time during outages and power fluctuations.
Its massive 36000W output capacity and three-phase architecture make it ideal for supporting data centers, industrial equipment, healthcare systems, telecommunications infrastructure, and large enterprise networks.
The integrated 7-inch touch LCD display enables real-time monitoring of system performance, battery status, load levels, and operating conditions for simplified management and control.
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Price in Kenya
| Product | Price (KSh) |
|---|---|
| EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT | 737,000 |
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Full Specifications
| Specification | Details |
|---|---|
| Brand | EVI |
| Model | EP-UPS40Y33OT |
| Capacity | 40000VA / 36000W |
| Technology | Online Double Conversion with DSP Control |
| Phase | 3-Phase Input / 3-Phase Output |
| Form Factor | Tower |
| Input Voltage Range | 208V – 478V AC |
| Input Frequency Range | 40Hz – 70Hz |
| Input Power Factor | ≥0.99 |
| Input Harmonic Distortion | ≤3% |
| Output Power Factor | 0.9 |
| Output Voltage | 380V / 400V / 415V AC |
| Waveform | Pure Sine Wave |
| Transfer Time | 0ms |
| Display | 7-inch Touch LCD |
| Communication Interfaces | USB, RS-232, RS-485, Parallel Port, Dry Contact |
| Optional Cards | SNMP, Relay Card |
| External Battery Support | Yes |
| Parallel Support | Up to 4 units |
| Efficiency | Up to 94% |
| EPO Support | Yes |
| Generator Compatibility | Yes |
| Protection | Overload, short circuit, over-temperature, surge, overcharge, deep discharge, lightning protection |
| Warranty | 2 years (1 year on battery) |
| Color | Black |
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Design & Build Quality
The UPS features a heavy-duty tower chassis engineered for demanding industrial and enterprise environments.
Key design highlights include:
- Durable metal enclosure for continuous operation
- Large 7-inch touch LCD interface
- Front-access controls and status indicators
- Intelligent cooling system with variable-speed fans
- Integrated battery compartment
- Terminal block input and output connections
- Maintenance-friendly architecture
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Performance
Designed for mission-critical applications, the UPS delivers reliable and uninterrupted power protection for sensitive equipment.
Key performance features include:
- True online double-conversion technology
- Zero transfer time during outages
- Pure sine wave output
- High 36000W usable output capacity
- Wide input voltage tolerance minimizes battery usage
- Intelligent battery management extends battery lifespan
- N+X parallel redundancy supports scalability and fault tolerance
- Generator compatibility for extended backup solutions
- ECO mode improves energy efficiency during stable power conditions
- Low input harmonic distortion for enhanced power quality
The UPS supports parallel operation with up to four units, enabling capacity expansion or redundancy for high-availability environments.
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Connectivity and Compatibility
- Input Connection: Terminal block
- Output Connection: Terminal block
- Communication Ports: USB, RS-232, RS-485, Parallel Port, Dry Contact
- Optional Network Management: SNMP and relay card support
- Emergency Power Off (EPO): Yes
- Output Voltage: Selectable 380V / 400V / 415V AC
Compatible Devices:
- Enterprise servers
- Industrial machinery
- Data center equipment
- Medical systems
- Network infrastructure
- Telecom equipment
- Security systems
- Storage arrays
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Applications
- Data centers
- Manufacturing plants
- Hospitals and healthcare facilities
- Telecommunications infrastructure
- Financial institutions
- Industrial automation systems
- Government facilities
- Large enterprise environments
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Pros & Cons
| Pros | Cons |
|---|---|
| Massive 36000W output capacity | Higher cost than single-phase UPS systems |
| True online double-conversion technology | Requires professional installation |
| N+X parallel redundancy support | Large and heavy unit |
| Generator compatibility | Requires dedicated floor space |
| Extensive communication options | Lead-acid batteries require periodic replacement |
Frequently Asked Questions (FAQs)
What is the price of the EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT in Kenya?
The EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT is priced at KSh 737,000 in Kenya.
Does this UPS provide pure sine wave output?
Yes. The UPS delivers pure sine wave output suitable for sensitive equipment including servers, medical devices, industrial systems, and telecommunications infrastructure.
Can this UPS operate with a generator?
Yes. The UPS supports generator input and features a wide input voltage and frequency range for reliable operation in challenging power environments.
Does this UPS support parallel redundancy?
Yes. The system supports N+X parallel redundancy with up to four units, allowing increased capacity and fault tolerance.
Can the backup runtime be extended?
Yes. The UPS supports external battery packs for extended runtime requirements.
EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT Conclusion
The EVI 40000VA / 36000W Tower Online 3 Phase UPS - EP-UPS40Y33OT is a high-performance power backup solution built for demanding enterprise and industrial environments.
At KSh 737,000, it combines online double-conversion technology, three-phase power architecture, N+X parallel redundancy, generator compatibility, and advanced remote management capabilities to deliver maximum uptime for mission-critical applications.
