EVI 10000VA/9000W Tower Online Single Phase UPS-EP-UPS10000Y11OT
Key Specifications
- Product Name: EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT
- Brand: EVI
- Model: EP-UPS10000Y11OT
- Capacity: 10000VA / 9000W
- UPS Topology: Online Double Conversion with DSP Control
- Phase: Single Phase
- Form Factor: Tower
- Input Voltage Range: 120V – 276V AC
- Input Frequency Range: 45–55Hz (50Hz) / 54–66Hz (60Hz)
- Input Current Harmonic Distortion: Less than 3%
- Output Power Factor: 0.9
- Output Voltage: 220V / 230V / 240V AC
- Waveform Type: Pure Sine Wave
- Transfer Time: 0ms
- Display: Rotating LCD display
- Communication Interfaces: USB, RS-232
- Optional Communication Cards: SNMP, Parallel, Relay cards
- Battery Type: Sealed lead-acid batteries with optional lithium battery support
- Charging Current: Selectable charging current
- Backup Time: Up to 10–30 minutes (load dependent)
- Efficiency: Up to 95% in ECO mode
- Special Features: ECO mode, cold start, self-test, Emergency Power Off (EPO), low-priority load shutdown, generator compatibility
- Protection Features: Overload, surge, short circuit, overcharge, deep discharge, and lightning protection
- Warranty: 2 years (1 year on battery)
- Color: Black
- Ideal For: Data centers, enterprise servers, telecom systems, medical equipment, industrial automation, and mission-critical applications
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Overview
The EVI 10000VA / 9000W Tower Online Single Phase UPS is a high-capacity enterprise power protection solution designed for mission-critical environments that require continuous uptime and clean power delivery.
Built with true online double-conversion technology and advanced DSP control, the UPS continuously converts incoming AC power to DC and back to AC, ensuring connected equipment receives stable pure sine wave output with zero transfer time during power outages and voltage fluctuations.
Its powerful 9000W output capacity makes it ideal for protecting high-density server environments, network infrastructure, telecom systems, industrial automation equipment, medical devices, and other critical applications.
The tower form factor enables easy deployment in server rooms and equipment areas without requiring rack space, while the integrated LCD display provides real-time information on load levels, battery condition, operating status, and input/output parameters.
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Price in Kenya
| Product | Price (KSh) |
|---|---|
| EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT | 177,000 |
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Full Specifications
| Specification | Details |
|---|---|
| Brand | EVI |
| Model | EP-UPS10000Y11OT |
| Capacity | 10000VA / 9000W |
| Technology | Online Double Conversion with DSP Control |
| Phase | Single Phase |
| Form Factor | Tower |
| Input Voltage Range | 120V – 276V AC |
| Input Frequency Range | 45–55Hz (50Hz) / 54–66Hz (60Hz) |
| Input Harmonic Distortion | <3% |
| Output Power Factor | 0.9 |
| Output Voltage | 220V / 230V / 240V AC |
| Waveform | Pure Sine Wave |
| Transfer Time | 0ms |
| Display | Rotating LCD |
| Communication Interfaces | USB, RS-232 |
| Optional Cards | SNMP, Parallel, Relay |
| Battery Type | Sealed lead-acid with optional lithium support |
| Backup Time | Up to 10–30 minutes |
| Efficiency | Up to 95% in ECO mode |
| Generator Compatibility | Yes |
| EPO Support | Yes |
| Protection | Overload, surge, short circuit, overcharge, deep discharge, lightning protection |
| Warranty | 2 years (1 year on battery) |
| Color | Black |

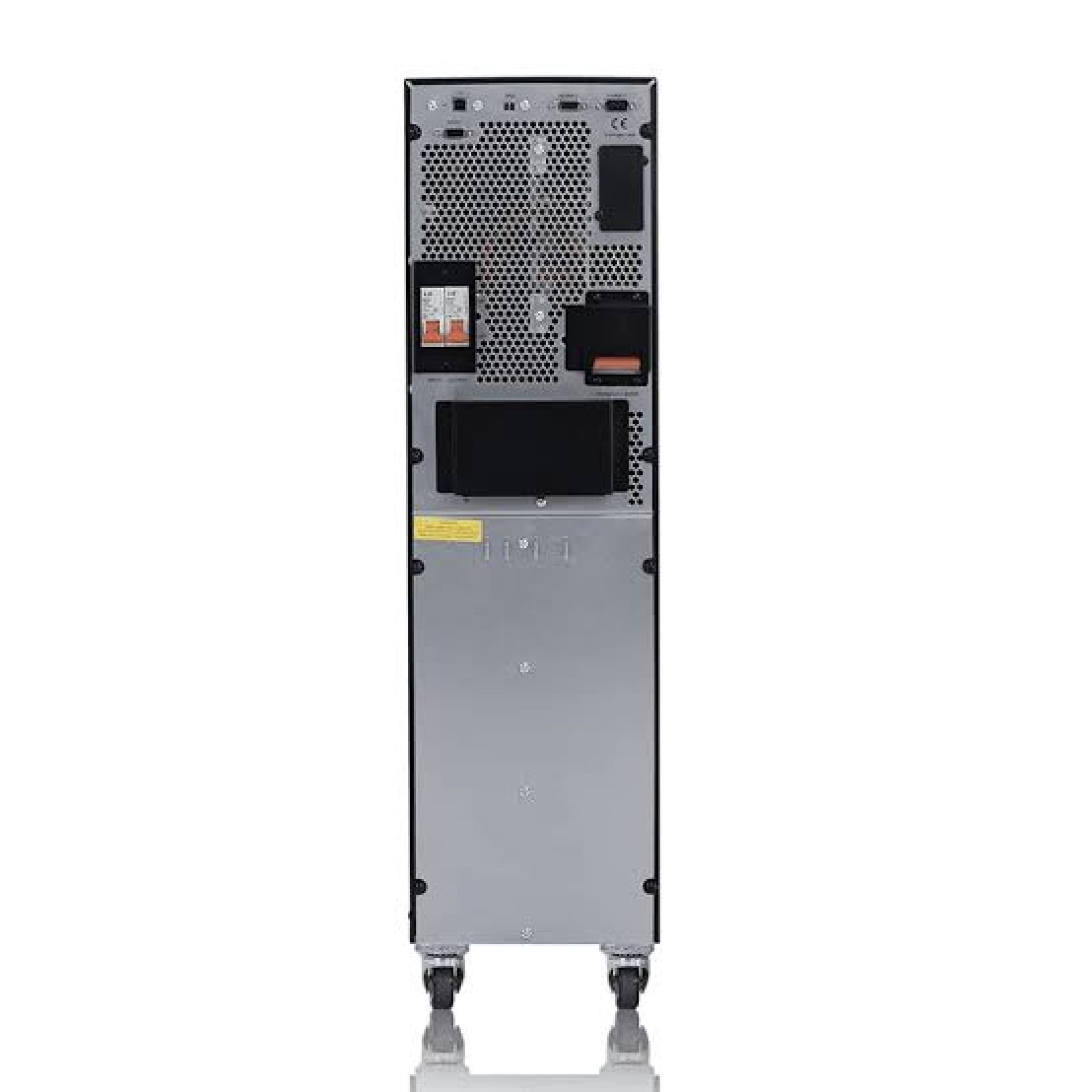

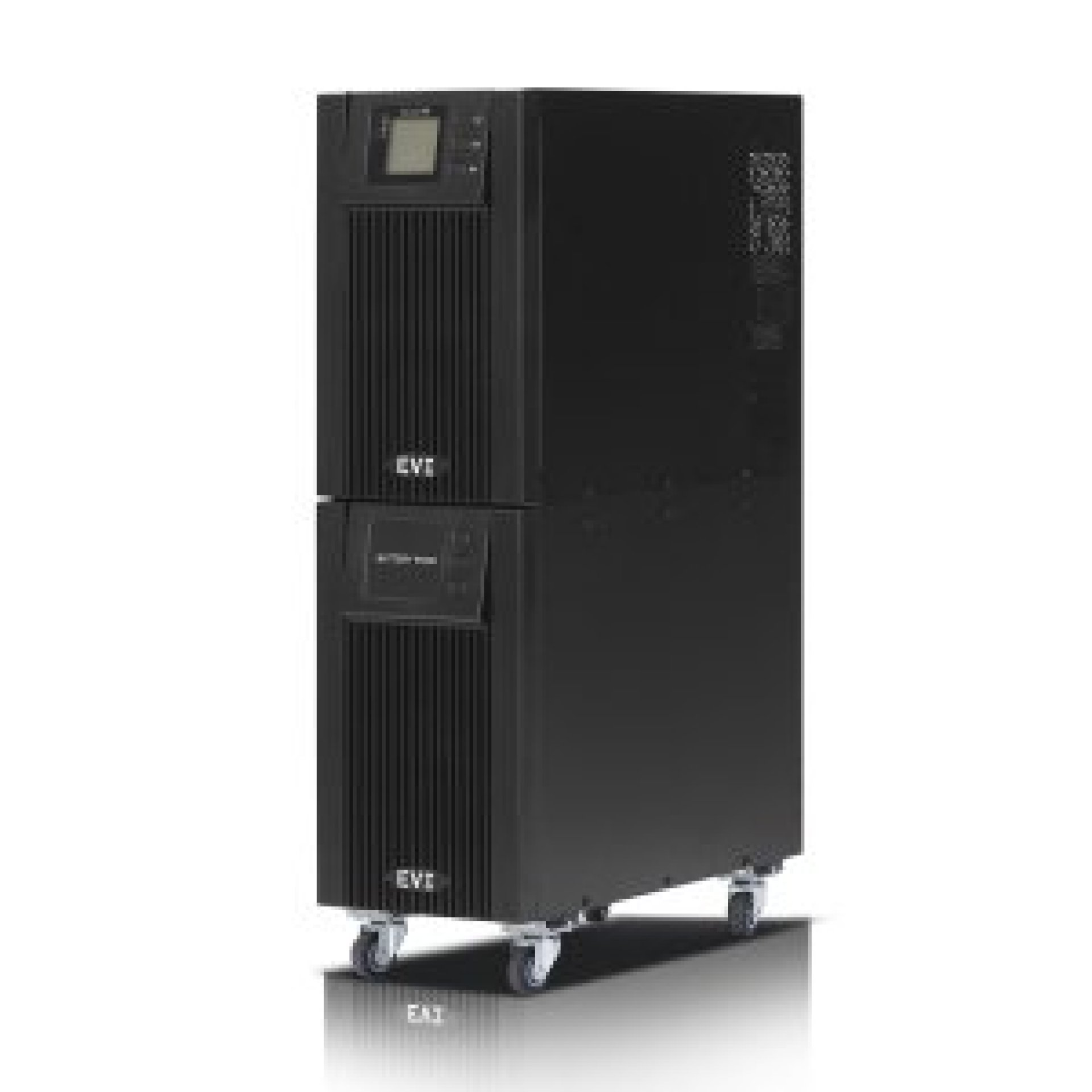

EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Design & Build Quality
The UPS features a robust tower chassis engineered for continuous operation in demanding business environments.
Key design highlights include:
- Heavy-duty tower design
- Durable metal enclosure
- Rotating LCD display for simplified monitoring
- Front-access controls and status indicators
- Intelligent cooling system with variable-speed fans
- Terminal block connections for flexible installation
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Performance
Designed for mission-critical applications, the UPS delivers continuous clean power and advanced protection for sensitive equipment.
Key performance features include:
- True online double-conversion technology
- Zero transfer time during power interruptions
- Pure sine wave output for sensitive electronics
- High 9000W usable output capacity
- Wide input voltage range minimizes battery usage
- Input harmonic distortion below 3%
- Generator compatibility for hybrid backup systems
- Intelligent battery management extends battery lifespan
- ECO mode improves energy efficiency during stable power conditions
Runtime varies according to the connected load, with backup duration depending on battery configuration and overall power consumption.
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Connectivity and Compatibility
- Input Connection: Terminal block
- Output Connection: Terminal block
- Communication Ports: USB and RS-232
- Optional Network Management: SNMP card support
- Emergency Power Off (EPO): Yes
- Output Voltage: User-selectable 220V / 230V / 240V AC
Compatible Devices:
- Enterprise servers
- Network switches
- Storage arrays
- Telecom systems
- Medical equipment
- Industrial controllers
- CCTV infrastructure
- Data center equipment
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Applications
- Data centers
- Server rooms
- Telecommunications systems
- Healthcare facilities
- Industrial automation
- Financial institutions
- Security and surveillance systems
- Mission-critical infrastructure
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Pros & Cons
| Pros | Cons |
|---|---|
| High 9000W output capacity | Higher cost than line interactive UPS models |
| Pure sine wave output | Requires professional installation |
| Zero transfer time | Large and heavy unit |
| Generator compatibility | Lead-acid batteries require periodic replacement |
| Optional SNMP support for remote monitoring | Requires dedicated installation space |
Frequently Asked Questions (FAQs)
What is the price of the EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT in Kenya?
The EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT is priced at KSh 177,000 in Kenya.
Does this UPS provide pure sine wave output?
Yes. The UPS delivers a pure sine wave output, making it suitable for sensitive equipment such as servers, networking hardware, storage systems, medical devices, and telecom infrastructure.
Can this UPS be remotely monitored?
Yes. The UPS includes USB and RS-232 interfaces and supports optional SNMP, relay, and parallel cards for advanced monitoring and management.
Is this UPS compatible with generators?
Yes. The UPS supports generator input, making it suitable for installations with standby generator systems.
Is this UPS suitable for data centers?
Yes. With a 9000W output capacity, online double-conversion technology, and zero transfer time, it is designed for data centers, server rooms, and other mission-critical environments.
EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT Conclusion
The EVI 10000VA / 9000W Tower Online Single Phase UPS - EP-UPS10000Y11OT is an enterprise-grade backup solution designed to deliver maximum uptime and comprehensive power protection.
At KSh 177,000, it offers excellent value with features such as online double-conversion technology, pure sine wave output, generator compatibility, optional remote management capabilities, and a powerful 9000W output capacity, making it an ideal choice for demanding business environments.
