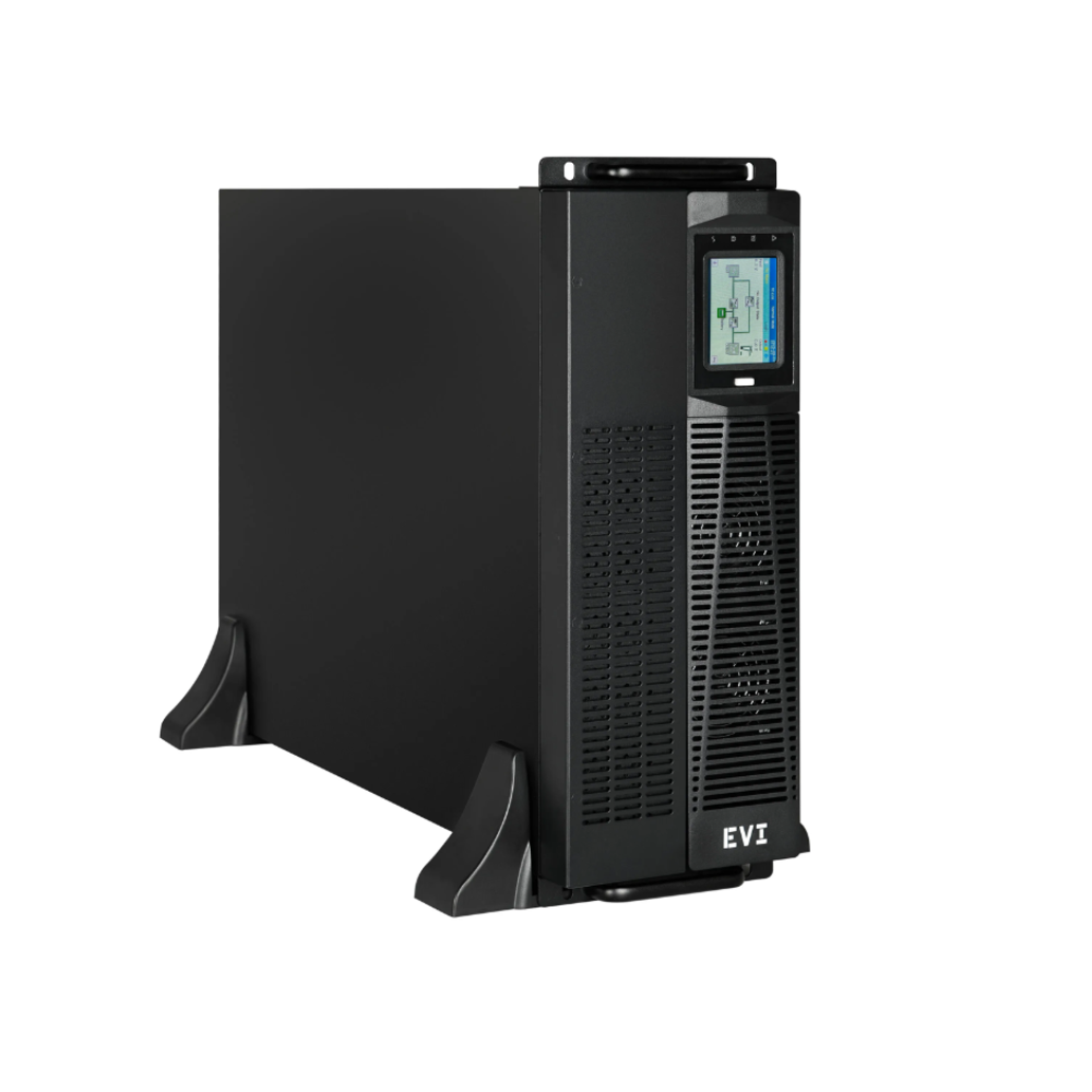

EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR
Key Specifications
- Product Name: EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR
- Brand: EVI
- Model: EP-UPS6000P11OR
- Capacity: 6000VA / 6000W
- UPS Topology: Online Double Conversion
- Phase: Single Phase
- Form Factor: Rack Mount / Tower Convertible
- Input Voltage Range: 110V – 300V AC
- Input Power Factor: 0.99 with PFC
- Output Power Factor: 1.0
- Output Voltage: 200V / 208V / 220V / 230V / 240V AC
- Frequency Range: 40Hz – 70Hz
- Waveform Type: Pure Sine Wave
- Transfer Time: 0ms
- Display: LCD touchscreen status display
- Output Sockets: 2 × IEC C19, 3 × IEC C13 outlets
- Communication Interfaces: USB, RS-232, RS-485, SNMP slot
- Battery Type: 16 × 12V sealed lead-acid batteries
- External Battery Support: Yes
- Backup Time: Up to 5–40 minutes (load dependent)
- Recharge Time: 4–8 hours to 90% capacity
- Efficiency: Up to 95%
- Special Features: ECO mode, generator compatibility, Emergency Power Off (EPO), maintenance bypass, intelligent battery management, cold start
- Protection Features: Overload, surge, short circuit, overcharge, deep discharge, and lightning protection
- Warranty: 2 years (1 year on battery)
- Color: Black
- Ideal For: Data centers, servers, telecom systems, storage arrays, network infrastructure, and mission-critical applications
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Overview
The EVI 6000VA / 6000W Rack Mount Online Single Phase UPS is an enterprise-grade power protection solution designed for demanding IT environments that require continuous uptime and clean power delivery.
Built with true online double-conversion technology, the UPS continuously converts incoming AC power to DC and back to AC, ensuring connected equipment receives stable pure sine wave output with zero transfer time during power interruptions. Its high input power factor and full 6000W output capacity make it suitable for high-density server environments and critical business infrastructure.
The rack-mount chassis is designed for standard 19-inch server racks and supports tower deployment for greater installation flexibility. The integrated LCD touchscreen provides real-time monitoring of load levels, battery status, input/output voltage, and operating modes.
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Price in Kenya
| Product | Price (KSh) |
|---|---|
| EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR | 157,000 |
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Full Specifications
| Specification | Details |
|---|---|
| Brand | EVI |
| Model | EP-UPS6000P11OR |
| Capacity | 6000VA / 6000W |
| Technology | Online Double Conversion |
| Phase | Single Phase |
| Form Factor | Rack Mount / Tower Convertible |
| Input Voltage Range | 110V – 300V AC |
| Input Power Factor | 0.99 with PFC |
| Output Power Factor | 1.0 |
| Output Voltage | 200V / 208V / 220V / 230V / 240V AC |
| Frequency Range | 40Hz – 70Hz |
| Waveform | Pure Sine Wave |
| Transfer Time | 0ms |
| Display | LCD touchscreen |
| Output Sockets | 2 × IEC C19, 3 × IEC C13 |
| Communication Interfaces | USB, RS-232, RS-485, SNMP slot |
| Battery Type | 16 × 12V sealed lead-acid batteries |
| External Battery Support | Yes |
| Recharge Time | 4–8 hours |
| Efficiency | Up to 95% |
| Operating Modes | ECO mode, frequency converter mode |
| EPO Support | Yes |
| Maintenance Bypass | Yes |
| Generator Compatibility | Yes |
| Protection | Overload, surge, short circuit, overcharge, deep discharge, lightning protection |
| Warranty | 2 years (1 year on battery) |
| Color | Black |
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Design & Build Quality
The UPS features a heavy-duty rack-mount chassis engineered for enterprise deployments.
Key design highlights include:
- Rack-mount and tower-convertible installation
- Durable metal enclosure for 24/7 operation
- LCD touchscreen for real-time monitoring
- Front-access controls and status indicators
- Integrated cooling system with intelligent fan control
- Support for external battery modules
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Performance
Designed for mission-critical environments, the UPS delivers continuous clean power and advanced protection for sensitive equipment.
Key performance features include:
- True online double-conversion technology
- Zero transfer time during power interruptions
- Pure sine wave output for sensitive equipment
- Full 6000W usable output capacity
- Wide input voltage range reduces battery usage
- Intelligent battery management extends battery lifespan
- Generator compatibility for hybrid backup systems
- Maintenance bypass enables servicing without downtime
- ECO mode improves energy efficiency during stable power conditions
Backup duration varies according to the connected load, with typical runtime ranging from 5 to 40 minutes depending on battery configuration and power consumption.
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Connectivity and Compatibility
- Input Connection: Hardwired terminal block
- Output Sockets: 2 × IEC C19, 3 × IEC C13
- Communication Ports: USB, RS-232, RS-485
- Network Management: Optional SNMP card support
- Emergency Power Off (EPO): Yes
- Output Voltage: User-selectable 200V / 208V / 220V / 230V / 240V AC
Compatible Devices:
- Rack servers
- Blade servers
- Network switches
- Storage arrays and NAS systems
- Firewalls and security appliances
- Telecom equipment
- CCTV infrastructure
- Data center equipment
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Applications
- Data centers
- Server rooms
- Network cabinets
- Enterprise IT environments
- Telecommunications systems
- Financial institutions
- Healthcare facilities
- Industrial control systems
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Pros & Cons
| Pros | Cons |
|---|---|
| Full 6000W usable output capacity | Higher cost than line interactive UPS models |
| Pure sine wave output | Requires professional installation |
| Zero transfer time | Large and heavy unit |
| Maintenance bypass support | Lead-acid batteries require periodic replacement |
| SNMP support for remote monitoring | Requires dedicated rack space |
Frequently Asked Questions (FAQs)
What is the price of the EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR in Kenya?
The EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR is priced at KSh 157,000 in Kenya.
Does this UPS provide pure sine wave output?
Yes. The UPS delivers a pure sine wave output, making it ideal for sensitive equipment such as servers, storage systems, and networking hardware.
Can this UPS be remotely monitored?
Yes. The UPS supports remote management through USB, RS-232, RS-485, and an optional SNMP network card.
Is this UPS compatible with generators?
Yes. The UPS supports generator operation, making it suitable for environments with backup generator systems.
Is this UPS suitable for data centers?
Yes. With a 6000W output capacity, online double-conversion technology, and zero transfer time, it is designed for data centers, server rooms, and other mission-critical environments.
EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR Conclusion
The EVI 6000VA / 6000W Rack Mount Online Single Phase UPS - EP-UPS6000P11OR is a high-performance enterprise backup solution built for critical infrastructure and demanding IT workloads.
At KSh 157,000, it delivers exceptional value with features such as online double-conversion technology, pure sine wave output, maintenance bypass, generator compatibility, remote management capabilities, and a full 6000W output capacity, making it an excellent choice for data centers, telecom installations, and large-scale business environments.
