Grandstream GWN7660ELR Access Point Key Features
- Wi-Fi 6 802.11ax technology
- Dual-band 2×2:2 MIMO
- Up to 3Gbps aggregate wireless throughput
- Up to 300-meter coverage range
- Supports up to 256 concurrent Wi-Fi clients
- 1 × Gigabit RJ45 Ethernet port
- 1 × 2.5Gbps SFP port
- PoE and PoE+ support
- OFDMA technology
- Five internal antennas
- IP68 weatherproof and dust-resistant design
- Built-in network management controller
- Supports GWN.Cloud and GWN Manager
- Advanced QoS
- Mesh networking and captive portal support
- Bluetooth Low Energy 5.2

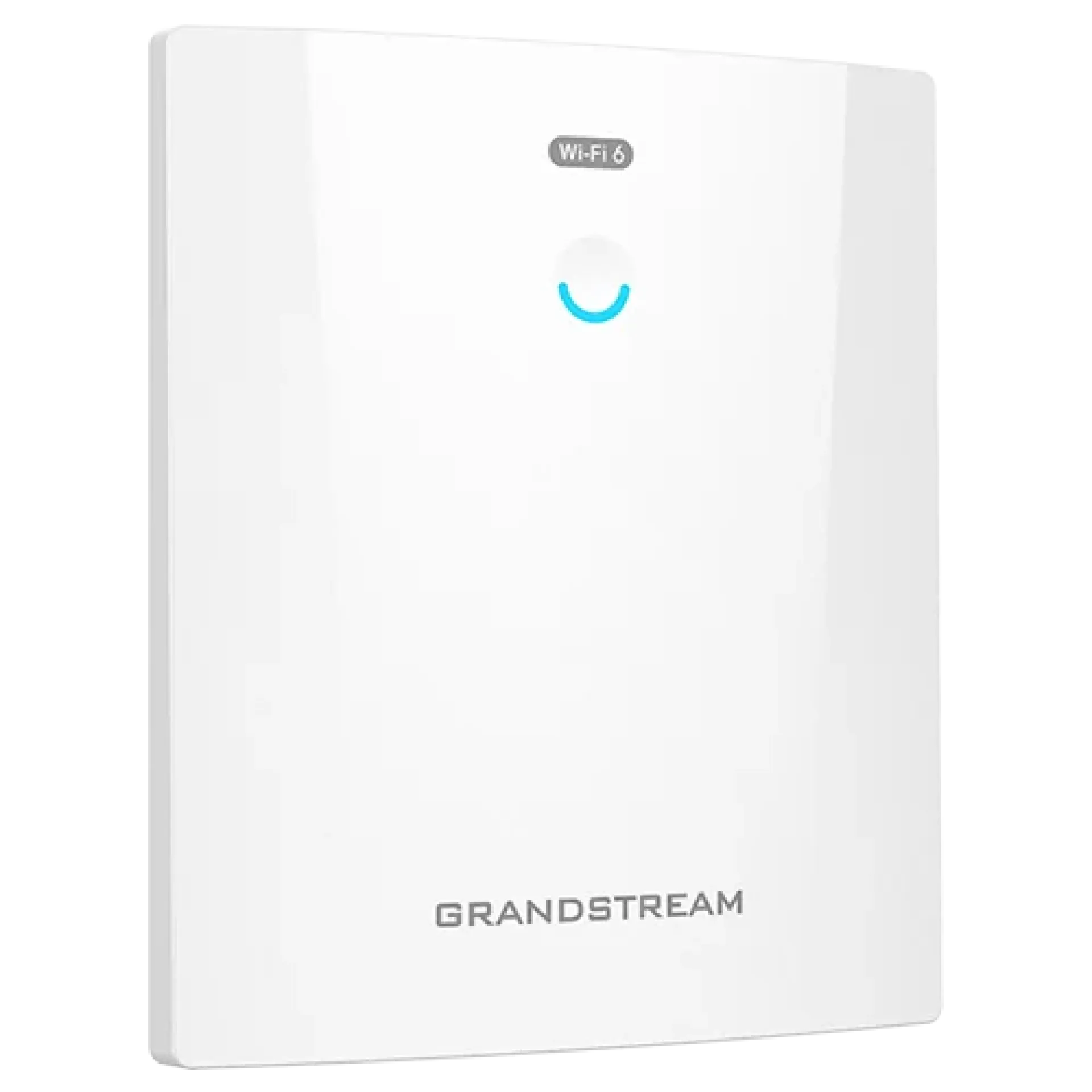

Grandstream GWN7660ELR Access Point Introduction
The Grandstream GWN7660ELR Access Point is an enterprise-grade long-range Wi-Fi 6 access point designed for businesses and organizations that need high-speed wireless connectivity over large areas. It delivers up to 3Gbps of aggregate wireless throughput and supports up to 256 concurrent Wi-Fi clients, making it suitable for high-density environments.
The GWN7660ELR is built for demanding outdoor and extended-range deployments, featuring weatherproof construction, heat resistance, PoE/PoE+ support, and a 2.5Gbps SFP interface. Its up to 300-meter coverage makes it suitable for warehouses, schools, hospitals, campuses, offices, and other large installations.
Grandstream GWN7660ELR Access Point Price in Kenya
| Product | Price |
|---|---|
| Grandstream GWN7660ELR Access Point | KSh 15,000 |
Grandstream GWN7660ELR Access Point Key Specifications
| Feature | Details |
| Model | GWN7660ELR |
| Wi-Fi Standard | IEEE 802.11a/b/g/n/ac/ax |
| Wi-Fi Generation | Wi-Fi 6 |
| Wireless Throughput | Up to 3Gbps Aggregate |
| 2.4 GHz Speed | Up to 573.5 Mbps |
| 5 GHz Speed | Up to 2.4 Gbps |
| MIMO | Dual-Band 2×2:2 |
| Coverage Range | Up to 300 meters |
| Concurrent Clients | Up to 256 |
| Ethernet Port | 1 × Gigabit RJ45 |
| SFP Port | 1 × 2.5Gbps SFP |
| PoE | 802.3af/802.3at |
| Antennas | 5 Internal Antennas |
| Security | WPA/WPA2, WPA3, Secure Boot |
| Bluetooth | BLE 5.2 |
| Weather Protection | IP68 |
| Management | Embedded Controller, GWN.Cloud, GWN Manager |
| Mounting | Wall or Pole Mount |
| Deployment | Indoor and Outdoor |
Grandstream GWN7660ELR Access Point Performance
The GWN7660ELR provides high-speed and long-range wireless performance for demanding network environments.
- Up to 3Gbps aggregate wireless throughput
- 2.4 GHz throughput of up to 573.5 Mbps
- 5 GHz throughput of up to 2.4 Gbps
- 2×2:2 MIMO technology
- OFDMA improves efficiency when serving multiple connected devices
- Supports up to 256 concurrent Wi-Fi clients
- Up to 300-meter wireless coverage
- Advanced QoS supports low-latency applications
- Suitable for voice, video, and high-bandwidth Wi-Fi applications

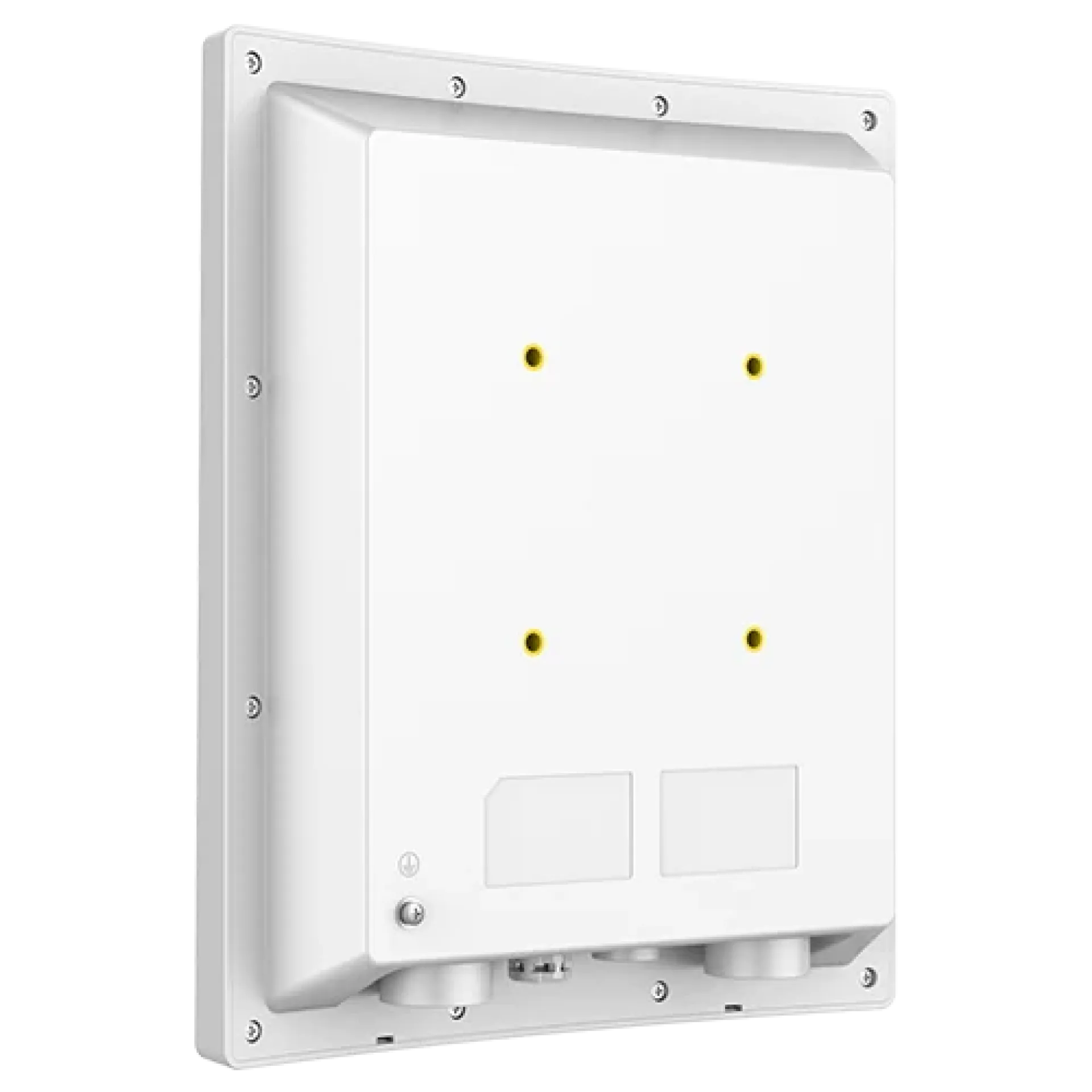

Grandstream GWN7660ELR Access Point Build Quality & Design
The GWN7660ELR is designed to operate reliably in challenging environments.
- Weatherproof and dust-resistant construction
- IP68 protection
- Heat-resistant design
- Five internal antennas
- Wall and pole mounting support
- Operating temperature range of approximately -30°C to 60°C
- Designed for outdoor and extended-range installations
- Durable construction suitable for commercial deployments
Grandstream GWN7660ELR Access Point Connectivity & Compatibility
The GWN7660ELR provides high-speed wired and wireless connectivity options.
- 1 × Gigabit RJ45 Ethernet port
- 1 × 2.5Gbps SFP port
- PoE and PoE+ support
- Dual-band Wi-Fi 6 connectivity
- Supports up to 32 SSIDs
- Supports VLAN and QoS
- Supports mesh networking
- Supports captive portals
- Bluetooth Low Energy 5.2
- Embedded controller can manage up to 50 local GWN access points
- Supports GWN.Cloud and GWN Manager for network management
Grandstream GWN7660ELR Access Point Ideal Use Cases
This access point is best suited for:
- Large offices
- Schools and universities
- Warehouses
- Hospitals
- Hotels
- Business campuses
- Outdoor Wi-Fi networks
- Large compounds
- Multi-floor buildings
- Voice over Wi-Fi deployments
- High-density wireless environments
- Long-range enterprise Wi-Fi installations
Grandstream GWN7660ELR Access Point Pros and Cons
| Pros | Cons |
| Wi-Fi 6 technology | More advanced than needed for basic home networks |
| Up to 3Gbps wireless throughput | Requires suitable PoE/PoE+ infrastructure |
| Up to 300-meter coverage | Actual range depends on the environment |
| Supports up to 256 clients | Higher installation requirements than basic APs |
| 2.5Gbps SFP connectivity | Requires compatible SFP infrastructure for full SFP functionality |
| IP68 weather protection | Designed primarily for professional deployments |
| Built-in management controller | Advanced features may require network configuration |
| Supports PoE and PoE+ | More specialized than standard indoor access points |
Grandstream GWN7660ELR Access Point FAQs
What is the Grandstream GWN7660ELR used for?
The GWN7660ELR is designed to provide long-range Wi-Fi 6 connectivity for enterprise, commercial, outdoor, and high-density wireless networks.
What Wi-Fi standard does the GWN7660ELR support?
It supports IEEE 802.11a/b/g/n/ac/ax, including Wi-Fi 6 technology.
What is the maximum wireless speed?
The GWN7660ELR provides up to 3Gbps of aggregate wireless throughput, with up to 573.5 Mbps on 2.4 GHz and 2.4Gbps on 5 GHz.
What is the coverage range?
It supports coverage of up to 300 meters under suitable environmental conditions.
How many devices can connect to it?
The GWN7660ELR supports up to 256 concurrent Wi-Fi client devices.
Does the GWN7660ELR support outdoor installation?
Yes. It is designed for long-range outdoor deployment and has weatherproof and dust-resistant protection. Grandstream's current product documentation lists an IP68 rating.
Does it support PoE?
Yes. It supports both IEEE 802.3af PoE and 802.3at PoE+.
Does it have a 2.5Gbps port?
Yes. It includes a 2.5Gbps SFP interface in addition to a Gigabit RJ45 Ethernet port.
Can it be managed without a separate controller?
Yes. The GWN7660ELR has an embedded controller and also supports GWN.Cloud and GWN Manager.
Grandstream GWN7660ELR Access Point Conclusion
The Grandstream GWN7660ELR Access Point is a powerful Wi-Fi 6 solution for businesses and organizations that require high-speed, long-range, and reliable wireless connectivity. With up to 3Gbps aggregate wireless throughput, 300-meter coverage, support for 256 clients, 2×2:2 MIMO, OFDMA, PoE/PoE+, Gigabit Ethernet, and 2.5Gbps SFP connectivity, it is well suited for large offices, schools, warehouses, hospitals, campuses, and outdoor deployments.
At KSh 15,000, the Grandstream GWN7660ELR offers strong value for users looking for a professional long-range Wi-Fi 6 access point with advanced management and weather protection.
