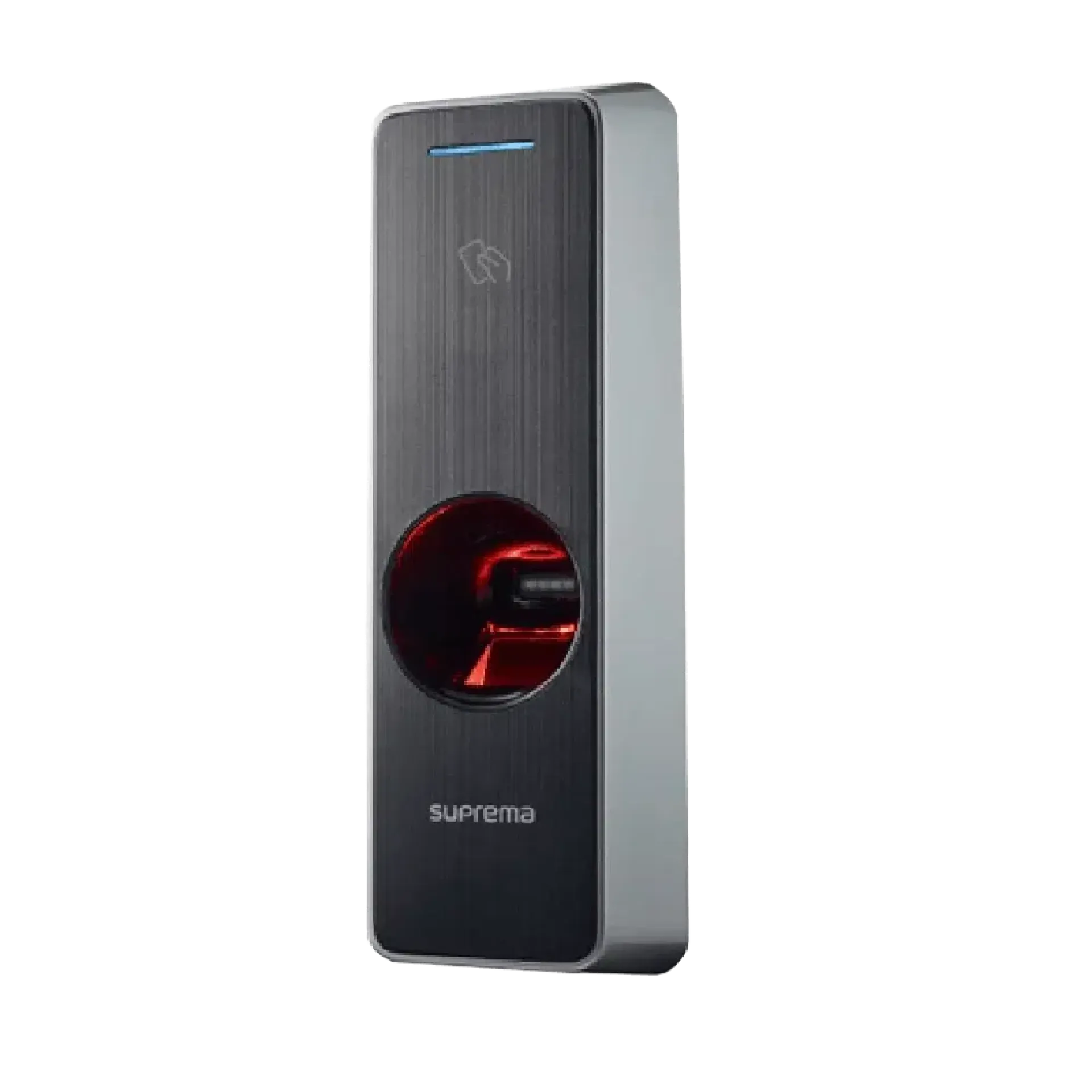

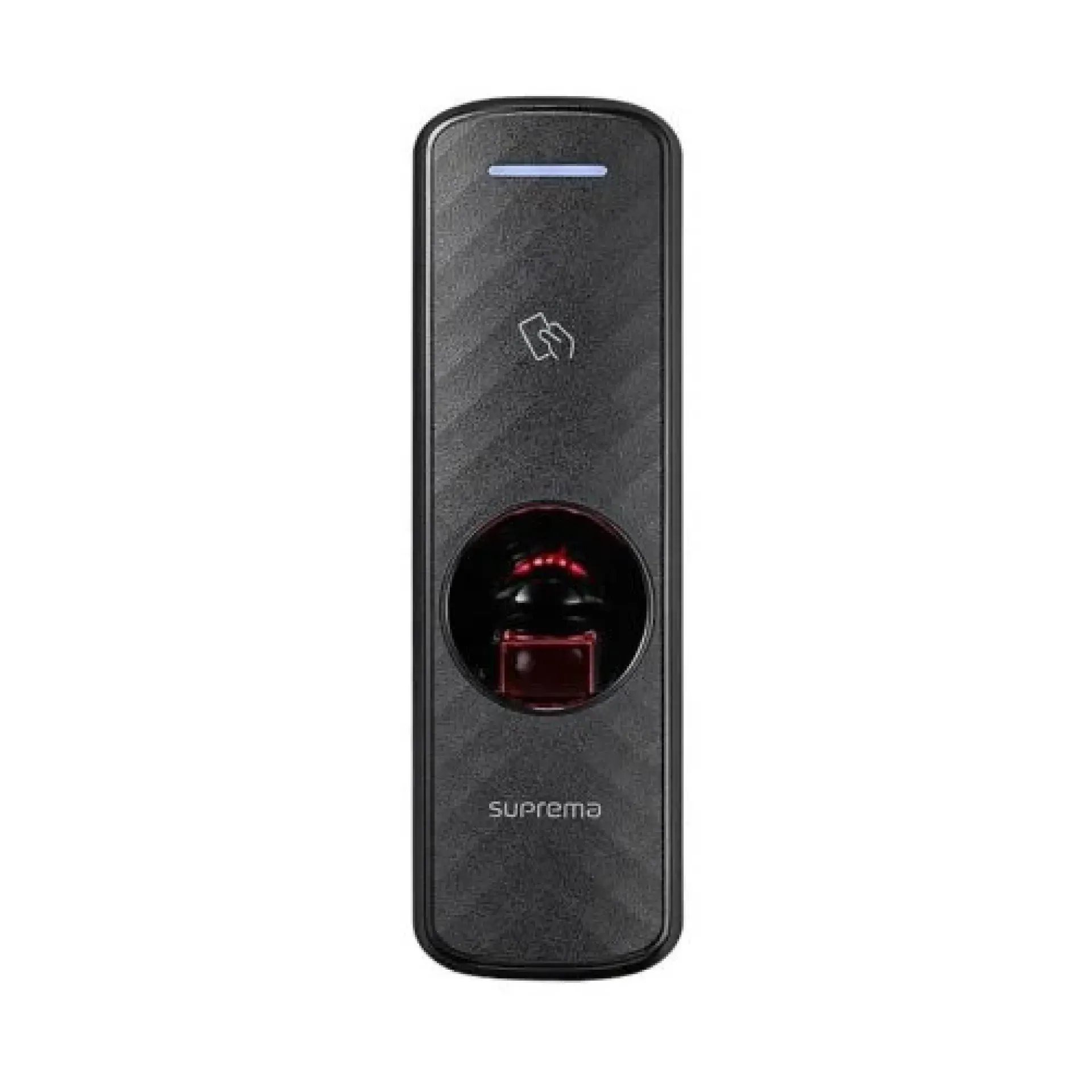

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Key Features

• Suprema BioEntry R2 BER2-OD

• Compact fingerprint and RFID card reader

• High-precision optical fingerprint sensor

• 500 dpi fingerprint resolution

• Dual-frequency RFID card reading

• Supports 125kHz EM and 13.56MHz RFID technologies

• Supports MIFARE, MIFARE Plus, DESFire and FeliCa

• NFC support for compatible mobile credentials

• OSDP V2 compliant RS-485 communication

• Multi-colour LED and multi-tone buzzer

• Tamper support

• Slim mullion-type design

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Overview

The Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a compact biometric and RFID reader designed for centralized access control systems. It combines fingerprint authentication with dual-frequency RFID card reading, providing organizations with flexible credential options for controlled entry. Suprema specifies a 500 dpi fingerprint system with SUPREMA, ISO 19794-2 and ANSI-378 template compatibility.

The BioEntry R2 uses a slim mullion-type design with a width of approximately 50mm, making it suitable for narrow door frames and installation locations where space is limited. It also supports multiple RFID technologies, including 125kHz EM and 13.56MHz MIFARE, MIFARE Plus, DESFire and FeliCa, depending on the credential type.

For communication, the BER2-OD provides RS-485 connectivity with OSDP V2 compliance, allowing it to integrate into centralized access-control architectures. The reader also includes a multi-colour LED, multi-tone buzzer and tamper support for user feedback and security monitoring.

Price in Kenya: KSh 52,000 – 58,000.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Price

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Specifications

Specifications are based primarily on Suprema's current product documentation.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Biometric Security Features

• High-precision fingerprint authentication uses an optical fingerprint sensor with 500 dpi resolution for capturing detailed fingerprint images.

• MINEX-certified matching technology supports Suprema, ISO 19794-2 and ANSI-378 fingerprint templates, providing standards-based biometric processing.

• Fingerprint and RFID credentials allow organizations to use biometric authentication alongside supported card-based credentials.

• Tamper support adds an additional security feature for access-control installations where unauthorized device interference needs to be monitored.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD RFID & Credential Features

• Dual-frequency RFID support allows the reader to work with both 125kHz EM and 13.56MHz RFID technologies.

• Multiple card technology support includes MIFARE, MIFARE Plus, DESFire and FeliCa, providing flexibility when integrating existing access cards.

• NFC capability supports compatible mobile credentials, allowing supported smartphones to be used as access credentials.

• RF read range is specified at up to 50mm for MIFARE/DESFire and up to 30mm for EM/FeliCa, although actual range can vary with installation conditions.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Connectivity & Installation Features

• RS-485 connectivity provides a dedicated interface for integrating the reader into centralized access-control systems.

• OSDP V2 compliance provides standardized communication between the reader and compatible access-control controllers.

• Slim mullion design makes the reader suitable for narrow spaces and door frames where conventional access-control readers may be difficult to install.

• Compact dimensions of approximately 50 × 164 × 37.5mm allow the unit to maintain a relatively small footprint while providing fingerprint and RFID functionality.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Applications

• Office Access Control

• Commercial Building Access

• Employee Entry Systems

• Restricted Area Access

• Corporate Security

• Institutional Access Control

• Door Access Management

• Biometric Authentication

• RFID Access Control

• Centralized Access Control Systems

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Pros and Cons

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD FAQs

What is the Suprema BioEntry R2 BER2-OD used for?

It is designed for centralized access-control systems, combining fingerprint authentication and RFID credential reading.

Does the Suprema BER2-OD support RFID cards?

Yes. It supports 125kHz EM and 13.56MHz RFID technologies, including MIFARE, MIFARE Plus, DESFire and FeliCa.

Does the Suprema BioEntry R2 support NFC?

Yes. The BER2-OD supports NFC-based mobile credentials.

What communication interface does the BER2-OD use?

The current specifications list 1-channel RS-485 with OSDP V2 compliance.

What is the Suprema BioEntry R2 BER2-OD price in Kenya?

The price range is approximately KSh 52,000 – 58,000.

Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD Conclusion

The Suprema BioEntry R2 Compact Fingerprint Reader BER2-OD is a compact access-control reader that combines fingerprint authentication, dual-frequency RFID and NFC credential support. Its 500 dpi fingerprint system, multi-card RFID support, OSDP V2 communication and slim mullion design make it suitable for centralized security and controlled-entry installations.

Price in Kenya: KSh 52,000 – 58,000.
