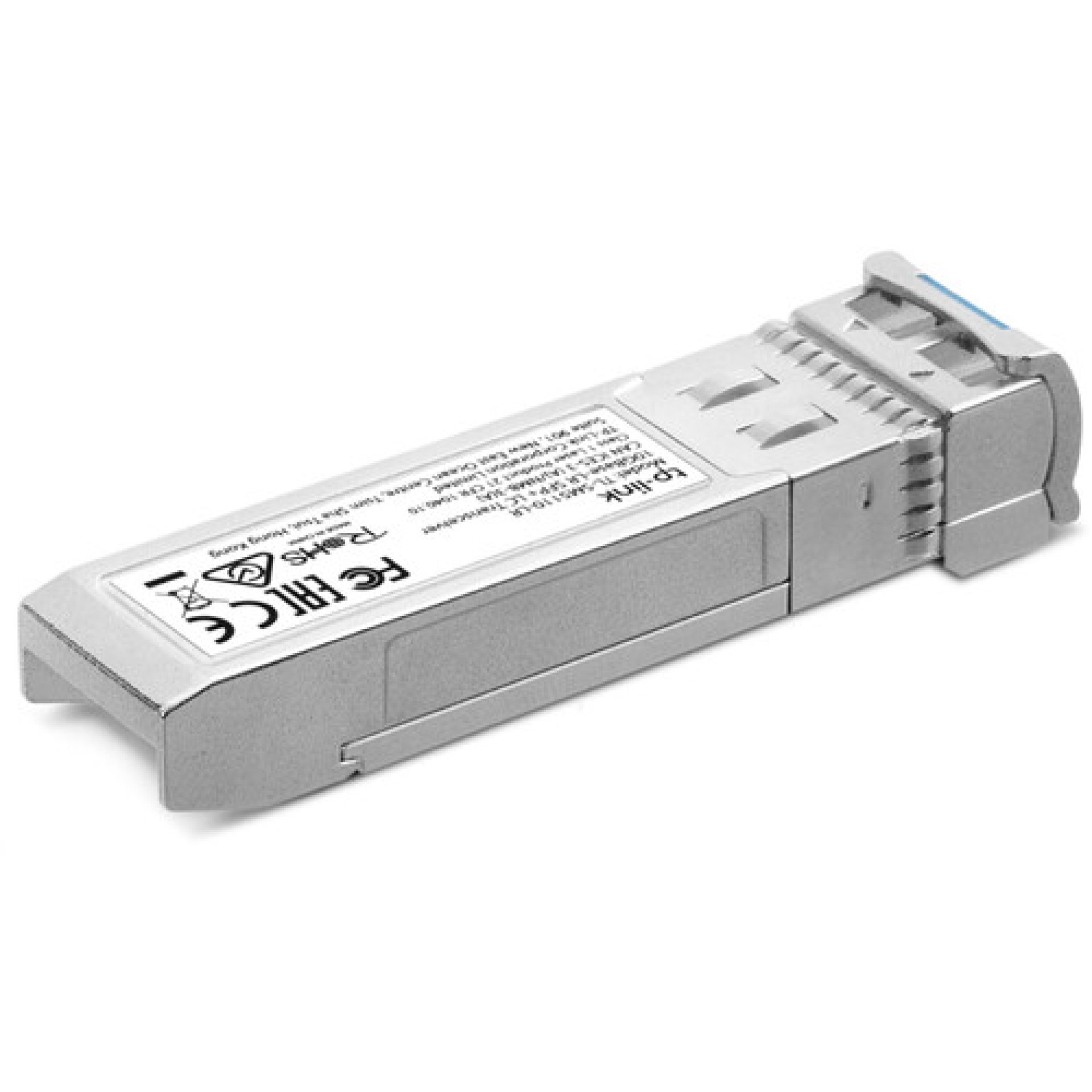

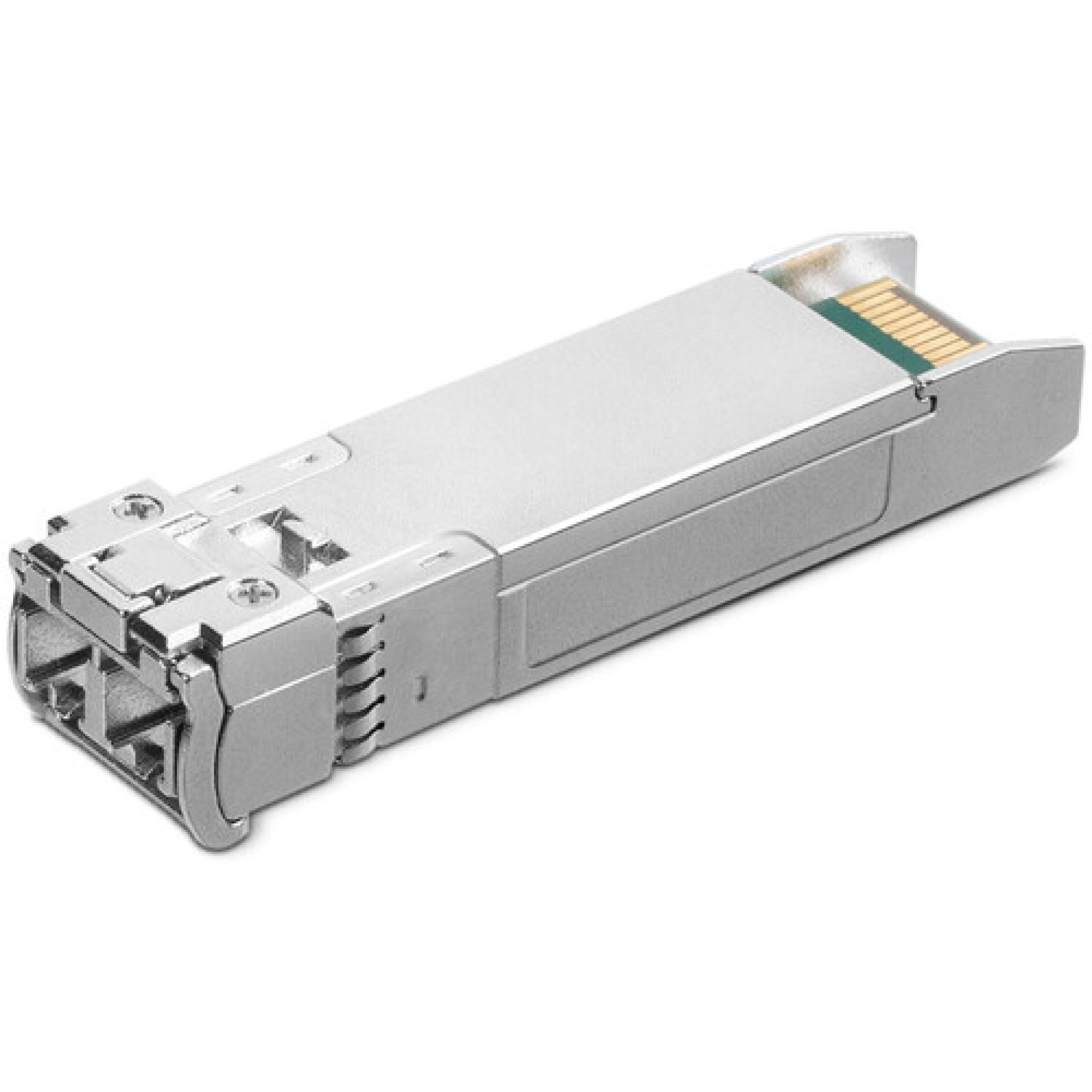

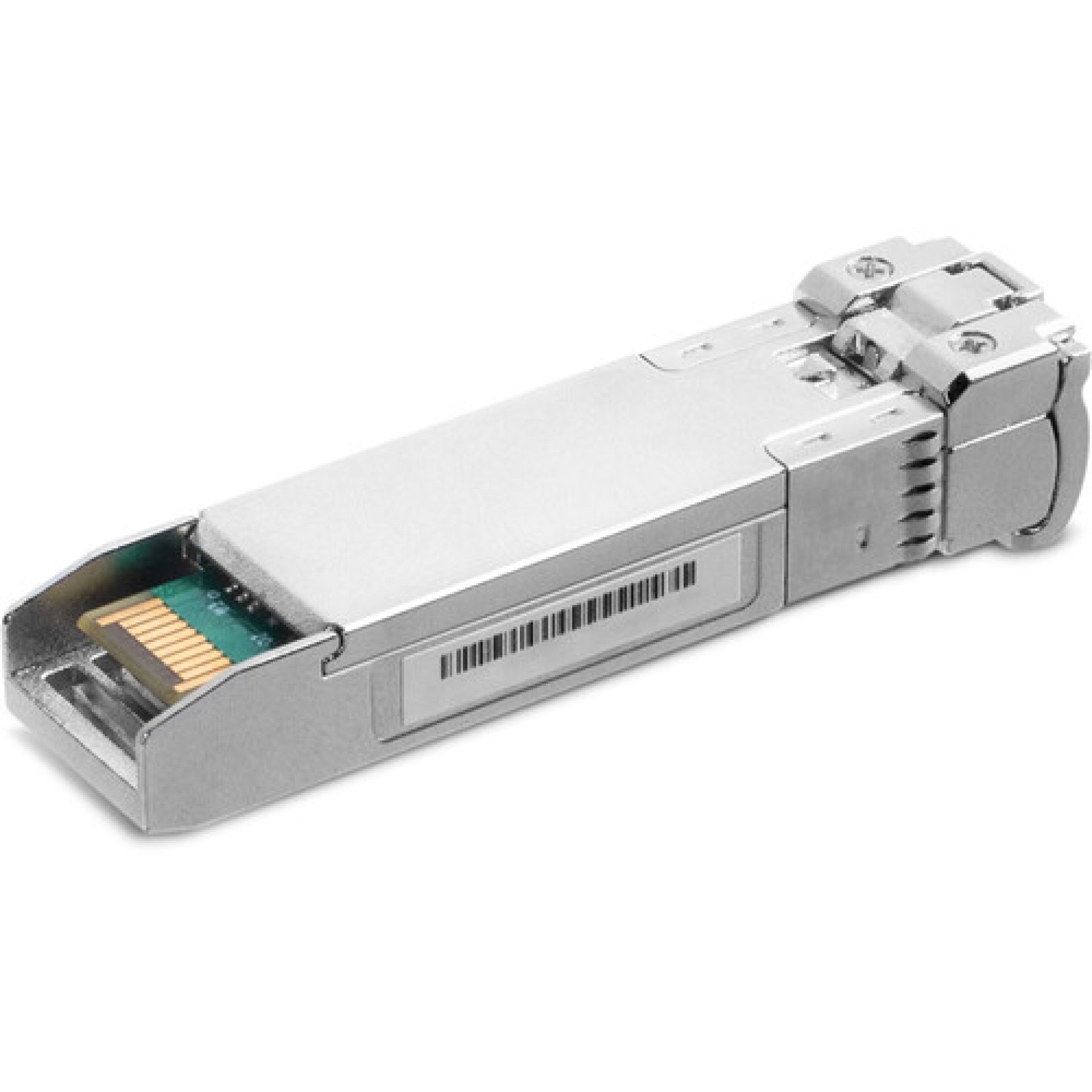

TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Key Features
- 10Gbps 10GBase-LR connectivity
- SFP+ transceiver module
- Single-mode fiber support
- Duplex LC fiber connector
- Up to 10 km transmission distance
- 1310 nm wavelength
- Hot-swappable design
- Digital Diagnostic Monitoring support
- Compatible with SFP+ MSA
- Full-duplex 10Gbps connectivity
- Suitable for enterprise and long-distance fiber networks
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Introduction
The TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver is a high-performance fiber optic module designed to provide 10Gbps Ethernet connectivity over single-mode fiber. It uses the 10GBase-LR standard and supports transmission distances of up to 10 km using suitable 9/125μm single-mode fiber cables.
The SM5110-LR is suitable for connecting compatible switches, servers, and other SFP+ networking equipment over long distances. Its hot-swappable design, Digital Diagnostic Monitoring, and SFP+ MSA compatibility make it a flexible solution for enterprise networks, data centers, and high-speed network infrastructure.
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Price in Kenya
| Product | Price |
|---|---|
| TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver | KSh 7,500 |
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Key Specifications
| Feature | Details |
| Model | SM5110-LR |
| Product Type | SFP+ Transceiver |
| Ethernet Standard | 10GBase-LR |
| Data Rate | 10 Gbps |
| Fiber Type | 9/125μm Single-Mode |
| Fiber Connector | Duplex LC |
| Maximum Transmission Distance | Up to 10 km |
| Wavelength | 1310 nm |
| Interface | SFP+ |
| Standards | IEEE 802.3ae, TCP/IP |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| Power Supply | 3.3V |
| Operating Temperature | 0–70°C |
| Dimensions | 56.7 × 13.9 × 10.35 mm |
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Performance
The SM5110-LR provides reliable high-speed fiber connectivity for long-distance network installations.
- Supports 10Gbps data transmission
- Up to 10 km transmission distance
- Uses 1310 nm optical wavelength
- Supports 9/125μm single-mode fiber
- Full-duplex 10G Ethernet connectivity
- Suitable for long-distance switch-to-switch connections
- Digital Diagnostic Monitoring helps monitor module operating conditions
- Designed for high-bandwidth enterprise network applications
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Build Quality & Design
The SM5110-LR features a compact SFP+ form factor designed for direct installation into compatible networking equipment.
- Compact SFP+ module design
- Hot-swappable construction
- Duplex LC fiber interface
- Designed for easy installation and replacement
- Compact dimensions help conserve equipment space
- Suitable for switches and other compatible SFP+ devices
- Designed for professional networking environments
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Connectivity & Compatibility
The transceiver provides a long-distance 10Gbps fiber connection between compatible SFP+ devices.
- SFP+ interface
- Duplex LC fiber connection
- Single-mode fiber support
- 10GBase-LR compatibility
- 1310 nm wavelength
- Compatible with SFP+ MSA
- Suitable for compatible TP-Link switches with 10G SFP+ ports
- Can be used with suitable SFP+ networking equipment from compatible vendors
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Ideal Use Cases
This transceiver is best suited for:
- Enterprise networks
- Data centers
- Server rooms
- Long-distance switch-to-switch connections
- Connecting separate buildings
- High-speed network backbones
- Campus networks
- Fiber-based CCTV infrastructure
- High-bandwidth business networks
- 10Gbps network upgrades
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Pros and Cons
| Pros | Cons |
| Supports 10Gbps speeds | Requires SFP+ compatible equipment |
| Up to 10 km transmission distance | Requires single-mode fiber |
| Single-mode fiber support | Fiber cable sold separately |
| Duplex LC connector | Not designed for multi-mode fiber |
| Hot-swappable design | Actual distance depends on fiber infrastructure |
| Digital Diagnostic Monitoring | More expensive than short-range SFP+ modules |
| SFP+ MSA compatibility | Requires compatible LC fiber cabling |
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver FAQs
What is the TP-Link SM5110-LR used for?
The SM5110-LR is used to provide 10Gbps Ethernet connectivity over single-mode fiber between compatible SFP+ network devices.
What is the maximum speed of the SM5110-LR?
It supports data transmission speeds of up to 10Gbps.
What type of fiber does the SM5110-LR use?
It uses 9/125μm single-mode fiber.
What is the maximum transmission distance?
The SM5110-LR supports transmission distances of up to 10 km with suitable single-mode fiber.
What connector does it use?
It uses a duplex LC fiber connector.
Does the SM5110-LR support multi-mode fiber?
No. The SM5110-LR is designed for single-mode fiber.
Does it support Digital Diagnostic Monitoring?
Yes. The SM5110-LR supports DDM for monitoring module operating information.
Is the SM5110-LR hot-swappable?
Yes. It is designed to be hot-swappable, allowing convenient installation and replacement in compatible equipment.
TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver Conclusion
The TP-Link SM5110-LR 10GBase-LR SFP+ LC Transceiver is a reliable solution for extending 10Gbps Ethernet networks over long-distance single-mode fiber. With support for up to 10 km transmission, 1310 nm operation, duplex LC connectivity, Digital Diagnostic Monitoring, and a hot-swappable SFP+ design, it is well suited to enterprise networks, data centers, campuses, and high-speed network backbones.
At KSh 7,500, the TP-Link SM5110-LR offers good value for users looking for a dependable 10Gbps long-range fiber transceiver.
