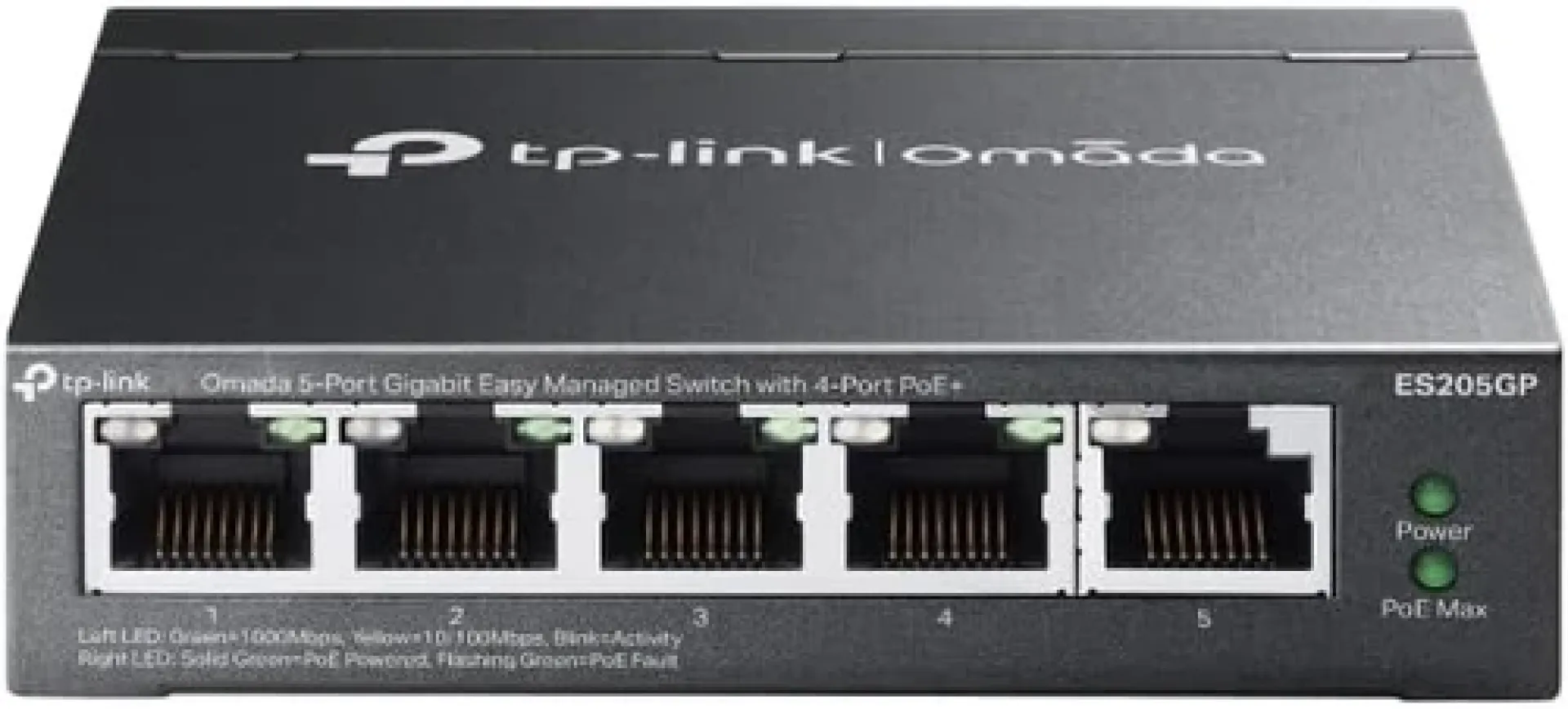

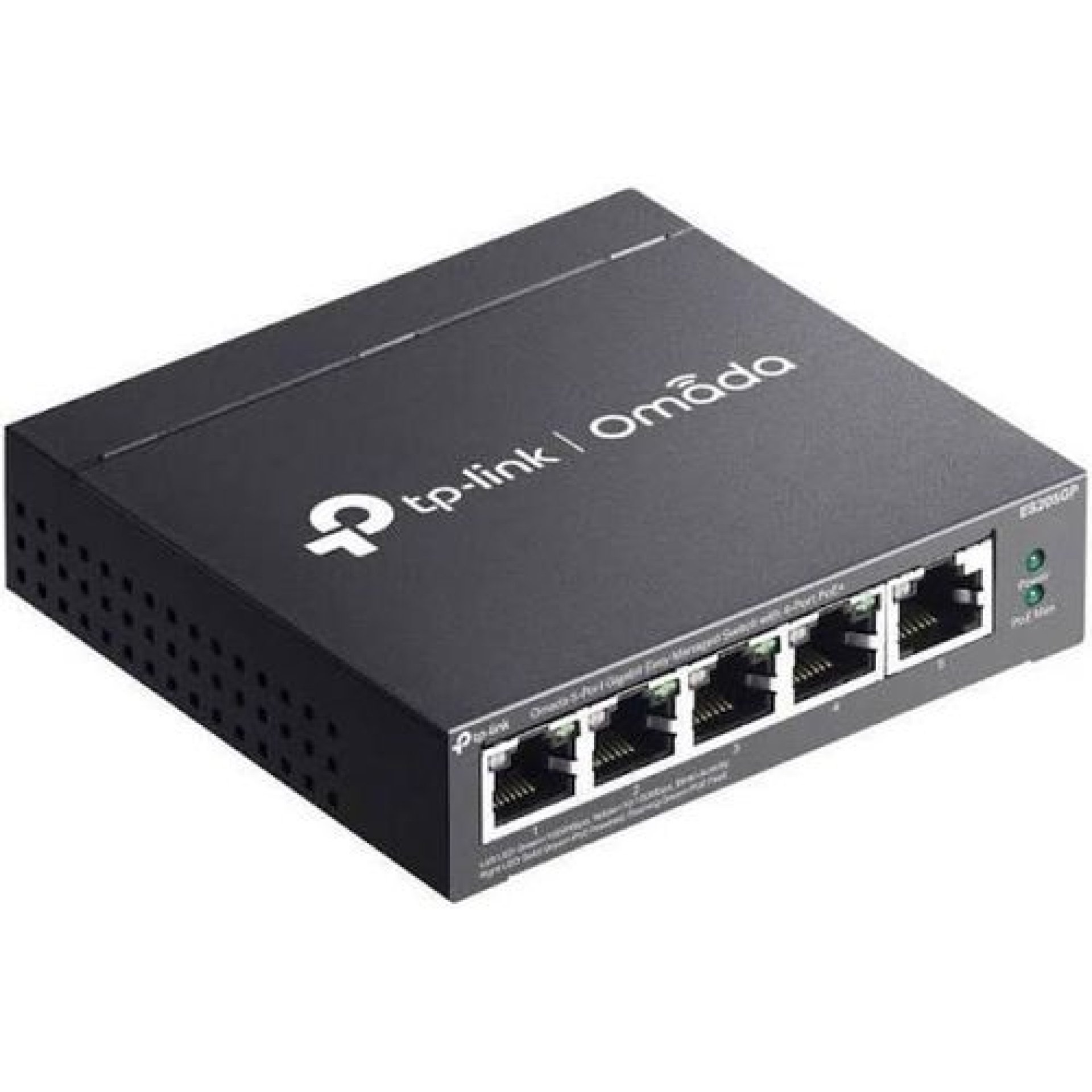

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Key Features

• 5 × 10/100/1000 Mbps Gigabit RJ45 ports
• 4 × 802.3af/at PoE+ ports
• Up to 65W total PoE power budget
• Up to 30W PoE power per port
• Up to 250m PoE transmission distance
• Plug-and-play installation
• Omada centralized cloud management
• Supports Omada app management
• VLAN support
• IGMP Snooping
• QoS with 8 priority queues
• PoE Auto Recovery
• Port isolation
• Automatic loop prevention
• Fanless design for quiet operation
• Durable metal casing
• Desktop and wall mounting
• 10 Gbps switching capacity
• 7.4 Mpps packet forwarding rate
• 8K MAC address table
• 15 KB jumbo frames

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Introduction

The TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch is a compact networking solution designed for homes, offices and surveillance installations requiring Gigabit connectivity and Power over Ethernet. It provides five Gigabit Ethernet ports, four of which support PoE+, allowing compatible devices such as IP cameras and wireless access points to receive both power and data through Ethernet cables.

The switch combines easy management features with a compact fanless design, making it suitable for users who need more control than a basic unmanaged switch while still wanting simple installation and operation.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Price in Kenya

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Key Specifications

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Performance

• Provides five Gigabit Ethernet ports for high-speed wired networking.
• Supports 10/100/1000 Mbps auto-negotiation.
• Offers a 10 Gbps switching capacity.
• Provides packet forwarding of up to 7.4 Mpps.
• Supports Auto MDI/MDIX for easier cable connections.
• Includes an 8K MAC address table.
• Supports jumbo frames of up to 15 KB.
• Suitable for connecting computers, printers, access points, IP cameras and other network devices.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch PoE Performance

• Four of the five Gigabit ports support PoE+.
• Supports IEEE 802.3af and 802.3at PoE standards.
• Provides a total PoE power budget of up to 65W.
• Each PoE port can provide up to 30W.
• Allows compatible devices to receive power and data through a single Ethernet cable.
• Suitable for powering IP cameras, wireless access points and other compatible PoE devices.
• Supports PoE transmission distances of up to 250 metres under suitable conditions.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Management

• Supports centralized management through the Omada platform.
• Can be managed through compatible web-based Omada tools.
• Supports Omada app management.
• Provides easy configuration and monitoring options.
• Allows administrators to manage network traffic and connected devices.
• Suitable for small businesses and surveillance installations requiring centralized network management.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch VLAN Features

• Supports VLAN configuration.
• Allows network traffic to be separated into different logical networks.
• Supports 802.1Q VLAN.
• Helps separate guest, surveillance and office traffic.
• Can improve network organization and security.
• Suitable for small networks requiring basic traffic segmentation.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch QoS Features

• Supports port-based QoS.
• Supports 802.1p and DSCP prioritization.
• Provides 8 priority queues.
• Supports bandwidth control.
• Helps prioritize important traffic such as video and voice.
• Suitable for networks carrying surveillance and other latency-sensitive traffic.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Surveillance Features

• Designed to work with compatible IP cameras.
• Four ports can provide both power and network connectivity to PoE cameras.
• Supports up to 250m PoE transmission under suitable conditions.
• PoE Auto Recovery can help automatically restart unresponsive compatible PoE devices.
• Port isolation helps separate selected network devices.
• Suitable for small CCTV and surveillance installations.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Design

• Features a compact metal casing.
• Uses a fanless design for quiet operation.
• Can be installed on a desktop.
• Supports wall mounting.
• Compact dimensions make it suitable for installations with limited space.
• Durable construction makes it suitable for everyday business and networking applications.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Ideal Use Cases

• Small CCTV installations
• IP camera networks
• Small offices
• Home networks
• Wireless access point installations
• Small businesses
• VoIP devices
• Network printers
• Smart building networks
• Internet connectivity setups
• Small surveillance systems

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Pros and Cons

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch FAQs

How many ports does the TP-Link TL-ES205GP have?
It has 5 Gigabit RJ45 ports, with 4 ports supporting PoE+.

What is the total PoE power budget?
The switch provides up to 65W of total PoE power.

How much power can each PoE port provide?
Each PoE port can provide up to 30W.

Does it support Gigabit Ethernet?
Yes. All five ports support 10/100/1000 Mbps Gigabit Ethernet.

Can it power CCTV cameras?
Yes. Its four PoE+ ports can power compatible IP cameras while also providing network connectivity.

What is the maximum PoE transmission distance?
It supports PoE transmission of up to 250 metres under suitable conditions.

Does it support VLAN?
Yes. The switch supports VLAN functionality for network traffic separation.

Does it support Omada management?
Yes. It supports centralized management through the Omada platform.

Is the switch noisy?
No. It uses a fanless design, allowing for quiet operation.

Can it be wall-mounted?
Yes. It supports desktop and wall mounting.

How much does the TP-Link TL-ES205GP cost in Kenya?
The price is KSh 6,500.

TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch Conclusion

The TP-Link TL-ES205GP Omada 5-Port Gigabit Easy Managed Switch is a compact and versatile networking solution for users who need Gigabit connectivity together with PoE+ functionality. Its 5 Gigabit ports, 4 PoE+ ports, 65W PoE budget, Omada management, VLAN, QoS, PoE Auto Recovery and fanless metal design make it particularly suitable for small offices, CCTV systems and wireless access point installations.

At KSh 6,500, it is a practical choice for users looking for an affordable managed Gigabit switch with PoE capabilities.
