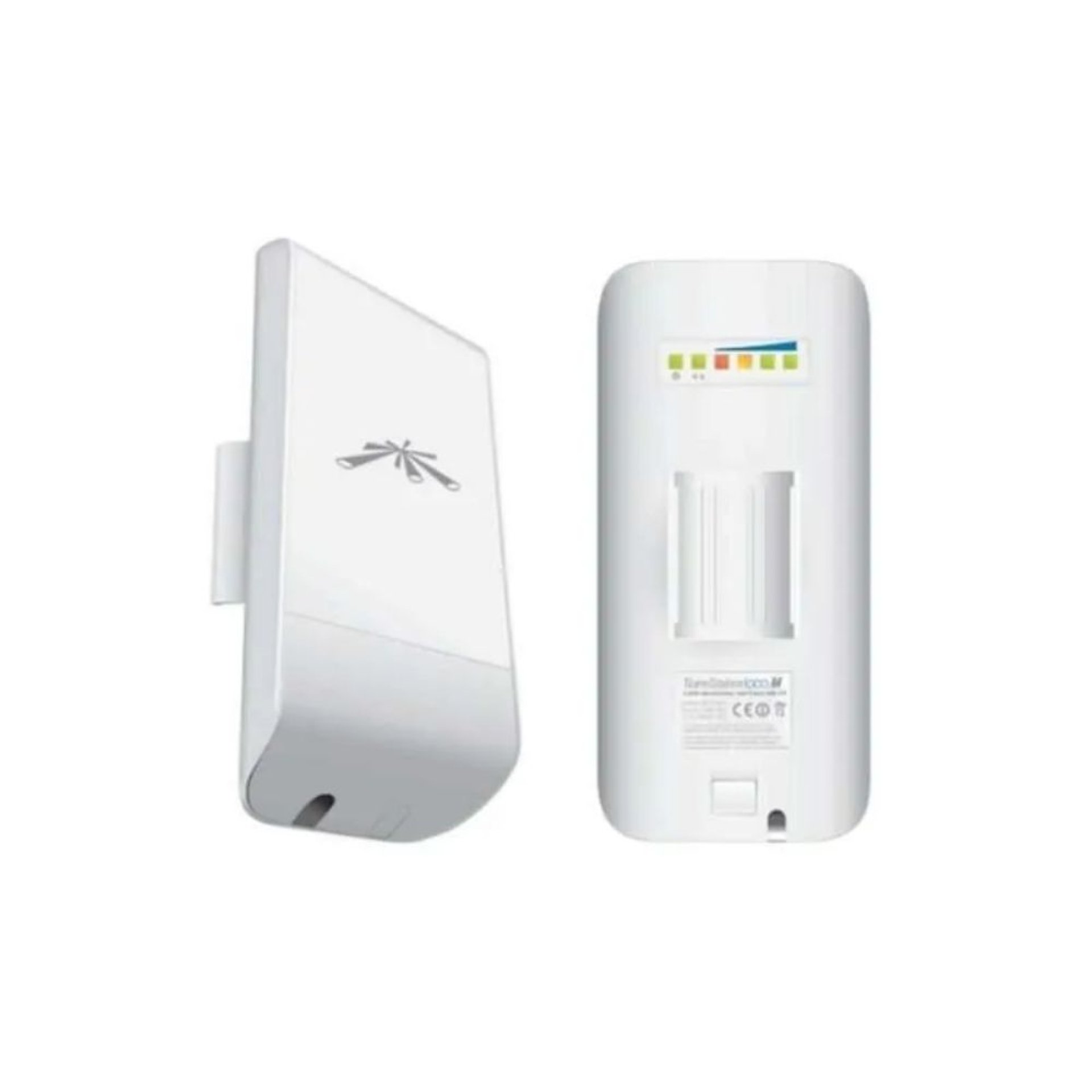

The Ubiquiti NanoStation M2 (NSM2) is a compact outdoor wireless CPE and access point designed for reliable 2.4 GHz connectivity. It uses 2x2 MIMO airMAX technology and an integrated directional antenna with approximately 10.4–11.2 dBi gain to provide stable wireless links for broadband distribution, outdoor networking, and wireless bridge applications.
The NanoStation M2 features two 10/100 Ethernet ports, passive PoE power, and an outdoor UV-stabilized enclosure. Its compact design and included pole-mounting kit make it easy to deploy for wireless ISPs, point-to-point connections, surveillance networks, and remote-site connectivity.
Dual Ethernet ports provide flexible wired connectivity.
Suitable for outdoor wireless backhaul.
Reliable performance for ISP networks.
Designed for continuous outdoor operation.
Ubiquiti NanoStation M2 (NSM2) Smart Features
airMAX MIMO technology
airMAX TDMA protocol
airOS management
Dual Ethernet interfaces
Passive PoE operation
Remote device management
Wireless network monitoring
Point-to-Point support
Point-to-MultiPoint support
Integrated directional antenna
Outdoor wireless optimization
Enterprise wireless administration
Ubiquiti NanoStation M2 (NSM2) Design & Build
Compact outdoor-ready design
UV-stabilized plastic enclosure
Lightweight 400 g construction
Integrated directional antenna
Pole-mounting kit included
Weather-resistant outdoor construction
Efficient passive cooling
Professional outdoor appearance
Easy installation
Built for long-term outdoor deployment
Ubiquiti NanoStation M2 (NSM2) Connectivity
2 × 10/100 RJ45 Ethernet ports
2.4 GHz wireless connectivity
24V Passive PoE
Integrated 2x2 MIMO antenna
Point-to-Point wireless connectivity
Point-to-MultiPoint networking
Outdoor wireless backhaul
Enterprise LAN integration
Remote network management
Professional wireless deployment
Ubiquiti NanoStation M2 (NSM2) Use Cases
Wireless ISP deployments
Point-to-Point wireless bridges
Point-to-MultiPoint networks
Rural broadband connectivity
Outdoor WiFi networks
Surveillance network connectivity
Remote site networking
Campus wireless deployments
Small business wireless links
Long-range outdoor networking
Ubiquiti NanoStation M2 (NSM2) Pros & Cons
Pros
Cons
2x2 MIMO airMAX technology
Older 2.4 GHz wireless platform
Up to 150 Mbps throughput
10/100 Ethernet ports only
Integrated directional antenna
No Gigabit Ethernet
Dual Ethernet ports
Limited compared with newer airMAX models
Compact outdoor design
2.4 GHz can experience more interference
Passive PoE included
—
Easy pole installation
—
Suitable for ISP deployments
—
Ubiquiti NanoStation M2 (NSM2) FAQs
Q1: What frequency does the NanoStation M2 use?
The NanoStation M2 operates in the 2.4 GHz band, with an operating range of 2412–2462 MHz.
Q2: What is the wireless throughput of the NSM2?
The NanoStation M2 supports wireless throughput of up to approximately 150 Mbps, depending on deployment conditions and configuration.
Q3: How many Ethernet ports does it have?
It features 2 × 10/100 Ethernet ports.
Q4: Does the NanoStation M2 support PoE?
Yes. It uses 24V Passive PoE, and the 24V 0.5A PoE adapter is included.
Q5: Is the NanoStation M2 suitable for outdoor use?
Yes. It features an outdoor UV-stabilized enclosure and includes a pole-mounting kit for outdoor installations.
Ubiquiti NanoStation M2 (NSM2) Conclusion
The Ubiquiti NanoStation M2 (NSM2) is a compact and dependable 2.4 GHz wireless solution that combines 2x2 MIMO airMAX technology, an integrated 10.4–11.2 dBi directional antenna, dual Ethernet ports, and a durable outdoor enclosure. With passive PoE support and flexible Point-to-Point and Point-to-MultiPoint capabilities, it remains a practical choice for wireless ISPs, remote connectivity, outdoor networking, and wireless bridge deployments in Kenya.
