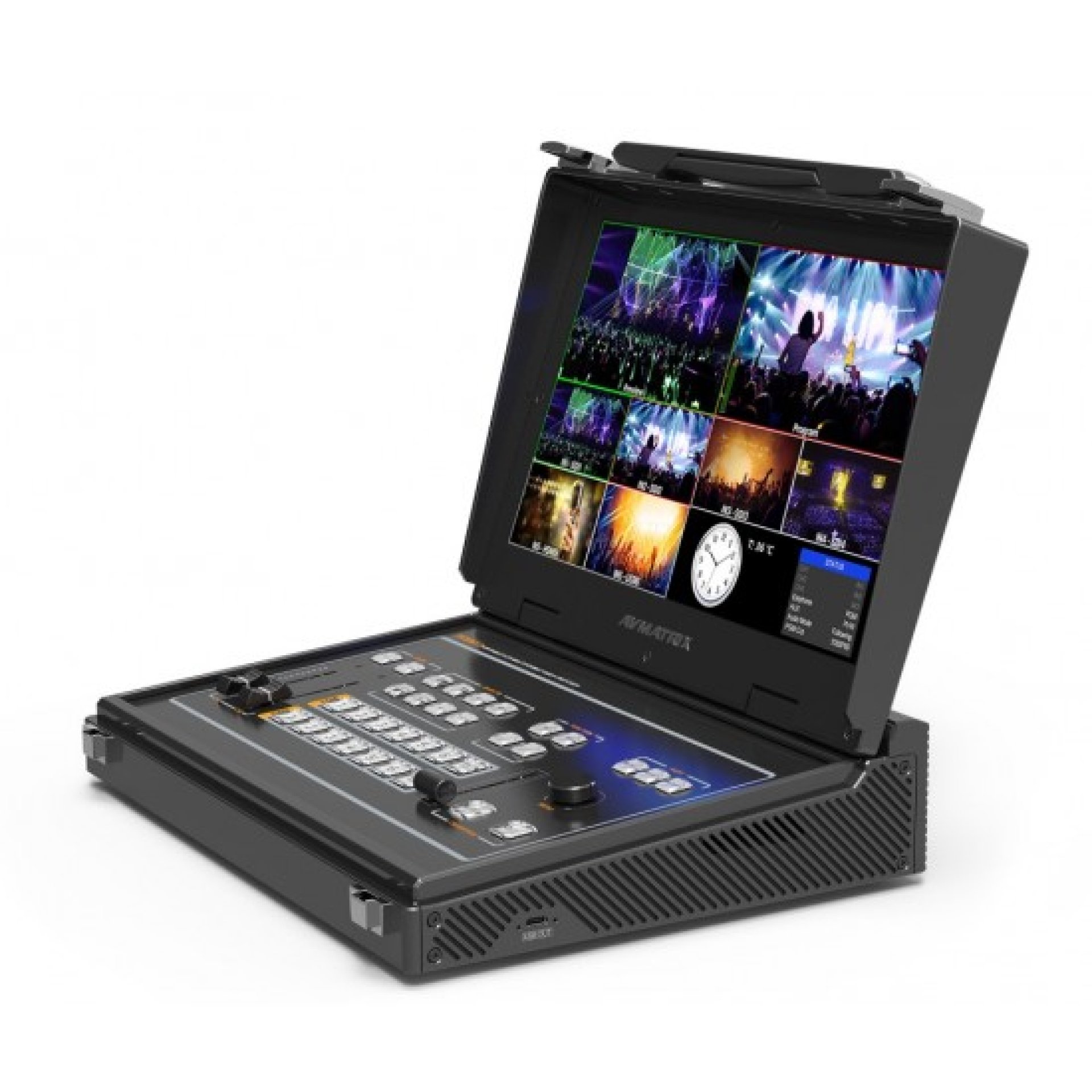

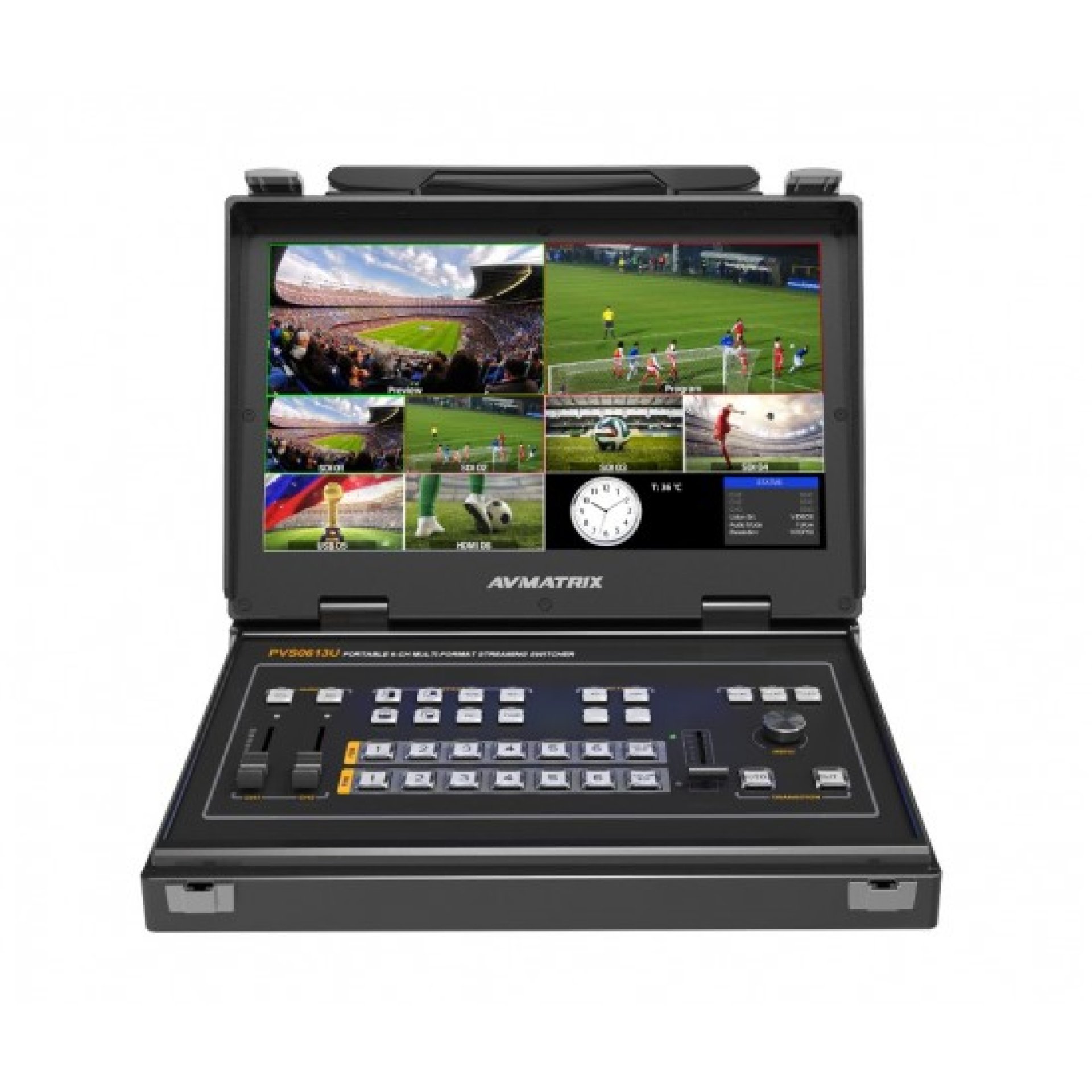

AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher
The AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher is a professional all-in-one live production switcher designed for broadcasters, churches, event production companies, educational institutions, and content creators. Featuring six multiformat inputs, a built-in 13.3-inch Full HD display, integrated USB streaming, professional transition effects, and advanced audio mixing capabilities, the PVS0613U provides a complete portable solution for professional multi-camera live productions.
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher | KSh 119,700 |
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Key Features
- Six-channel multiformat streaming switcher
- Built-in 13.3-inch Full HD IPS LCD display
- Supports 4 SDI and 2 HDMI auto-detect inputs
- USB Type-C output for direct live streaming and capture
- Professional T-Bar, AUTO, and CUT switching controls
- Supports Mix, Fade, and Wipe transition effects
- Adjustable Picture-in-Picture (PiP) functionality
- Integrated audio mixer with Audio Follow Video (AFV) mode
- Multiple SDI and HDMI program outputs
- Compact all-in-one portable design with rugged metal construction
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Multiformat Streaming Video Switcher |
| Brand | AVMATRIX |
| Model | PVS0613U |
| Display | 13.3-inch Full HD IPS LCD |
| Display Resolution | 1920 × 1080 |
| Video Inputs | 4 × 3G-SDI, 2 × HDMI |
| Video Outputs | 2 × SDI Program Outputs, 1 × HDMI Program Output |
| Multiview Outputs | 1 × SDI, 1 × HDMI |
| AUX Output | 1 × SDI AUX (PGM/PVW Selectable) |
| USB Output | 1 × USB Type-C 3.0 |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Video Effects | Mix, Fade, Wipe, PiP |
| Audio Inputs | 1 × 3.5mm Stereo, 1 × RCA Analog Audio |
| Audio Outputs | 1 × 3.5mm Stereo, 1 × RCA Analog Audio |
| Audio Features | Audio Mixing, AFV |
| Tally Interface | GPIO |
| Streaming Support | UVC/UAC Compatible |
| Control Methods | T-Bar, AUTO, CUT, Front Panel Controls |
| Power Supply | DC Power Input |
| Chassis Material | Metal |
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Performance and Usage Overview
- Delivers professional-grade six-channel switching for live productions
- Built-in 13.3-inch display eliminates the need for an external multiview monitor
- Supports simultaneous live production and direct USB streaming workflows
- Auto-detect multiformat inputs simplify setup and production management
- Professional transition effects and PiP functions enhance broadcast quality
- Suitable for churches, conferences, sports productions, education, concerts, and live streaming applications

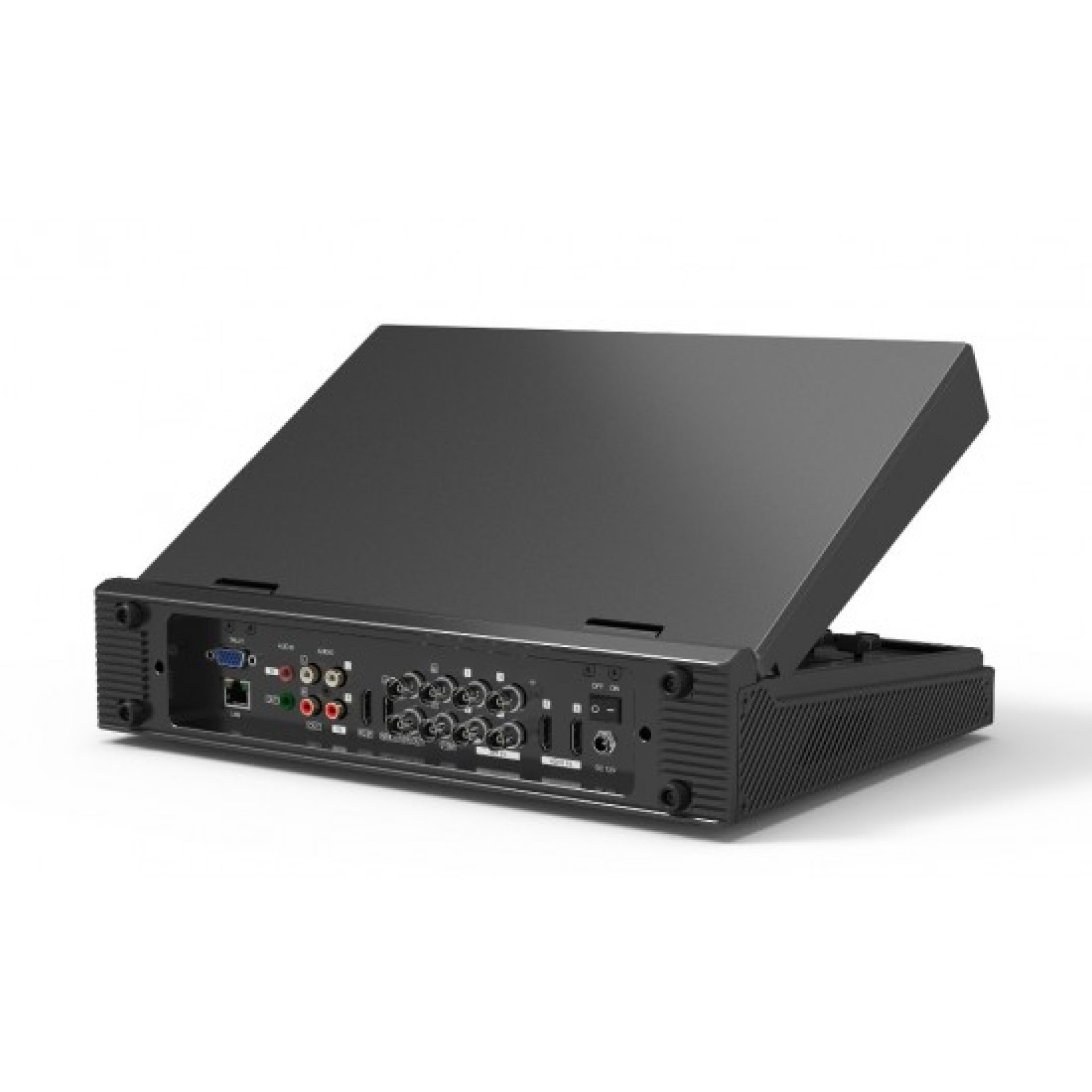

AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Connectivity
- 4 × 3G-SDI inputs for professional broadcast cameras
- 2 × HDMI inputs for cameras, laptops, and media players
- 2 × SDI program outputs for professional monitoring and distribution
- 1 × HDMI program output for external displays and projectors
- 1 × SDI AUX output selectable as Program or Preview
- 1 × SDI multiview output for source monitoring
- 1 × HDMI multiview output for external monitoring
- 1 × USB Type-C output for streaming and conferencing applications
- 3.5mm and RCA audio input/output connections
- GPIO tally interface for studio production workflows
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Build Quality and Design
- Rugged metal chassis designed for professional production environments
- Portable all-in-one design simplifies transportation and deployment
- Integrated 13.3-inch IPS display provides clear multiview monitoring
- Dedicated T-Bar enables smooth manual transitions
- Intuitive front-panel layout ensures efficient live operation
- Durable construction suitable for both studio and field productions
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Ideal Use Cases
- Live event production
- Church broadcasting
- Corporate presentations
- Sports broadcasting
- Online education and webinars
- Conference and seminar production
- Live streaming productions
- Multi-camera studio production
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Built-in 13.3-inch Full HD display | Limited to Full HD production |
| Supports both SDI and HDMI camera systems | No native 4K support |
| Integrated USB streaming output | Internal storage not included |
| Professional transition and PiP features | Larger footprint compared to compact switchers |
| Portable all-in-one production solution | Requires external power source |
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher FAQs
Q: How many video sources can the AVMATRIX PVS0613U support?
A: The switcher supports up to six video sources through four SDI inputs and two HDMI inputs.
Q: Does the PVS0613U include a built-in monitor?
A: Yes, it features an integrated 13.3-inch Full HD IPS display for multiview monitoring.
Q: Can the switcher stream directly to a computer?
A: Yes, the USB Type-C output supports direct streaming and capture using UVC/UAC compatibility.
Q: Does the AVMATRIX PVS0613U support Picture-in-Picture effects?
A: Yes, it supports adjustable Picture-in-Picture functionality for professional productions.
Q: Is the switcher compatible with professional SDI cameras?
A: Yes, it includes four 3G-SDI inputs for connecting professional broadcast cameras.
AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher Conclusion
The AVMATRIX PVS0613U 6-Channel Multiformat Video Switcher is a powerful all-in-one live production solution that combines six-channel switching, integrated monitoring, USB streaming, professional transition effects, and advanced audio capabilities in a portable package. It is an excellent choice for broadcasters, churches, production teams, and content creators seeking a professional and reliable live production platform.
