AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher
The AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher is a high-performance live production switcher designed for broadcasters, event production companies, churches, educational institutions, and professional content creators. Featuring six multiformat inputs, advanced streaming and recording capabilities, PTZ camera control, professional keying functions, and comprehensive audio mixing, the VS0605U provides a complete solution for professional multi-camera live productions, virtual studios, and broadcast applications.
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Price
Product
Price
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher
KSh 164,200
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Key Features
Professional six-channel multiformat live production switcher
Supports 4 SDI and 2 HDMI/DVI-I video inputs
USB Type-C output for uncompressed live streaming and capture
Records program output directly to SD cards
Professional T-Bar, AUTO, and CUT switching controls
Supports Chroma Key and Luma Key for virtual studio production
Adjustable Picture-in-Picture (PiP) and Picture-over-Picture (PoP) functions
Integrated audio mixer with embedded and analog audio support
PTZ camera control via VISCA and Pelco D/P protocols
Multiple SDI and HDMI program and multiview outputs
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Specifications
Specification
Details
Product Type
Multiformat Streaming Video Switcher
Brand
AVMATRIX
Model
VS0605U
Video Inputs
4 × 3G-SDI, 2 × HDMI/DVI-I
Additional Inputs
2 × USB Media Player Inputs
Video Outputs
3 × SDI/HDMI Program Outputs
AUX Output
1 × SDI AUX Output
Multiview Outputs
2 × SDI/HDMI Multiview Outputs
USB Output
1 × USB Type-C
Maximum Resolution
1920 × 1080 at 60fps
Recording Media
SD Card
Recording Format
H.264
Video Effects
Mix, Fade, Wipe, PiP, PoP
Keying Functions
Chroma Key, Luma Key
Audio Inputs
XLR, RCA, Embedded SDI/HDMI Audio
Audio Outputs
RCA Audio Output
PTZ Camera Control
VISCA, Pelco D/P
Tally Interface
Yes
Network Connectivity
RJ45 LAN
Control Methods
T-Bar, AUTO, CUT, Front Panel Controls
Power Supply
DC Power Input
Chassis Material
Metal
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Performance and Usage Overview
Delivers professional-grade multi-camera switching for live productions
Supports direct USB streaming to computers without additional capture hardware
Advanced chroma and luma key functions enable professional virtual studio production
Integrated recording allows simultaneous production and content archiving
PTZ camera control simplifies remote camera operation during live events
Suitable for conferences, concerts, sports, church broadcasting, and educational productions

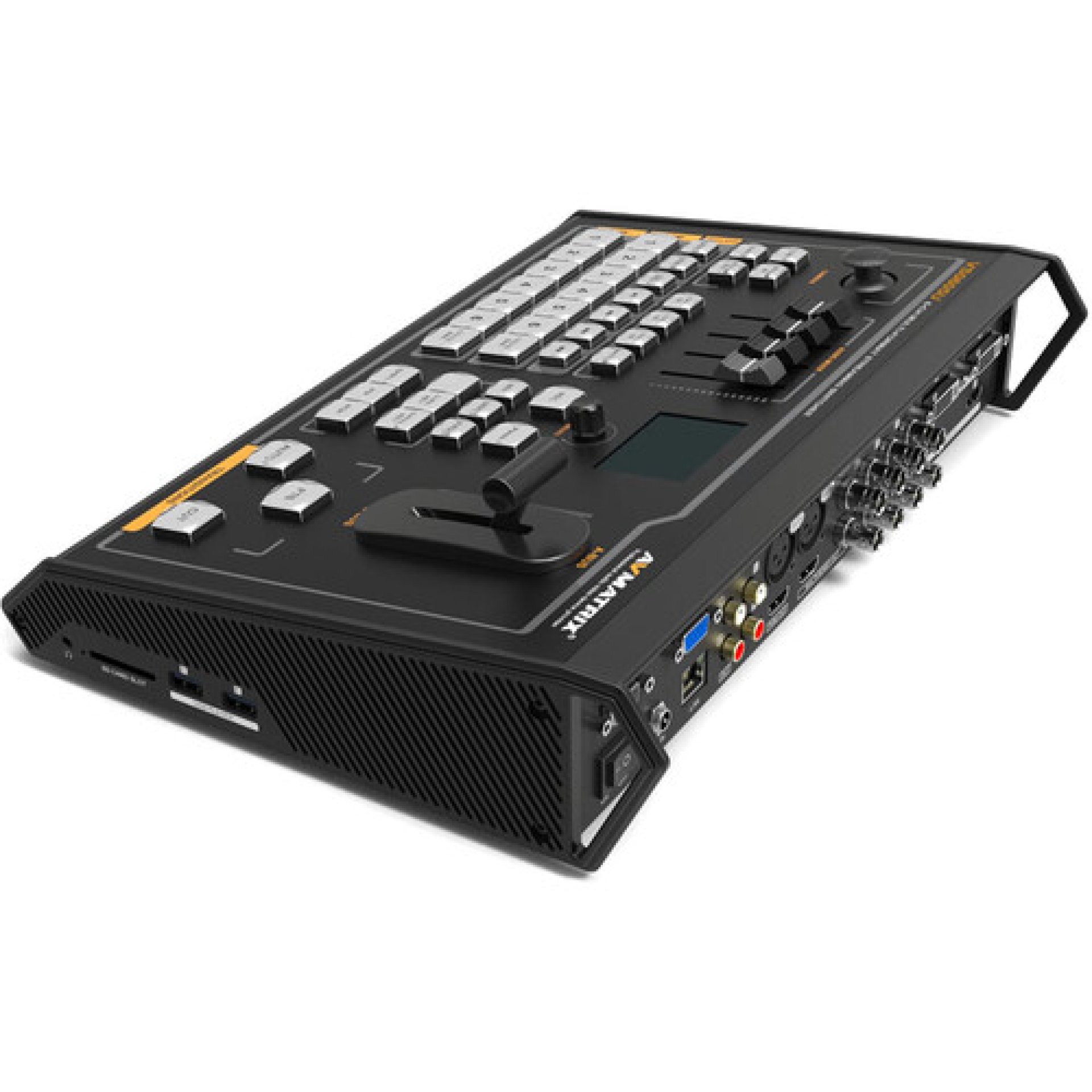

AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Connectivity
4 × 3G-SDI inputs for professional broadcast cameras
2 × HDMI/DVI-I inputs for cameras, laptops, and media players
2 × USB media player inputs for video playback
3 × SDI/HDMI program outputs for monitoring and distribution
1 × SDI AUX output for independent source assignment
2 × SDI/HDMI multiview outputs for source monitoring
1 × USB Type-C output for live streaming and conferencing
XLR and RCA audio connections for professional audio integration
RJ45 Ethernet port for network synchronization and control
RS-422/RS-485 interface for PTZ camera control

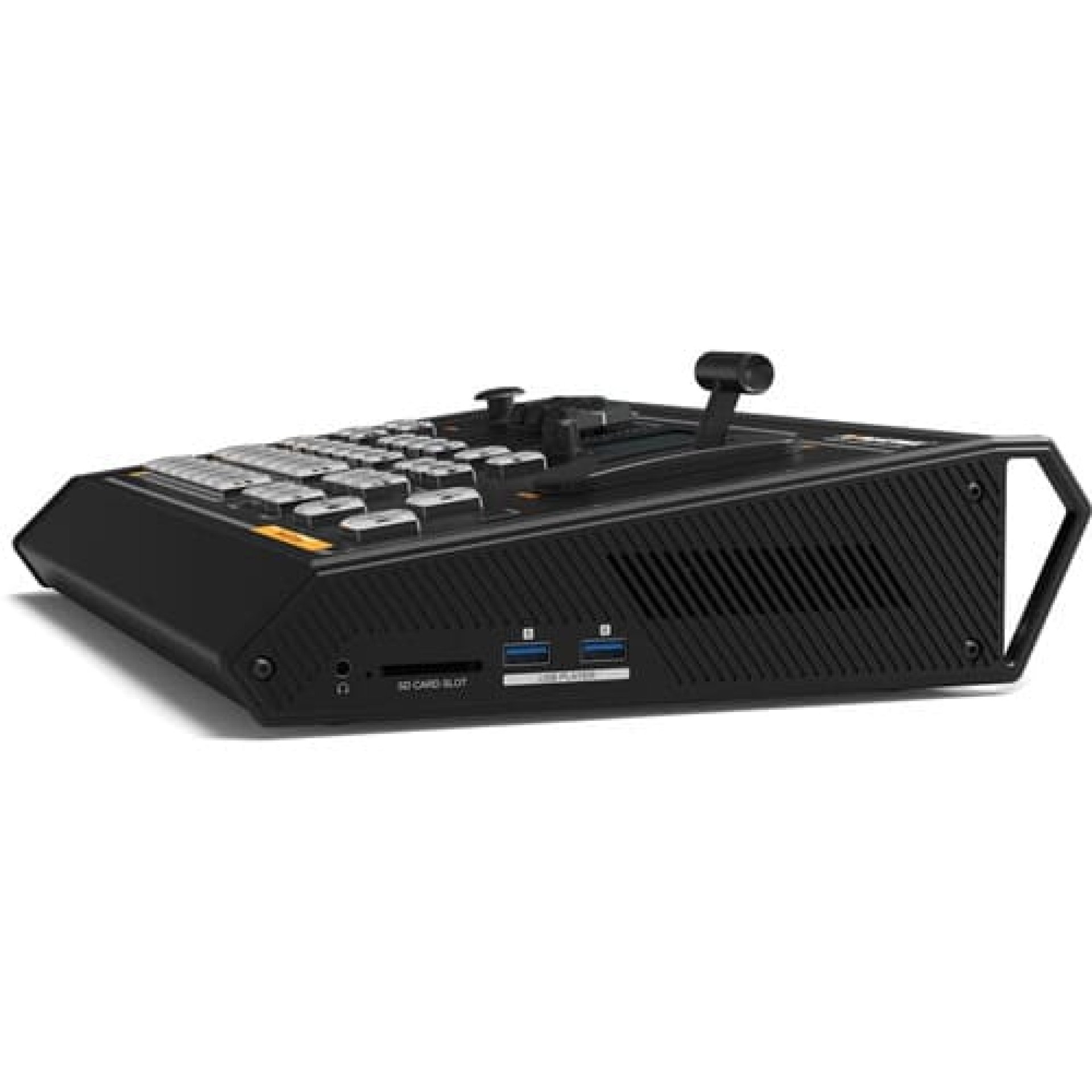

AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Build Quality and Design
Rugged metal chassis designed for demanding production environments
Professional desktop form factor suitable for studio and field applications
Dedicated T-Bar ensures smooth manual transitions

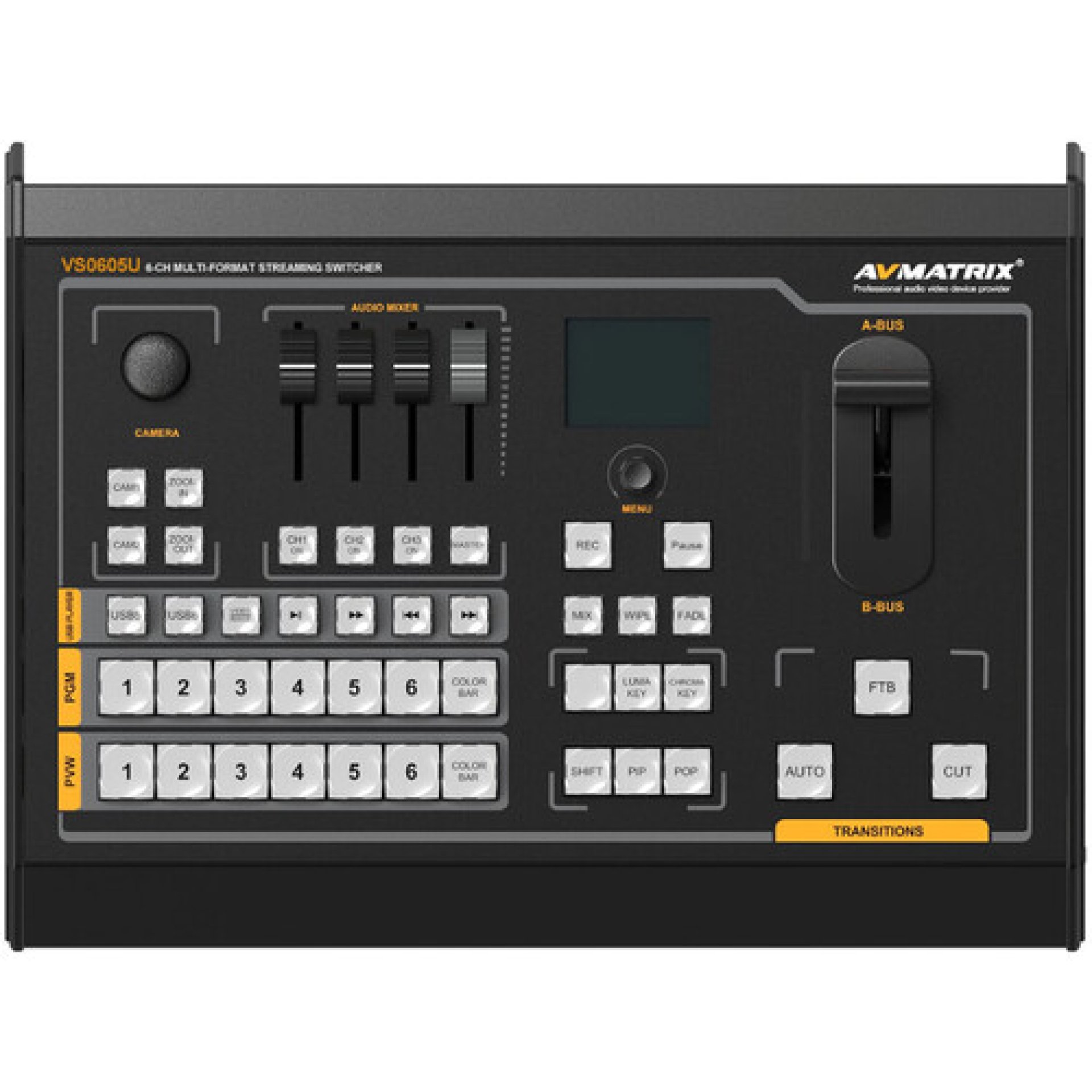

Intuitive front-panel controls simplify live operation
Durable construction designed for continuous professional use
Compact design allows easy transportation and deployment
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Ideal Use Cases
Live event production
Church broadcasting
Virtual studio production
Corporate presentations
Sports broadcasting
Educational streaming
Conference and seminar production
Multi-camera live streaming
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Pros and Cons
Pros
Cons
Supports both SDI and HDMI workflows
Limited to Full HD production
Built-in recording and streaming capabilities
No integrated display screen
Professional chroma and luma key support
No native 4K program output
Comprehensive PTZ camera control
Requires external monitor for multiview
Multiple program and multiview outputs
Internal storage not included
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher FAQs
Q: How many video sources can the AVMATRIX VS0605U support? A: The switcher supports up to six video sources through four SDI inputs and two HDMI/DVI-I inputs.
Q: Can the VS0605U stream directly to a computer? A: Yes, it features a USB Type-C output that supports uncompressed UVC/UAC streaming and capture.
Q: Does the switcher support recording? A: Yes, it can record program output directly to an SD card in H.264 format.
Q: Does the AVMATRIX VS0605U support virtual studio production? A: Yes, it supports both chroma key and luma key functions for professional virtual studio applications.
Q: Can the switcher control PTZ cameras? A: Yes, it supports PTZ camera control using VISCA and Pelco D/P protocols.
AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher Conclusion
The AVMATRIX VS0605U Professional 6-Channel Multiformat Video Switcher is a powerful live production solution that combines professional switching, streaming, recording, virtual studio capabilities, and PTZ camera control in a robust desktop platform. It is an excellent choice for broadcasters, production companies, churches, and content creators seeking a versatile and reliable professional video switcher.
