AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher
The AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher is a compact and professional live production switcher designed for broadcasters, churches, content creators, educational institutions, and event production teams. Featuring four HDMI inputs with an additional DisplayPort input, built-in streaming and recording capabilities, professional transition effects, and multiview monitoring, the HVS0401E provides a powerful solution for multi-camera live productions and streaming workflows. Its portable design makes it ideal for both studio and field applications.
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher | KSh 51,900 |
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Key Features
- Four-channel multiformat live production switcher
- Supports 4 HDMI inputs plus 1 DisplayPort input
- Built-in RTMP streaming via Ethernet connection
- USB Type-C output for direct computer capture and streaming
- Simultaneous recording to USB storage devices and SD cards
- HDMI multiview output for monitoring all video sources
- Professional transition effects including Cut, Mix, Fade, and Wipe
- Integrated Picture-in-Picture (PiP) functionality
- Built-in audio mixer supporting embedded and external audio
- Compact desktop design with T-Bar and hardware controls
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Multiformat Video Switcher |
| Brand | AVMATRIX |
| Model | HVS0401E Micro |
| Video Inputs | 4 × HDMI, 1 × DisplayPort |
| Video Outputs | 2 × HDMI Program Outputs, 1 × HDMI Multiview Output |
| USB Output | 1 × USB Type-C |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Streaming Protocol | RTMP |
| Recording Media | USB Storage, SD Card |
| Recording Formats | H.264, H.265, MP4, TS |
| Video Effects | Cut, Mix, Fade, Wipe, PiP |
| Audio Inputs | 2 × 3.5mm Stereo Inputs, 1 × RCA Stereo Input |
| Audio Outputs | 1 × 3.5mm Stereo Output |
| Network Connectivity | RJ45 Ethernet |
| Tally Interface | DB-15 GPIO |
| Control Methods | Front Panel, T-Bar, IP Control |
| Power Supply | DC 12V |
| Chassis Material | Metal |
| Weight | Approximately 968g |
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Performance and Usage Overview
- Delivers smooth and reliable multi-camera switching for professional live productions
- Built-in RTMP streaming enables direct streaming to online platforms without additional hardware
- Supports simultaneous streaming and recording workflows
- Multiview monitoring allows operators to monitor all connected video sources in real time
- Professional transition effects and PiP functionality enhance production quality
- Ideal for churches, webinars, conferences, online education, and live event productions

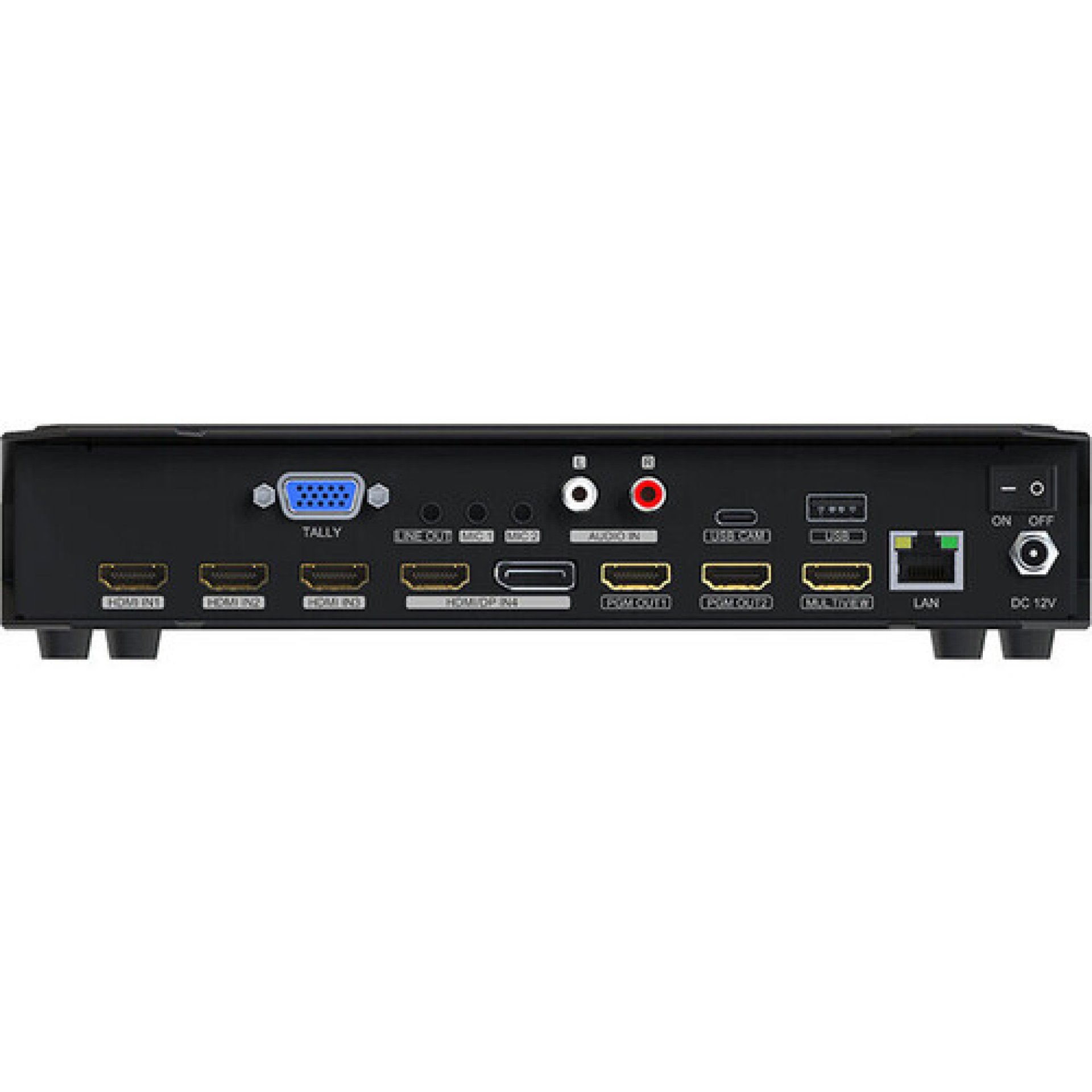

AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Connectivity
- 4 × HDMI inputs for cameras, computers, and media players
- 1 × DisplayPort input for additional video sources
- 2 × HDMI program outputs for external displays and projectors
- 1 × HDMI multiview output for comprehensive source monitoring
- 1 × USB Type-C output for streaming and conferencing applications
- RJ45 Ethernet port for RTMP streaming and remote control
- 2 × 3.5mm audio inputs for microphones and external audio devices
- 1 × RCA stereo audio input for external audio sources
- 1 × 3.5mm audio output for monitoring and audio distribution
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Build Quality and Design
- Rugged metal chassis designed for professional production environments
- Compact desktop form factor ideal for portable and fixed installations
- Dedicated T-Bar provides smooth and precise manual transitions
- Intuitive front-panel layout simplifies live production operation
- Lightweight design allows easy transport and rapid deployment
- Durable construction suitable for studio and field production applications
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Ideal Use Cases
- Live streaming productions
- Church broadcasting
- Corporate presentations
- Educational streaming and online classes
- Webinars and virtual conferences
- Sports broadcasting
- Multi-camera event production
- Studio video production
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Supports both HDMI and DisplayPort inputs | Limited to Full HD production |
| Built-in streaming and recording capabilities | No integrated display screen |
| Professional transition effects and PiP support | No SDI connectivity |
| Compact and portable design | Requires external monitor for multiview |
| USB Type-C capture output simplifies streaming workflows | Internal storage not included |
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher FAQs
Q: How many video sources can the AVMATRIX HVS0401E Micro support?
A: The switcher supports up to five video sources through four HDMI inputs and one DisplayPort input.
Q: Can the HVS0401E Micro stream directly to online platforms?
A: Yes, it supports RTMP streaming directly through its Ethernet port.
Q: Does the switcher support recording?
A: Yes, it can record program output to USB storage devices and SD cards.
Q: Does the AVMATRIX HVS0401E Micro support Picture-in-Picture effects?
A: Yes, it features built-in Picture-in-Picture functionality for professional productions.
Q: Can the switcher be controlled remotely?
A: Yes, it supports IP-based remote control through the Ethernet connection.
AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher Conclusion
The AVMATRIX HVS0401E Micro 4-Channel Multiformat Video Switcher is a versatile and feature-rich live production solution that combines professional switching, built-in streaming, recording, multiview monitoring, and audio mixing in a compact package. It is an excellent choice for content creators, churches, educators, and production teams seeking an affordable and professional live production platform.
