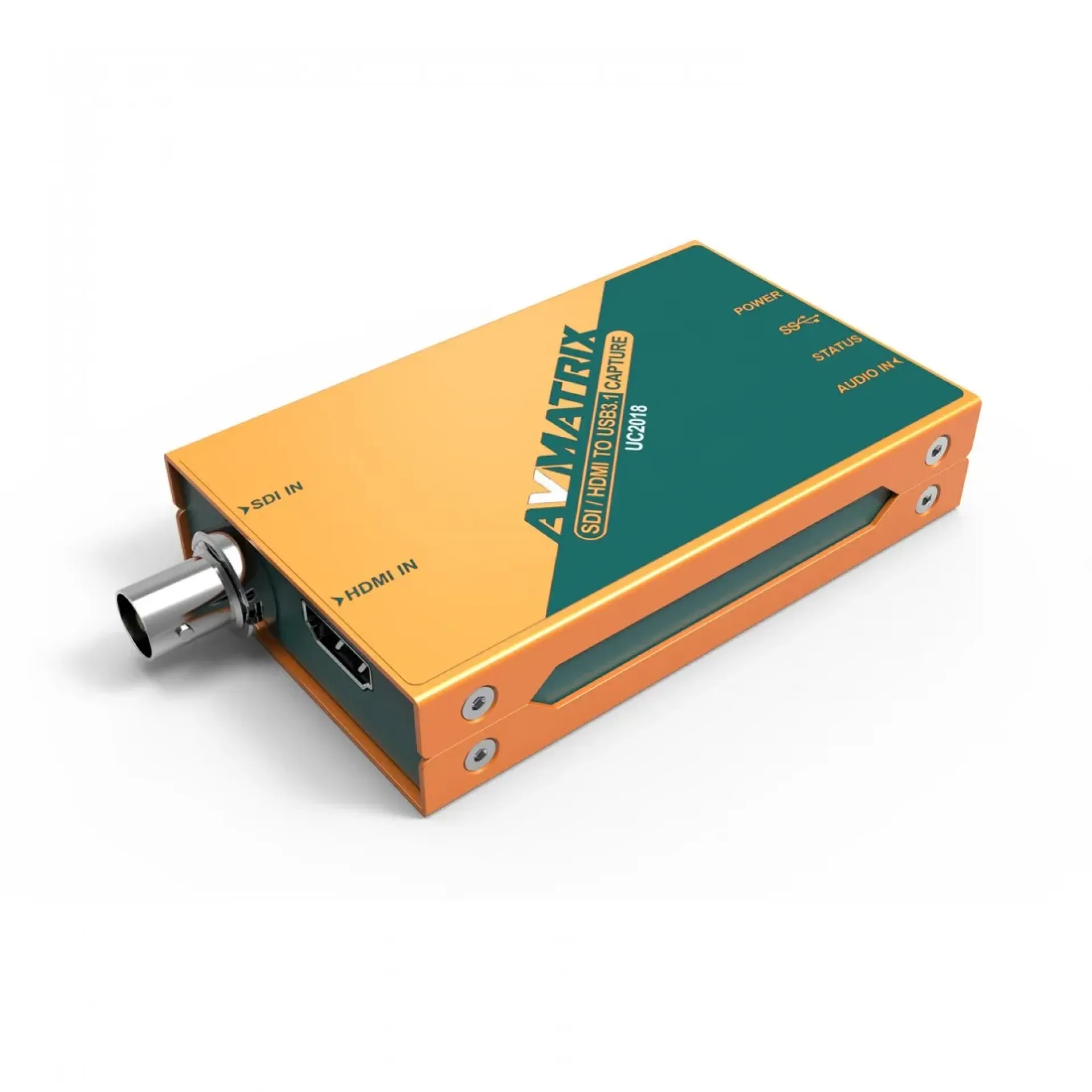

AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card
The AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card is a professional video capture device designed for live streaming, broadcasting, video conferencing, online education, and content creation. Featuring both SDI and HDMI inputs alongside high-speed USB 3.1 Type-C connectivity, the UC2018 provides flexible capture capabilities for professional cameras, switchers, and video equipment. Its compact, driver-free design makes it ideal for both studio and mobile production environments.
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Price
Product
Price
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card
KSh 23,400
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Key Features
Professional SDI and HDMI to USB capture device
Supports both HDMI and 3G-SDI video inputs
USB 3.1 Gen 1 Type-C interface for high-speed data transfer
Automatic input signal detection
Supports video resolutions up to 1080p60
UVC and UAC compliant for plug-and-play operation
Uncompressed video and audio capture
Compatible with Windows, macOS, and Linux operating systems
No driver installation required
Compatible with OBS, Zoom, Teams, Twitch, and other streaming platforms
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Specifications
Specification
Details
Product Type
SDI/HDMI to USB Capture Card
Brand
AVMATRIX
Model
UC2018
Video Inputs

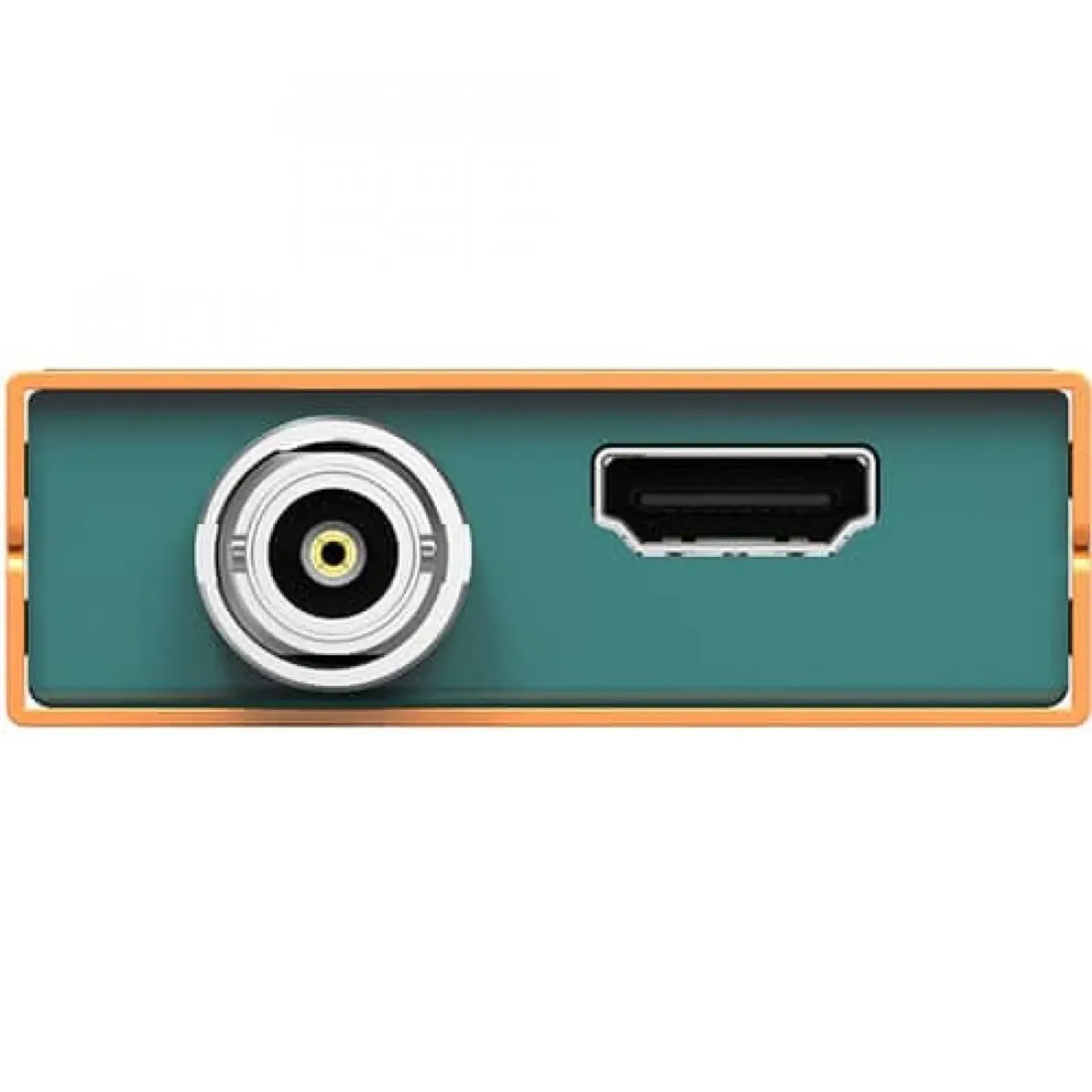

1 × HDMI 1.4a, 1 × SD/HD/3G-SDI
Audio Input
1 × 3.5mm Stereo Line Input
USB Output
1 × USB 3.1 Gen 1 Type-C
Maximum Input Resolution
1920 × 1080 at 60fps
Capture Resolution
Up to 1080p60
Video Format
YUY2
Audio Format
2-Channel PCM, 48kHz
USB Protocol
UVC/UAC
Data Transfer Rate
Up to 200MB/s
Operating Systems
Windows, macOS, Linux
Driver Requirement
Driver-Free
Power Source
USB Bus Powered
Power Consumption
3.5W Maximum
Chassis Material
Aluminum
Dimensions
92 × 58 × 19mm
Weight
Approximately 205g
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Performance and Usage Overview
Delivers low-latency, uncompressed video capture for professional streaming applications
Supports seamless integration with both HDMI and SDI production workflows
Automatic input detection simplifies setup and operation
Captures Full HD video with excellent image quality for broadcasting and recording
Rugged construction suitable for studio and field production environments
Portable design fits easily into production kits and travel bags
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Ideal Use Cases
Live streaming
Broadcast production
Video conferencing
Online education
Webinar production
Church streaming
Professional video recording
Content creation and studio production
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Pros and Cons
Pros
Cons
Supports both HDMI and SDI inputs
Limited to Full HD capture
Driver-free plug-and-play operation
Does not support 4K capture
Uncompressed low-latency video capture
Single HDMI and SDI input only
Compatible with major operating systems
No onboard recording capability
USB-powered for easy setup
No video loop output
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card FAQs
Q: What is the AVMATRIX UC2018 used for? A: It captures HDMI or SDI video signals and transfers them to a computer for live streaming, recording, or video conferencing.
Q: Does the UC2018 require drivers for installation? A: No, the capture card is UVC/UAC compliant and works without additional drivers.
Q: What is the maximum supported capture resolution? A: The UC2018 supports video capture up to Full HD 1080p60.
Q: Can I use the UC2018 with OBS Studio? A: Yes, it is fully compatible with OBS Studio, Zoom, Microsoft Teams, Twitch, and other popular streaming applications.
Q: Does the capture card support both SDI and HDMI sources? A: Yes, the UC2018 supports both SDI and HDMI inputs, making it suitable for a wide range of production workflows.
AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card Conclusion
The AVMATRIX UC2018 SDI/HDMI to USB 3.1 Type-C Video Capture Card is a versatile and reliable capture solution for professionals who require both SDI and HDMI compatibility. With driver-free operation, low-latency uncompressed capture, and broad software compatibility, it is an excellent choice for broadcasters, educators, content creators, and live production teams.
