AVMATRIX Shark S6 Portable Video Switcher
The AVMATRIX Shark S6 Portable Video Switcher is a professional all-in-one live production switcher designed for broadcasters, churches, event production companies, content creators, and educational institutions. Featuring six video inputs, integrated monitoring, built-in streaming and recording capabilities, advanced keying functions, and PTZ camera control, the Shark S6 provides a powerful and portable solution for professional multi-camera live productions. It combines SDI and HDMI connectivity with advanced production features in a compact desktop form factor.
AVMATRIX Shark S6 Portable Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX Shark S6 Portable Video Switcher | KSh 107,900 |
AVMATRIX Shark S6 Portable Video Switcher Key Features
- Six-channel video switcher with 4 SDI and 2 HDMI inputs
- Built-in 5-inch LCD display for multiview monitoring
- Supports live streaming via RTMP and SRT protocols
- Simultaneous recording to USB drives and SD cards
- USB Type-C output for direct computer capture and streaming
- Professional chroma key, luma key, DSK, PiP, and PoP support
- T-Bar, Auto, and Cut transitions with multiple effects
- Integrated audio mixer with embedded and external audio support
- PTZ camera control via VISCA, VISCA over IP, Pelco D/P, and ONVIF
- Supports both landscape and portrait multiview layouts
AVMATRIX Shark S6 Portable Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Video Switcher |
| Brand | AVMATRIX |
| Model | Shark S6 |
| Display | Built-in 5-inch LCD Display |
| Video Inputs | 4 × 3G-SDI, 2 × HDMI |
| Video Outputs | 2 × SDI, 1 × HDMI PGM, 2 × SDI AUX, 1 × HDMI Multiview |
| USB Output | 1 × USB Type-C |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Streaming Protocols | RTMP, SRT |
| Recording Media | SD Card, USB Storage |
| Recording Formats | MP4, TS |
| Video Effects | Mix, Dip, Wipe, PiP, PoP |
| Keying Functions | Chroma Key, Luma Key, DSK, Logo Overlay |
| Audio Inputs | 2 × Microphone Inputs, Embedded HDMI/SDI Audio |
| Audio Outputs | 1 × Audio Output |
| PTZ Camera Control | VISCA, VISCA over IP, Pelco D/P, ONVIF |
| Network Connectivity | RJ45 Ethernet |
| Tally Interface | GPIO |
| Serial Control | RS232, RS422, RS485 |
| Power Supply | DC Input |
AVMATRIX Shark S6 Portable Video Switcher Performance and Usage Overview
- Delivers professional-grade multi-camera switching for live productions
- Integrated display eliminates the need for a separate multiview monitor
- Supports simultaneous live streaming and recording workflows
- Advanced keying tools enable professional virtual production environments
- PTZ camera control simplifies operation of remote camera systems
- Suitable for churches, conferences, concerts, sports productions, and online broadcasts

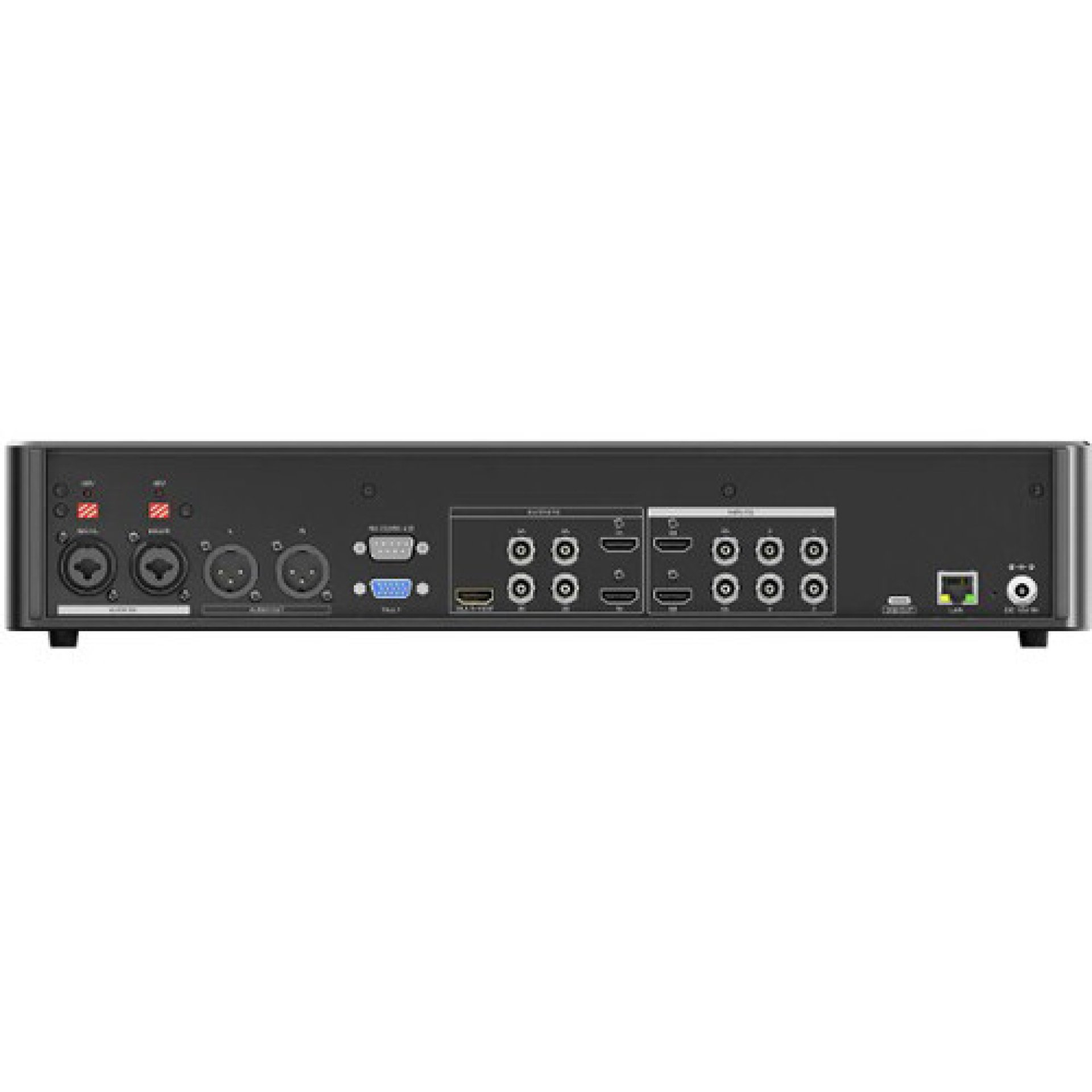

AVMATRIX Shark S6 Portable Video Switcher Connectivity
- 4 × 3G-SDI inputs for professional broadcast cameras
- 2 × HDMI inputs for cameras, laptops, and media players
- 2 × SDI outputs for professional monitoring and distribution
- 1 × HDMI program output for external displays
- 2 × SDI AUX outputs for independent source assignment
- 1 × HDMI multiview output for source monitoring
- 1 × USB Type-C output for streaming and conferencing applications
- RJ45 Ethernet port for network streaming and remote control
- SD card slot and USB ports for recording and media storage

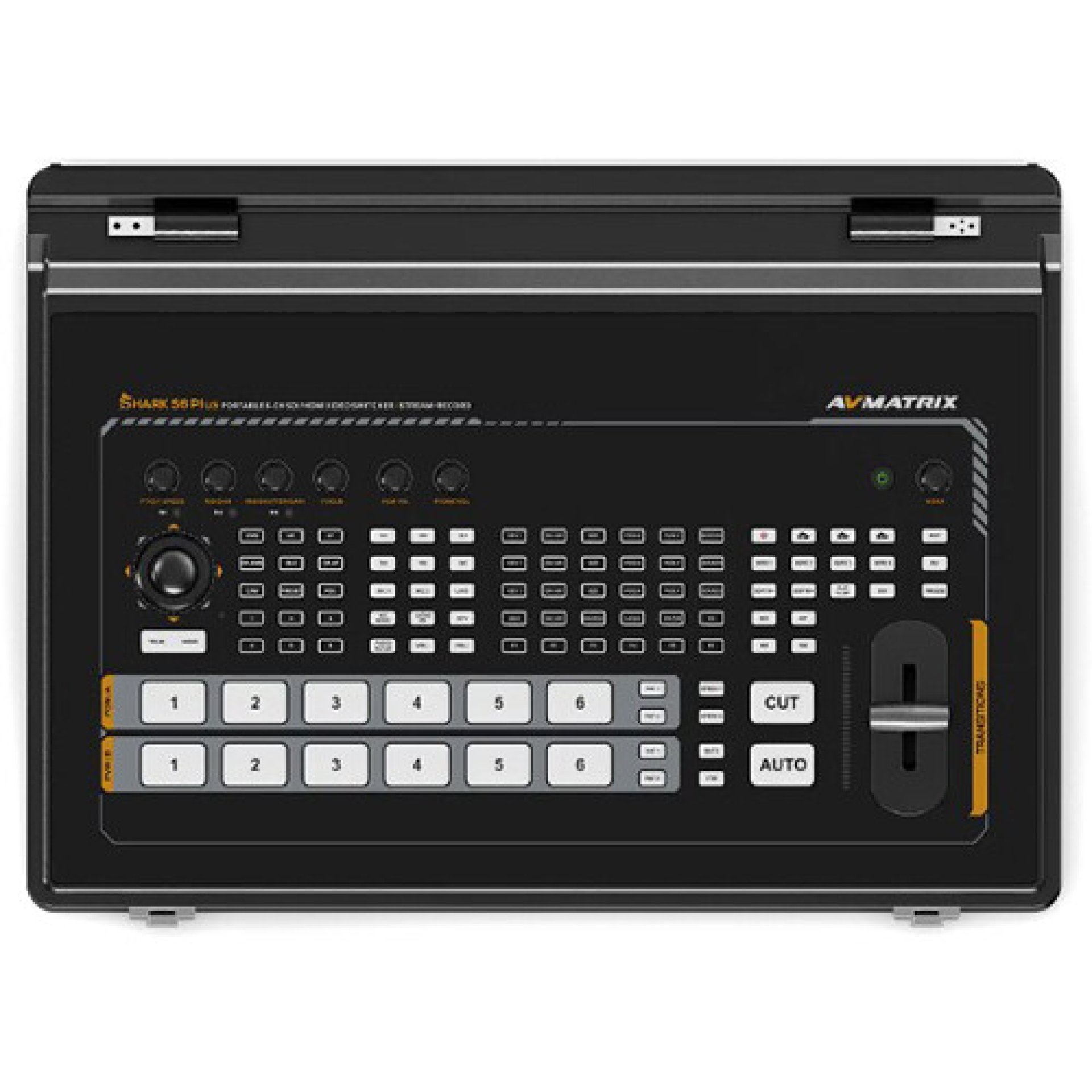

AVMATRIX Shark S6 Portable Video Switcher Build Quality and Design
- Rugged and compact chassis designed for professional production environments
- Built-in 5-inch LCD display enhances portability
- Dedicated T-Bar ensures smooth and precise transitions
- Intuitive front-panel controls simplify live operation
- Lightweight desktop design ideal for mobile productions
- Suitable for both permanent installations and field productions
AVMATRIX Shark S6 Portable Video Switcher Ideal Use Cases
- Church broadcasting
- Live event production
- Corporate presentations
- Sports broadcasting
- Online education and webinars
- Live streaming productions
- Concert and conference coverage
- Multi-camera studio production
AVMATRIX Shark S6 Portable Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Supports both SDI and HDMI camera systems | Limited to Full HD production |
| Built-in 5-inch display for multiview monitoring | No native 4K support |
| Integrated streaming and recording capabilities | Internal storage not included |
| Advanced PTZ camera control support | Requires external power for extended operation |
| Professional keying and transition features | May have a learning curve for beginners |
AVMATRIX Shark S6 Portable Video Switcher FAQs
Q: How many video sources can the AVMATRIX Shark S6 support?
A: The Shark S6 supports up to six video sources through four SDI inputs and two HDMI inputs.
Q: Can the Shark S6 stream directly to online platforms?
A: Yes, it supports direct live streaming using RTMP and SRT protocols.
Q: Does the AVMATRIX Shark S6 support recording?
A: Yes, it can record directly to SD cards and USB storage devices while simultaneously streaming.
Q: Does the switcher support PTZ camera control?
A: Yes, it supports VISCA, VISCA over IP, Pelco D/P, and ONVIF PTZ protocols.
Q: Does the Shark S6 include a built-in display?
A: Yes, it features an integrated 5-inch LCD display for multiview monitoring and control.
AVMATRIX Shark S6 Portable Video Switcher Conclusion
The AVMATRIX Shark S6 Portable Video Switcher is a feature-rich live production solution that combines six-channel switching, integrated monitoring, professional streaming, recording, PTZ control, and advanced keying capabilities in a compact package. It is an excellent choice for broadcasters, churches, production teams, and content creators seeking a professional and portable live production platform.
