AVMATRIX Shark S4M Portable Video Switcher
The AVMATRIX Shark S4M Portable Video Switcher is a professional all-in-one live production switcher designed for broadcasters, churches, content creators, educational institutions, and event production teams. Featuring a combination of HDMI and SDI inputs, an integrated high-resolution display, built-in streaming and recording capabilities, and advanced production tools, the Shark S4M provides a complete solution for professional multi-camera live productions.
AVMATRIX Shark S4M Portable Video Switcher Price
| Product | Price |
|---|---|
| AVMATRIX Shark S4M Portable Video Switcher | KSh 64,000 |
AVMATRIX Shark S4M Portable Video Switcher Key Features
- Four-channel video switcher with HDMI and SDI inputs
- Integrated high-resolution touchscreen display for monitoring and control
- Supports live streaming via RTMP, RTMPS, and SRT protocols
- Simultaneous recording to SD card and USB storage devices
- USB-C output for direct computer capture and streaming
- Professional transition effects including Cut, Fade, Mix, and Wipe
- Chroma key, luma key, PiP, PoP, and DSK support
- Built-in audio mixer with embedded and external audio support
- Dedicated HDMI multiview output for comprehensive source monitoring
- Compact all-in-one design for portable live production
AVMATRIX Shark S4M Portable Video Switcher Specifications
| Specification | Details |
|---|---|
| Product Type | Portable Video Switcher |
| Brand | AVMATRIX |
| Model | Shark S4M |
| Display | Integrated Touchscreen Display |
| Video Inputs | 2 × HDMI, 2 × 3G-SDI |
| Video Outputs | 2 × HDMI Program Outputs, 1 × HDMI Multiview Output |
| USB Output | 1 × USB Type-C |
| Maximum Resolution | 1920 × 1080 at 60fps |
| Streaming Protocols | RTMP, RTMPS, SRT |
| Recording Media | SD Card, USB Storage |
| Video Effects | Cut, Fade, Wipe, Mix, PiP, PoP |
| Keying Functions | Chroma Key, Luma Key, DSK, Logo Overlay |
| Audio Inputs | 2 × 3.5mm MIC/Line Inputs |
| Audio Outputs | 1 × 3.5mm Headphone Output |
| Network Connectivity | RJ45 Ethernet |
| Tally Interface | DB-15 Tally Port |
| Control Methods | Touchscreen, Front Panel, Software, IP Control |
| Power Supply | DC 12V |
| Chassis Material | Metal |
| Weight | Approximately 1.5 kg |
AVMATRIX Shark S4M Portable Video Switcher Performance and Usage Overview
- Delivers smooth and reliable multi-camera switching for professional live productions
- Integrated display eliminates the need for an external multiview monitor
- Supports simultaneous live streaming and recording workflows
- SDI and HDMI connectivity allow seamless integration with broadcast and consumer cameras
- Advanced keying functions enable professional virtual production and branded broadcasts
- Ideal for churches, conferences, webinars, live events, and online productions

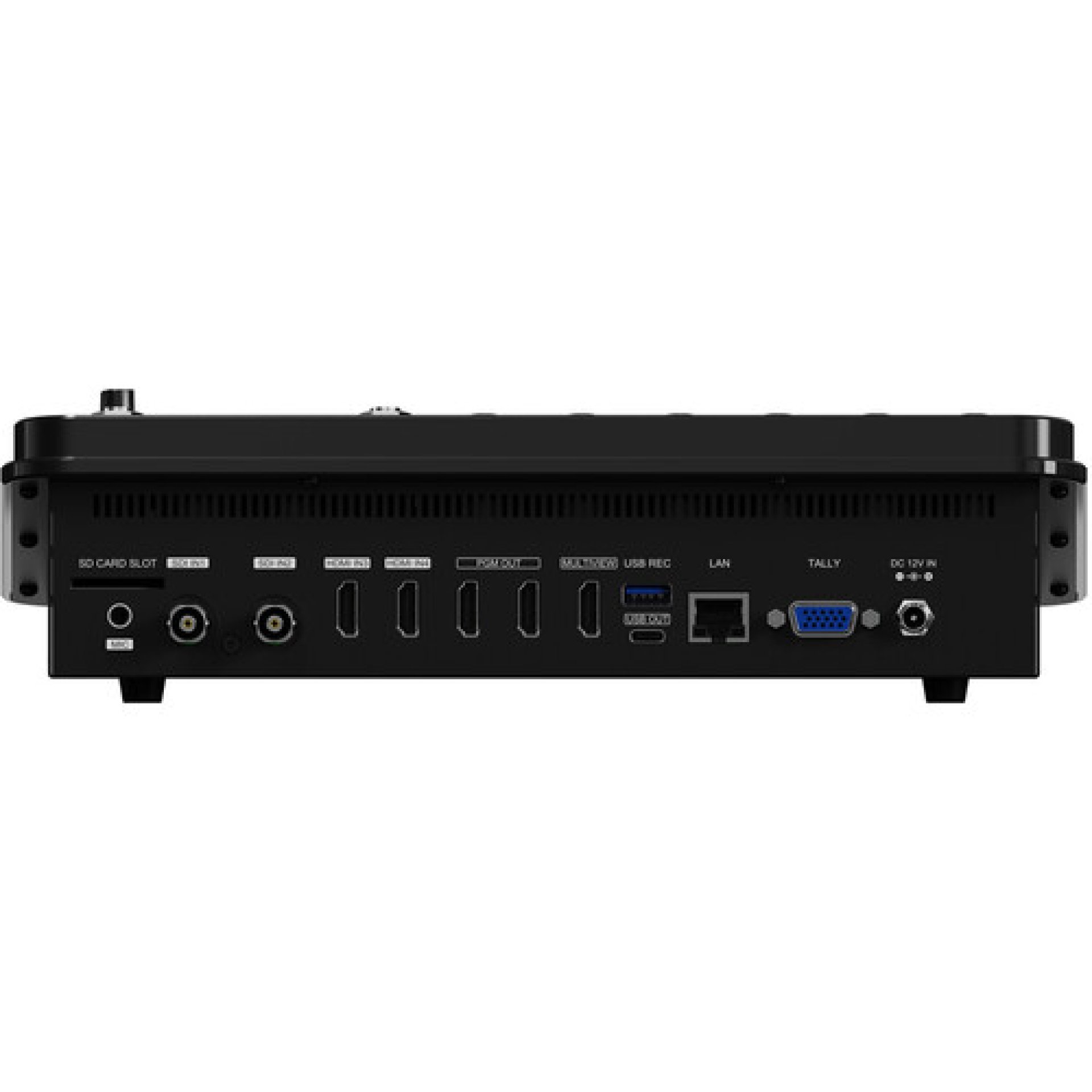

AVMATRIX Shark S4M Portable Video Switcher Connectivity
- 2 × HDMI inputs for cameras, computers, and media players
- 2 × 3G-SDI inputs for professional broadcast cameras
- 2 × HDMI outputs for program and external monitoring
- 1 × HDMI multiview output for source monitoring
- 1 × USB Type-C output for streaming and computer capture
- RJ45 Ethernet port for network streaming and remote control
- 2 × 3.5mm MIC/Line inputs for external audio devices
- 1 × 3.5mm headphone output for audio monitoring
- SD card slot and USB ports for recording and media storage
AVMATRIX Shark S4M Portable Video Switcher Build Quality and Design
- Rugged metal chassis designed for professional use
- Compact all-in-one design simplifies portable productions
- Integrated touchscreen provides intuitive operation and monitoring
- Dedicated hardware controls ensure fast switching during live productions
- Lightweight construction allows easy transport and deployment
- Suitable for both fixed installations and mobile production environments
AVMATRIX Shark S4M Portable Video Switcher Ideal Use Cases
- Live streaming productions
- Church broadcasting
- Corporate presentations
- Educational streaming and online classes
- Virtual conferences and webinars
- Sports broadcasting
- Multi-camera event coverage
- Professional live production workflows
AVMATRIX Shark S4M Portable Video Switcher Pros and Cons
| Pros | Cons |
|---|---|
| Supports both HDMI and SDI camera inputs | Limited to Full HD production |
| Integrated touchscreen display | No native 4K support |
| Built-in streaming and recording capabilities | Internal storage not included |
| Professional keying and transition effects | Requires external power for extended use |
| Compact all-in-one production solution | Premium price compared to basic switchers |
AVMATRIX Shark S4M Portable Video Switcher FAQs
Q: How many cameras can the AVMATRIX Shark S4M support?
A: The switcher supports up to four video sources through its two HDMI and two SDI inputs.
Q: Can the Shark S4M stream directly to online platforms?
A: Yes, it supports direct streaming using RTMP, RTMPS, and SRT protocols.
Q: Does the AVMATRIX Shark S4M support recording?
A: Yes, it can simultaneously record to SD cards and USB storage devices while streaming.
Q: Does the switcher include a built-in monitor?
A: Yes, the Shark S4M features an integrated touchscreen display for monitoring and control.
Q: Can the Shark S4M be used with professional SDI cameras?
A: Yes, it includes two 3G-SDI inputs for connecting professional broadcast cameras.
AVMATRIX Shark S4M Portable Video Switcher Conclusion
The AVMATRIX Shark S4M Portable Video Switcher is a versatile and powerful live production solution that combines SDI and HDMI connectivity, integrated monitoring, built-in streaming and recording, and advanced production tools in a compact package. It is an excellent choice for broadcasters, churches, educators, and content creators seeking a portable and professional live production platform.
