The AVMATRIX Shark H4 Plus Portable Video Switcher is a professional all-in-one live production switcher designed for broadcasters, content creators, churches, educational institutions, corporate event teams, and live streaming professionals. Featuring four HDMI inputs, a built-in 10.1-inch Full HD IPS display, integrated streaming and recording capabilities, advanced keying functions, and professional transition effects, the Shark H4 Plus provides a powerful and portable solution for multi-camera live productions.
AVMATRIX Shark H4 Plus Portable Video Switcher Price
Product
Price
AVMATRIX Shark H4 Plus Portable Video Switcher
KSh 74,500
AVMATRIX Shark H4 Plus Portable Video Switcher Key Features
Four HDMI inputs with automatic signal detection
Built-in 10.1-inch Full HD IPS touchscreen display
Supports live streaming via RTMP, RTMPS, and SRT protocols
Simultaneous recording to USB drives and SD cards
USB-C capture output for direct computer connectivity
Professional transition controls including T-Bar, Auto, and Cut
Chroma key, luma key, PiP, PoP, and DSK support
Integrated audio mixer with MIC/Line inputs
Dedicated HDMI multiview and dual program outputs
Compact folding design for portable live production
AVMATRIX Shark H4 Plus Portable Video Switcher Specifications
Specification
Details
Product Type
Portable Video Switcher
Brand
AVMATRIX
Model
Shark H4 Plus
Display
10.1-inch IPS Full HD Display
Display Resolution
1920 × 1080
Video Inputs
4 × HDMI
Video Outputs
2 × HDMI Program Outputs, 1 × HDMI Multiview Output
USB Output
1 × USB Type-C Capture Output
Streaming Protocols
RTMP, RTMPS, SRT
Recording Media
USB Drive, SD Card
Recording Formats
MP4, TS
Maximum Video Resolution
1920 × 1080 at 60fps
Audio Inputs
2 × 3.5mm MIC/Line Inputs
Audio Output
1 × 3.5mm Headphone Output
Network Connectivity
RJ45 Ethernet
Tally Interface
DB-15 GPIO
Video Effects
Cut, Mix, Dip, Wipe, PiP, PoP
Keying Functions
Chroma Key, Luma Key, DSK, Logo Overlay
Power Supply
DC 7V–24V
Weight
Approximately 1.73 kg
AVMATRIX Shark H4 Plus Portable Video Switcher Performance and Usage Overview
Delivers professional multi-camera switching for live events and broadcasts
Built-in streaming engine reduces dependence on external encoders
Supports simultaneous streaming and recording workflows
Integrated Full HD display eliminates the need for an external multiview monitor
Advanced keying functions enable professional virtual production workflows
Suitable for churches, conferences, live events, webinars, and online productions

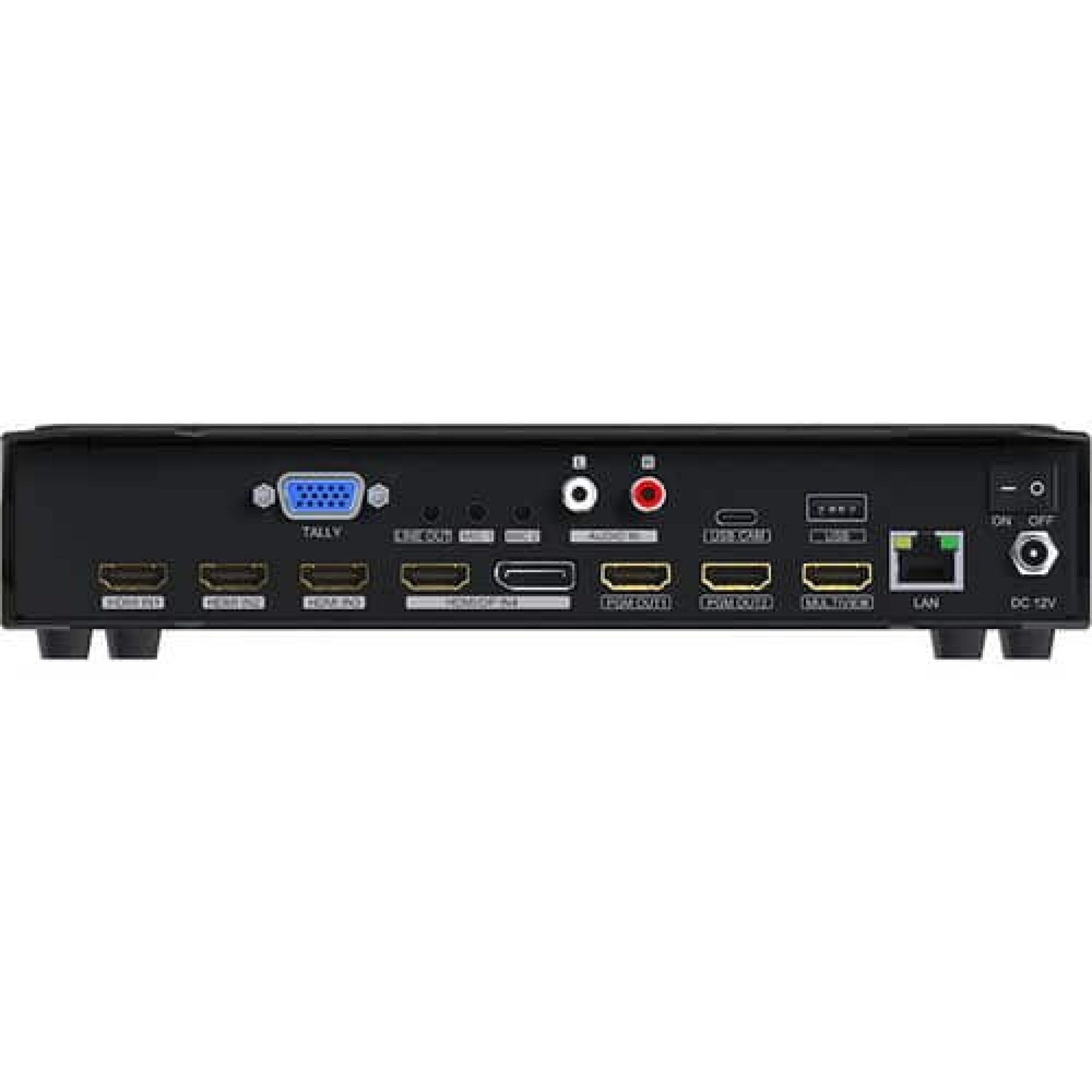

AVMATRIX Shark H4 Plus Portable Video Switcher Connectivity
4 × HDMI inputs for cameras, laptops, and media players
2 × HDMI program outputs for external displays and projectors
1 × HDMI multiview output for production monitoring
1 × USB Type-C output for streaming and capture
RJ45 Ethernet port for network streaming and control
2 × 3.5mm MIC/Line inputs for external audio sources
1 × 3.5mm headphone output for audio monitoring
USB and SD card interfaces for recording and media import
AVMATRIX Shark H4 Plus Portable Video Switcher Build Quality and Design
Rugged and compact construction designed for professional use
Folding 10.1-inch display enhances portability
Integrated T-Bar provides tactile switching control
User-friendly interface suitable for beginners and professionals
Lightweight design simplifies transport and deployment
Designed for both fixed installations and mobile productions
AVMATRIX Shark H4 Plus Portable Video Switcher Ideal Use Cases
Live streaming productions
Church broadcasting
Corporate presentations
Educational streaming and online classes
Podcast production
Virtual conferences and webinars
Sports streaming
Multi-camera event coverage
AVMATRIX Shark H4 Plus Portable Video Switcher Pros and Cons
Pros
Cons
Built-in 10.1-inch Full HD display
Limited to Full HD production
Supports simultaneous streaming and recording
No SDI inputs
Advanced chroma and luma key features
Internal storage not included
Multiple HDMI outputs for flexible workflows
Requires external power for extended operation
Compact all-in-one production solution
Premium price compared to entry-level switchers
AVMATRIX Shark H4 Plus Portable Video Switcher FAQs
Q: Can the AVMATRIX Shark H4 Plus stream directly to online platforms? A: Yes, it supports RTMP, RTMPS, and SRT streaming protocols for direct live streaming.
Q: Does the Shark H4 Plus support recording while streaming? A: Yes, it can simultaneously stream and record to USB drives or SD cards.
Q: How many cameras can be connected to the switcher? A: The switcher supports up to four HDMI video sources simultaneously.
Q: Does the device include a built-in monitor? A: Yes, it features a built-in 10.1-inch Full HD IPS display for multiview monitoring.
Q: Does the AVMATRIX Shark H4 Plus support chroma key? A: Yes, it includes chroma key, luma key, PiP, PoP, and downstream key functions.
AVMATRIX Shark H4 Plus Portable Video Switcher Conclusion
The AVMATRIX Shark H4 Plus Portable Video Switcher is a feature-rich all-in-one production solution designed for professional live streaming and video production. With its built-in Full HD display, advanced switching effects, integrated streaming and recording capabilities, and portable design, it is an excellent choice for creators and organizations seeking a powerful and flexible live production platform.
