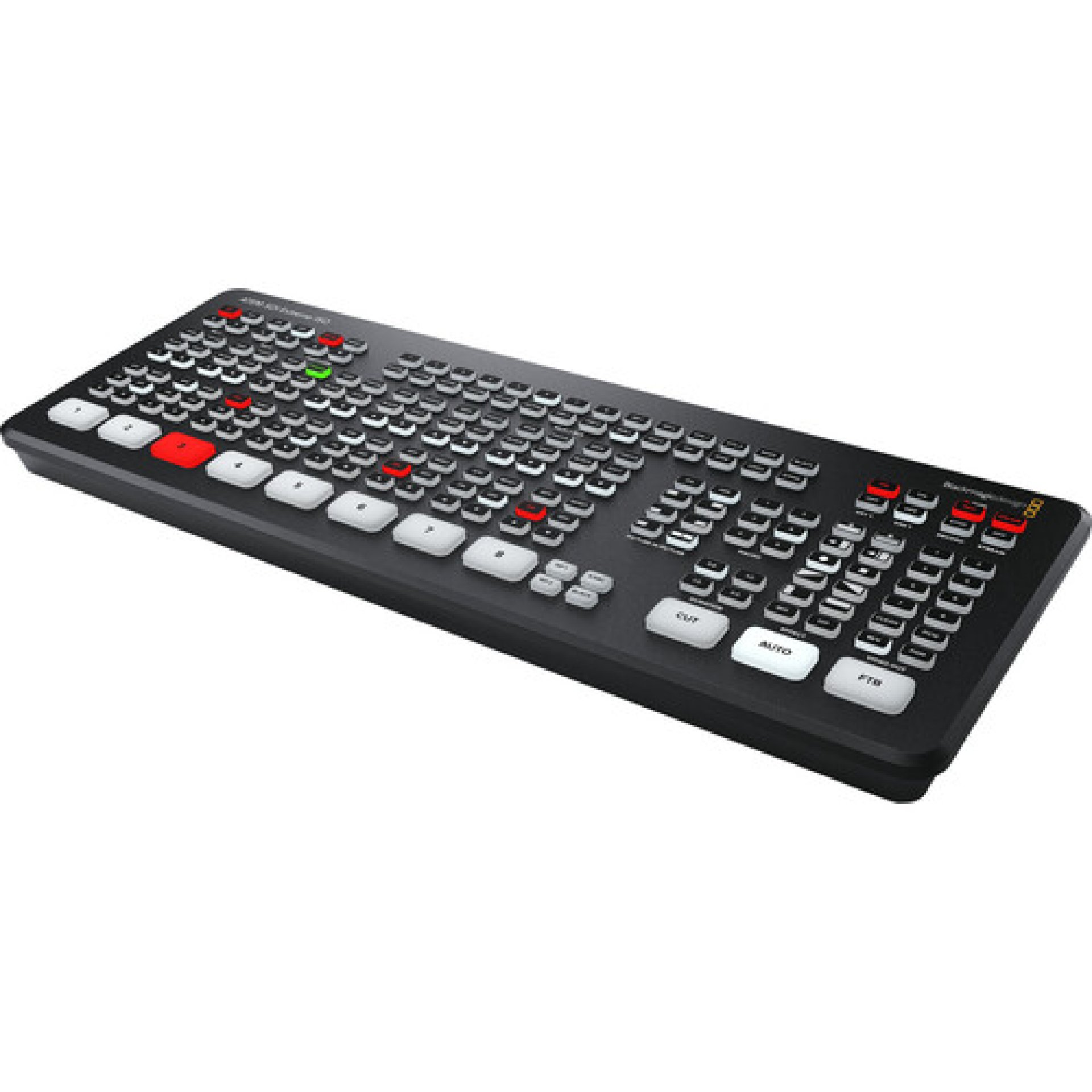

Blackmagic Design ATEM SDI Extreme ISO Switcher

Key Specifications

• Product Name: Blackmagic Design ATEM SDI Extreme ISO Switcher
• Brand: Blackmagic Design
• Model: SWATEMMXEPCEXTISO
• Switcher Type: Professional Live Production and Streaming Switcher
• Video Inputs: 8 × 3G-SDI Inputs
• Video Outputs: 4 × 3G-SDI Outputs
• USB Webcam Output: Yes
• Maximum Resolution: 1080p60 Full HD
• ISO Recording: Yes (Program Output + 8 Individual Inputs)
• Live Streaming: Direct Streaming via Ethernet or USB-C
• Recording: USB-C External Drive Recording
• DaVinci Resolve Project Generation: Yes
• Multiview Monitoring: Up to 16 Sources
• Audio Inputs: 2 × 3.5mm Stereo Inputs
• Audio Output: 3.5mm Headphone Output
• Ethernet Port: Gigabit Ethernet
• USB Ports: 2 × USB-C
• Chroma Keyers: 4 Advanced Chroma Keyers
• DVEs: 2 DVEs with Borders and Shadow Effects
• Media Players: 2
• Camera Control: Blackmagic Camera Control Support
• Ideal For: Broadcast Production, Live Events, Houses of Worship, Studios, Corporate Streaming, Education, and Professional Content Creation

Blackmagic Design ATEM SDI Extreme ISO Switcher Overview

The Blackmagic Design ATEM SDI Extreme ISO Switcher is a professional 8-input live production switcher designed for demanding broadcast and streaming environments. It combines SDI reliability, direct live streaming, ISO recording, multiview monitoring, and DaVinci Resolve workflow integration in a compact desktop form factor.

One of its key strengths is the ability to record all eight SDI inputs individually alongside the program output, making it easy to re-edit productions later using the automatically generated DaVinci Resolve project file.

Blackmagic Design ATEM SDI Extreme ISO Switcher Price in Kenya

Blackmagic Design ATEM SDI Extreme ISO Switcher Full Specifications

Blackmagic Design ATEM SDI Extreme ISO Switcher Design & Build Quality

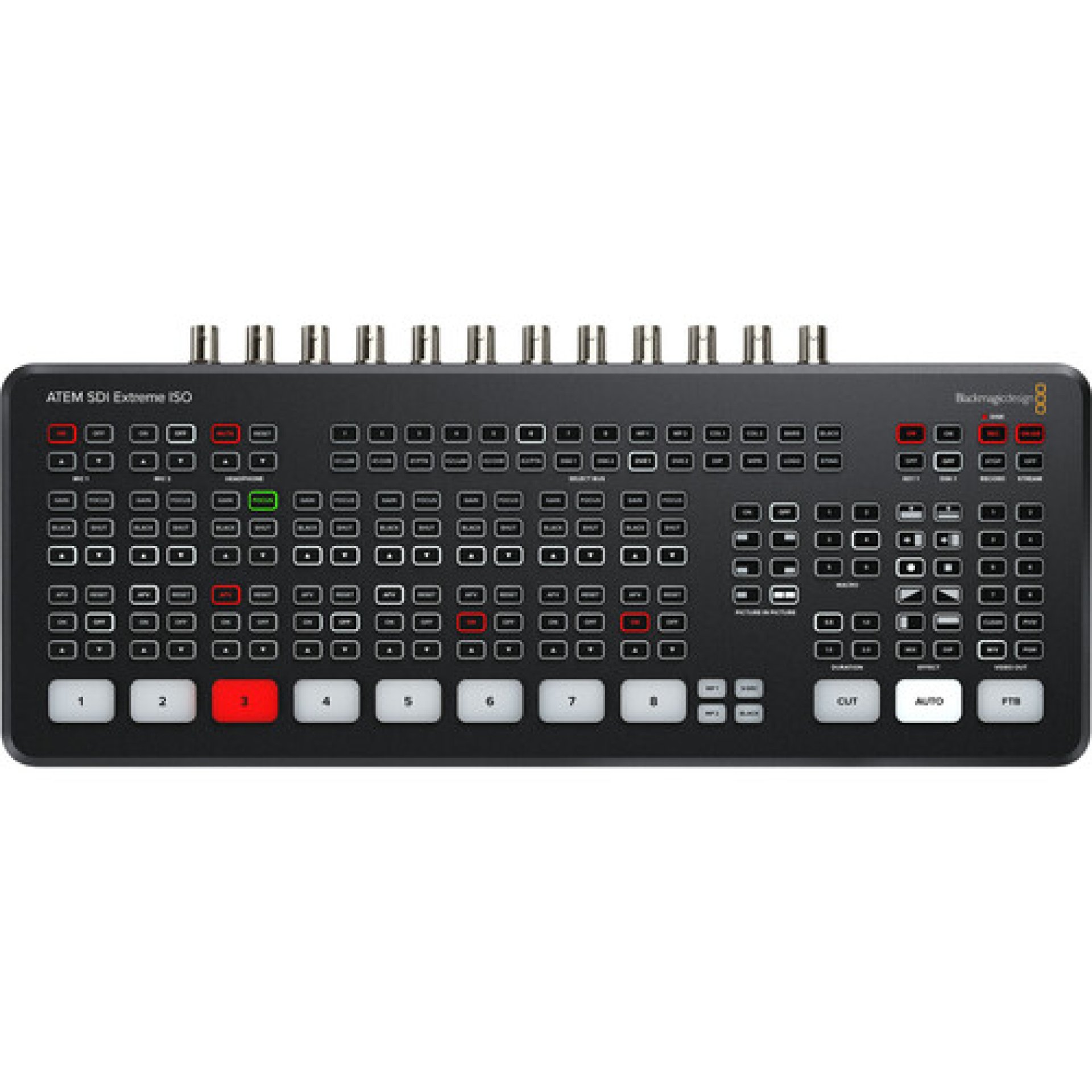

• Compact desktop production switcher
• Professional broadcast-grade SDI connectivity
• Integrated hardware control surface
• Illuminated production buttons
• Rugged construction for studio and field use
• Portable design for mobile production workflows
• Built for continuous professional operation

Blackmagic Design ATEM SDI Extreme ISO Switcher Performance

• Professional 8-camera live switching
• Low-latency production workflow
• Hardware H.264 streaming encoder
• Simultaneous streaming and recording
• Integrated frame synchronizers
• Reliable SDI signal handling
• Advanced real-time production capabilities

Blackmagic Design ATEM SDI Extreme ISO Switcher Recording Features

• Records all 8 SDI inputs independently
• Records final program output
• Creates editable DaVinci Resolve project files
• Supports USB-C SSD and flash drive recording
• Records H.264 video with AAC audio
• Supports continuous recording using multiple drives
• Suitable for professional post-production workflows

Blackmagic Design ATEM SDI Extreme ISO Switcher Compatibility and Connectivity

Compatible Devices Include:

• Blackmagic Studio Cameras
• Blackmagic URSA Broadcast Cameras
• Blackmagic URSA Mini Cameras
• Blackmagic Micro Studio Cameras
• Professional SDI Cameras
• SDI Camcorders
• Production Monitors
• Streaming Platforms

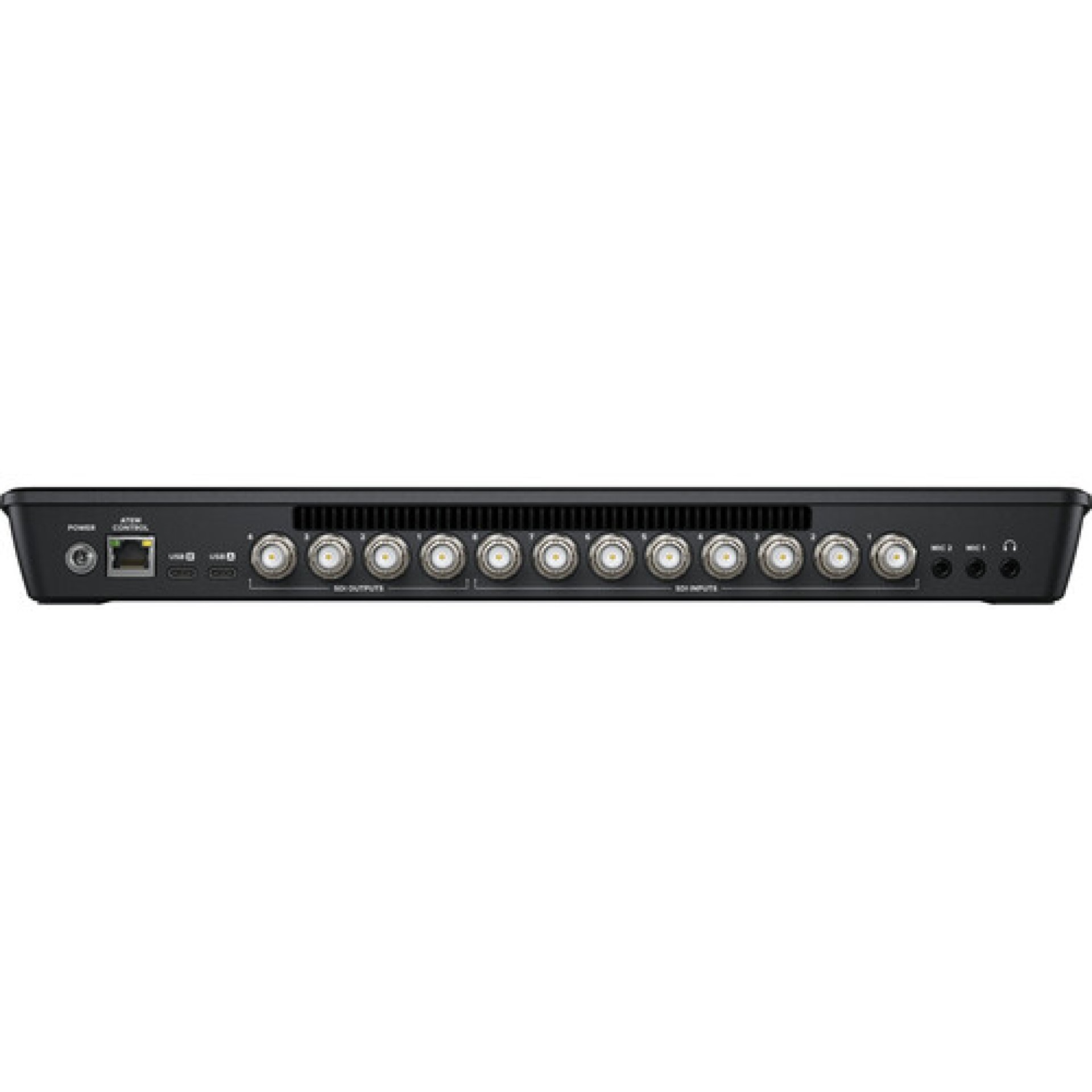

Connectivity Options:

• 8 × 3G-SDI Inputs
• 4 × 3G-SDI Outputs
• 2 × USB-C Ports
• Gigabit Ethernet
• 2 × Audio Inputs
• Headphone Monitoring Output

Blackmagic Design ATEM SDI Extreme ISO Switcher Streaming Features

• Direct YouTube streaming
• Facebook Live streaming
• Twitch streaming
• Zoom integration through webcam output
• Microsoft Teams support
• RTMP streaming support
• Simultaneous stream and record functionality

Blackmagic Design ATEM SDI Extreme ISO Switcher Production Features

• 4 Advanced Chroma Keyers
• 4 Linear Keyers
• 2 DVEs with borders and shadows
• 5 Pattern Generators
• 2 Color Generators
• 2 Media Players
• Advanced Multiview Monitoring
• Camera Control Functions

Blackmagic Design ATEM SDI Extreme ISO Switcher Pros & Cons

Blackmagic Design ATEM SDI Extreme ISO Switcher Frequently Asked Questions (FAQs)

What is the price in Kenya?

The Blackmagic Design ATEM SDI Extreme ISO Switcher is priced at KSh 227,100.

Does it support ISO recording?

Yes. It records the program output and all eight SDI inputs independently.

Can it stream directly without a computer?

Yes. The built-in hardware encoder allows direct streaming via Ethernet or USB-C.

Does it create DaVinci Resolve project files?

Yes. It automatically generates a DaVinci Resolve project file for post-production editing.

Is it suitable for professional broadcast environments?

Yes. The SDI connectivity, ISO recording, advanced keyers, and multiview monitoring make it ideal for professional productions.

Blackmagic Design ATEM SDI Extreme ISO Switcher Conclusion

The Blackmagic Design ATEM SDI Extreme ISO Switcher is a powerful professional live production solution that combines eight SDI inputs, ISO recording, direct streaming, advanced broadcast tools, and DaVinci Resolve integration. It is an excellent choice for broadcasters, churches, production companies, educational institutions, and professional content creators requiring reliable SDI workflows.

At KSh 227,100, it delivers professional-grade live production, recording, and streaming capabilities in a compact and highly versatile package.
