Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Overview
The Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T is a high-performance surveillance recorder built for medium and large security installations. Powered by an industrial-grade processor and Dahua WizSense AI technology, it supports HDCVI, AHD, TVI, CVBS, and IP cameras on a single platform. The recorder features 16 analog video inputs, supports up to 24 IP camera channels (up to 6MP each), 8-channel AcuPick, 4-channel Face Recognition, 8-channel Perimeter Protection, 16-channel SMD Plus, 16-channel AI Coding, 16-channel Coaxial Two-Way Talk, Smart H.265+ compression, and one SATA hard drive bay supporting up to 16TB, making it ideal for offices, warehouses, schools, hotels, retail stores, and commercial facilities.
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Key Features
- 16-channel Penta-brid DVR
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Supports up to 24 IP camera channels (up to 6MP each)
- WizSense AI technology
- 8-channel AcuPick
- 4-channel Face Recognition
- 8-channel Perimeter Protection
- 16-channel SMD Plus
- 16-channel AI Coding
- 16-channel Coaxial Two-Way Talk
- Smart H.265+ and H.265 video compression
- HDMI and VGA video outputs
- One SATA HDD bay supporting up to 16TB
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T | KSh 15,500 – KSh 20,000 |
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR5116HS-5M-I3/T |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Analog Video Input | 16 BNC Ports |
| Camera Support | HDCVI, AHD, TVI, CVBS, IP |
| IP Camera Support | Up to 24 Channels (Max. 6MP Each) |
| Analog Encoding | Up to 5MP@12fps / 1080P@25fps |
| Incoming Bandwidth | 128 Mbps |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI Functions | 8-Channel AcuPick, 4-Channel Face Recognition, 8-Channel Perimeter Protection, 16-Channel SMD Plus, 16-Channel AI Coding |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 RCA + 16 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 16-Channel Coaxial Two-Way Talk |
| Storage | 1 SATA HDD, Up to 16TB |
| USB Ports | 1 × USB 2.0 (Front), 1 × USB 3.0 (Rear) |
| Network Port | 1 × RJ-45 (10/100/1000 Mbps) |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 12W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Performance
- Supports simultaneous recording from analog and IP cameras.
- Records analog cameras at up to 5MP resolution.
- Supports up to 24 IP cameras with resolutions up to 6MP.
- AcuPick enables rapid and accurate target retrieval from recorded footage.
- Face Recognition supports comparison against stored face databases.
- Perimeter Protection provides intelligent tripwire and intrusion detection.
- SMD Plus accurately distinguishes humans and vehicles to reduce false alarms.
- AI Coding optimizes storage usage while maintaining image quality.
- Smart H.265+ compression significantly reduces bandwidth and storage requirements.
- Delivers reliable 24/7 recording for commercial and enterprise surveillance systems.
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Ideal Applications
- Office buildings
- Warehouses
- Retail stores
- Hotels
- Hospitals
- Schools
- Shopping malls
- Apartment complexes
- Industrial facilities
- Commercial security systems

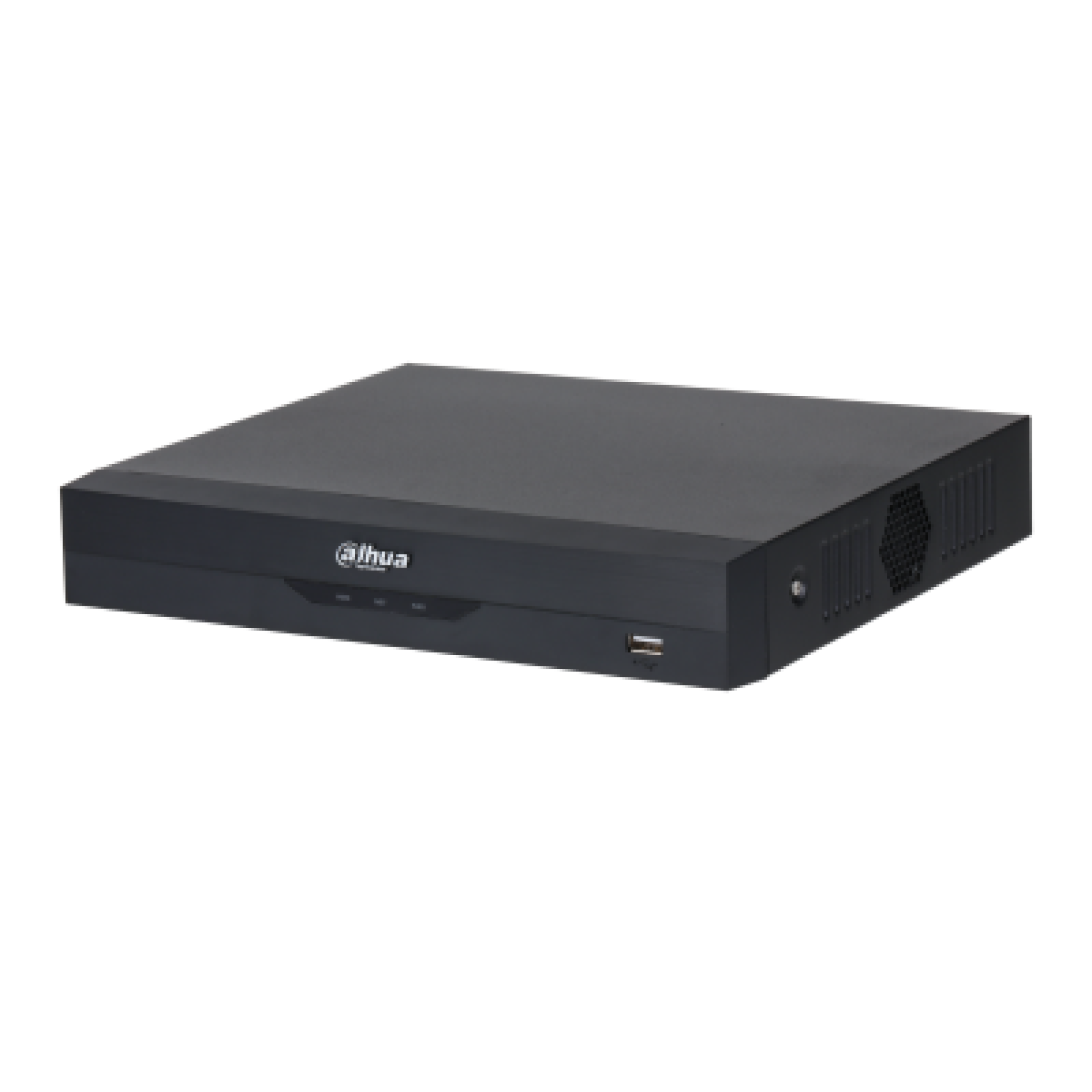

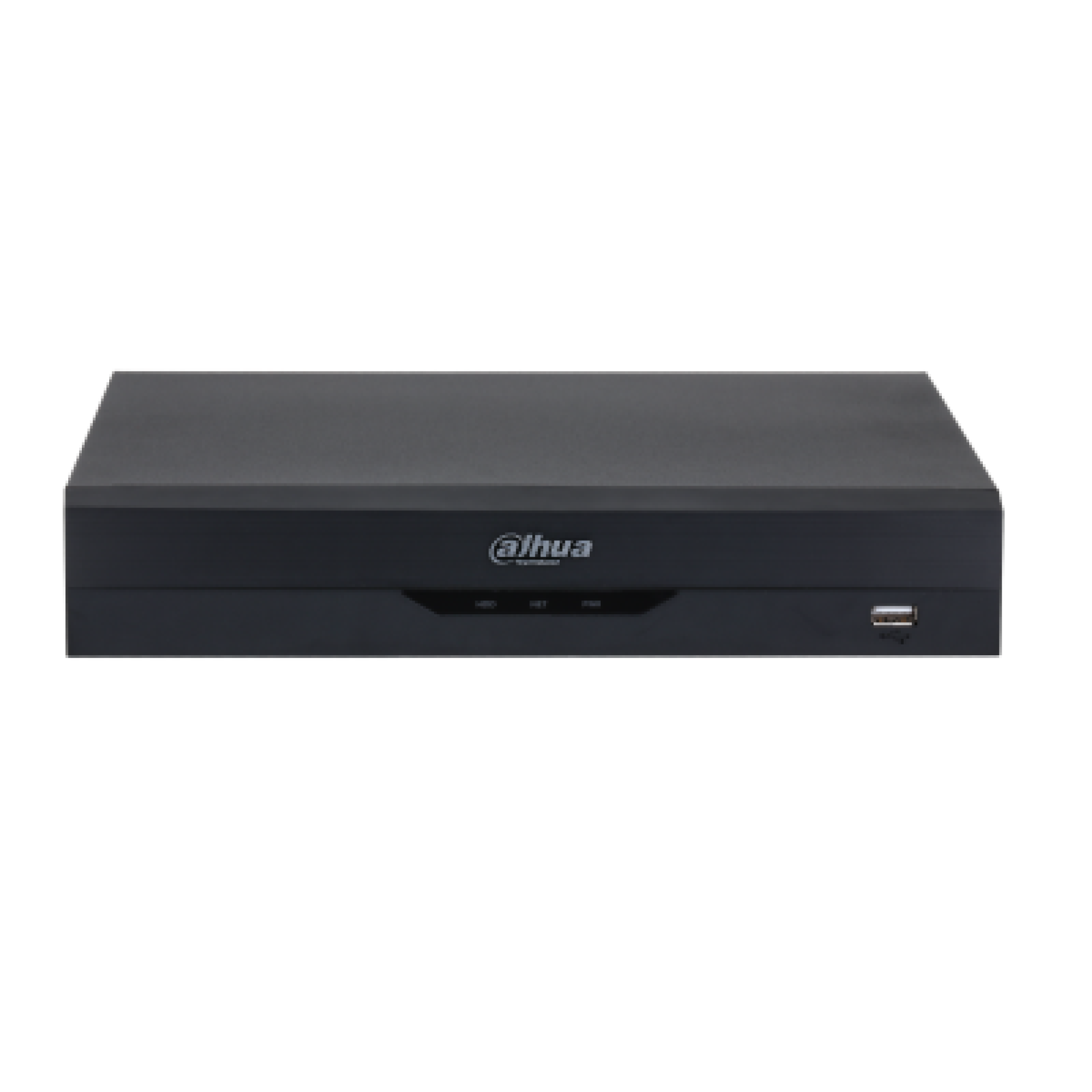

Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Design and Build
- Compact 1U desktop chassis
- Durable metal construction
- Front LED status indicators

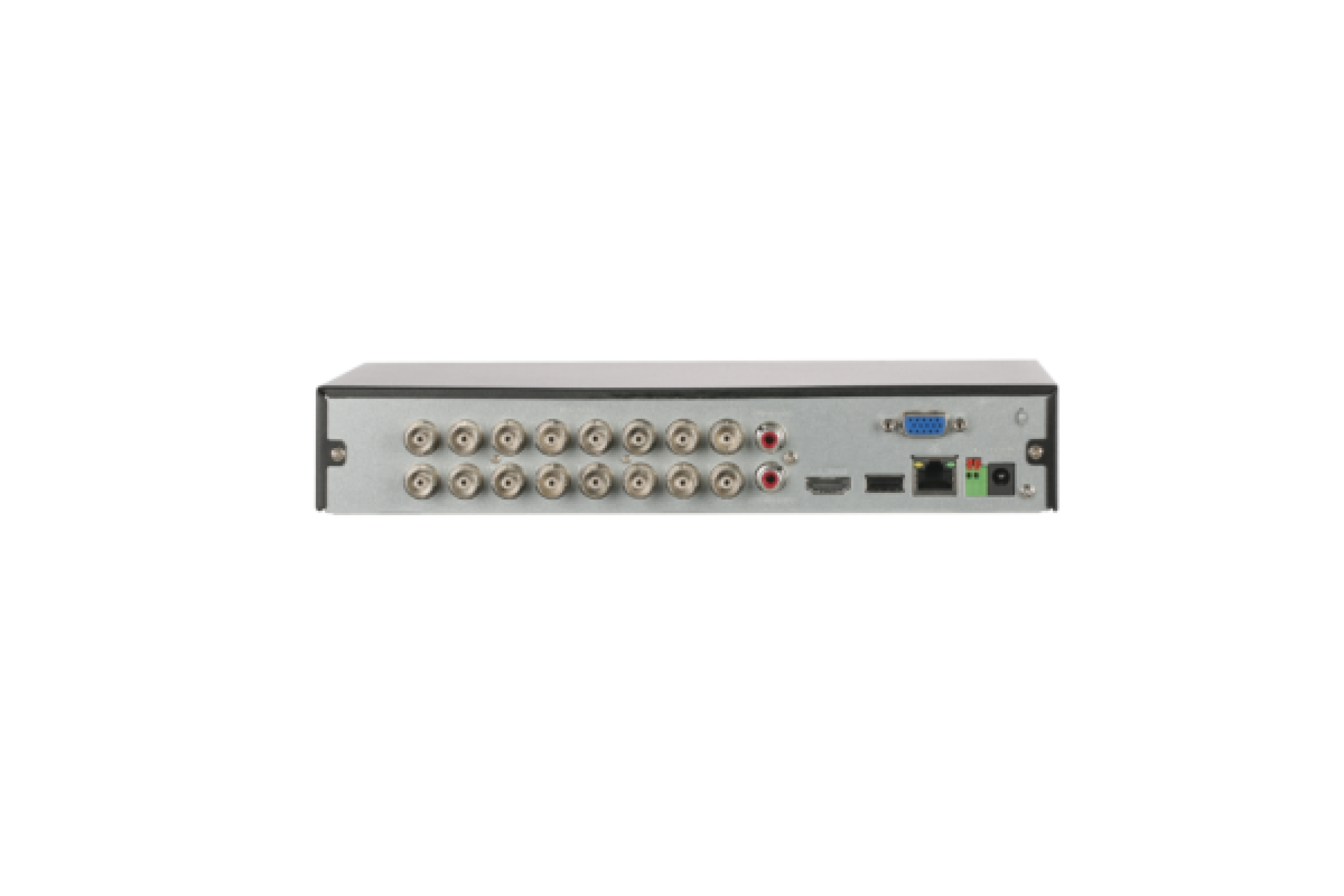

- Rear BNC camera connections
- HDMI and VGA display outputs
- Front USB 2.0 and rear USB 3.0 ports
- Gigabit RJ-45 Ethernet port
- Efficient low-power operation
- Desktop installation
- Built for continuous 24/7 surveillance
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Compatibility
- Dahua HDCVI cameras
- AHD cameras
- TVI cameras
- CVBS analog cameras
- IP cameras up to 6MP
- ONVIF Profile S, Profile T, and Profile G devices
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Firefox, and Safari web browsers
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – FAQs
1. How many cameras does the recorder support?
It supports 16 analog cameras and can be expanded to 24 IP camera channels, with each IP camera supporting resolutions up to 6MP.
2. Which camera technologies are supported?
The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing flexible hybrid surveillance deployments.
3. What AI features are included?
It includes 8-channel AcuPick, 4-channel Face Recognition, 8-channel Perimeter Protection, 16-channel SMD Plus, and 16-channel AI Coding for intelligent monitoring and efficient storage.
4. What is the maximum storage capacity?
The recorder features one SATA hard drive bay supporting up to 16TB of storage.
5. Can I access the recorder remotely?
Yes. The recorder supports remote monitoring, playback, and management through the DMSS mobile application for Android and iOS devices.
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Pros and Cons
| Pros | Cons |
|---|---|
| Supports five camera technologies in one recorder | Limited to one SATA hard drive |
| Supports up to 24 IP cameras with resolutions up to 6MP | No built-in PoE ports |
| Advanced AI including AcuPick and Face Recognition | AI analytics are unavailable when IP extension mode is enabled |
| Smart H.265+ compression reduces storage usage | Desktop installation only |
| Supports up to 16TB HDD | Single HDD bay |
| 16-channel Coaxial Two-Way Talk | Advanced AI functions require compatible cameras |
Dahua 16 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder XVR5116HS-5M-I3/T – Conclusion
The Dahua XVR5116HS-5M-I3/T 16 Channel Penta-brid WizSense Digital Video Recorder is a powerful recording solution designed for demanding surveillance environments. With support for up to 24 IP cameras, advanced AI features including AcuPick, Face Recognition, Perimeter Protection, SMD Plus, Smart H.265+ compression, 16-channel Coaxial Two-Way Talk, and up to 16TB of storage, it provides dependable performance for commercial, industrial, educational, and enterprise security installations.
