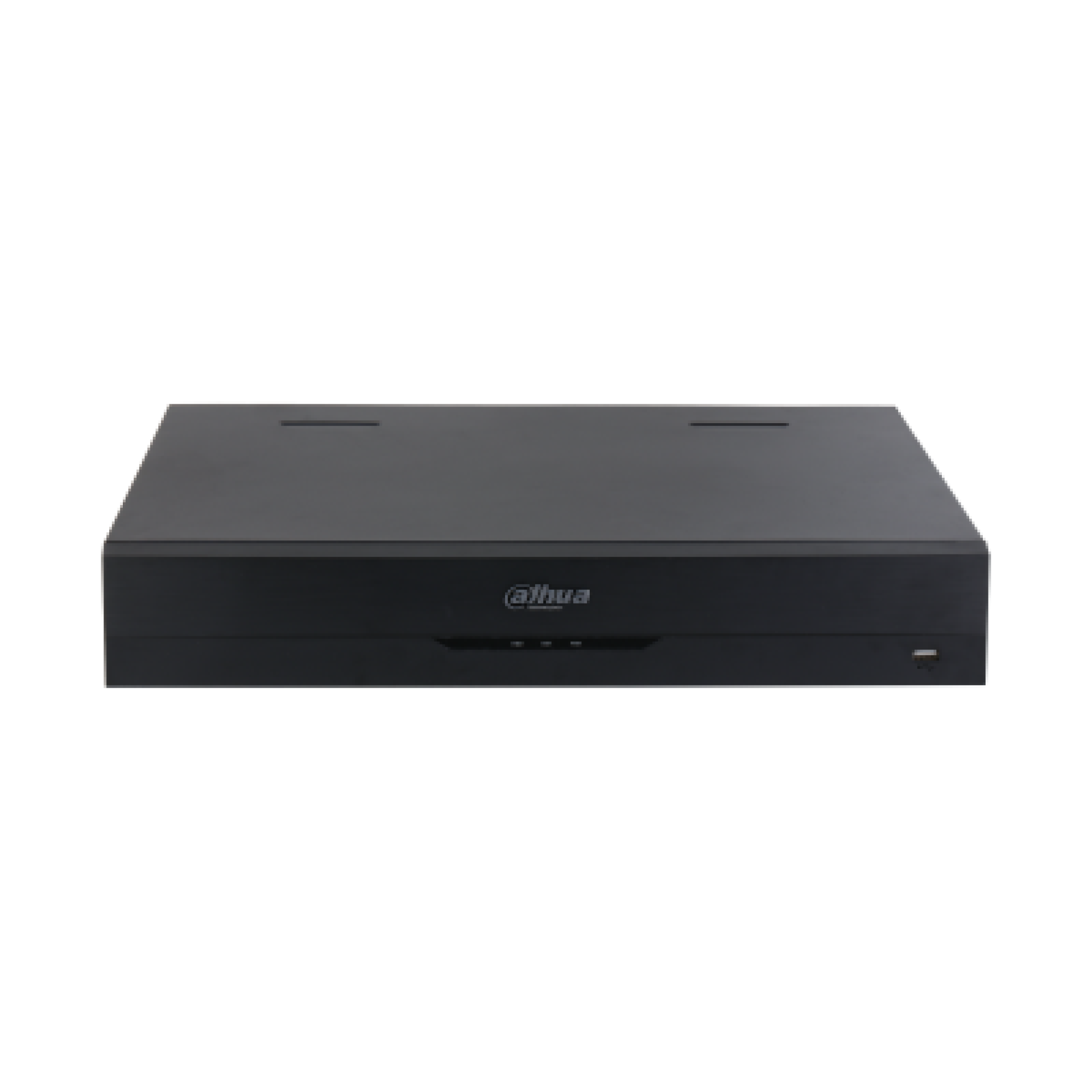

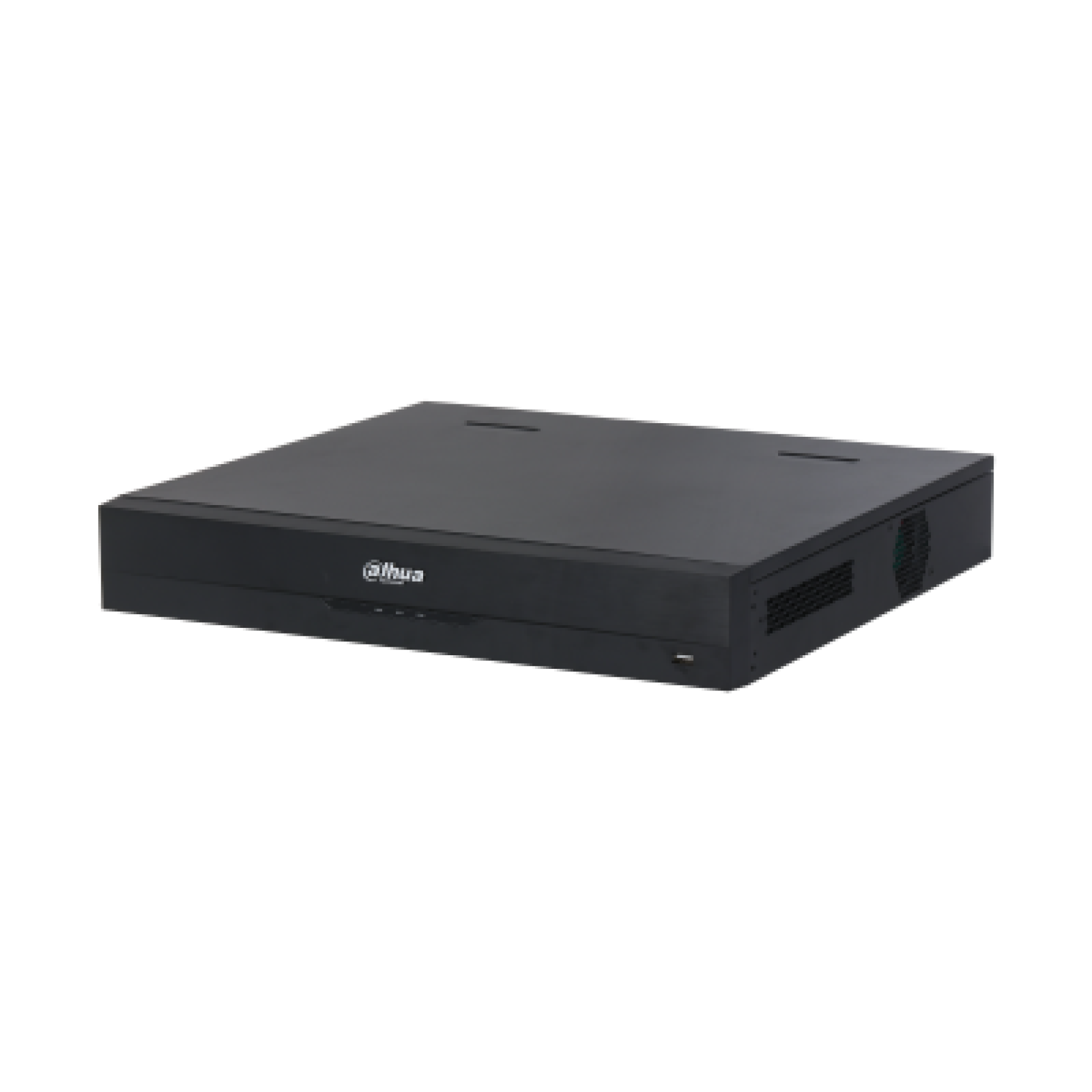

DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Overview
The DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder is a powerful enterprise-grade network video recorder designed for large-scale IP surveillance deployments. Powered by an industrial-grade processor and Embedded Linux operating system, it supports 64 IP camera channels with resolutions of up to 32MP. The recorder features Smart H.265+, Smart H.264+, AcuPick, AI by Recorder, AI by Camera, N+M Cluster, 4K HDMI output, dual Gigabit Ethernet ports, and four SATA drive bays supporting up to 20TB each, making it an ideal solution for airports, shopping malls, factories, campuses, commercial buildings, and enterprise security applications.
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Key Features
- 64-channel IP Network Video Recorder
- Supports IP cameras up to 32MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- AcuPick intelligent target search
- AI by Recorder with Face Recognition, Perimeter Protection, and SMD Plus
- AI by Camera support
- 4K HDMI video output
- Maximum 384Mbps incoming, recording, and outgoing bandwidth
- Supports N+M Cluster and iSCSI
- Four SATA HDD bays supporting up to 20TB each
- Dual Gigabit Ethernet ports
- ONVIF Profile S, G, and T compatibility
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder | KSh 65,000 – KSh 115,000 |
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua DHI-NVR5464-EI |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 64 |
| Maximum Camera Resolution | Up to 32MP |
| Incoming Bandwidth | 384 Mbps |
| Recording Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| AI by Recorder | 2-Channel Face Detection & Recognition, 4-Channel Perimeter Protection, 8-Channel SMD Plus |
| AI by Camera | Face Detection, Face Recognition, Metadata, ANPR, Stereo Analysis, Heat Map, People Counting, Perimeter Protection |
| AcuPick | Up to 32 Channels |
| Video Output | 2 HDMI, 2 VGA |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| Audio Input | 1 RCA |
| Audio Output | 2 RCA |
| Alarm Input | 16 Channels |
| Alarm Output | 6 Channels |
| Storage | 4 SATA HDDs, Up to 20TB Each |
| eSATA | 1 |
| USB Ports | 3 (1 × USB 2.0 Front, 2 × USB 3.0 Rear) |
| Network Ports | 2 × Gigabit RJ-45 |
| Power Supply | 100–240V AC |
| Operating Temperature | -10°C to +55°C |
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Performance
- Supports recording from up to 64 IP cameras with resolutions up to 32MP.
- Delivers up to 384Mbps incoming, recording, and outgoing bandwidth for demanding surveillance environments.
- AcuPick technology enables rapid target searches using AI-assisted video analysis.
- AI by Recorder provides Face Recognition, Perimeter Protection, and SMD Plus to minimize false alarms.
- AI by Camera supports advanced analytics including ANPR, Heat Map, Metadata, and People Counting.
- Smart H.265+ compression reduces storage requirements while maintaining image quality.
- Supports dual HDMI and VGA outputs with 4K Ultra HD display capability.
- Dual Gigabit Ethernet ports improve network redundancy and throughput.
- Supports N+M Cluster and iSCSI for enterprise-level deployment.
- Designed for continuous 24/7 surveillance in mission-critical environments.
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Ideal Applications
- Airports
- Shopping malls
- Manufacturing facilities
- University campuses
- Hospitals
- Hotels
- Government buildings
- Industrial sites
- Corporate offices
- Enterprise security systems

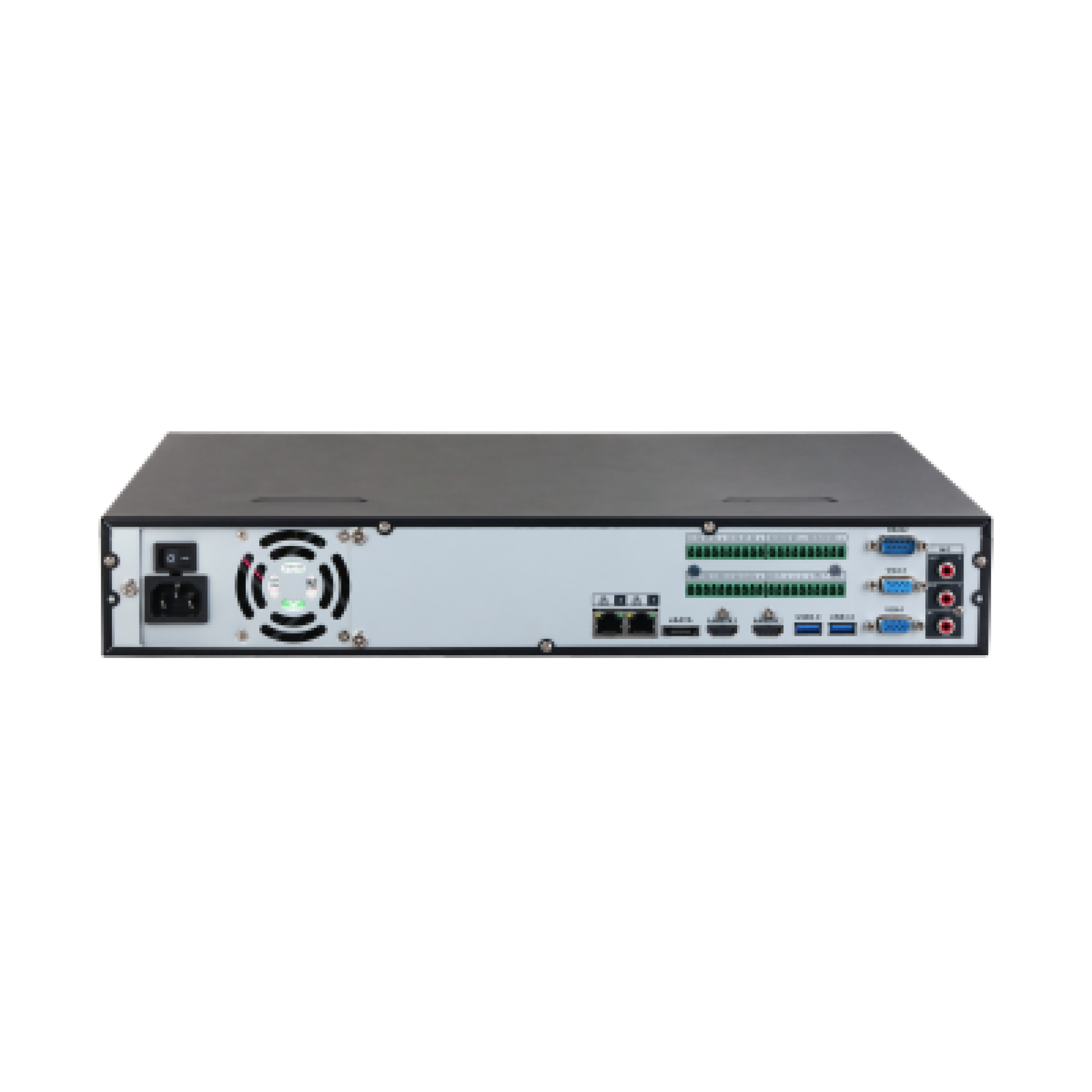

DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Design and Build
- 1.5U rackmount chassis
- Durable metal construction
- Four SATA hard drive bays
- Dual HDMI and dual VGA outputs
- Front USB 2.0 port
- Rear USB 3.0 ports
- Dual Gigabit Ethernet interfaces
- Efficient cooling system
- Rackmount installation
- Built for continuous 24/7 operation
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Compatibility
- Dahua IP cameras
- ONVIF Profile S, G, and T cameras
- Panasonic IP cameras
- Sony IP cameras
- Axis IP cameras
- Pelco IP cameras
- Canon IP cameras
- Hanwha IP cameras
- Dahua DMSS mobile application
- Smart PSS software
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – FAQs
1. How many cameras does the recorder support?
It supports 64 IP cameras with recording resolutions of up to 32MP.
2. What AI features are included?
It supports 2-channel Face Detection and Recognition, 4-channel Perimeter Protection, 8-channel SMD Plus, and AI camera features such as ANPR, Metadata, Heat Map, Stereo Analysis, and People Counting.
3. What is the maximum storage capacity?
The recorder supports 4 SATA hard drives, each supporting up to 20TB, providing a maximum storage capacity of 80TB.
4. Does the recorder support 4K display output?
Yes. It features dual HDMI outputs supporting 4K Ultra HD (3840 × 2160) resolution.
5. Does it support enterprise networking features?
Yes. It supports dual Gigabit Ethernet ports, N+M Cluster, iSCSI, and AcuPick, making it suitable for enterprise-scale surveillance deployments.
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 64 IP cameras | Higher cost than Lite series NVRs |
| Supports cameras up to 32MP resolution | No integrated PoE ports |
| Four SATA bays support up to 80TB storage | Requires external PoE switches |
| AcuPick and advanced AI analytics | Rackmount installation preferred |
| Dual Gigabit Ethernet ports | Advanced AI functions require compatible AI cameras |
| Supports N+M Cluster and iSCSI | Higher power and storage requirements for full deployment |
DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder – Conclusion
The DAHUA DHI-NVR5464-EI 64 Channels 1.5U 4HDDs WizSense Network Video Recorder is a premium enterprise surveillance recorder built for demanding security environments. With 64-channel capacity, 32MP camera support, 384Mbps bandwidth, AcuPick, advanced AI analytics, dual Gigabit networking, 4K display output, and up to 80TB of storage, it delivers exceptional scalability, intelligence, and reliability for large commercial and industrial surveillance installations.
