Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Overview
The Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T is an intelligent surveillance recorder designed for small to medium-sized security installations. Powered by an industrial-grade processor and Dahua's WizSense AI technology, it supports HDCVI, AHD, TVI, CVBS, and IP cameras in a single recorder. The XVR features 4-channel analog input, supports up to 5 IP camera channels (up to 2MP each), Smart H.265+ compression, 4-channel SMD Plus, AI Coding, coaxial Two-Way Talk, and a single SATA bay supporting up to 6TB HDD, making it an ideal solution for homes, offices, retail stores, and small businesses.
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Key Features
- 4-channel Penta-brid DVR
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Up to 5 IP camera inputs (up to 2MP each)
- WizSense AI technology
- 4-channel SMD Plus (Human and Vehicle Classification)
- 4-channel AI Coding
- Smart H.265+ and H.265 video compression
- Coaxial Two-Way Talk
- HDMI and VGA video outputs
- One SATA HDD bay supporting up to 6TB
- Embedded Linux operating system
- Remote viewing via DMSS for Android and iOS
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T | KSh 4,500 – KSh 6,500 |
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR1B04-I/T |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Analog Video Input | 4 BNC Ports |
| Camera Support | HDCVI, AHD, TVI, CVBS, IP |
| IP Camera Support | Up to 5 Channels (Max. 2MP Each) |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI Functions | 4-Channel SMD Plus, AI Coding |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 RCA + 4 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 4-Channel Coaxial Two-Way Talk |
| Storage | 1 SATA HDD, Up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100Mbps) |
| Mobile Access | Android and iOS (DMSS) |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Performance
- Records analog cameras at up to 1080N/720P resolution.
- Supports simultaneous connection of analog and IP cameras.
- SMD Plus accurately distinguishes humans and vehicles from other moving objects.
- AI Coding reduces storage usage while maintaining image quality.
- Smart H.265+ compression significantly lowers bandwidth and storage requirements.
- Supports HDMI and VGA simultaneous display output.
- Coaxial Two-Way Talk enables direct communication through supported Dahua cameras.
- Supports remote live view and playback through the DMSS mobile application.
- Compatible with ONVIF-supported IP cameras.
- Provides stable 24/7 recording for homes and businesses.
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Ideal Applications
- Home security systems
- Offices
- Retail shops
- Schools
- Warehouses
- Restaurants
- Small businesses
- Residential apartments

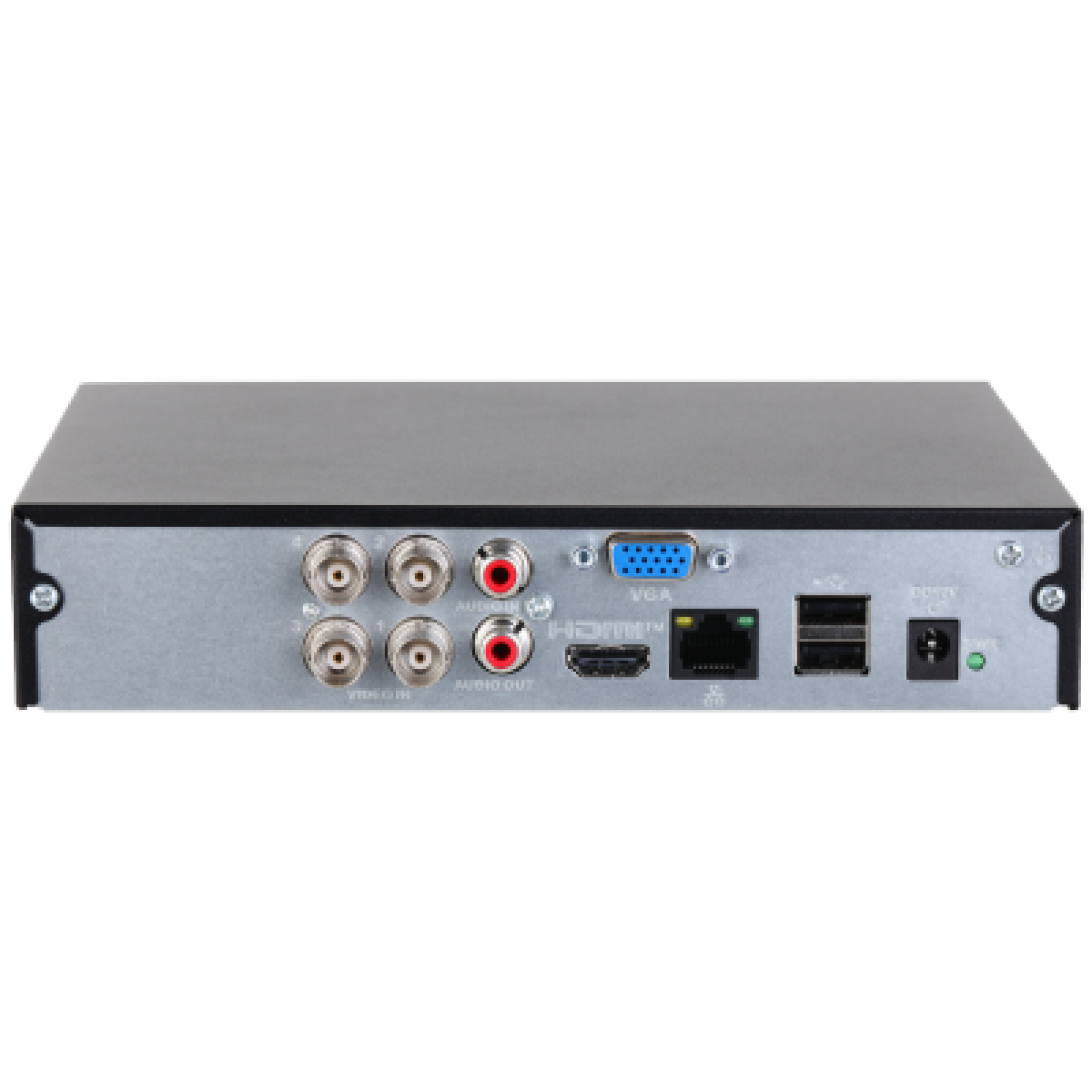

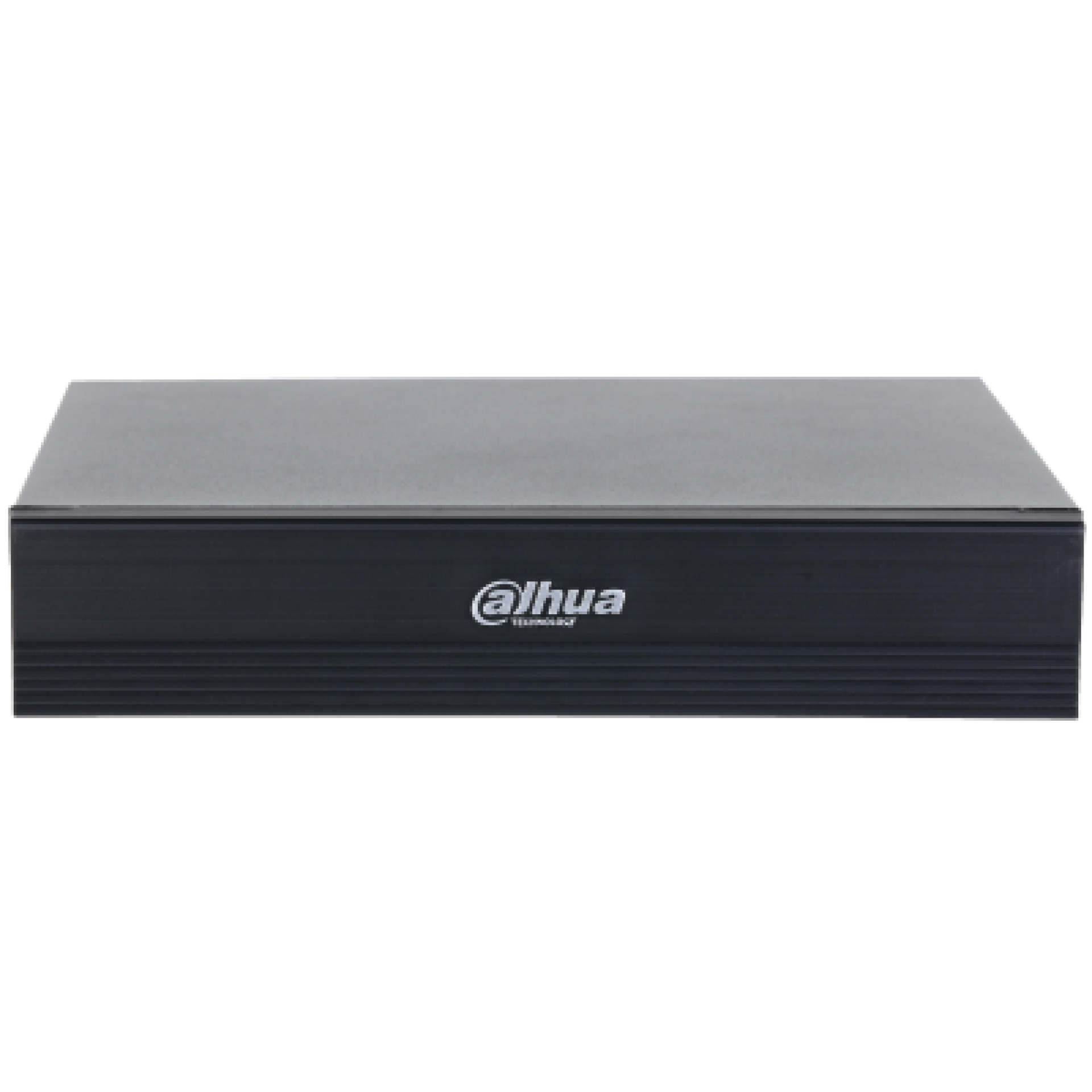

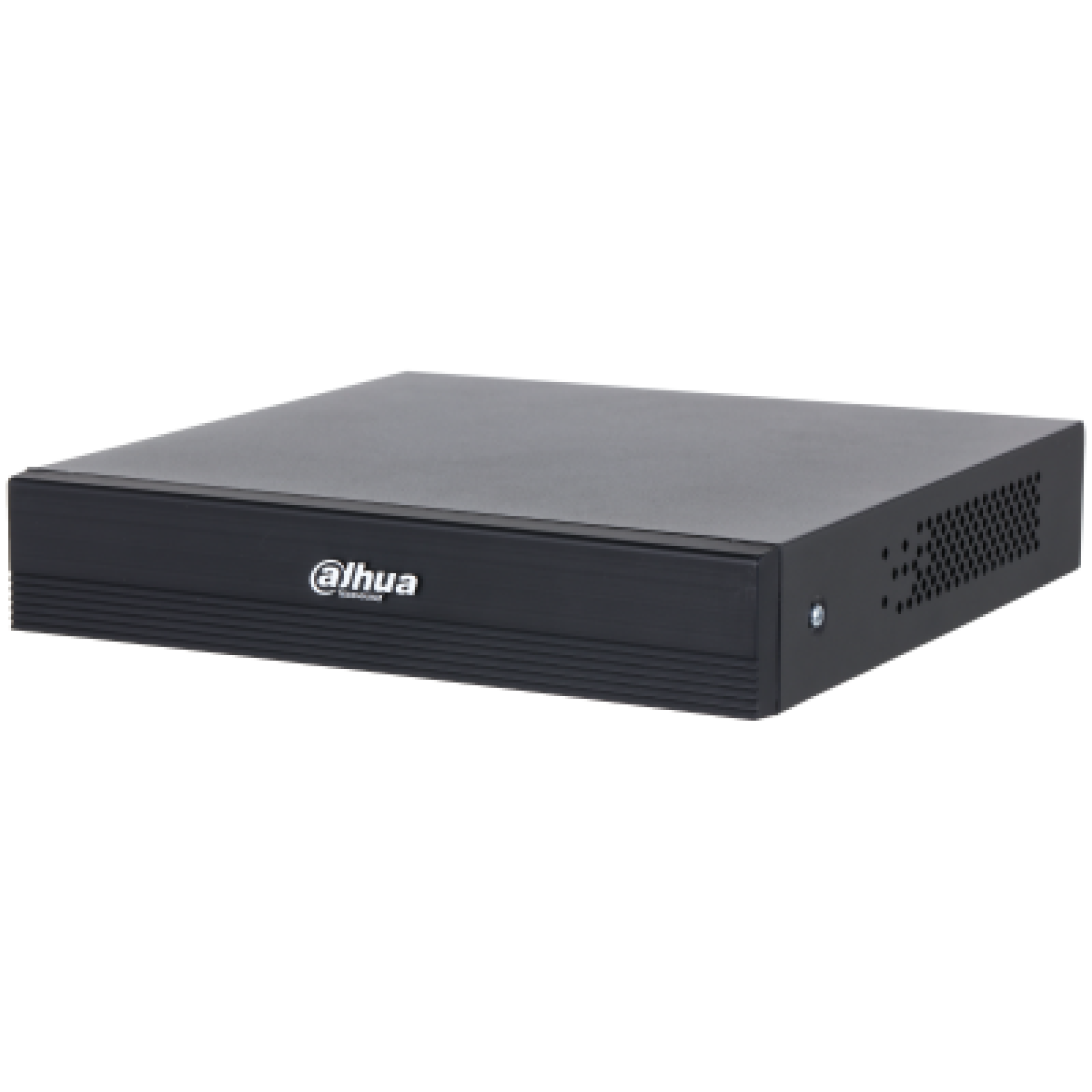

Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Design and Build
- Compact 1U desktop design
- Lightweight construction
- Durable metal chassis
- Front status LED indicators
- Rear BNC camera connections
- HDMI and VGA display outputs
- Rear USB ports
- RJ-45 Ethernet connectivity
- Quiet low-power operation
- Designed for continuous 24/7 surveillance
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Compatibility
- Dahua HDCVI cameras
- AHD cameras
- TVI cameras
- CVBS analog cameras
- IP cameras (up to 2MP)
- ONVIF-compatible IP cameras
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Safari, and Firefox web browsers
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – FAQs
1. How many cameras does the DVR support?
It supports 4 analog camera channels and can be expanded to up to 5 IP camera channels, depending on the configuration.
2. Which camera technologies are supported?
The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, making it a true penta-brid DVR.
3. Does the DVR support AI features?
Yes. It includes 4-channel SMD Plus for human and vehicle classification and AI Coding for improved storage efficiency.
4. What is the maximum hard drive capacity?
The recorder has one SATA bay and supports a hard drive of up to 6TB.
5. Can I access the DVR remotely?
Yes. You can remotely monitor live video and playback recordings using the DMSS mobile application for Android and iOS devices.
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Pros and Cons
| Pros | Cons |
|---|---|
| Supports five camera technologies in one DVR | Limited to one SATA drive |
| WizSense AI with SMD Plus | Maximum IP camera resolution is 2MP |
| Smart H.265+ compression reduces storage usage | No built-in PoE ports |
| Supports up to 6TB HDD | Designed for smaller surveillance systems |
| Coaxial Two-Way Talk support | Single network interface |
| HDMI and VGA outputs | Supports only one internal hard drive |
Dahua 4 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder - XVR1B04-I/T – Conclusion
The Dahua XVR1B04-I/T 4 Channel Penta-brid WizSense Digital Video Recorder is a versatile and cost-effective recording solution for small surveillance systems. With support for multiple camera technologies, WizSense AI features, Smart H.265+ compression, SMD Plus, coaxial Two-Way Talk, and up to 6TB of storage, it provides reliable performance for residential and commercial security installations.
