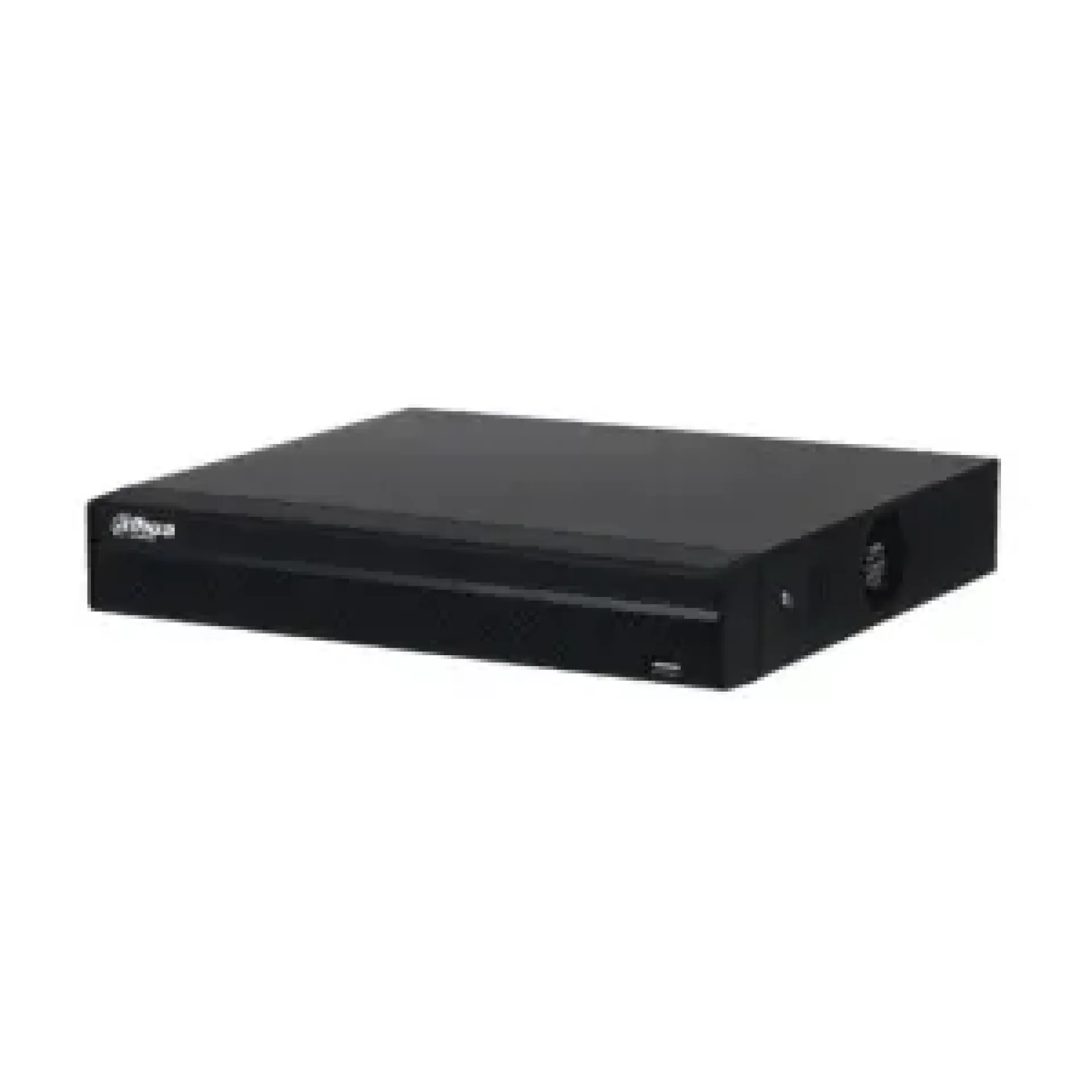

DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Overview
The DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE is a compact and reliable network video recorder designed for small to medium-sized IP surveillance systems. Powered by an industrial-grade embedded processor and Embedded Linux operating system, it supports 8 IP camera channels and features 8 integrated PoE ports for simplified installation. The recorder offers Smart H.265+ and Smart H.264+ compression, HDMI and VGA simultaneous video output, P2P remote monitoring, ONVIF Profile S/G/T and RTSP compatibility, and one SATA hard drive bay supporting up to 8TB, making it ideal for homes, offices, retail stores, schools, and commercial security installations.
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Key Features
- 8-channel IP Network Video Recorder
- 8 integrated PoE ports
- Smart H.265+ and Smart H.264+ video compression
- Supports ONVIF Profile S, Profile G, Profile T, and RTSP cameras
- HDMI and VGA simultaneous video output
- HDMI output up to 1080p
- New UI 4.0 user interface
- P2P remote monitoring
- Remote IPC configuration and batch upgrades
- 1 SATA HDD bay supporting up to 8TB
- Embedded Linux operating system
- Mobile monitoring via DMSS
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE | KSh 12,000 – KSh 18,000 |
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua DHI-NVR1108HS-8P-S3/H |
| Processor | Industrial-grade Embedded Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 8 |
| PoE Ports | 8 × RJ-45 (10/100 Mbps) |
| Incoming Bandwidth | 80 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Supported Resolution | Up to 8MP |
| Camera Compatibility | ONVIF Profile S/G/T, RTSP |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | Up to 1080p |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Storage | 1 SATA HDD, Up to 8TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100 Mbps) |
| Mobile Access | DMSS (Android & iOS) |
| Power Supply | 48V/53V DC |
| PoE Budget | 72W (25.5W per Port Max.) |
| Operating Temperature | -10°C to +45°C |
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Performance
- Supports up to eight IP cameras with recording resolutions up to 8MP.
- Eight built-in PoE ports simplify installation by delivering power and network connectivity through a single Ethernet cable.
- Smart H.265+ compression significantly reduces storage and bandwidth consumption.
- Supports ONVIF and RTSP protocols for compatibility with a wide range of IP cameras.
- HDMI and VGA outputs provide simultaneous display options.
- New UI 4.0 offers a more intuitive and user-friendly management interface.
- Supports remote camera configuration and batch firmware upgrades.
- DMSS mobile app enables live viewing, playback, and remote management.
- Supports simultaneous live view, recording, playback, backup, and remote access.
- Designed for reliable 24/7 surveillance operation.
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Ideal Applications
- Home security
- Offices
- Retail stores
- Schools
- Restaurants
- Warehouses
- Clinics
- Small and medium businesses
- Apartment buildings

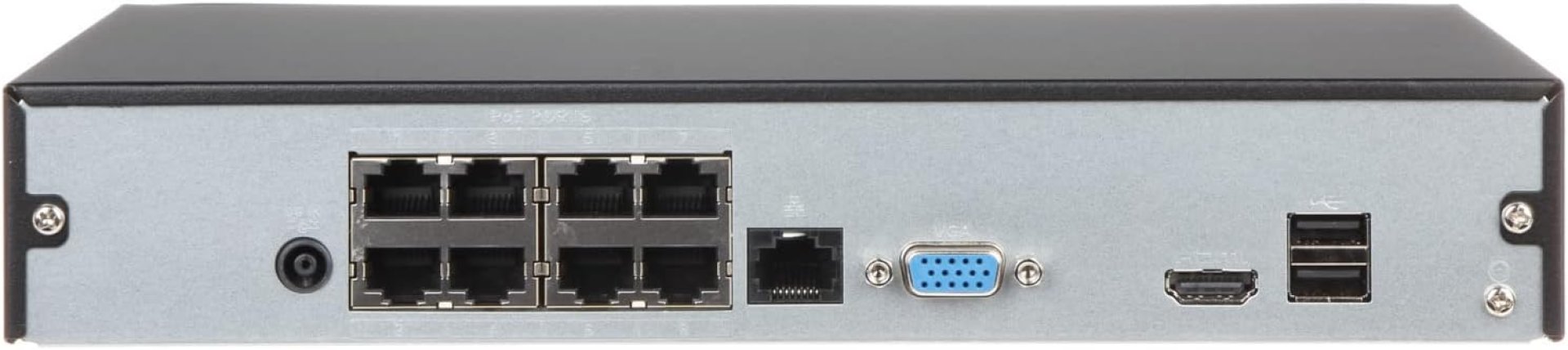

DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Design and Build
- Compact 1U desktop chassis
- Durable metal enclosure
- Eight integrated PoE ports
- Front LED status indicators
- HDMI and VGA display outputs
- Front and rear USB ports
- RJ-45 Ethernet connectivity
- Efficient low-power design
- Quiet operation
- Built for continuous 24/7 surveillance
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Compatibility
- Dahua IP cameras
- ONVIF-compatible IP cameras
- RTSP network cameras
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Firefox, and Edge browsers
- SATA hard drives up to 8TB
- Standard PoE IP cameras
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – FAQs
1. How many cameras does the recorder support?
It supports 8 IP cameras and includes 8 integrated PoE ports for direct camera connectivity.
2. Does the recorder support Power over Ethernet (PoE)?
Yes. It features 8 built-in PoE ports with a total 72W PoE budget, supplying both power and network connectivity to compatible IP cameras.
3. What is the maximum hard drive capacity?
The recorder supports one SATA hard drive with a maximum capacity of 8TB.
4. Which video compression technologies are supported?
It supports Smart H.265+, H.265, Smart H.264+, and H.264, helping reduce storage requirements while maintaining image quality.
5. Can I monitor the recorder remotely?
Yes. The recorder supports remote live viewing, playback, and management through the DMSS mobile application for Android and iOS devices.
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Pros and Cons
| Pros | Cons |
|---|---|
| Built-in 8-port PoE switch | Limited to one hard drive |
| Supports recording up to 8MP resolution | HDMI output limited to 1080p |
| Smart H.265+ compression | No RAID support |
| ONVIF and RTSP compatibility | No advanced AI analytics |
| Supports up to 8TB HDD | Suitable primarily for small and medium systems |
| Remote monitoring via DMSS | Single SATA drive bay |
DAHUA 8 Channel Network Video Recorder DHI-NVR1108HS-8P-S3/H 8CH POE – Conclusion
The DAHUA DHI-NVR1108HS-8P-S3/H 8 Channel Network Video Recorder is a dependable and cost-effective recording solution for IP surveillance systems. With 8 integrated PoE ports, Smart H.265+ compression, ONVIF compatibility, 8TB storage support, HDMI/VGA outputs, and DMSS remote monitoring, it offers reliable performance for homes, offices, retail stores, schools, and small business security applications.
