Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Overview
The Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T is an intelligent surveillance recorder designed for residential and commercial security systems. Powered by an industrial-grade processor and Dahua WizSense AI technology, it supports HDCVI, AHD, TVI, CVBS, and IP cameras in a single device. The recorder features 8 analog video inputs, supports up to 10 IP camera channels (up to 6MP each), 8-channel SMD Plus, AI Coding, 8-channel coaxial Two-Way Talk, Smart H.265+ compression, and a single SATA bay supporting up to 6TB HDD, making it an excellent solution for homes, offices, schools, retail stores, and small businesses.
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Key Features
- 8-channel Penta-brid DVR
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Supports up to 10 IP camera channels (up to 6MP each)
- WizSense AI technology
- 8-channel SMD Plus
- 8-channel AI Coding
- Smart H.265+ and H.265 video compression
- 8-channel coaxial Two-Way Talk
- HDMI and VGA video outputs
- One SATA HDD bay supporting up to 6TB
- Embedded Linux operating system
- Remote viewing through DMSS for Android and iOS
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T | KSh 7,000 – KSh 9,500 |
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR1B08-I/T |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Analog Video Input | 8 BNC Ports |
| Camera Support | HDCVI, AHD, TVI, CVBS, IP |
| IP Camera Support | Up to 10 Channels (Max. 6MP Each) |
| Incoming Bandwidth | 40 Mbps |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI Functions | 8-Channel SMD Plus, AI Coding |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 RCA + 8 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 8-Channel Coaxial Two-Way Talk |
| Storage | 1 SATA HDD, Up to 6TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100Mbps) |
| Mobile Access | Android and iOS (DMSS) |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +45°C |
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Performance
- Supports simultaneous recording from analog and IP cameras.
- Records analog cameras at up to 1080N/720P resolution.
- Supports up to 10 IP cameras with resolutions up to 6MP.
- SMD Plus accurately distinguishes humans and vehicles to reduce false alarms.
- AI Coding optimizes bandwidth and storage while preserving image quality.
- Smart H.265+ compression minimizes storage requirements.
- HDMI and VGA outputs provide flexible monitor connectivity.
- Coaxial Two-Way Talk enables communication through compatible Dahua cameras.
- Remote monitoring and playback are available through the DMSS mobile application.
- Provides reliable 24/7 recording for residential and commercial surveillance systems.
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Ideal Applications
- Home security
- Office surveillance
- Retail stores
- Warehouses
- Schools
- Hotels
- Restaurants
- Apartment complexes
- Small business security

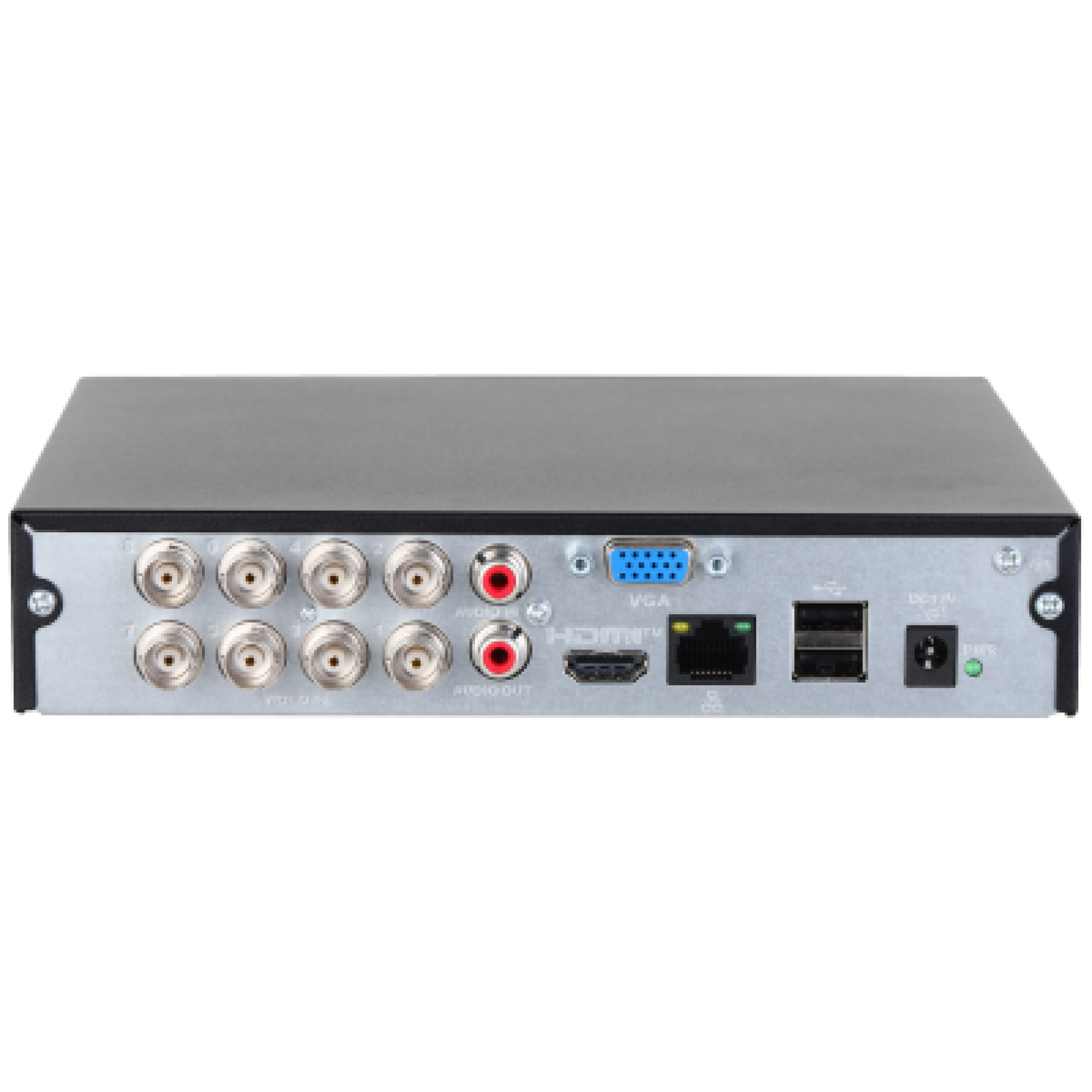

Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Design and Build
- Compact 1U desktop chassis
- Durable metal enclosure
- Front LED status indicators
- Rear BNC camera connections
- HDMI and VGA display outputs
- Two rear USB ports
- RJ-45 Ethernet connectivity
- Quiet low-power operation
- Space-saving design
- Built for continuous 24/7 operation
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Compatibility
- Dahua HDCVI cameras
- AHD cameras
- TVI cameras
- CVBS analog cameras
- IP cameras up to 6MP
- ONVIF-compatible IP cameras
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Safari, and Firefox web browsers
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – FAQs
1. How many cameras does the recorder support?
It supports 8 analog cameras and can be expanded to 10 IP camera channels with resolutions of up to 6MP.
2. Which camera technologies are supported?
The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, providing excellent flexibility for mixed surveillance systems.
3. What AI features are included?
The recorder supports 8-channel SMD Plus for human and vehicle classification and AI Coding for efficient video compression and storage optimization.
4. What is the maximum hard drive capacity?
It features one SATA HDD bay supporting hard drives up to 6TB.
5. Can I monitor the DVR remotely?
Yes. Live viewing, playback, and system management are available through the DMSS mobile application for Android and iOS devices.
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Pros and Cons
| Pros | Cons |
|---|---|
| Supports five camera technologies in one recorder | Limited to one SATA hard drive |
| Supports up to 10 IP cameras (6MP each) | No built-in PoE ports |
| WizSense AI with 8-channel SMD Plus | Single network interface |
| Smart H.265+ compression reduces storage usage | Designed for small to medium-sized installations |
| 8-channel coaxial Two-Way Talk | One HDD bay only |
| HDMI and VGA outputs | Limited to 40Mbps incoming bandwidth |
Dahua 8 Channel Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder XVR1B08-I/T – Conclusion
The Dahua XVR1B08-I/T 8 Channel Penta-brid WizSense Digital Video Recorder is a reliable and intelligent recording solution for expanding surveillance systems. With support for multiple camera technologies, up to 10 IP cameras, WizSense AI features, Smart H.265+ compression, SMD Plus, coaxial Two-Way Talk, and up to 6TB of storage, it delivers dependable performance for homes, offices, schools, retail businesses, and commercial security installations.
