Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Overview
The Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T is a professional surveillance recorder built for medium-sized security installations. Powered by an industrial-grade processor and Dahua WizSense AI technology, it supports HDCVI, AHD, TVI, CVBS, and IP cameras on a single platform. The recorder features 8 analog video inputs, supports up to 12 IP camera channels (up to 6MP each), 4-channel AcuPick, 2-channel Face Recognition, 8-channel Perimeter Protection, 8-channel SMD Plus, AI Coding, 8-channel Coaxial Two-Way Talk, Smart H.265+ compression, and one SATA bay supporting up to 16TB HDD, making it an excellent choice for offices, retail stores, warehouses, schools, and commercial premises.
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Key Features
- 8-channel Penta-brid DVR
- Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Supports up to 12 IP camera channels (up to 6MP each)
- WizSense AI technology
- 4-channel AcuPick
- 2-channel Face Recognition
- 8-channel Perimeter Protection
- 8-channel SMD Plus
- 8-channel AI Coding
- Smart H.265+ and H.265 video compression
- 8-channel Coaxial Two-Way Talk
- HDMI and VGA video outputs
- One SATA HDD bay supporting up to 16TB
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Price in Kenya
| Product | Price in Kenya |
|---|---|
| Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T | KSh 10,000 – KSh 16,000 |
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua XVR5108HS-5M-I3/T |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| Analog Video Input | 8 BNC Ports |
| Camera Support | HDCVI, AHD, TVI, CVBS, IP |
| IP Camera Support | Up to 12 Channels (Max. 6MP Each) |
| Analog Encoding | Up to 5MP@12fps / 1080P@25fps |
| Incoming Bandwidth | 64 Mbps |
| Video Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| AI Functions | 4-Channel AcuPick, 2-Channel Face Recognition, 8-Channel Perimeter Protection, 8-Channel SMD Plus, AI Coding |
| Video Output | 1 HDMI, 1 VGA |
| Audio Input | 1 RCA + 8 BNC Coaxial Audio |
| Audio Output | 1 RCA |
| Two-Way Audio | 8-Channel Coaxial Two-Way Talk |
| Storage | 1 SATA HDD, Up to 16TB |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × RJ-45 (10/100 Mbps) |
| Power Supply | 12V DC, 2A |
| Power Consumption | Less than 7W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Performance
- Supports simultaneous recording from analog and IP cameras.
- Records analog cameras at up to 5MP resolution.
- Supports up to 12 IP cameras with resolutions up to 6MP.
- AcuPick enables faster and more accurate target retrieval.
- Face Recognition improves identity verification and access monitoring.
- SMD Plus accurately distinguishes humans and vehicles from other moving objects.
- Perimeter Protection supports intelligent tripwire and intrusion detection.
- AI Coding optimizes storage while maintaining image quality.
- Smart H.265+ compression reduces bandwidth and storage requirements.
- Delivers reliable 24/7 recording for residential and commercial surveillance systems.
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Ideal Applications
- Office buildings
- Retail stores
- Warehouses
- Schools
- Hotels
- Apartment complexes
- Factories
- Shopping malls
- Commercial buildings
- Medium-sized business security
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Design and Build
- Compact 1U desktop chassis
- Durable metal housing

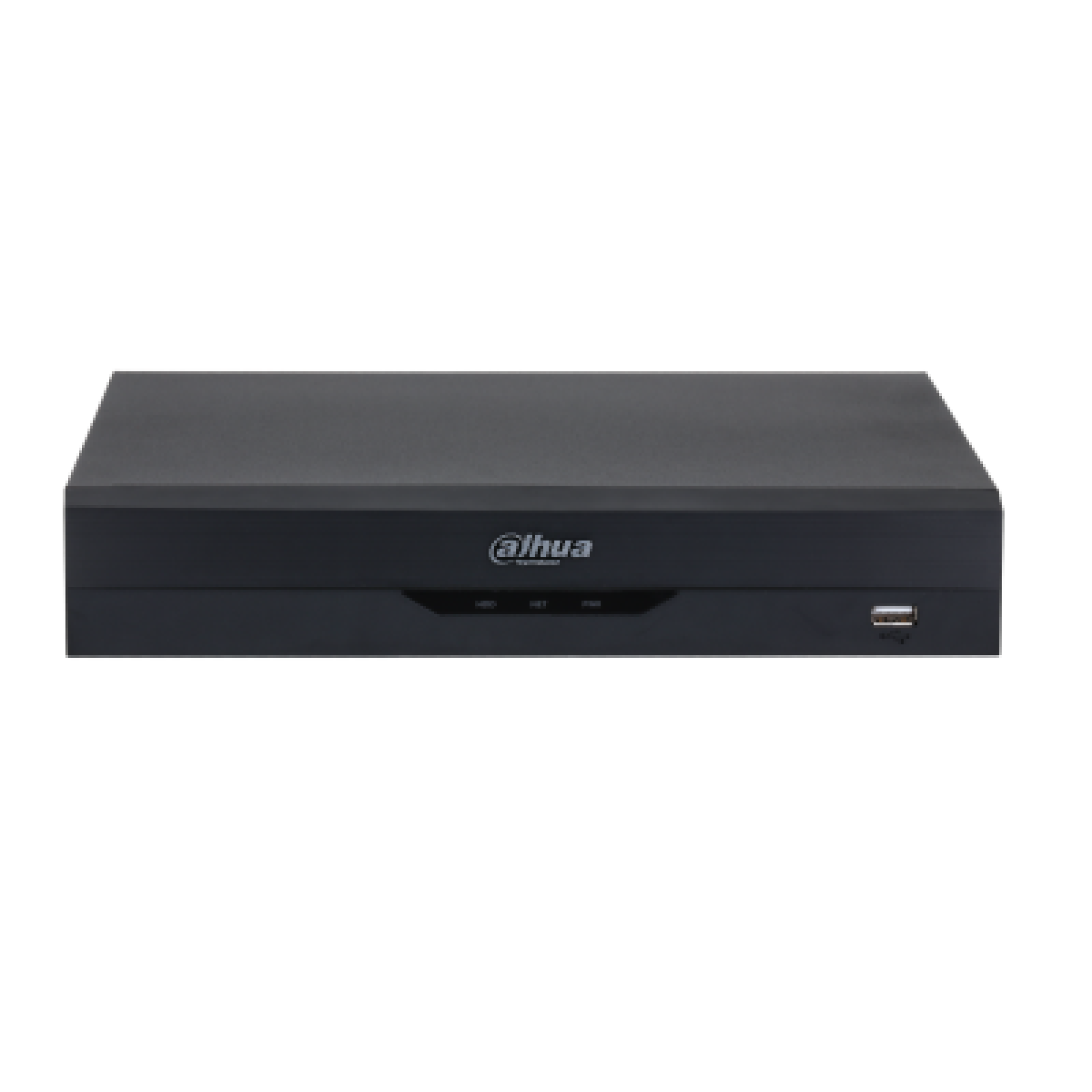

- Front LED status indicators

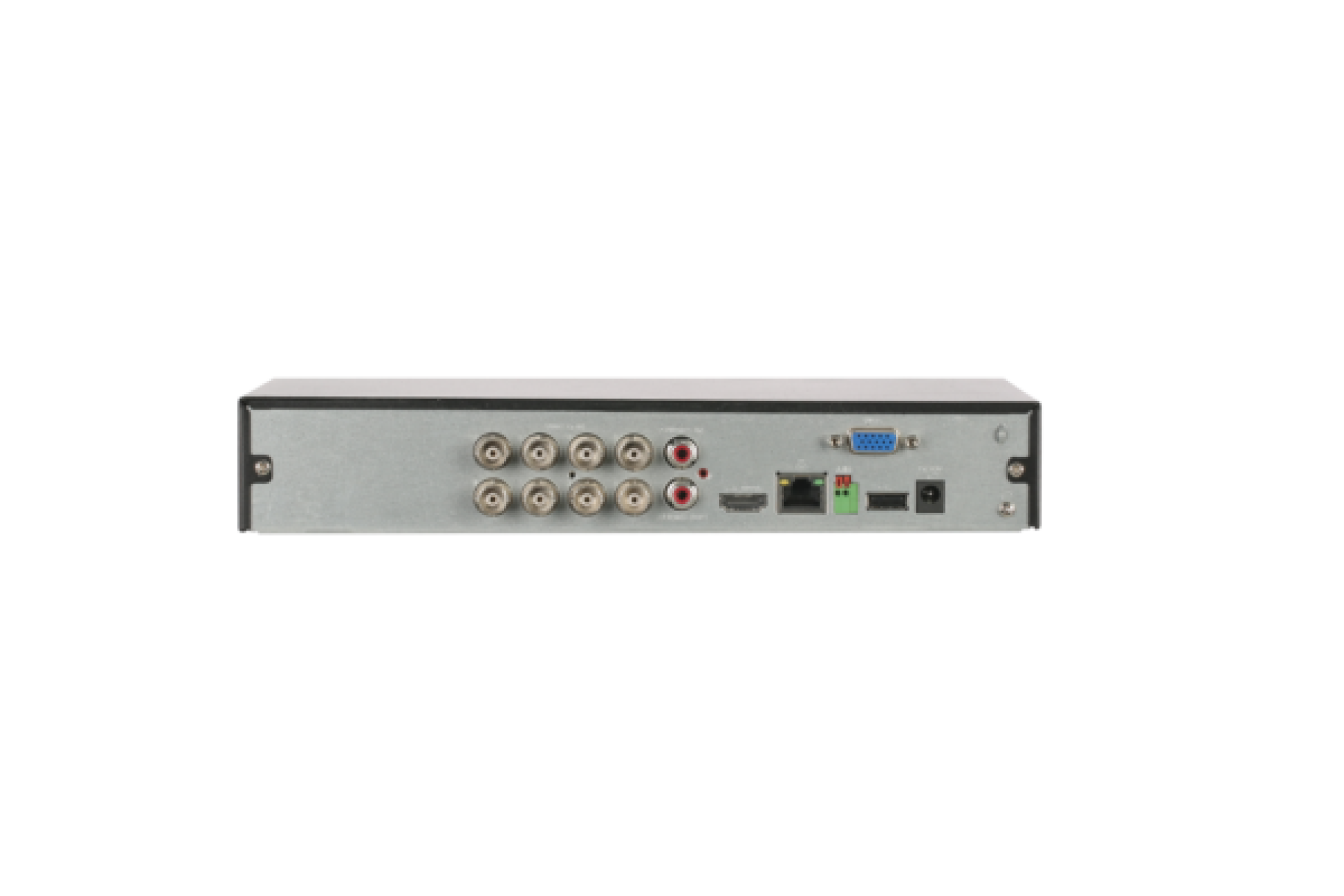

- Rear BNC camera connections
- HDMI and VGA display outputs
- Front and rear USB ports
- RJ-45 Ethernet connectivity
- Efficient low-power operation
- Desktop installation
- Built for continuous 24/7 surveillance
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Compatibility
- Dahua HDCVI cameras
- AHD cameras
- TVI cameras
- CVBS analog cameras
- IP cameras up to 6MP
- ONVIF Profile S, Profile T, and Profile G devices
- Dahua DMSS mobile application
- Smart PSS software
- Chrome, Edge, Safari, and Firefox web browsers
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – FAQs
1. How many cameras does the recorder support?
It supports 8 analog cameras and can be expanded to 12 IP camera channels, with each IP camera supporting resolutions up to 6MP.
2. Which camera technologies are supported?
The recorder supports HDCVI, AHD, TVI, CVBS, and IP cameras, providing flexibility for hybrid surveillance systems.
3. What AI features are included?
It includes AcuPick, Face Recognition, Perimeter Protection, SMD Plus, and AI Coding to improve security monitoring and reduce false alarms.
4. What is the maximum hard drive capacity?
The recorder features one SATA hard drive bay supporting up to 16TB of storage.
5. Can I monitor the recorder remotely?
Yes. You can remotely view live video, playback recordings, and manage the system using the DMSS mobile application for Android and iOS devices.
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Pros and Cons
| Pros | Cons |
|---|---|
| Supports five camera technologies in one recorder | Limited to one SATA hard drive |
| Supports up to 12 IP cameras with resolutions up to 6MP | No built-in PoE ports |
| Advanced AI including AcuPick and Face Recognition | Single network interface |
| Smart H.265+ compression reduces storage usage | Desktop installation only |
| Supports up to 16TB HDD | AI features may be limited when IP extension mode is enabled |
| 8-channel Coaxial Two-Way Talk | Limited to 64 Mbps incoming bandwidth |
Dahua 8 Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder - XVR5108HS-5M-I3/T – Conclusion
The Dahua XVR5108HS-5M-I3/T 8 Channel Penta-brid WizSense Digital Video Recorder is a feature-rich recording solution designed for demanding surveillance applications. With support for multiple camera technologies, up to 12 IP cameras, advanced AI features including AcuPick, Face Recognition, Perimeter Protection, SMD Plus, Smart H.265+ compression, and up to 16TB of storage, it provides reliable performance for commercial, educational, industrial, and residential security systems.
