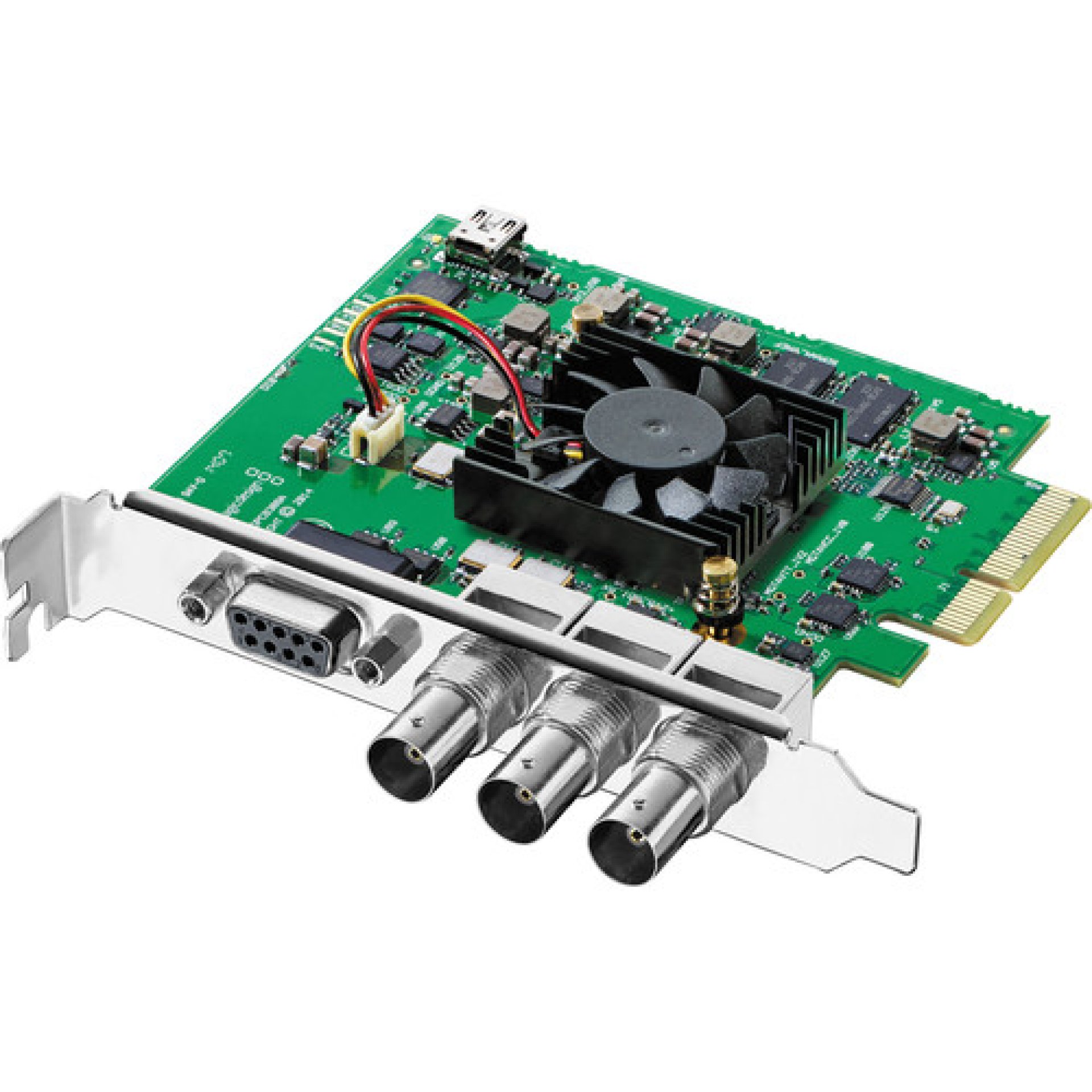

Blackmagic Design DeckLink SDI 4K Capture & Playback Card
Key Specifications
- Product Name: Blackmagic Design DeckLink SDI 4K Capture & Playback Card
- Brand: Blackmagic Design
- Model: DeckLink SDI 4K
- Device Type: PCI Express Capture and Playback Card
- Video Input: 1 × Multi-Rate 6G-SDI Input
- Video Output: 1 × Multi-Rate 6G-SDI Output
- Maximum Resolution: Up to DCI 4K 4096 × 2160
- Supported Standards: SD-SDI, HD-SDI, 3G-SDI and 6G-SDI
- PCIe Interface: PCI Express
- Audio Support: Up to 16 Channels Embedded SDI Audio
- Reference Input: Yes
- RS-422 Deck Control: Yes
- Internal Keying: Yes
- HDR Support: Yes
- Operating Systems: Windows, macOS and Linux
- Ideal For: Broadcast Production, Color Grading, Editing, Live Production, Media Servers and Professional Post-Production Workflows
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Overview
The Blackmagic Design DeckLink SDI 4K is a professional PCIe capture and playback card designed for SD, HD, 2K and Ultra HD workflows. It features a multi-rate 6G-SDI input and output, enabling high-quality video capture and playback up to DCI 4K resolution. The card also includes RS-422 deck control, reference input and internal keying, making it ideal for professional editing, color grading and broadcast applications.
Built for demanding production environments, the DeckLink SDI 4K supports uncompressed video, popular broadcast codecs and embedded SDI audio, delivering reliable performance for studios and post-production facilities.
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Price in Kenya
| Product | Price (KSh) |
|---|---|
| Blackmagic Design DeckLink SDI 4K Capture & Playback Card | 51,200 |
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Full Specifications
| Specification | Details |
|---|---|
| Brand | Blackmagic Design |
| Model | DeckLink SDI 4K |
| Interface | PCI Express |
| Video Input | 1 × 6G-SDI |
| Video Output | 1 × 6G-SDI |
| Maximum Resolution | 4096 × 2160 |
| SDI Standards | SD, HD, 3G and 6G-SDI |
| Audio Channels | 16 Embedded Audio Channels |
| Reference Input | Yes |
| RS-422 Control | Yes |
| Internal Keying | Yes |
| HDR Support | Yes |
| Operating Systems | Windows, macOS, Linux |
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Design & Build Quality
- Compact PCIe form factor
- Professional broadcast-grade construction
- Designed for workstation installation
- Reliable continuous operation
- Suitable for studio and post-production environments
- High-quality internal components
- Long-term production reliability
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Performance
- Supports SD through DCI 4K workflows
- High-quality 10-bit video processing
- Low-latency capture and playback
- Supports compressed and uncompressed formats
- Professional-grade color accuracy
- Hardware up-conversion and down-conversion support
- Stable performance in demanding workflows
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Compatibility and Connectivity
Compatible Devices Include:
- Broadcast Cameras
- ATEM Switchers
- SDI Routers
- Video Servers
- Color Grading Systems
- Production Workstations
- Recording Systems
- Broadcast Monitoring Equipment
Connectivity Options:
- 1 × 6G-SDI Input
- 1 × 6G-SDI Output
- Reference Input
- RS-422 Deck Control Port
- PCI Express Interface
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Features
- Ultra HD and DCI 4K support
- Multi-rate 6G-SDI connectivity
- Embedded SDI audio support
- Internal keying
- RS-422 deck control
- Reference synchronization input
- HDR workflow support
- Professional broadcast integration
- Cross-conversion capability
- Multi-platform software compatibility
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Pros & Cons
| Pros | Cons |
|---|---|
| Supports Ultra HD and DCI 4K | Requires PCIe slot |
| Professional SDI capture and playback | Single SDI input and output |
| Embedded audio support | Internal installation required |
| RS-422 deck control included | No HDMI connectivity |
| Broadcast-grade reliability | — |
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Frequently Asked Questions (FAQs)
What is the price in Kenya?
The Blackmagic Design DeckLink SDI 4K Capture & Playback Card is priced at KSh 51,200.
Does it support 4K video?
Yes. It supports both Ultra HD 3840 × 2160 and DCI 4K 4096 × 2160 workflows.
How many SDI connections does it have?
It features one multi-rate SDI input and one multi-rate SDI output.
Does it support embedded audio?
Yes. It supports up to 16 channels of embedded SDI audio in HD, 2K and 4K formats.
Which operating systems are supported?
The card supports Windows, macOS and Linux systems.
Blackmagic Design DeckLink SDI 4K Capture & Playback Card Conclusion
The Blackmagic Design DeckLink SDI 4K Capture & Playback Card is an excellent professional solution for high-quality SDI capture and playback workflows. With support for Ultra HD and DCI 4K resolutions, embedded audio, reference synchronization and broadcast-grade reliability, it is ideal for editors, broadcasters, colorists and production facilities.
At KSh 51,200, it delivers exceptional value for professionals requiring dependable SDI-based capture and playback capabilities.
