DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Overview
The DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder is a powerful network video recorder designed for medium to large-scale IP surveillance systems. Powered by an industrial-grade processor and Embedded Linux operating system, it supports 32 IP camera channels with resolutions of up to 12MP. The recorder features Smart H.265+ and Smart H.264+ compression, 2-channel SMD Plus, AI by Camera support including Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map, 4K HDMI output, 160Mbps incoming bandwidth, and two SATA hard drive bays supporting up to 20TB each, making it ideal for commercial buildings, schools, hospitals, warehouses, and enterprise surveillance systems.
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Key Features
- 32-channel IP Network Video Recorder
- Supports IP cameras up to 12MP resolution
- Smart H.265+, H.265, Smart H.264+, and H.264 compression
- 2-channel SMD Plus by recorder
- AI by Camera support
- Face Detection and Face Recognition
- Perimeter Protection
- People Counting, Stereo Analysis, and Heat Map support
- HDMI output up to 4K Ultra HD
- 160Mbps incoming bandwidth
- Dual SATA HDD bays supporting up to 20TB each
- ONVIF Profile S, Profile G, and Profile T compatibility
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder | KSh 20,000 – KSh 42,000 |
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua NVR4232-4KS3 |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 32 |
| Maximum Camera Resolution | Up to 12MP |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 128 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| AI by Recorder | 2-Channel SMD Plus |
| AI by Camera | Face Detection, Face Recognition, Perimeter Protection, SMD, People Counting, Stereo Analysis, Heat Map |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Alarm Input | 4 Channels |
| Alarm Output | 2 Channels |
| Storage | 2 SATA HDDs, Up to 20TB Each |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × Gigabit RJ-45 |
| Browser Support | Chrome, Edge, Firefox, Safari |
| Mobile Access | DMSS (Android & iOS) |
| Power Supply | 12V DC, 4A |
| Operating Temperature | -10°C to +55°C |
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Performance
- Supports recording from up to 32 IP cameras with resolutions up to 12MP.
- Handles up to 160Mbps incoming bandwidth for smooth multi-camera recording.
- 2-channel SMD Plus accurately distinguishes humans and vehicles to reduce false alarms.
- AI by Camera enables Face Recognition, Face Detection, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map analytics.
- Smart H.265+ compression minimizes storage and bandwidth consumption.
- 4K HDMI output provides high-resolution live viewing and playback.
- Supports simultaneous live view, recording, playback, backup, and remote management.
- Compatible with ONVIF Profile S, G, and T compliant IP cameras.
- Supports up to 40TB total storage using two SATA hard drives.
- Designed for reliable 24/7 surveillance in professional environments.
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Ideal Applications
- Office buildings
- Shopping malls
- Warehouses
- Schools
- Hospitals
- Hotels
- Apartment complexes
- Industrial facilities
- Commercial buildings
- Enterprise security systems

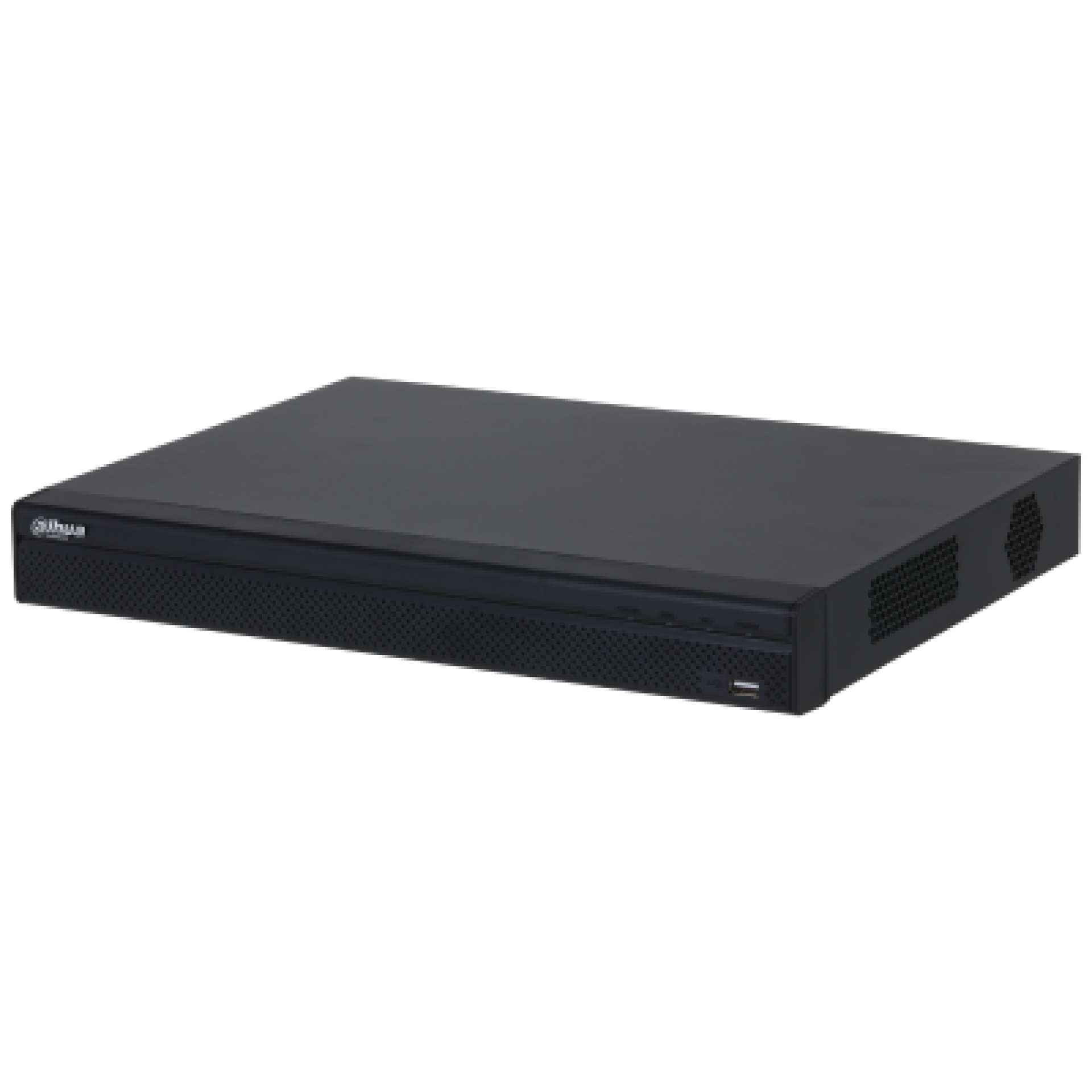

DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Design and Build
- Compact 1U rackmount chassis
- Durable metal enclosure
- Front LED status indicators

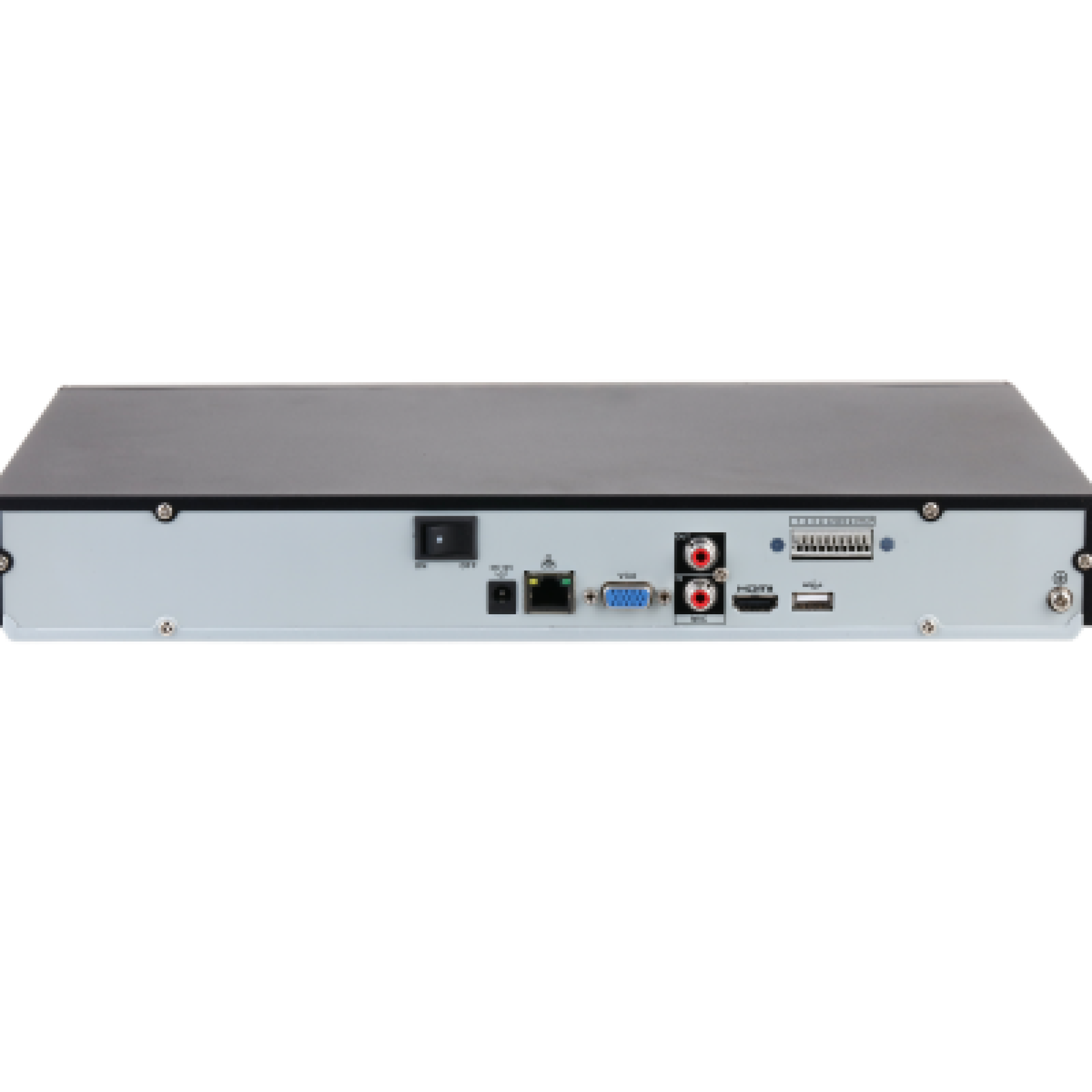

- HDMI and VGA display outputs
- Front and rear USB ports
- Gigabit Ethernet connectivity
- Dual SATA hard drive bays
- Efficient cooling design
- Rack or desktop installation
- Built for continuous 24/7 operation
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Compatibility
- Dahua IP cameras
- ONVIF Profile S, Profile G, and Profile T cameras
- Panasonic IP cameras
- Sony IP cameras
- Axis IP cameras
- Pelco IP cameras
- Canon IP cameras
- Hanwha IP cameras
- Dahua DMSS mobile application
- Smart PSS software
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – FAQs
1. How many cameras does the recorder support?
It supports 32 IP cameras with resolutions up to 12MP.
2. What AI features are included?
The recorder provides 2-channel SMD Plus, while compatible AI cameras support Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map.
3. What is the maximum storage capacity?
The recorder supports 2 SATA hard drives, with up to 20TB per drive, for a maximum storage capacity of 40TB.
4. Does the recorder support 4K display output?
Yes. The HDMI port supports 3840 × 2160 (4K Ultra HD) resolution for high-quality monitoring.
5. Can I monitor the recorder remotely?
Yes. The recorder supports remote viewing, playback, and management using the DMSS mobile application for Android and iOS devices.
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Supports up to 32 IP cameras | No built-in PoE ports |
| Supports cameras up to 12MP resolution | AI by recorder limited to 2-channel SMD Plus |
| Dual SATA bays support up to 40TB total storage | No RAID support |
| Smart H.265+ compression reduces storage usage | Advanced AI requires compatible AI cameras |
| 4K HDMI output | Suitable mainly for medium and large deployments |
| ONVIF compatibility with third-party cameras | Single HDMI output |
DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder – Conclusion
The DAHUA NVR4232-4KS3 32CH 1U 2HDDs Lite Network Video Recorder is an excellent recording solution for demanding IP surveillance applications. With support for 32 IP cameras, 12MP recording, 4K HDMI output, Smart H.265+ compression, 2-channel SMD Plus, AI camera integration, and up to 40TB of storage, it delivers dependable performance for commercial, educational, industrial, and enterprise security installations.
