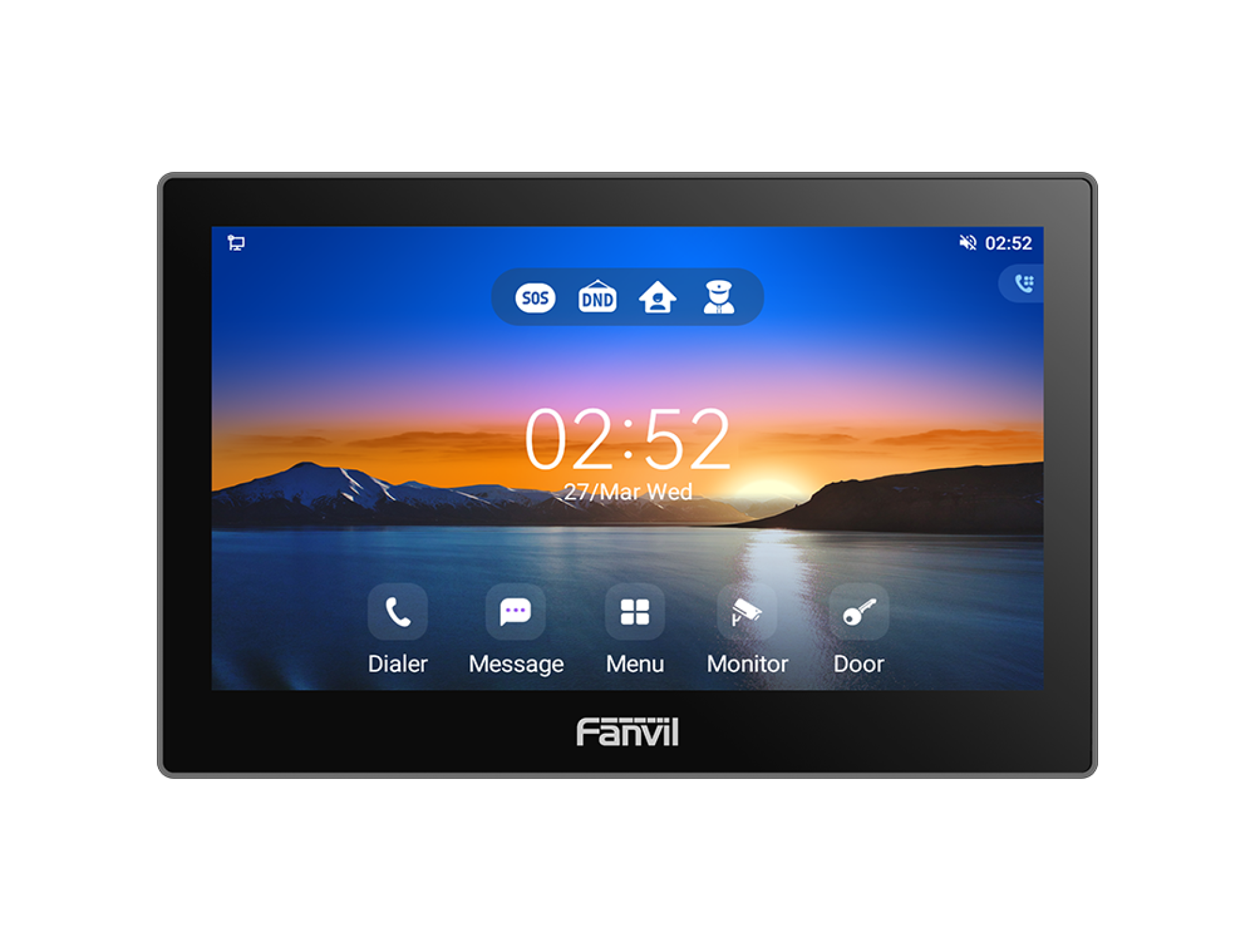

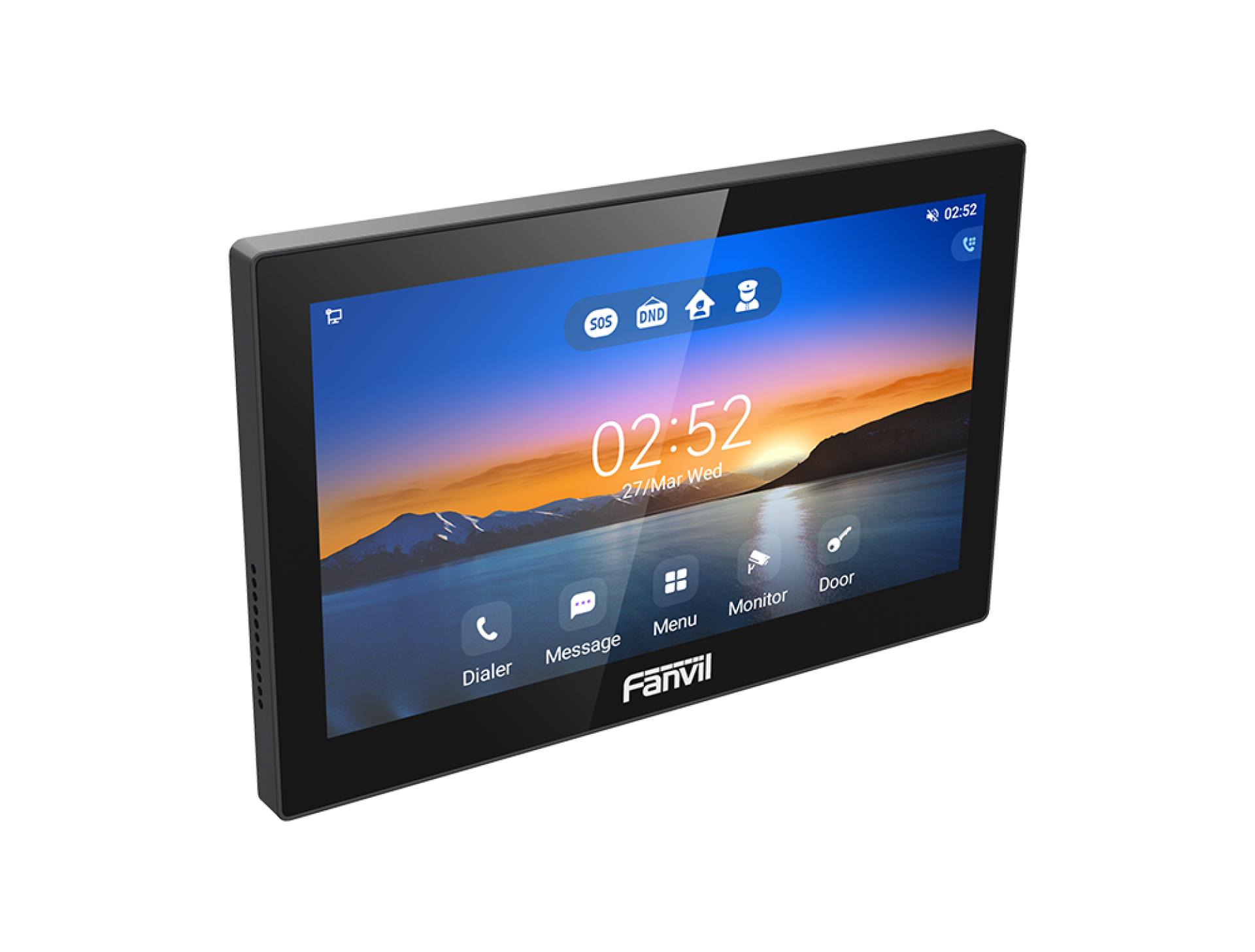

Fanvil i505W Android Indoor Station

Key Features of Fanvil i505W Android Indoor Station

• 7-inch IPS Color Capacitive Touchscreen

• Display Resolution – 1024 × 600 Pixels

• Operating System – Android 9.0

• Wi-Fi – Dual-Band 2.4GHz & 5GHz

• Ethernet – 10/100 Mbps RJ45

• PoE – IEEE 802.3af

• Speaker – 2W Multimedia

• Alarm Inputs – 8

• Short-Circuit Output – 1

• Doorbell Input – 1

• RS-485 – 1 Reserved Interface

• SIP – UDP/TCP/TLS

• Video – H.264, Optional H.265

• Wall-Mount Installation

Overview of Fanvil i505W Android Indoor Station

The Fanvil i505W Android Indoor Station is a 7-inch touchscreen indoor intercom designed for residential communities, villas, hotels and offices. It runs Android 9.0 and supports third-party application integration, while its dual-band Wi-Fi, PoE connectivity, video intercom, remote door unlocking and alarm interfaces make it suitable for modern access-control and security systems.

Fanvil i505W Android Indoor Station Price in Kenya

Specifications of Fanvil i505W Android Indoor Station

Performance Features of Fanvil i505W Android Indoor Station

• 7-Inch Touchscreen Interface: The 7-inch IPS capacitive touchscreen provides a clear and intuitive interface for managing indoor intercom calls, viewing visitors and accessing connected security functions. Its 1024 × 600 resolution provides sufficient detail for video intercom and monitoring applications.

• Two-Way HD Communication: The built-in 2W speaker and full-duplex hands-free communication with Acoustic Echo Cancellation help provide clear conversations between occupants and visitors without requiring a conventional handset.

• Video Monitoring: The i505W can display live video feeds from connected door phones and linked IP cameras, allowing users to monitor visitors and connected security areas directly from the indoor station.

• Android Application Support: Android 9.0 allows the indoor station to integrate with compatible third-party applications and supports customization and secondary-development requirements for different building-management environments.

Connectivity and Access Control Features of Fanvil i505W Android Indoor Station

• Dual-Band Wireless Connectivity: Built-in 2.4GHz and 5GHz Wi-Fi provides flexible network connectivity where running a dedicated Ethernet cable may be inconvenient.

• PoE Installation: IEEE 802.3af PoE allows the i505W to receive network connectivity and power through compatible Ethernet infrastructure, helping simplify installation.

• Multiple Alarm Interfaces: Eight alarm inputs provide connection options for sensors and security devices, while the short-circuit output and doorbell input support broader access-control integration.

• Remote Door Unlocking: The indoor station supports remote door unlocking, allowing occupants to control connected entry systems from the touchscreen interface.

• SIP-Based Intercom: SIP 2.0 support over UDP, TCP and TLS allows the device to operate within compatible SIP-based intercom and communication systems.

Installation and Integration Features of Fanvil i505W Android Indoor Station

• Wall-Mounted Design: Its compact wall-mounted form factor makes it suitable for apartments, villas, hotels and office environments where a permanent indoor access terminal is required.

• Security System Integration: The combination of alarm inputs, doorbell input, short-circuit output and reserved RS-485 interface provides expansion options for different security and building-control installations.

• Flexible Power Options: The i505W supports both 12V DC external power and IEEE 802.3af PoE, giving installers flexibility depending on the available network infrastructure.

• Broad Video Codec Support: H.264 and optional H.265 decoding, with support for video resolutions up to 1080p, enables compatibility with a range of connected video intercom and surveillance devices.

Applications of Fanvil i505W Android Indoor Station

• Residential apartments and gated communities

• Villas and private homes

• Hotels and hospitality properties

• Office buildings

• Reception and visitor-management areas

• Video intercom systems

• Access-control installations

• Smart building security systems

Pros and Cons of Fanvil i505W Android Indoor Station

FAQs About Fanvil i505W Android Indoor Station

What is the Fanvil i505W used for?

The Fanvil i505W is an Android-based indoor video intercom and access-control station used in apartments, villas, hotels, offices and other buildings.

Does the Fanvil i505W have Wi-Fi?

Yes. The i505W supports dual-band 2.4GHz and 5GHz Wi-Fi.

Does the Fanvil i505W support PoE?

Yes. It supports IEEE 802.3af Power over Ethernet as well as 12V DC external power.

Can the Fanvil i505W unlock doors?

Yes. Remote door unlocking is one of its supported functions when connected to a compatible access-control system.

What size screen does the Fanvil i505W have?

It has a 7-inch IPS color capacitive touchscreen with a 1024 × 600 pixel resolution.

What operating system does the Fanvil i505W use?

The i505W runs Android 9.0 and supports third-party application integration.

Conclusion

The Fanvil i505W Android Indoor Station is a versatile 7-inch touchscreen solution for video intercom, visitor monitoring and access control. With Android 9.0, dual-band Wi-Fi, PoE, remote door unlocking, IP camera monitoring and multiple alarm interfaces, it provides a flexible indoor security terminal for residential, hotel and office deployments.
