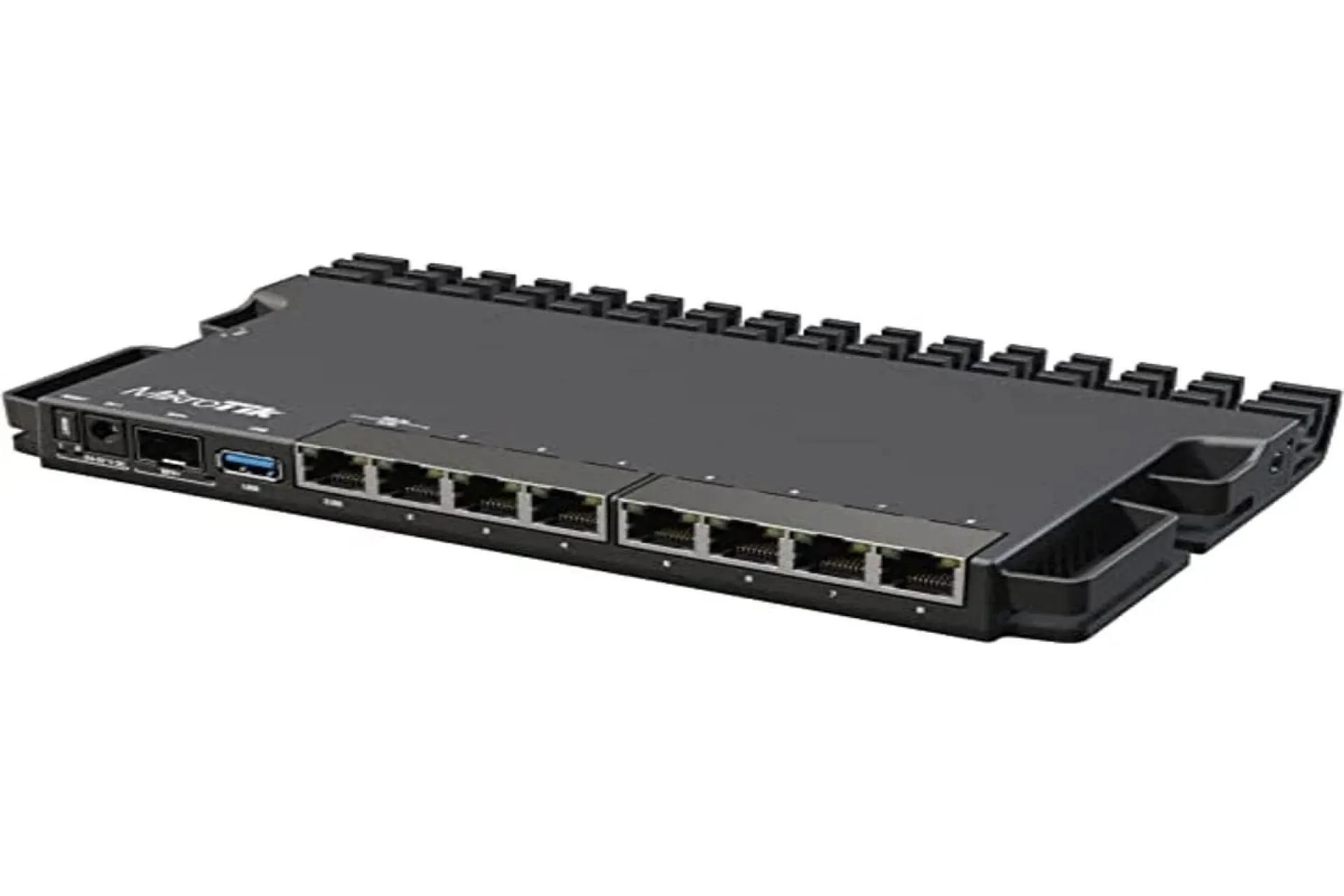

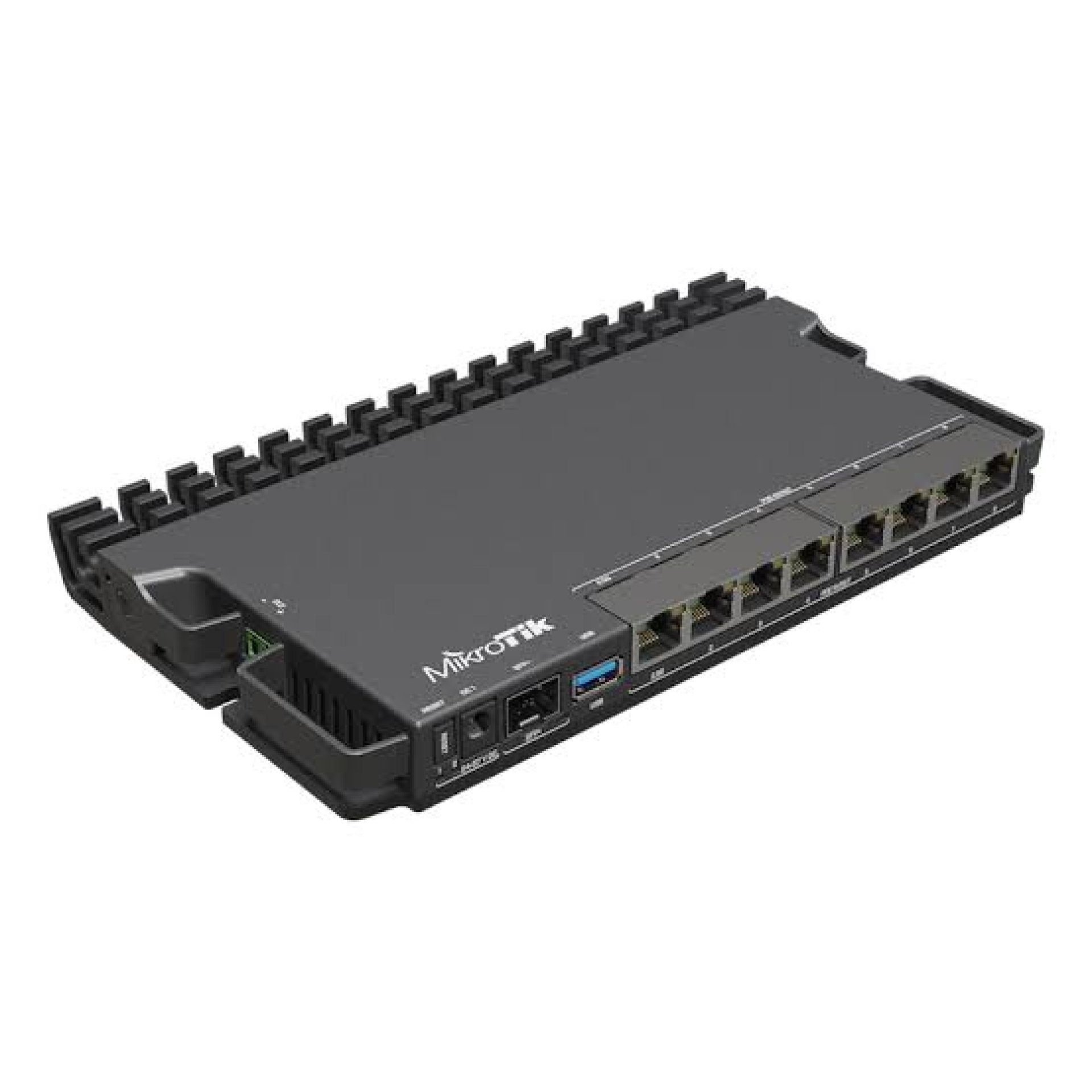

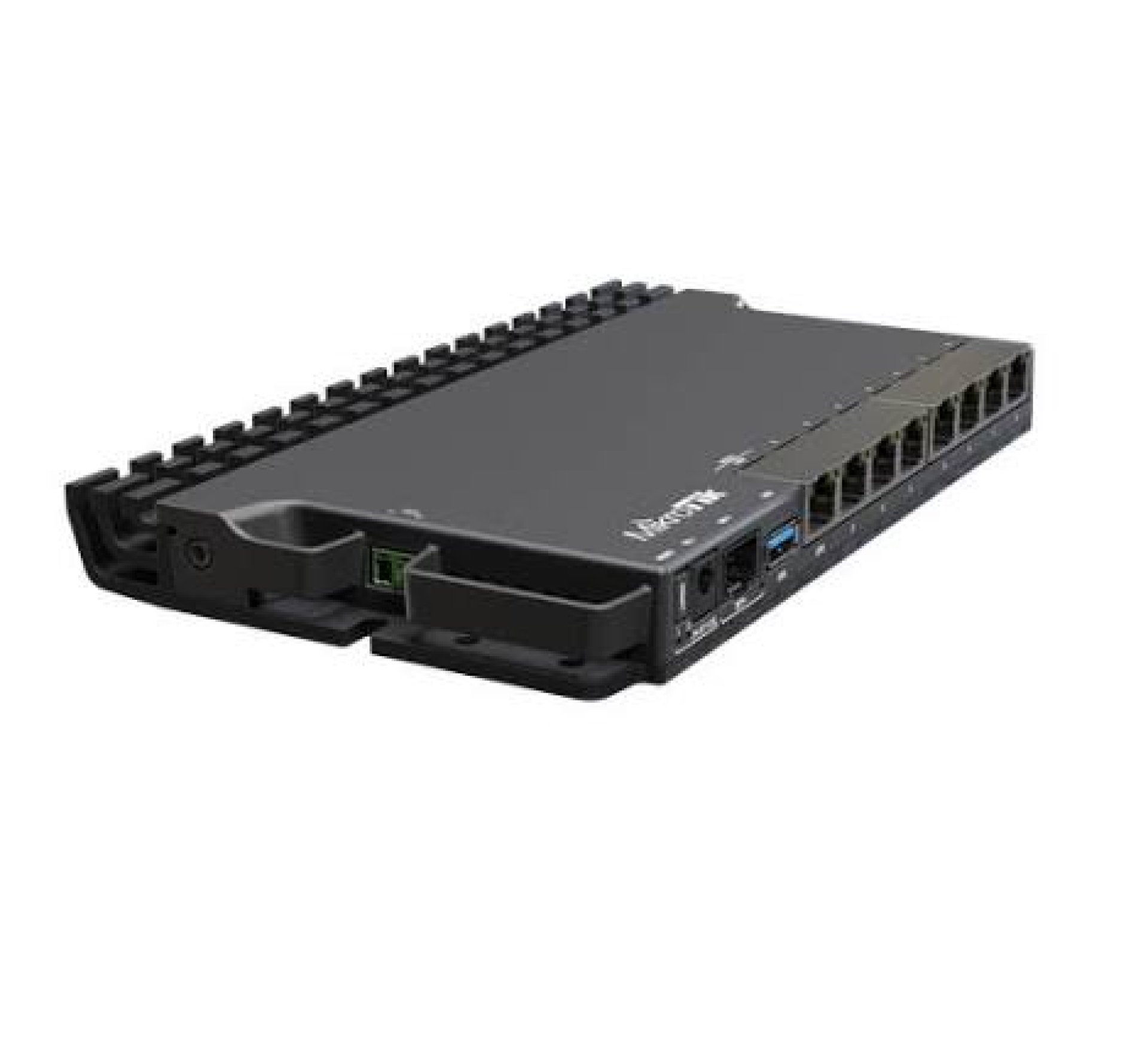

MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black
- 7 Gigabit Ethernet ports provide multiple high-speed wired connections for computers, switches, access points and other network devices.
- 2.5 Gigabit Ethernet port provides faster wired connectivity for compatible high-speed devices.
- 10G SFP+ port provides high-speed fiber or compatible SFP+ connectivity.
- Quad-core ARM64 processor provides strong routing and network-management performance.
- 1GB DDR4 RAM supports RouterOS and demanding networking configurations.
- 1GB NAND storage provides internal storage for the operating system and configuration.
- RouterOS v7 provides advanced routing, firewall, VPN, VLAN and network-management capabilities.
- PoE-in support allows the router to receive power through Ethernet port 1.
- Multiple power options provide flexibility through PoE-in, DC jack and 2-pin terminal input.
- USB 3.0 Type-A port provides connectivity for compatible USB peripherals and storage.
- Passive cooling provides quiet operation without requiring an active cooling fan.
- Metallic enclosure provides a durable construction and also acts as a heatsink.
- Compact design allows the router to fit into space-constrained network environments.
- Rackmount compatibility allows up to four RB5009 routers to be mounted in a single 1U rack space using the appropriate mounting accessories.
- 10Gbps full-duplex connection to the CPU provides high-speed communication between the switch chip and processor.
- Price in Kenya: KSh 33,500.
Description
The MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black is a high-performance wired router designed for advanced home networks, home labs, small businesses, professional network environments and demanding routing applications. It combines multiple Gigabit Ethernet ports with 2.5 Gigabit Ethernet and 10G SFP+ connectivity in a compact enclosure.
The RB5009 features seven 1 Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port and one 10G SFP+ cage, giving the router a total of nine wired network interfaces. This combination provides flexibility for connecting computers, switches, servers, access points and high-speed uplinks.
The router is powered by a quad-core ARM64 CPU with a nominal frequency of up to 1.4GHz and includes 1GB of DDR4 RAM and 1GB NAND storage. The hardware is designed to provide strong performance for routing and other RouterOS-based network functions.
The RouterOS v7 operating system provides a comprehensive set of networking tools, including routing, firewall configuration, VPN, VLANs, bandwidth management and other advanced network-management functions. The device comes with RouterOS preinstalled and licensed.
The RB5009 also provides three power options: PoE-in through Ethernet port 1, a DC jack and a 2-pin terminal. This makes it possible to deploy the router in different network environments depending on the available power infrastructure.
Its passive cooling system and metal enclosure help dissipate heat while maintaining quiet operation. The compact 220 × 125 × 22mm chassis can also be integrated into rack deployments using the appropriate mounting accessories.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Price in Kenya
| ProductPrice | |
|---|---|
| MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black | KSh 33,500 |
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Key Specifications
| SpecificationDetails | |
|---|---|
| Product Type | High-Performance Wired Router |
| Brand | MikroTik |
| Model | RB5009UG+S+IN |
| Architecture | ARM 64bit |
| Processor | Marvell Armada 88F7040 |
| CPU Cores | 4 |
| CPU Frequency | 350–1400MHz |
| RAM | 1GB DDR4 |
| Storage | 1GB NAND |
| Gigabit Ethernet Ports | 7 × 10/100/1000 Ethernet |
| 2.5G Ethernet Port | 1 × 2.5 Gigabit Ethernet |
| SFP+ Port | 1 × 10G SFP+ |
| USB Port | 1 × USB 3.0 Type-A |
| Operating System | RouterOS v7 |
| RouterOS License | Level 5 |
| Switch Chip | Marvell 88E6393 |
| PoE Input | 802.3af/at |
| Power Inputs | DC Jack / PoE-in / 2-pin Terminal |
| Input Voltage | 24–57V |
| Maximum Power Consumption | 25W |
| Cooling | Passive Cooling |
| Dimensions | 220 × 125 × 22mm |
| Color | Black |
| Price | KSh 33,500 |
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Design & Build
- Compact metallic enclosure provides a durable chassis for professional network deployment.
- 220 × 125 × 22mm dimensions provide a compact footprint.
- Metal construction helps dissipate heat from the internal components.
- Passive cooling design allows quiet operation without a cooling fan.
- Black finish provides a professional appearance.
- Compact form factor makes the router suitable for home labs and business network environments.
- Rackmount compatibility allows the router to be installed in compatible rackmount systems.
- Up to four RB5009 routers can be mounted within a single 1U rack space using the appropriate mounting accessories.
- Multiple physical ports provide extensive connectivity in a compact chassis.
- Professional construction makes the RB5009 suitable for continuous network deployment.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Connectivity
- Seven Gigabit Ethernet ports provide standard high-speed wired network connections.
- 2.5 Gigabit Ethernet port provides faster connectivity for compatible high-speed devices.
- 10G SFP+ port provides high-speed fiber or compatible transceiver connectivity.
- USB 3.0 Type-A port supports compatible USB peripherals and storage.
- PoE-in connectivity allows power to be received through Ethernet port 1.
- DC input provides a conventional power connection.
- 2-pin terminal input provides an additional power option.
- 10G full-duplex connection links the switch chip to the processor for high-speed internal communication.
- Server connectivity allows the router to connect to compatible high-performance servers.
- Switch connectivity allows integration with larger wired network infrastructures.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Performance
- Quad-core ARM64 processor provides strong processing performance for network workloads.
- 1GB DDR4 RAM supports demanding RouterOS configurations.
- 1GB NAND storage provides internal storage for RouterOS and configurations.
- Up to 1.4GHz CPU frequency provides processing capacity for advanced networking tasks.
- Marvell 88E6393 switch chip provides high-speed wired switching capabilities.
- 2.5 Gigabit Ethernet supports faster network connections than standard Gigabit Ethernet.
- 10G SFP+ connectivity supports high-speed network uplinks.
- RouterOS v7 provides extensive routing and network-management functionality.
- Fast-path routing support provides high network throughput in supported configurations.
- High-speed internal architecture makes the RB5009 suitable for demanding network environments.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Network Management
- RouterOS v7 provides advanced network-management functionality.
- Routing configuration allows users to manage IP routing and network traffic.
- Firewall functionality provides tools for controlling network traffic.
- VLAN support allows logical network segmentation.
- VPN support provides tools for secure remote and site-to-site connectivity.
- Bandwidth management allows network traffic to be controlled according to configured policies.
- Advanced routing features support professional network deployments.
- Network monitoring provides tools for managing network performance and connected interfaces.
- RouterOS configuration provides extensive control over network services.
- Professional network management makes the RB5009 suitable for advanced users and administrators.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Power & Installation
- PoE-in support allows the router to receive power through Ethernet port 1.
- DC jack input provides a standard external power option.
- 2-pin terminal input provides an additional power connection.
- 24–57V input range supports the router's specified power sources.
- Up to 25W maximum power consumption provides the rated maximum power requirement.
- 14W maximum consumption without attachments provides a lower power requirement under the specified condition.
- Passive cooling eliminates the need for an active cooling fan.
- Compact design makes the router suitable for network cabinets, desks and home labs.
- Rackmount installation is possible using compatible mounting accessories.
- Multiple power options provide flexibility when deploying the router in different network environments.
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Ideal Use Cases
- Home lab networks
- Small business networks
- Professional wired networks
- Advanced home networks
- Internet service provider deployments
- Network laboratories
- Server networks
- High-speed network backbones
- 2.5G network upgrades
- 10G SFP+ uplinks
- VLAN-based networks
- VPN deployments
- Firewall deployments
- Network segmentation
- Bandwidth management
- Business network routing
- Data center network environments
- Rackmount network deployments
- Network testing
- Professional RouterOS environments
MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black Pros and Cons
| Pros | Cons |
|---|---|
| 7 Gigabit Ethernet ports | No built-in Wi-Fi |
| 2.5 Gigabit Ethernet port | Advanced RouterOS configuration can require networking knowledge |
| 10G SFP+ port | SFP+ connectivity may require compatible modules or cables |
| Quad-core ARM64 CPU | Rackmount accessories are sold separately |
| 1GB DDR4 RAM | Designed primarily for wired networking |
| RouterOS v7 | No PoE-out on the standard RB5009UG+S+IN model |
| Multiple power options | Maximum performance depends on configuration and workload |
| USB 3.0 port | USB functionality depends on the configured RouterOS services |
| Passive cooling | Advanced features may have a learning curve for new users |
| Compact rackmount-compatible design | Not intended to function as a standalone wireless access point |
FAQs
1. How much is the MikroTik RB5009UG+S+IN in Kenya?
The listed price for the MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black is KSh 33,500.
2. How many Ethernet ports does the MikroTik RB5009 have?
The RB5009UG+S+IN has seven Gigabit Ethernet ports and one 2.5 Gigabit Ethernet port, plus one 10G SFP+ cage.
3. Does the MikroTik RB5009 support 2.5 Gigabit Ethernet?
Yes. The RB5009UG+S+IN includes one 2.5 Gigabit Ethernet port, making it suitable for compatible high-speed network devices.
4. Does the MikroTik RB5009 support 10G?
Yes. The router includes one 10G SFP+ port for compatible high-speed fiber or SFP+ network connections.
5. What processor does the MikroTik RB5009 use?
The RB5009 uses a Marvell Armada 88F7040 quad-core ARM64 processor with a nominal frequency of up to 1.4GHz.
6. How much RAM does the MikroTik RB5009 have?
The router has 1GB of DDR4 RAM and 1GB of NAND storage.
7. What operating system does the MikroTik RB5009 use?
The RB5009UG+S+IN runs RouterOS v7, MikroTik's advanced networking operating system.
8. Does the MikroTik RB5009 support PoE?
Yes. The RB5009UG+S+IN supports PoE-in through Ethernet port 1 using the 802.3af/at standard. It can also be powered through its DC jack or 2-pin terminal.
9. Does the MikroTik RB5009 have Wi-Fi?
No. The RB5009UG+S+IN is a wired router and does not include built-in Wi-Fi. A separate wireless access point can be connected through its Ethernet ports.
10. Is the MikroTik RB5009UG+S+IN worth buying at KSh 33,500?
At KSh 33,500, the RB5009UG+S+IN is a strong option for users who need multiple Gigabit Ethernet ports, 2.5G connectivity, 10G SFP+, RouterOS v7, a quad-core ARM64 processor, multiple power options and advanced wired network-management capabilities.
Conclusion
The MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black is a powerful wired networking solution designed for demanding home labs, small businesses and professional network environments. With seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, 10G SFP+, a quad-core ARM64 processor, 1GB DDR4 RAM, 1GB NAND storage, USB 3.0 and RouterOS v7, it provides extensive connectivity and advanced routing capabilities.
At KSh 33,500, the MikroTik RB5009UG+S+IN Wired Router 2.5 Gigabit Ethernet Black is a suitable choice for network administrators, IT professionals, home lab enthusiasts, small businesses, server environments, advanced home networks and users looking to build high-speed 2.5G and 10G wired network infrastructures.
