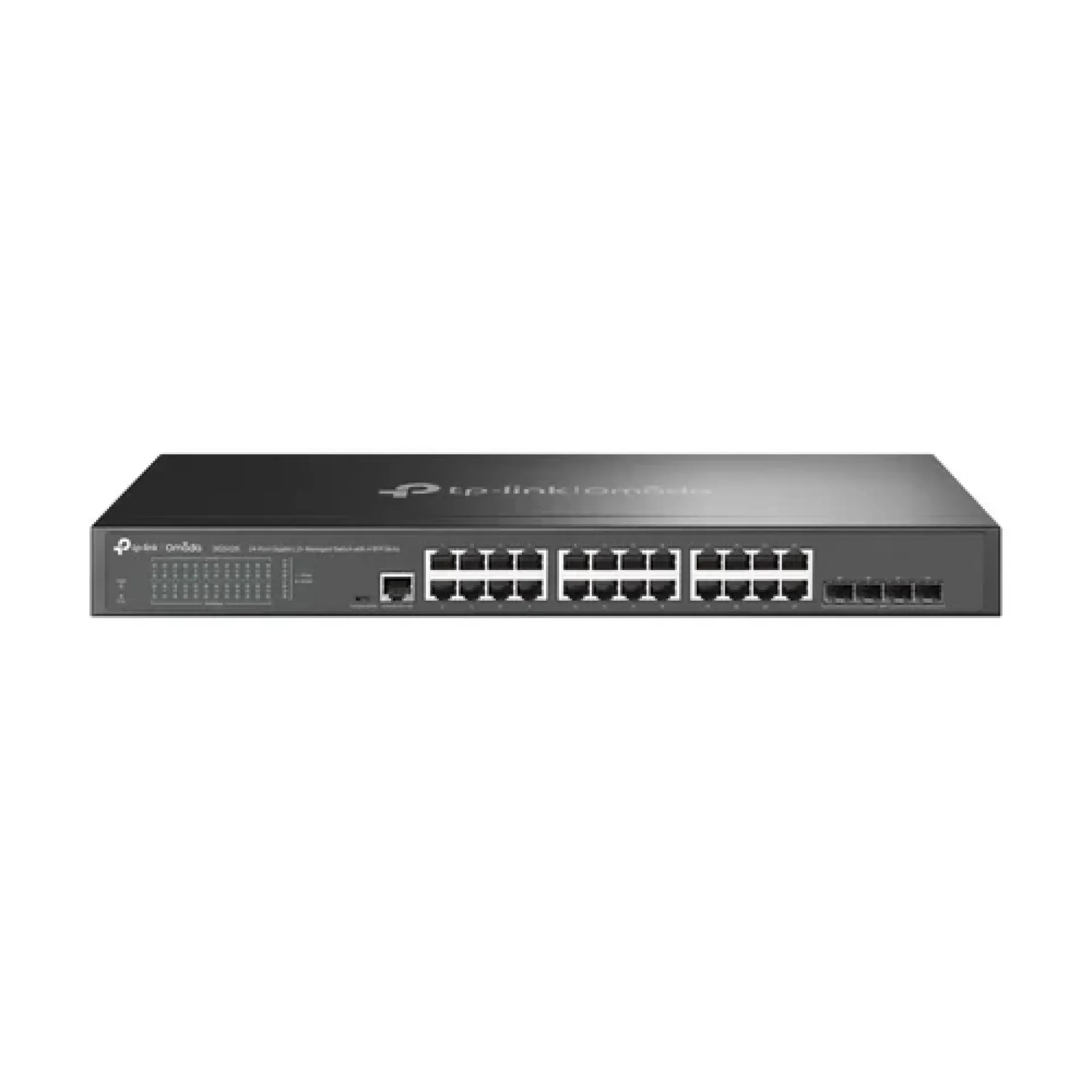

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Key Features

• 24 × 10/100/1000 Mbps Gigabit RJ45 ports
• 4 × Gigabit SFP slots
• 56 Gbps switching capacity
• 41.66 Mpps packet forwarding rate
• Layer 2 and Layer 2+ management features
• Static routing support
• VLAN and ACL support
• QoS with 8 priority queues
• IGMP Snooping and MLD Snooping
• Link aggregation with LACP
• Spanning Tree Protocol support
• Port mirroring
• Fanless design for silent operation
• Rack-mountable metal casing
• Omada centralized management support
• Web GUI, CLI, SNMP and RMON management
• 16K MAC address table
• 9 KB jumbo frame support

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Introduction

The TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch is a professional networking switch designed for businesses, offices and organizations that require reliable high-speed wired connectivity and advanced network management. It provides 24 Gigabit RJ45 ports together with four Gigabit SFP slots for flexible copper and fiber networking.

The switch supports Layer 2 and Layer 2+ networking functions, including VLANs, QoS, link aggregation, spanning tree and static routing. It can operate as a standalone managed switch or be integrated into an Omada network for centralized management.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Price in Kenya

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Key Specifications

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Performance

• Provides 24 Gigabit Ethernet ports for high-speed wired connections.
• Supports up to 56 Gbps switching capacity.
• Delivers packet forwarding of up to 41.66 million packets per second.
• Supports full-duplex Gigabit Ethernet connections.
• The 16K MAC address table allows the switch to handle a large number of network devices.
• Supports jumbo frames of up to 9 KB for efficient transfer of large data packets.
• Suitable for business networks handling demanding data traffic.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch SFP Connectivity

• Includes 4 Gigabit SFP slots.
• Supports fiber-based network connections through compatible SFP modules.
• Allows connection to other switches over fiber.
• Suitable for extending networks over longer distances.
• Provides flexibility for mixed copper and fiber network infrastructure.
• The SFP slots can be used for uplink connections in larger network deployments.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch VLAN Features

• Supports VLAN configuration for network segmentation.
• Allows administrators to separate different types of network traffic.
• Suitable for separating departments, guest networks and other user groups.
• Supports 802.1Q VLAN functionality.
• Helps improve network organization and security.
• VLAN management can be performed through supported management interfaces.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Static Routing

• Supports Layer 3 static routing functionality.
• Provides up to 48 static routes depending on configuration.
• Allows the switch to route traffic between supported network segments.
• Helps reduce unnecessary traffic through external routing equipment.
• Suitable for small and medium-sized business networks.
• Provides greater network flexibility than a basic unmanaged switch.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch QoS

• Supports Quality of Service functionality.
• Provides 8 priority queues.
• Supports 802.1p CoS and DSCP prioritization.
• Supports Strict Priority and Weighted Round Robin scheduling.
• Allows bandwidth control on ports and network flows.
• Helps prioritize latency-sensitive applications such as voice and video.
• Suitable for networks carrying multiple types of traffic.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Network Management

• Supports centralized management through the Omada platform.
• Can be managed using an Omada hardware or software controller.
• Supports cloud-based management with compatible Omada controllers.
• Provides a web-based management interface.
• Supports Command Line Interface management.
• Supports SNMP for network monitoring.
• Supports RMON for network management and monitoring.
• Supports features such as cable diagnostics, system logs and CPU monitoring.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Reliability

• Features a fanless design for quiet operation.
• Uses a durable metal chassis.
• Designed for rack-mounted network installations.
• Supports Spanning Tree Protocol to help prevent network loops.
• Supports RSTP and MSTP.
• Includes loopback detection.
• Supports link aggregation for improved redundancy and bandwidth.
• Provides port and traffic monitoring features.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Ideal Use Cases

• Business offices
• Corporate networks
• Schools and institutions
• Hotels
• Internet service providers
• CCTV networks
• Data centers
• Enterprise network infrastructure
• Server rooms
• Fiber network uplinks
• Departmental network segmentation
• Medium-sized business networks

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Pros and Cons

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch FAQs

How many Ethernet ports does the TL-SG3428 have?
It has 24 Gigabit RJ45 Ethernet ports.

Does it support fiber connections?
Yes. It includes 4 Gigabit SFP slots for compatible fiber or SFP uplink modules.

What is the switching capacity?
The switch provides a 56 Gbps switching capacity.

Does the TL-SG3428 support VLANs?
Yes. It supports VLAN functionality for network segmentation and traffic management.

Does it support static routing?
Yes. It is an L2+ managed switch with static routing capabilities.

Can it be managed through Omada?
Yes. It can be integrated into the Omada Software Defined Networking platform for centralized management.

Does it support PoE?
No. The standard TL-SG3428 does not provide PoE power to connected devices.

Is the switch noisy?
No. It features a fanless design, allowing for quiet operation.

Can it be mounted in a rack?
Yes. It has a standard rack-mountable design.

How much does the TP-Link TL-SG3428 cost in Kenya?
The price is KSh 22,000.

TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch Conclusion

The TP-Link TL-SG3428 Omada 24-Port Gigabit L2+ Managed Switch is a powerful networking solution for businesses and organizations that require high-speed connectivity combined with advanced network management. Its 24 Gigabit RJ45 ports, 4 SFP slots, 56 Gbps switching capacity, VLAN support, static routing, QoS, link aggregation and Omada management make it suitable for demanding network environments.

At KSh 22,000, it is a strong option for businesses, institutions and professional network installations requiring a reliable and scalable managed Gigabit switch.
