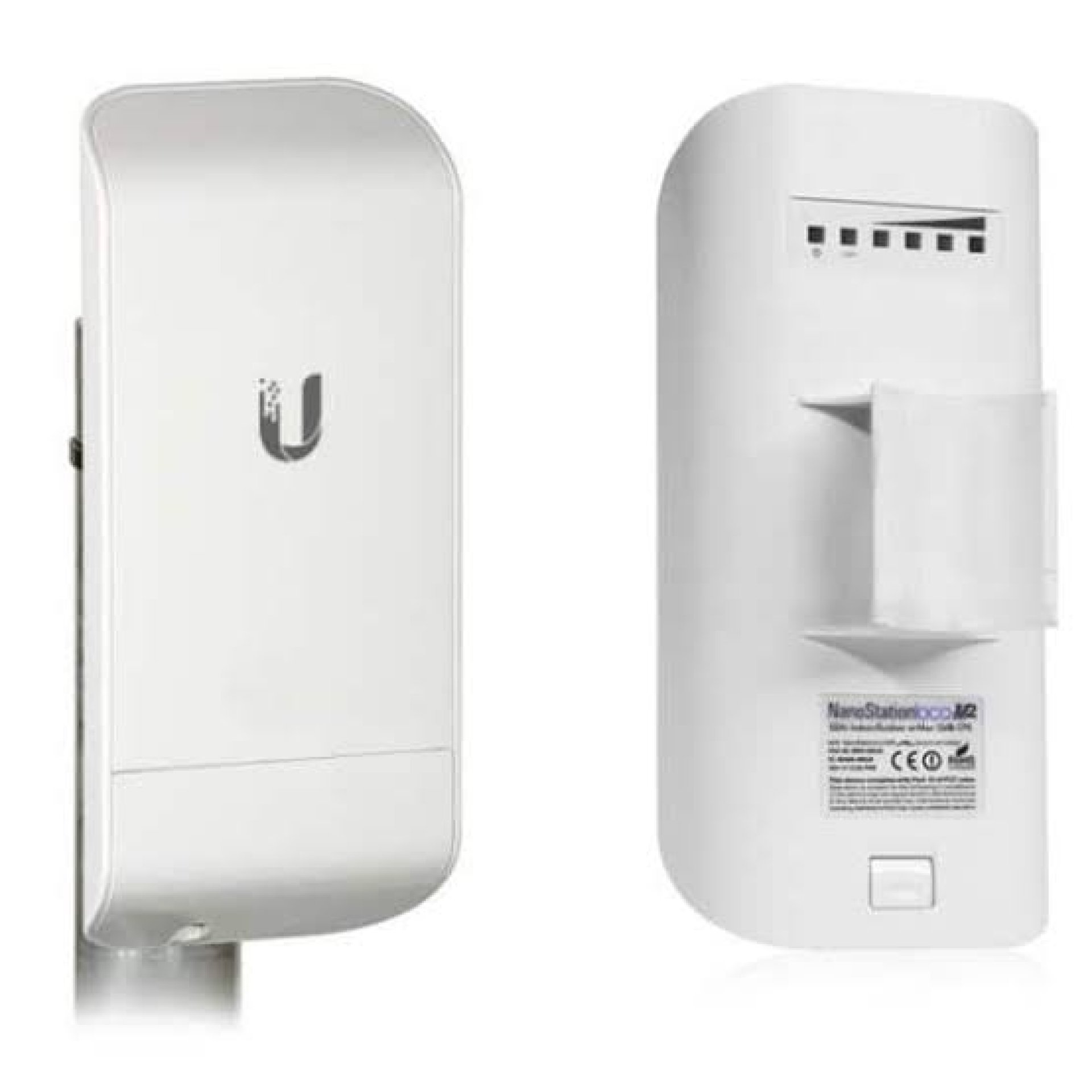

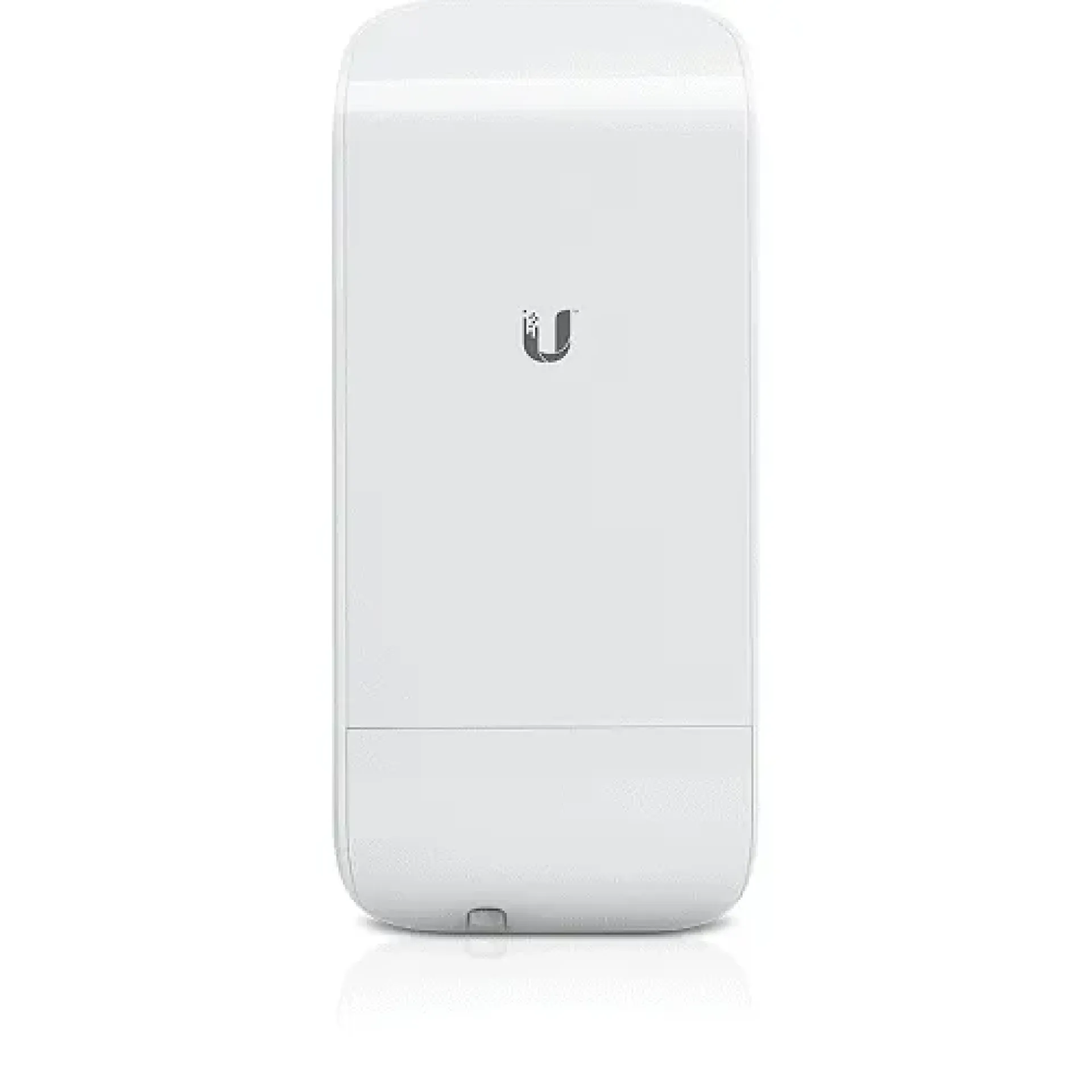

Ubiquiti NanoStation Loco M2 (LOCOM2) Key Features
- 2.4 GHz airMAX wireless technology
- 2x2 MIMO antenna
- 8.5 dBi integrated antenna gain
- 60° beamwidth
- Dual-linear polarization
- 1 × 10/100 Ethernet port
- 24V Passive PoE support
- 24V 0.5A PoE adapter included
- airMAX TDMA technology
- Outdoor UV-stabilized enclosure
- Pole-mounting kit included
- Compact 180 g design
- Low 5.5W maximum power consumption
- Point-to-Point and Point-to-MultiPoint support
- Designed for outdoor wireless deployments
Ubiquiti NanoStation Loco M2 (LOCOM2) Overview
The Ubiquiti NanoStation Loco M2 (LOCOM2) is a compact and cost-effective 2.4 GHz outdoor wireless CPE designed for reliable Point-to-Point and Point-to-MultiPoint connectivity. It uses 2x2 MIMO airMAX technology and an integrated 8.5 dBi directional antenna to provide focused wireless coverage for broadband distribution, wireless bridges, and outdoor network deployments.
With a lightweight 180 g construction, 10/100 Ethernet connectivity, passive PoE power, and a UV-stabilized outdoor enclosure, the NanoStation Loco M2 is easy to install and maintain. It is suitable for wireless ISPs, rural connectivity, surveillance networks, remote sites, and other outdoor networking applications.
Ubiquiti NanoStation Loco M2 (LOCOM2) Price Table
| Product | Price (KES) |
|---|---|
| Ubiquiti NanoStation Loco M2 (LOCOM2) | KSh 7,000 – 10,000 (Approx.) |
Ubiquiti NanoStation Loco M2 (LOCOM2) Key Specs
| Specification | Details |
|---|---|
| Model | LOCOM2 |
| Wireless Technology | airMAX 2x2 MIMO |
| Frequency | 2.4 GHz |
| Operating Frequency | 2412–2462 MHz |
| Antenna Gain | 8.5 dBi |
| Polarization | Dual Linear |
| Beamwidth | 60° |
| Ethernet Port | 1 × 10/100 MbE RJ45 |
| Power Method | Passive PoE |
| PoE Adapter | 24V 0.5A Included |
| Maximum Power Consumption | 5.5W |
| Dimensions | 161 × 31 × 80 mm |
| Weight | 180 g |
| Enclosure | Outdoor UV-Stabilized Plastic |
| Mounting | Pole Mount |
| Operating Temperature | -30°C to 75°C |
Ubiquiti NanoStation Loco M2 (LOCOM2) Performance
- 2.4 GHz airMAX technology provides reliable outdoor wireless connectivity.
- 2x2 MIMO improves wireless link performance.
- 8.5 dBi antenna gain provides focused coverage.
- 60° beamwidth supports efficient directional deployment.
- Dual-linear polarization improves signal quality.
- airMAX TDMA technology improves network efficiency.
- Low 5.5W power consumption supports efficient operation.
- Compact design makes installation easier.
- Suitable for wireless ISP infrastructure.
- Reliable for continuous outdoor operation.
Ubiquiti NanoStation Loco M2 (LOCOM2) Smart Features
- airMAX MIMO technology
- airMAX TDMA protocol
- airOS management
- Passive PoE operation
- Remote device management
- Wireless network monitoring
- Point-to-Point support
- Point-to-MultiPoint support
- Integrated directional antenna
- Outdoor wireless optimization
- Compact CPE design
- Enterprise wireless connectivity
Ubiquiti NanoStation Loco M2 (LOCOM2) Design & Build
- Compact outdoor-ready design
- UV-stabilized plastic enclosure
- Lightweight 180 g construction
- Integrated directional antenna
- Pole-mounting kit included
- Weather-resistant outdoor construction
- Efficient passive cooling
- Low-profile installation design
- Professional outdoor appearance
- Built for long-term outdoor deployment
Ubiquiti NanoStation Loco M2 (LOCOM2) Connectivity
- 1 × 10/100 MbE RJ45 Ethernet port
- 2.4 GHz wireless connectivity
- 24V Passive PoE
- Integrated 2x2 MIMO antenna
- Point-to-Point wireless connectivity
- Point-to-MultiPoint networking
- Outdoor wireless backhaul
- Enterprise LAN integration
- Remote network management
- Professional wireless deployment
Ubiquiti NanoStation Loco M2 (LOCOM2) Use Cases
- Wireless ISP deployments
- Point-to-Point wireless bridges
- Point-to-MultiPoint networks
- Rural broadband connectivity
- Outdoor wireless networks
- CCTV surveillance backhaul
- Remote site networking
- Campus wireless deployments
- Small business wireless links
- Long-range outdoor networking
Ubiquiti NanoStation Loco M2 (LOCOM2) Pros & Cons
| Pros | Cons |
|---|---|
| Compact and lightweight design | 10/100 Ethernet only |
| 2x2 MIMO airMAX technology | 2.4 GHz can experience interference |
| 8.5 dBi integrated antenna | Older airMAX platform |
| Low power consumption | No Gigabit Ethernet |
| Passive PoE adapter included | Passive PoE requires compatible equipment |
| Easy pole installation | — |
| Outdoor UV-stabilized construction | — |
| Suitable for ISP deployments | — |
Ubiquiti NanoStation Loco M2 (LOCOM2) FAQs
Q1: What frequency does the NanoStation Loco M2 use?
The LOCOM2 operates in the 2.4 GHz band, with a specified operating frequency of 2412–2462 MHz.
Q2: What is the antenna gain?
The NanoStation Loco M2 features an integrated 8.5 dBi antenna with dual-linear polarization.
Q3: How many Ethernet ports does it have?
It has 1 × 10/100 MbE RJ45 Ethernet port.
Q4: Does the NanoStation Loco M2 support PoE?
Yes. It uses 24V Passive PoE, and a 24V 0.5A PoE adapter is included.
Q5: Is the NanoStation Loco M2 suitable for outdoor use?
Yes. It has an outdoor UV-stabilized enclosure, pole mounting, and an operating temperature range of -30°C to 75°C.
Ubiquiti NanoStation Loco M2 (LOCOM2) Conclusion
The Ubiquiti NanoStation Loco M2 (LOCOM2) is a compact and efficient 2.4 GHz outdoor wireless CPE that combines 2x2 MIMO airMAX technology, an 8.5 dBi integrated antenna, 10/100 Ethernet connectivity, Passive PoE, and a lightweight weather-resistant design. With easy pole installation and flexible Point-to-Point and Point-to-MultiPoint capabilities, it is a practical choice for wireless ISPs, rural broadband, outdoor networking, and remote connectivity in Kenya.
