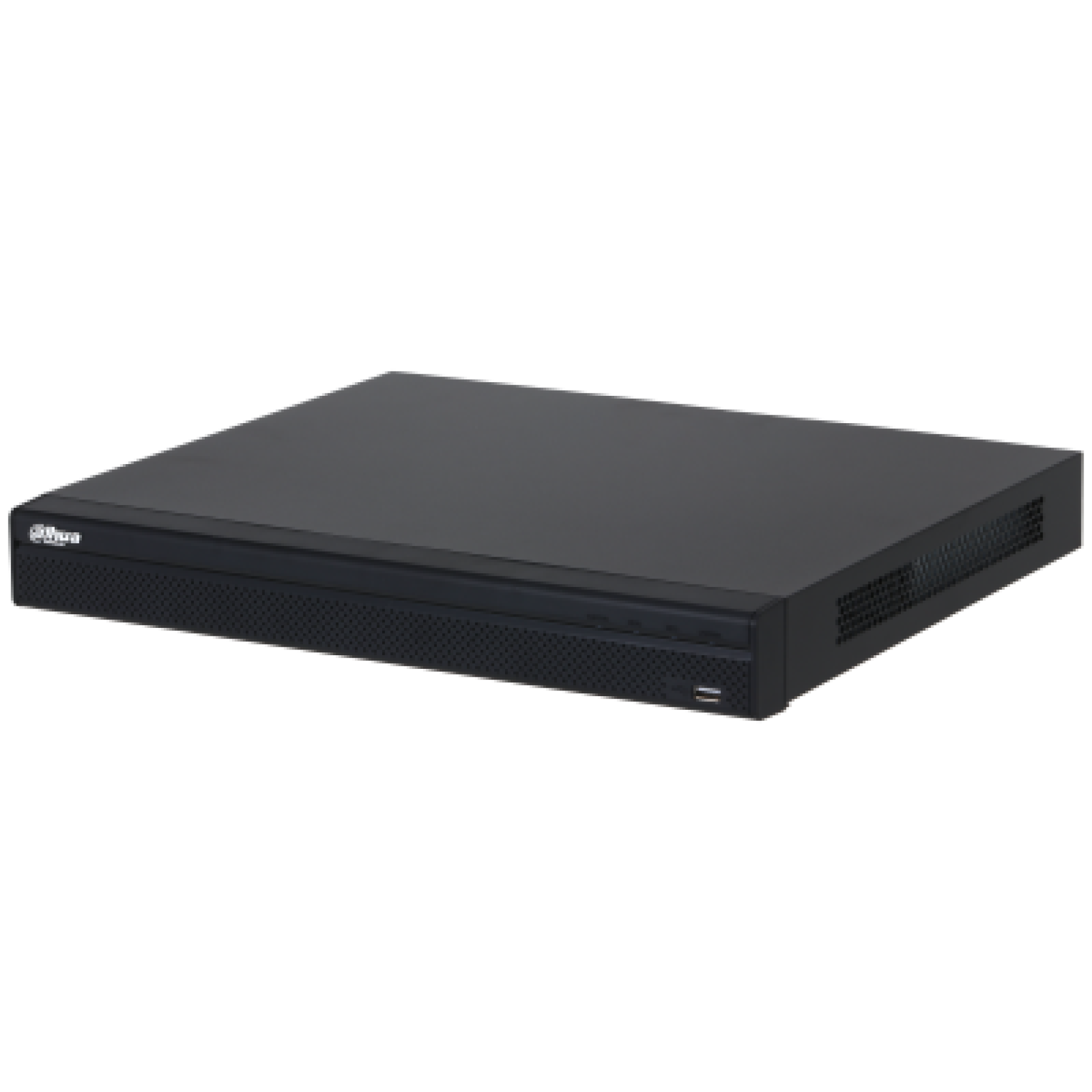

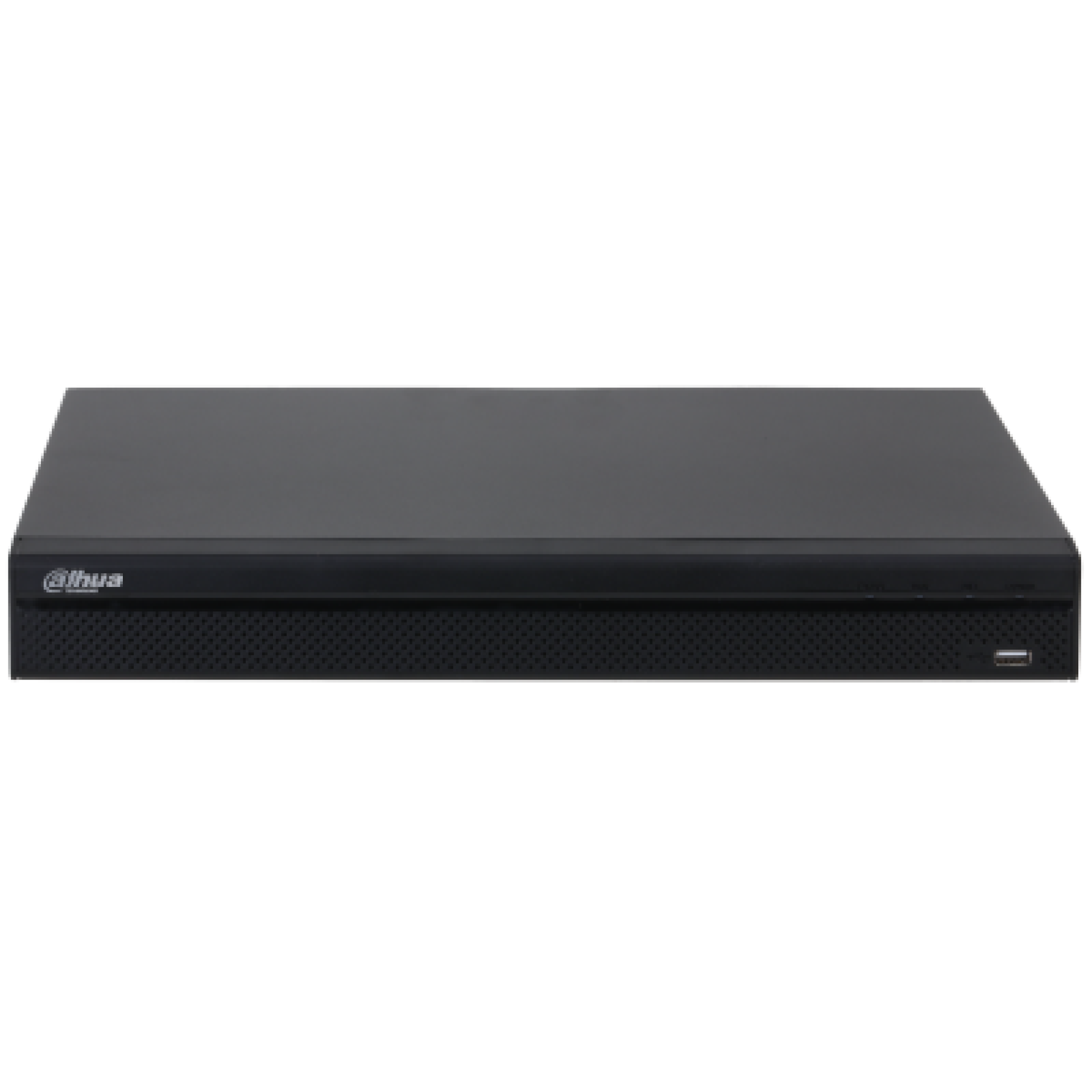

DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Overview
The DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder is a professional-grade network video recorder designed for medium to large IP surveillance systems. Powered by an industrial-grade processor and Embedded Linux operating system, it supports 16 IP camera channels with resolutions up to 12MP. The recorder features 16 integrated PoE ports, Smart H.265+ and Smart H.264+ compression, 4-channel SMD Plus, AI by Camera support including Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map, 4K HDMI output, 160Mbps incoming bandwidth, and dual SATA hard drive bays supporting up to 20TB per drive, making it ideal for commercial buildings, offices, schools, warehouses, and enterprise security deployments.
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Key Features
- 16-channel IP Network Video Recorder
- 16 integrated IEEE 802.3af/at PoE ports
- Supports IP cameras up to 12MP resolution
- Smart H.265+, H.265, Smart H.264+, H.264, and MJPEG compression
- 4-channel SMD Plus by recorder
- AI by Camera support
- Face Detection and Face Recognition
- Perimeter Protection
- People Counting, Stereo Analysis, and Heat Map support
- HDMI output up to 4K Ultra HD
- 2 SATA HDD bays supporting up to 20TB each
- ONVIF Profile S, G, and T compatibility
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Price in Kenya
| Product | Price in Kenya |
|---|---|
| DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder | KSh 25,000 – KSh 48,000 |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Specification Table
| Specification | Details |
|---|---|
| Product | Dahua NVR4216-16P-4KS3 |
| Processor | Industrial-grade Processor |
| Operating System | Embedded Linux |
| IP Camera Channels | 16 |
| PoE Ports | 16 × RJ-45 (10/100 Mbps, IEEE 802.3af/at) |
| Maximum Camera Resolution | Up to 12MP |
| Incoming Bandwidth | 160 Mbps |
| Recording Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| AI by Recorder | 4-Channel SMD Plus |
| AI by Camera | Face Detection, Face Recognition, Perimeter Protection, SMD Plus, People Counting, Stereo Analysis, Heat Map |
| Video Output | 1 HDMI, 1 VGA |
| HDMI Resolution | Up to 3840 × 2160 (4K) |
| Audio Input | 1 RCA |
| Audio Output | 1 RCA |
| Alarm Input | 4 Channels |
| Alarm Output | 2 Channels |
| Storage | 2 SATA HDDs, Up to 20TB Each |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × Gigabit RJ-45 |
| PoE Power Budget | 130W Total (25.5W Max. Per Port) |
| Power Supply | 100–240V AC |
| Operating Temperature | -10°C to +55°C |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Performance
- Supports recording from up to 16 IP cameras with resolutions up to 12MP.
- Built-in 16-port PoE switch simplifies installation by providing power and network connectivity through a single Ethernet cable.
- Smart H.265+ compression significantly reduces storage and bandwidth usage.
- 4-channel SMD Plus accurately distinguishes humans and vehicles to minimize false alarms.
- AI by Camera enables advanced analytics including Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map.
- HDMI output supports 4K Ultra HD display for detailed live viewing and playback.
- Supports simultaneous live view, recording, playback, backup, and remote management.
- Dual SATA bays support up to 40TB total storage capacity.
- Compatible with ONVIF Profile S, G, and T IP cameras.
- Designed for reliable 24/7 professional surveillance.
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Ideal Applications
- Office buildings
- Shopping malls
- Warehouses
- Schools
- Hotels
- Hospitals
- Apartment complexes
- Industrial facilities
- Commercial buildings
- Enterprise security systems

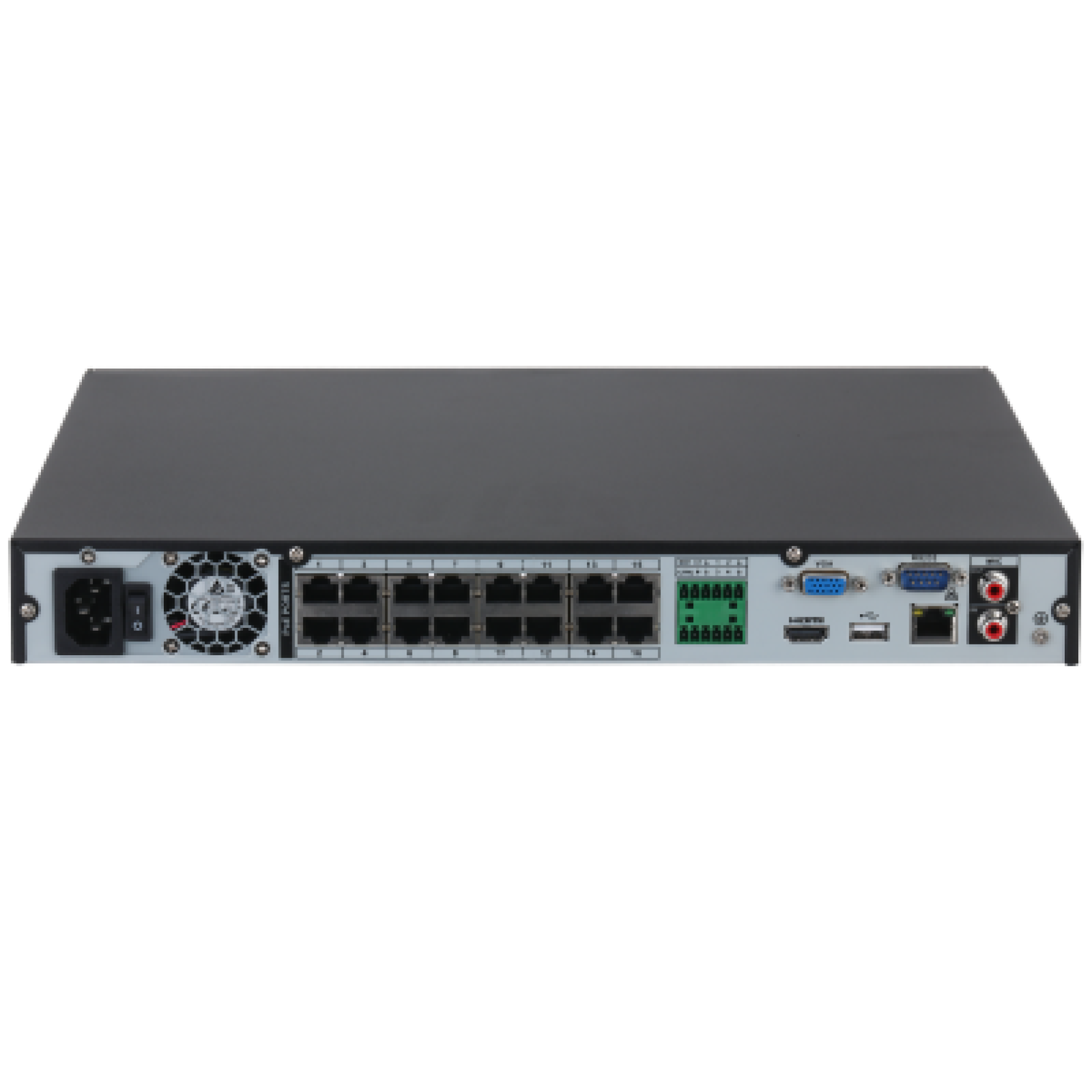

DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Design and Build
- Compact 1U rackmount chassis
- Durable metal enclosure
- Integrated 16-port PoE switch
- Front LED status indicators
- HDMI and VGA display outputs
- Front and rear USB ports
- Gigabit Ethernet connectivity
- Efficient cooling design
- Rack or desktop installation
- Built for continuous 24/7 operation
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Compatibility
- Dahua IP cameras
- ONVIF Profile S, Profile G, and Profile T cameras
- Panasonic IP cameras
- Sony IP cameras
- Axis IP cameras
- Pelco IP cameras
- Canon IP cameras
- Hanwha IP cameras
- Dahua DMSS mobile application
- Smart PSS software
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – FAQs
1. How many cameras does the recorder support?
It supports 16 IP cameras with resolutions up to 12MP and includes 16 integrated PoE ports for direct camera connectivity.
2. Does the recorder support Power over Ethernet (PoE)?
Yes. It features 16 built-in IEEE 802.3af/at PoE ports with a 130W total PoE budget and up to 25.5W per port.
3. What is the maximum storage capacity?
The recorder supports 2 SATA hard drives, with up to 20TB per drive, for a maximum storage capacity of 40TB.
4. What AI features are available?
It includes 4-channel SMD Plus by the recorder and supports Face Detection, Face Recognition, Perimeter Protection, People Counting, Stereo Analysis, and Heat Map through compatible AI cameras.
5. Can I monitor the recorder remotely?
Yes. You can remotely access live video, playback recordings, and manage the recorder using the DMSS mobile application for Android and iOS devices.
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Pros and Cons
| Pros | Cons |
|---|---|
| Built-in 16-port PoE switch | Supports only two internal hard drives |
| Supports up to 12MP IP cameras | No RAID support |
| Dual SATA bays support up to 40TB total storage | AI recorder functions limited to 4-channel SMD Plus |
| Smart H.265+ compression reduces storage usage | Suitable primarily for medium-sized deployments |
| 4K HDMI output | Advanced analytics require compatible AI cameras |
| ONVIF compatibility with third-party IP cameras | Single HDMI output |
DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder – Conclusion
The DAHUA NVR4216-16P-4KS3 16CH 1U 16PoE 2HDDs Lite Network Video Recorder is a feature-rich solution for professional IP surveillance systems. With 16 integrated PoE ports, support for 12MP cameras, 4K HDMI output, Smart H.265+ compression, 4-channel SMD Plus, AI camera integration, and up to 40TB total storage capacity, it delivers reliable performance for commercial, educational, industrial, and enterprise security applications.
